4 Setting Up and Commissioning User Manual SIPLACE CA
4.6 Installing the SWS Edition 08/2011 EN
322
4

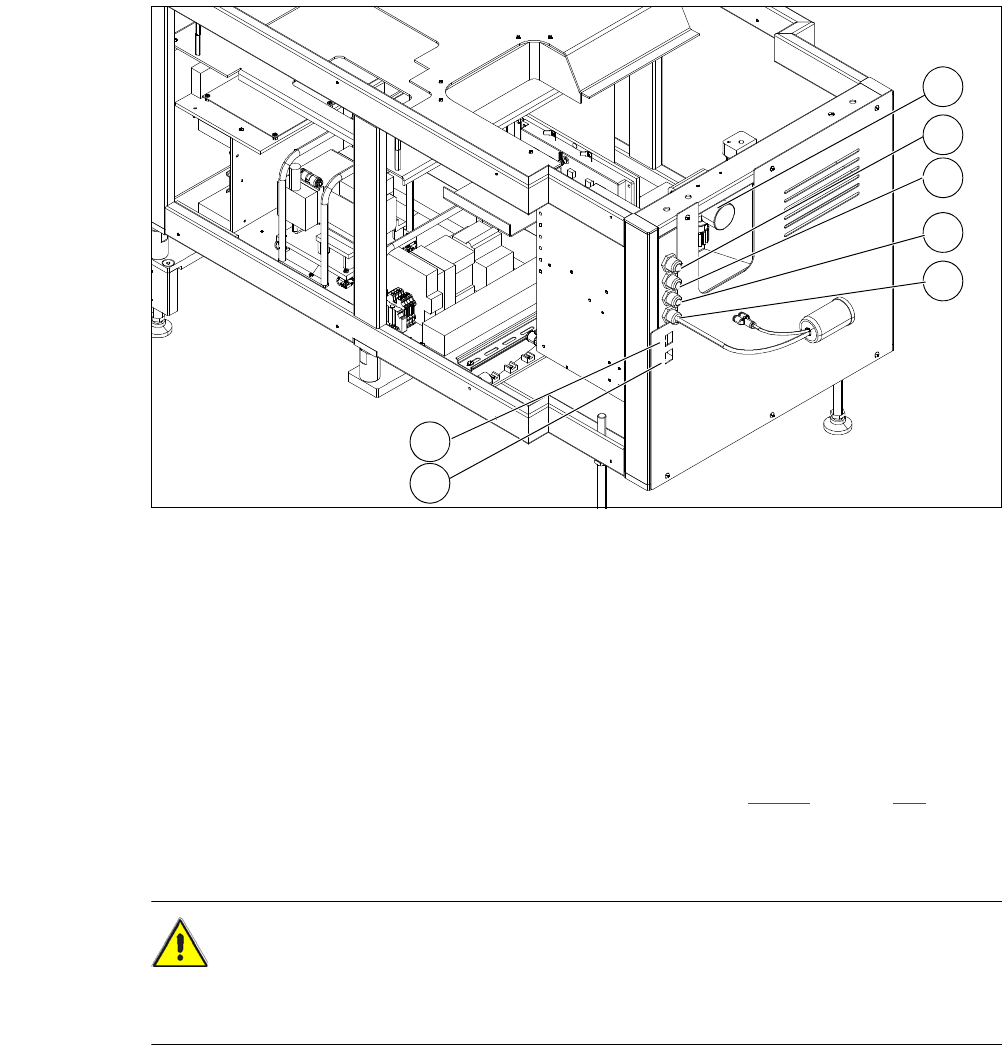

Fig. 4.6 - 1 Connections on the SWS
4
Push the forks of the fork-lift truck under the SWS (see section 4.2.4.3 on page 250).
Lift the SWS and align it to the placement machine. If the lifting range of the hand lift is not
sufficient, use wooden blocks or a similar object.
CAUTION 4
Before inserting the SWS into the machine, open the SWS monitor, so that this can not hit the
cover of the placement machine.
(1) Manometer for compressed air supply (2) Voltage supply
(3) Communication with SIPLACE machine (4) CAN bus
(5) Compressed air connection (modified
adapter dummy connector [03011592-01])
(6) LAN1
(7) LAN2
2
1
3
4
5
6
7
User Manual SIPLACE CA 4 Setting Up and Commissioning
Edition 08/2011 EN 4.6 Installing the SWS
323
Carefully push the SWS to approx. 30 cm before the bumper (see following figure) in the
placement machine (see following figure), so that you still have enough room to connect the
SWS and placement machine connections.
Fig. 4.6 - 2 Bumper
(1) Bumper
4.6.3.3 Connecting the SWS to the Placement Machine
The SWS connections need to be connected as follows to the placement machine:
– CAN Bus connections X1x6 and X1x5
– Compressed air connection to compressed air connection
– FFI communication interface W11 to FFI communication interface X1x3
1
4 Setting Up and Commissioning User Manual SIPLACE CA
4.6 Installing the SWS Edition 08/2011 EN
324
Fig. 4.6 - 3 Position of the connections on the placement machine
(1) CAN Bus connection X1x5
(2) CAN Bus connection X1x6
(3) Compressed air connection (modified dummy connector [03011592-01])
(4) FFI communication connection X1x3
Note: 4
Connect the SWS to the placement machine before performing alignment and final adjustment,
as the connection points will no longer be accessible after installation.
1
2
3
4
