User Manual SIPLACE CA 5 Tasks on the Machine Edition 08/2011 EN 5.2 T asks on the SWS 341 5 Fig. 5.2 - 4 Calibration standard for die-ejector  Insert the needle unit into the calibration st andard for the die-ejector (…

5 Tasks on the Machine User Manual SIPLACE CA

5.2 Tasks on the SWS Edition 08/2011 EN

340

5.2.5.1 Adjust Needles with Calibration Standard 03080191-xx

Equipment

– Needles as spare parts

– Calibration standard for the die-ejector (03080191-xx)

With the help of the calibration standard for the die ejector all needles are adjusted into

a defined height and common level. 5

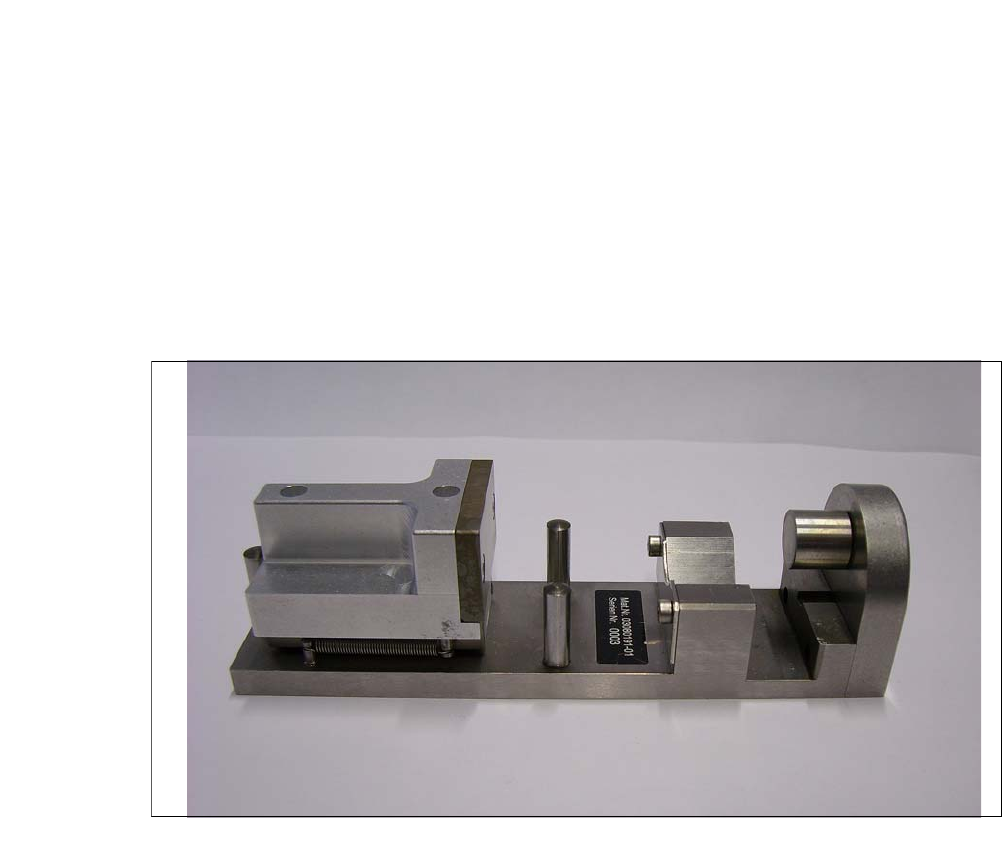

Fig. 5.2 - 3 Calibration standard for die-ejector - Item number 03080191-xx

User Manual SIPLACE CA 5 Tasks on the Machine

Edition 08/2011 EN 5.2 Tasks on the SWS

341

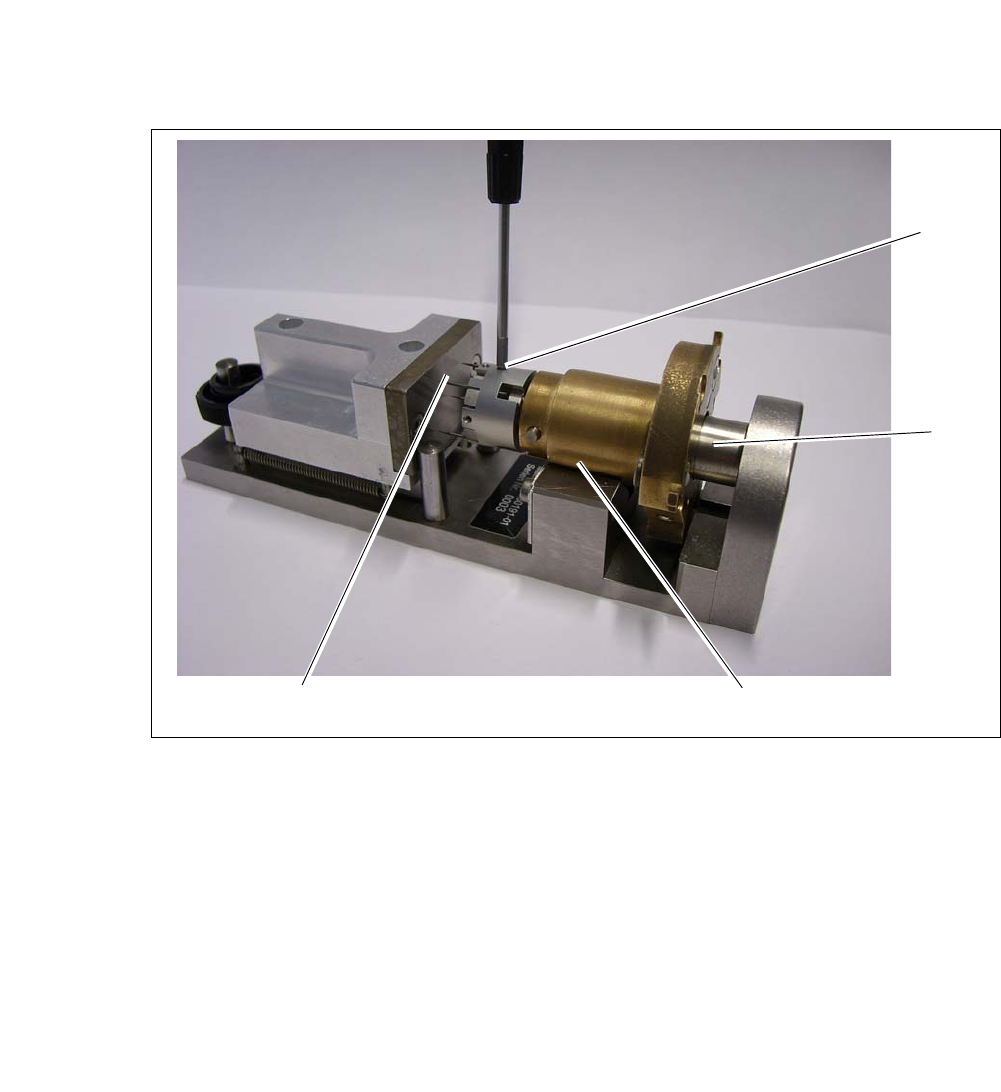

Fig. 5.2 - 4 Calibration standard for die-ejector

 Insert the needle unit into the calibration standard for the die-ejector (1). During that the cen-

tering bolt (5) is inserted into the opening on the underside of the ejection unit.

 Draw back the ejection unit until it lies fully in the prism. After releasing the crank at the ejec-

tion unit should now be pressed into a defined position against the limiter plate.

 Move the alignment plate (2) towards the not clamped needles.

 Move the alignment plate as far as the stop against the bolts, so the needles are adjusted by

the plate in one defined height.

 Carefully screw in the grub screws (3) (approx. 10Ncm).

 Make sure that no needles slipped. In case loosen the screws again and repeat the process.

5 Tasks on the Machine User Manual SIPLACE CA

5.2 Tasks on the SWS Edition 08/2011 EN

342

5.2.6 Checking and Fitting Tools and Nozzles to the Flip Unit

 Switch off the placement machine and the SWS properly.

 Open the protective cover above the SWS.

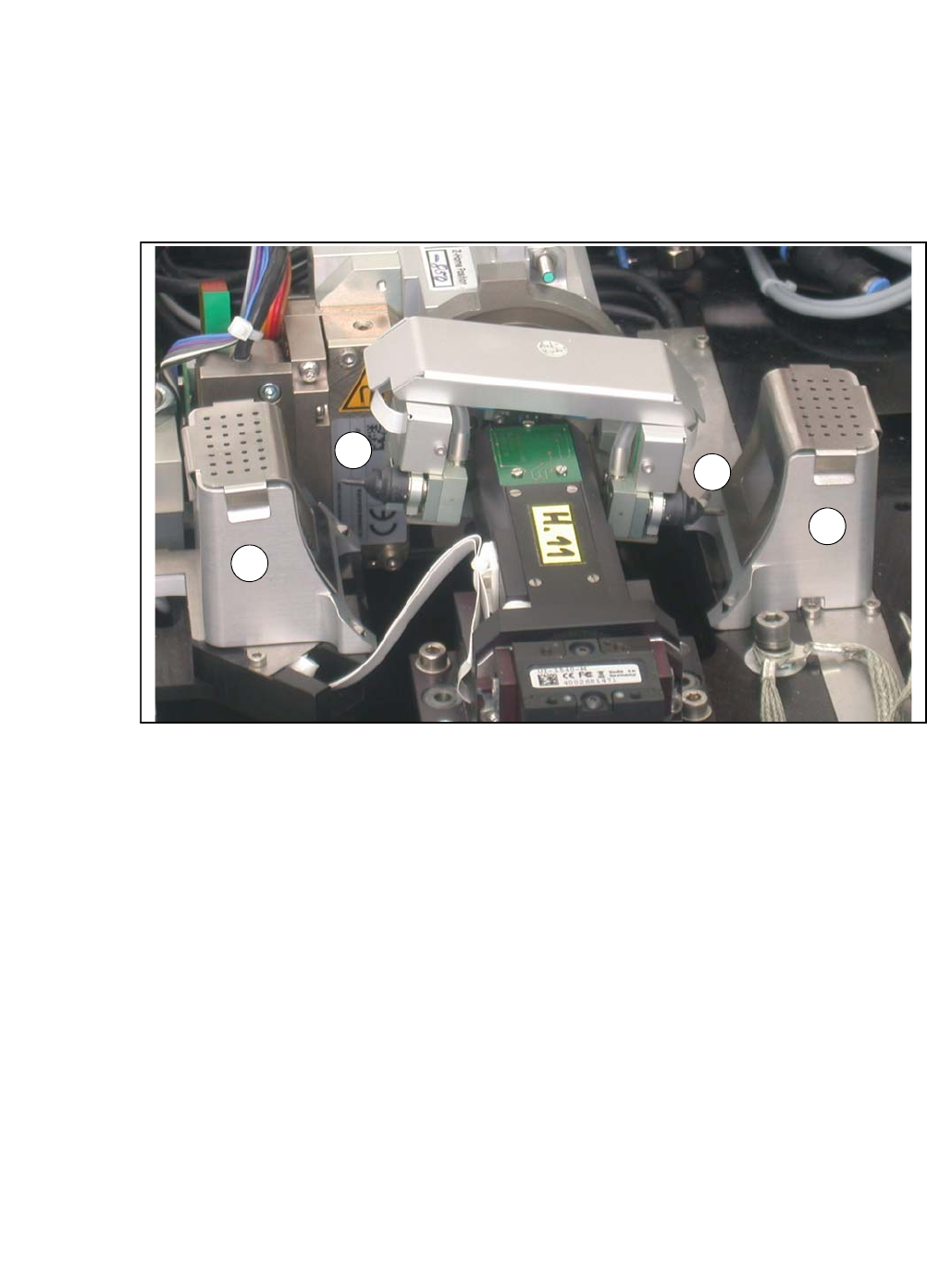

Fig. 5.2 - 5 Flip unit with nozzles and reject bins

Legend

 Check the state and type of the nozzles and tools on the flip unit. If necessary, replace them

with new ones or those appropriate for the product.

You can either use the standard nozzles of the SIPLACE placement machines or rubber tips

together with an appropriate adapter.

 Proceed with checking the reject bins.

5.2.7 Checking the Reject Bins of the Flip Unit

 Check and empty the reject bins of the flip unit (item 2 in fig. 5.2 - 5).

 When replacing the reject bins make sure that the underlying surface is clean and that the bin

is seated correctly in its fixation. Otherwise they are not recognized by the sensors.

 Close the protective cover above the SWS.

 Switch the SWS and the placement machine on.

(1) Nozzle segment 1 (2) Nozzle segment 2

(3) Reject bin
