6 Component and Die Handling User Manual SIPLACE CA
6.1 X Feeder Modules for the Component Trolley from the SIPLACE X Series Edition 08/2011 EN
390
6.1.2.7 56 mm X Tape Feeder Module
6

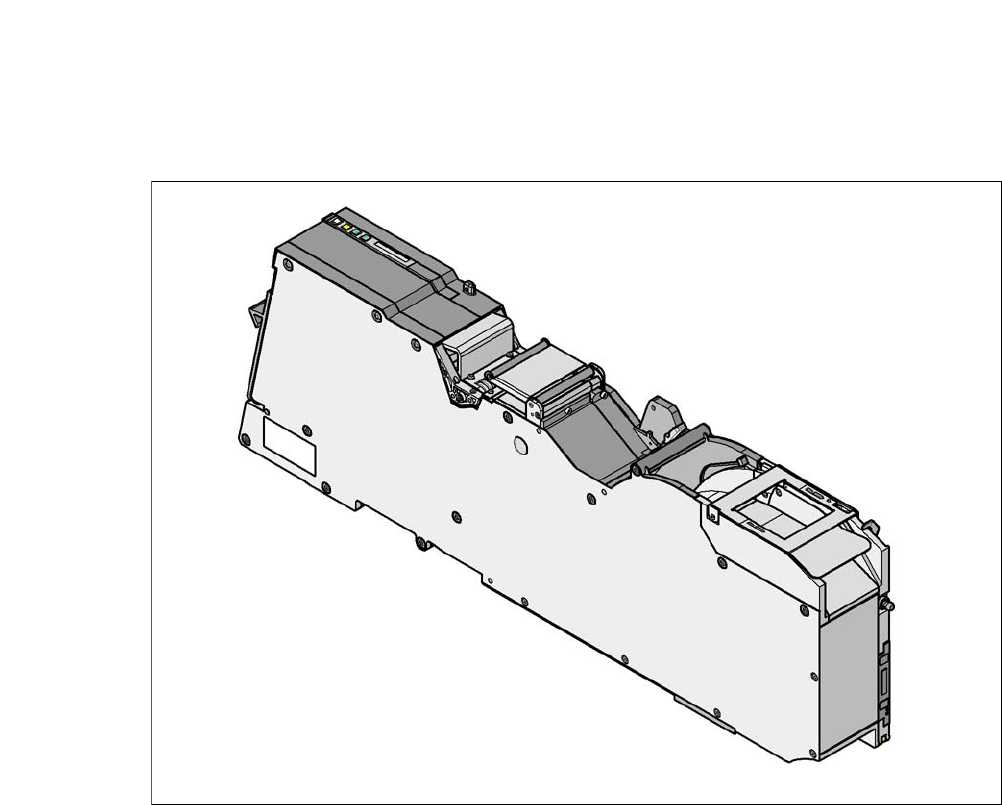

Fig. 6.1 - 11 56 mm X tape feeder module
6
6
6
56 mm X tape feeder module [00141276-xx]
56 mm X tape feeder module with splice sensor [00141296-xx]
Width 69,8
Feeder module locations filled 6
Conveyor increment From 4 mm to 64 mm in 4 mm increments
Changeover time for the component tape < 45 s
Changeover time for the pre-set feeder module
on the machine
< 15 s
User Manual SIPLACE CA 6 Component and Die Handling
Edition 08/2011 EN 6.1 X Feeder Modules for the Component Trolley from the SIPLACE X Series
391
6.1.2.8 72 mm X Tape Feeder Module
6

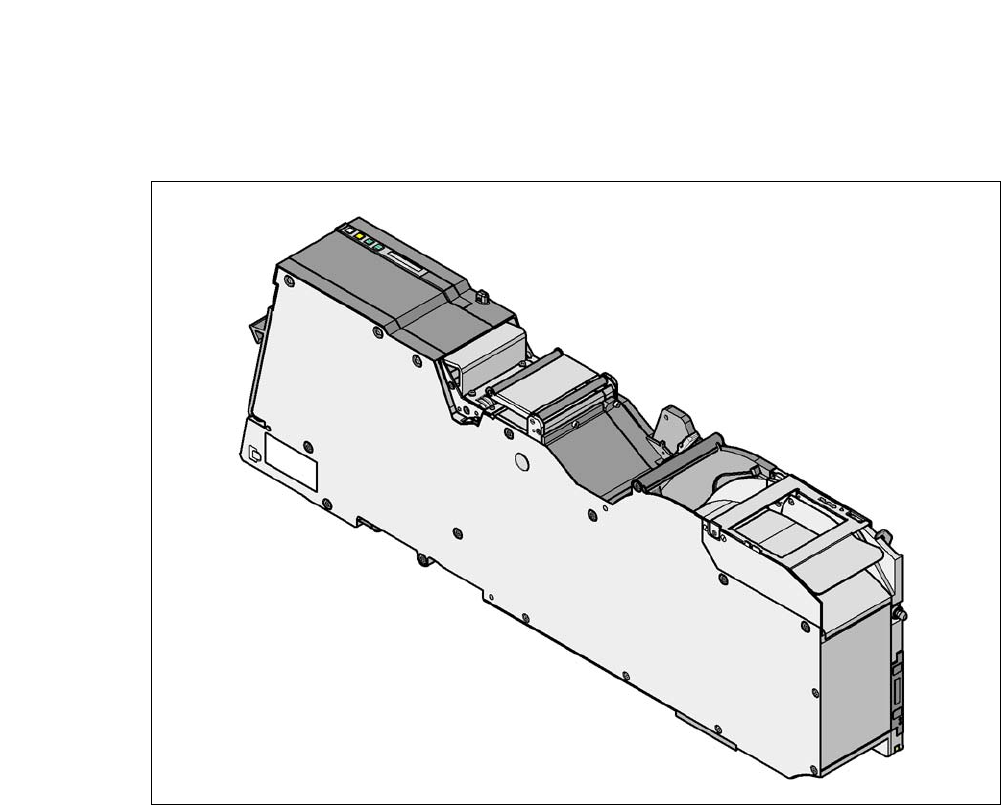

Fig. 6.1 - 12 72 mm X tape feeder module
6
6
6
72 mm X tape feeder module [00141277-xx]
72 mm X tape feeder module with splice sensor [00141297-xx]
Width 81,6
Feeder module locations filled 7
Conveyor increment From 4 mm to 80 mm in 4 mm increments
Changeover time for the component tape < 45 s
Changeover time for the pre-set feeder module
on the machine
< 15 s
6 Component and Die Handling User Manual SIPLACE CA
6.1 X Feeder Modules for the Component Trolley from the SIPLACE X Series Edition 08/2011 EN
392
6.1.2.9 88 mm X Tape Feeder Module
6
Fig. 6.1 - 13 88 mm X tape feeder module
6
6
6
88 mm X tape feeder module [00141278-xx]
88 mm X tape feeder module with splice sensor [00141298-xx]
Width 105.2 mm
Feeder module locations filled 9
Conveyor increment From 4 mm to 96 mm in 4 mm increments
Changeover time for the component tape < 45 s
Changeover time for the pre-set feeder module
on the machine
< 15 s
