6.1.3 Feeder Module Adapter for the X-Series

[00141305-xx] Adapter for X series feeders

[00141310-xx] Adapter plate for Siemens label presenter

The spectrum of X tape feeders has been extended to include linear vibration feeders and label

presenters. With an adapter you can convert S linear feeders and label presenters into ones suit-

able for use with the X series component trolley. The adapter performs electronic as well as me-

chanical functions: it converts the communication signals from the S feeder into signals

conforming to the extended X-series protocol. Additional functions, such as feeder module iden-

tification, have also been implemented.

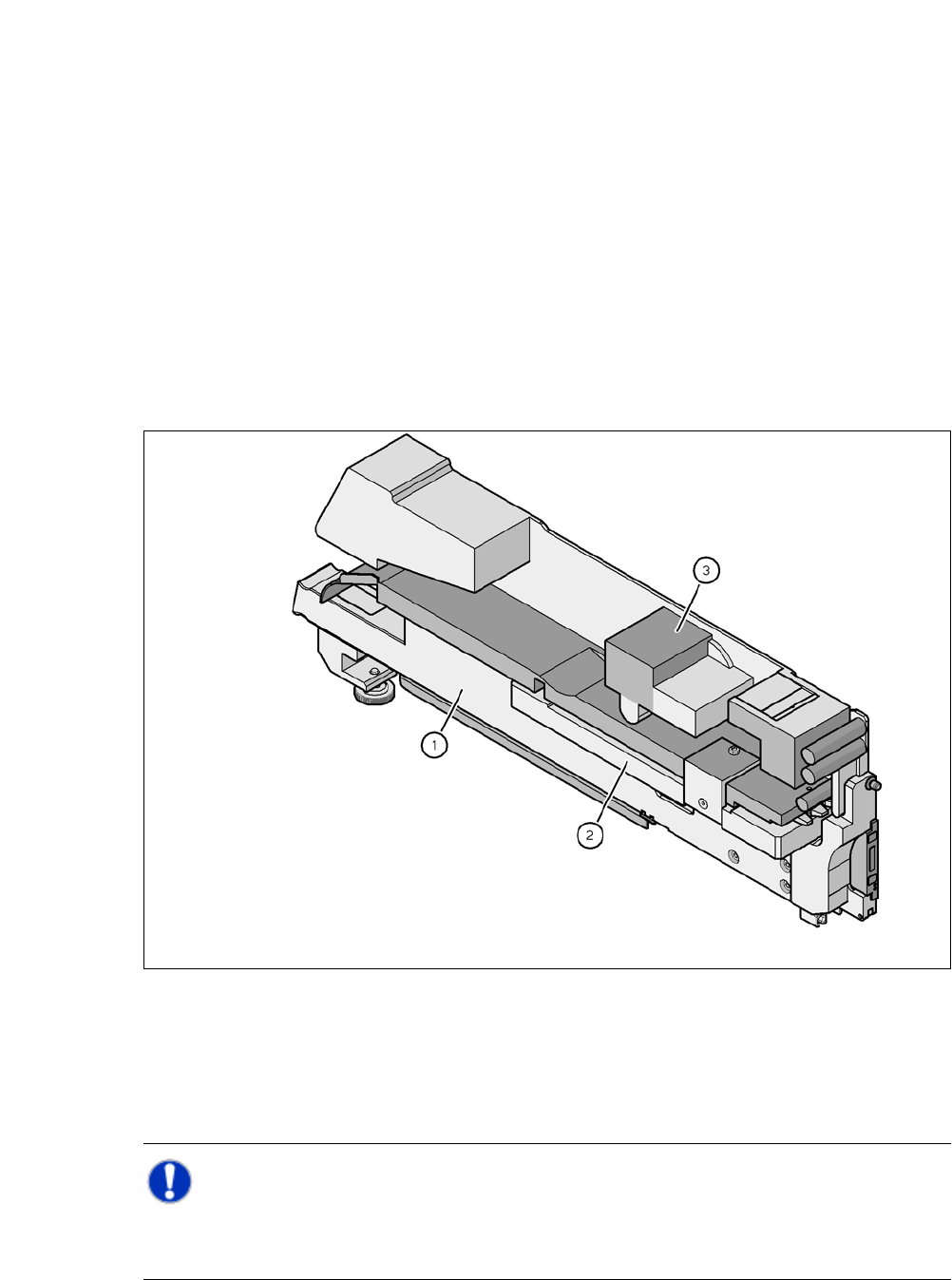

Fig. 6.1 - 14 Feeder module adapter for the X-series with label presenter module

(1) Feeder module adapter

(2) Adapter plate for label presenter

(3) Label presenter

NOTE 6

S linear feeders and label presenters can not be configured at the component trolley, if this is in

the accessible range of a 20 segment Collect&Place CA head.

6 Component and Die Handling User Manual SIPLACE CA

6.1 X Feeder Modules for the Component Trolley from the SIPLACE X Series Edition 08/2011 EN

394

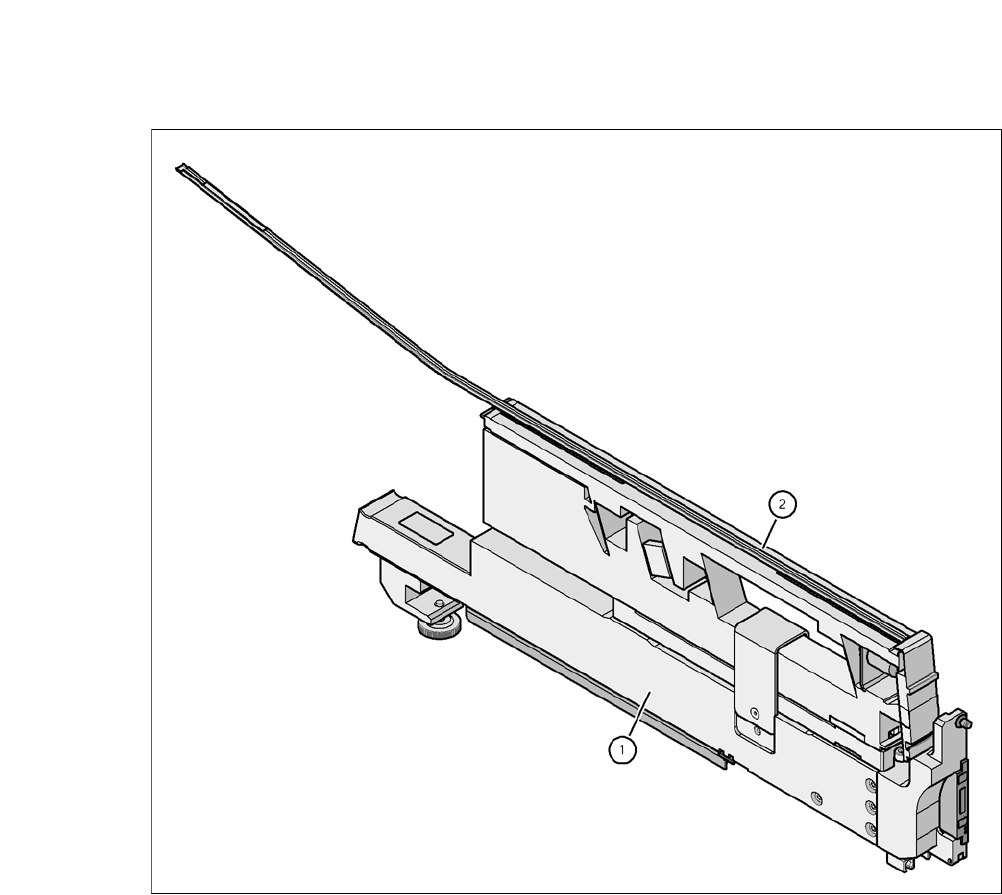

Fig. 6.1 - 15 Feeder module adapter for the X-series with label presenter module

(1) Feeder module adapter

(2) Linear vibratory feeder

An adapter plate is supplied as standard with the adapter for X-series feeder modules:

– The adapter plate should be used for component heights up to 16.5 mm.

– Component heights between 16.5 mm and 25 mm are processed without an adapter

plate.

User Manual SIPLACE CA 6 Component and Die Handling

Edition 08/2011 EN 6.1 X Feeder Modules for the Component Trolley from the SIPLACE X Series

395

6.1.4 Energy- and Data Interface for the X-Feeder Modules

[00141247-xx] Energy and data interface for X feeders

Fig. 6.1 - 16 Energy- and data interface for the X-feeder modules

(1) Release button for locking latch

(2) Operating panel

(3) Data cable

(4) Power supply cable

(5) Electronic housing

(6) Fold-out feet

(7) Omega profile for feeder guidance

(8) Locking latch

(9) Hole for front centering pin of feeder

(10)Base plate

(11) Reel holder
