6.2 Component Trolley, SIPLACE X-Series
[00119722-xx] Component trolley for SIPLACE X series
Up to three SIPLACE X series component trolleys can be docked onto the SIPLACE CA series
machines. The locations are numbered. The following diagram shows the CA4 with an SWS at
location 2 as an example.
6

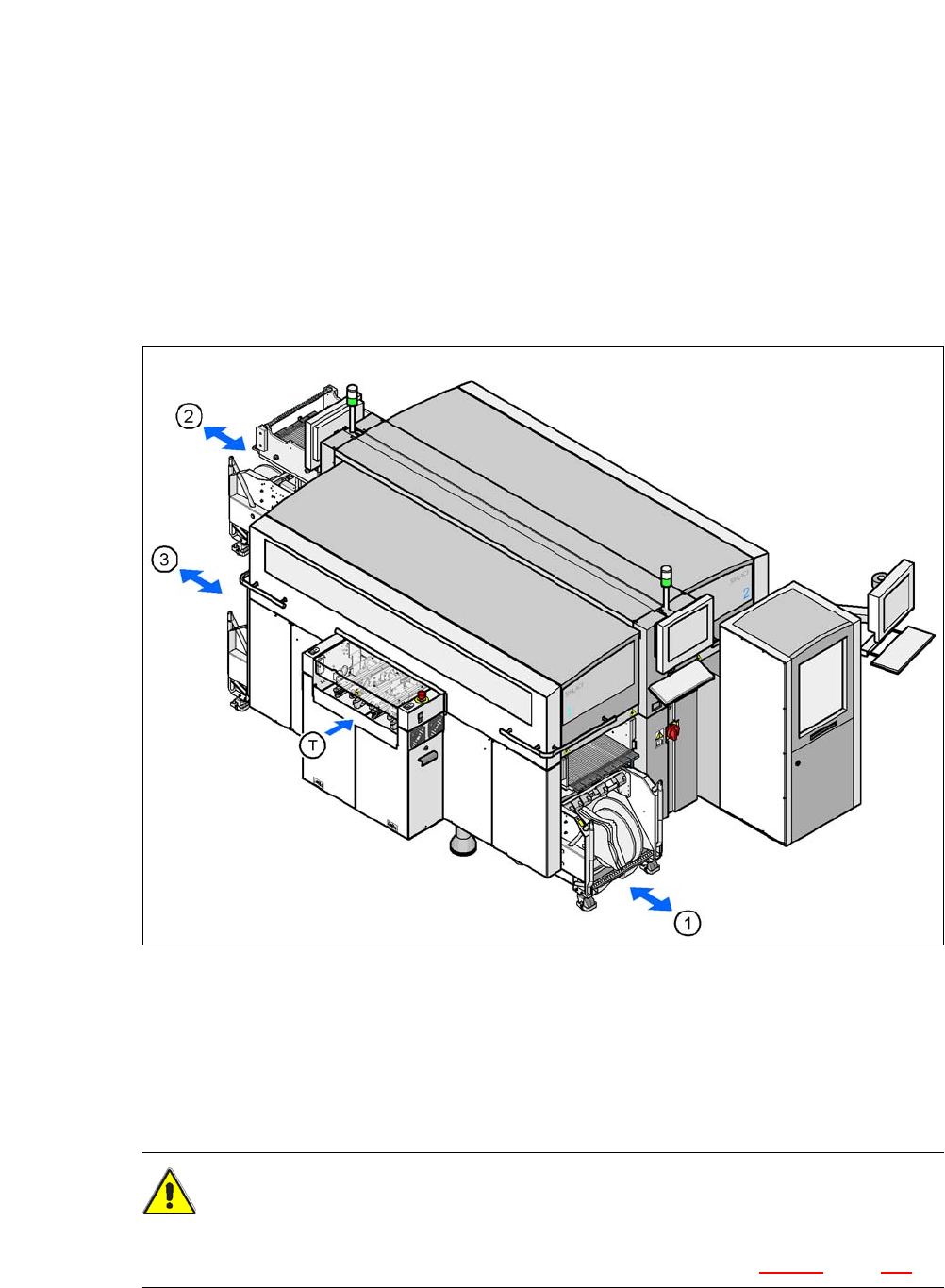

Fig. 6.2 - 1 Component trolley locations, SIPLACE X-series - example showing an SWS at location 2
(1) Location 1
(2) Location 3
(3) Location 4
(T) PCB direction of travel
CAUTION 6
The component trolleys of the SIPLACE X series may only be docked onto locations which are
equipped with the SIPLACE X series component trolley docking units (fig. 5.12 - 3, page 370).
6 Component and Die Handling User Manual SIPLACE CA
6.2 Component Trolley, SIPLACE X-Series Edition 08/2011 EN
402
The component trolleys are independent modules, which can be set up with feeder modules at an
external set up location. This means that the production process only has to be interrupted briefly
in order to change the component trolley.
6
Fig. 6.2 - 2 Component trolley, SIPLACE X-series with a PCB conveyor height of 950 mm
6
(1) Holes for the PCB conveyor heights 900, 930 and 950 mm in the guide columns. For the
830 mm conveyor height, the component table lies on the block (2).
(2) Supporting block
(3) Component table
(4) Reed switch for switching the safety switch in the component trolley docking unit
User Manual SIPLACE CA 6 Component and Die Handling
Edition 08/2011 EN 6.2 Component Trolley, SIPLACE X-Series
403
6.2.1 Structure of the Component Trolley SIPLACE X Series
The component trolley essentially consists of the chassis, the component table for holding the
feeder modules, the tape reel container and the waste tape bin.
6
Fig. 6.2 - 3 Component trolley, SIPLACE X-series, front and back view
(1) Chassis
(2) Component table
(3) Tape container
(4) Gap for setup lists
(5) Waste bin for unused tape
(6) Handle
(7) Hand guard
CAUTION 6
Observe the safety instructions in section 2.6.8
, page 75, when you pull the tape reject bin out of
the component trolley.
Assemblies 6
The tape reel container (item 3 in fig. 6.2 - 3) can accommodate tape reels up to a size of 17" (432
mm), in its standard version.
