6 Component and Die Handling User Manual SIPLACE CA 6.2 Component Trolley, SIPLACE X-Series Edition 08/2011 EN 408 6 Fig. 6.2 - 7 Component table, SIPLACE X-series, front view (1) Locking la tches (2) Centering pi n on t…
User Manual SIPLACE CA 6 Component and Die Handling
Edition 08/2011 EN 6.2 Component Trolley, SIPLACE X-Series
407
6.2.5 Component Table SIPLACE X-Series
The feeders are positioned with their front guiding slides onto the insertion aid (item 1 in fig. 6.2 -
6). When pushed inwards, the feeder slides with its guidances (item 12 and 13 in fig. 6.1 - 2) on
the guide profile (item 2 in fig. 6.2 - 6
) up to the stop bar (item 4 in fig. 6.2 - 6). A centering hole
(item 5 in fig. 6.2 - 6
) on the stop bar accommodates the front centering pin (item 4 in fig. 6.1 - 1)
of the X feeder. At the same time, the locking latch (item 1 in fig. 6.2 - 7
) of the changeover table
engages into the locking roller (item 1 in fig. 6.1 - 1
) of the feeder. The back centering pin (item 12
in fig. 6.1 - 1
) on the top of the feeder is accommodated by the recess in the centering bar (item
3 in fig. 6.2 - 6
).
6

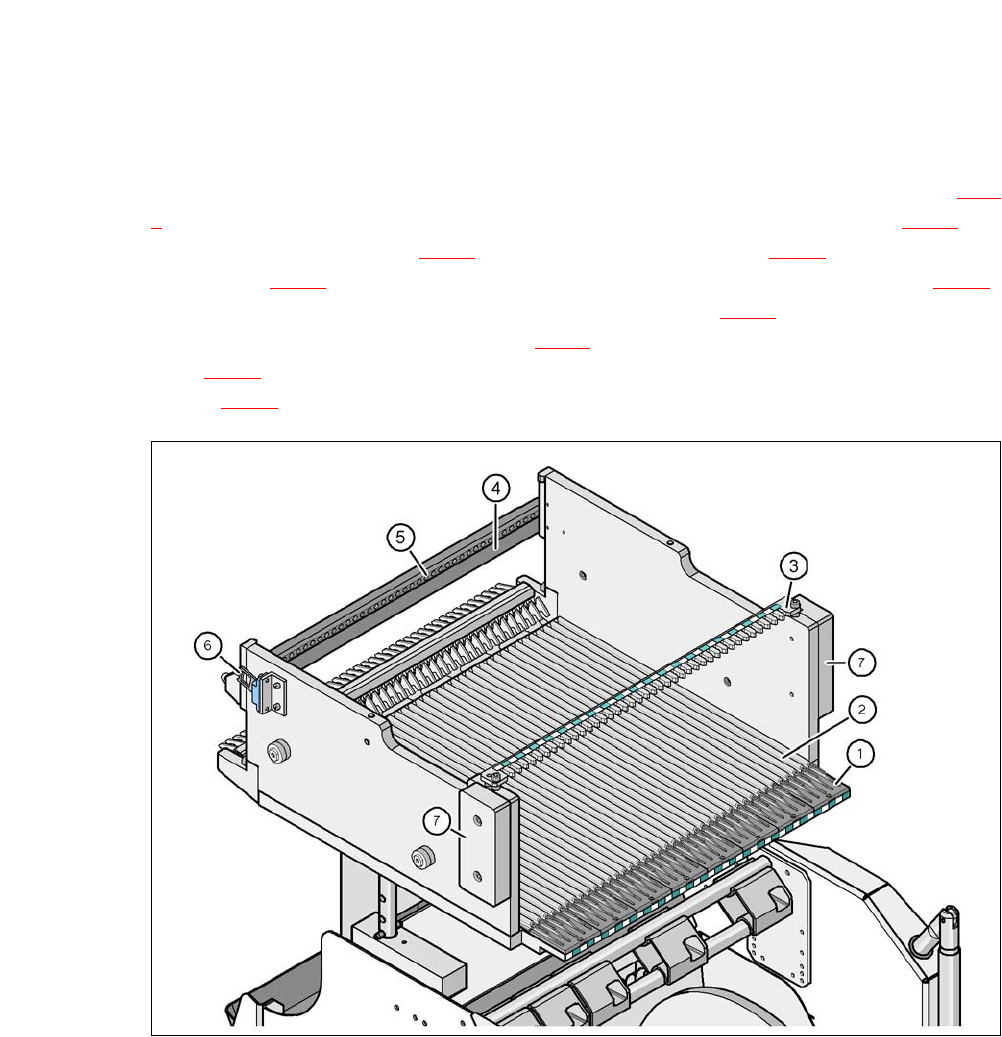

Fig. 6.2 - 6 Component table, SIPLACE X-series, back view
(1) Insertion aid
(2) Guide profile ( profile)
(3) Centering bar for holding the "back" centering pin for X feeder modules
(4) Stop bar
(5) Centering holes
(6) Reed switch for the safety switch of the EMERGENCY STOP circuit
(7) Hand guard
6 Component and Die Handling User Manual SIPLACE CA
6.2 Component Trolley, SIPLACE X-Series Edition 08/2011 EN
408
6
Fig. 6.2 - 7 Component table, SIPLACE X-series, front view
(1) Locking latches
(2) Centering pin on the component table
(3) Compressed air coupling
(4) Grounding pin
(5) Centering hole on the component table
User Manual SIPLACE CA 6 Component and Die Handling
Edition 08/2011 EN 6.2 Component Trolley, SIPLACE X-Series
409
6.2.6 Mount for Additional Tape Reel (X-Series)
6
Fig. 6.2 - 8 Mount for additional Tape Reel (X-Series)
(1) Mount for additional tape reel [00141217-xx]
(2) Mounting device for the support
X-series feeder modules can process component tapes without problems if the lateral offset be-
tween the feeder module and the tape reel does not exceed 60 mm. If a predefined setup means
that the maximum permitted offset cannot be maintained, we recommend that you use the mount
for an additional tape reel (item 1). Simply insert the mount into the holder (item 2) and push it until
the offset is less than the maximum permitted value of 60 mm. The component trolley has 5 hold-
ers in total. Each tape reel mount can hold 2 tape reels, which means that up to ten 15" (381 mm)
reels can be positioned above the tape container.
Max. 60 mm
