6 Component and Die Handling User Manual SIPLACE CA 6.4 Used Tape Cannel - CO Trolley Docking Unit, SIPLACE X-Series Edition 08/2011 EN 414 6.4.2 Dismantling the Partition Plat e for T ape Pocket Height s > 12 mm If y…
User Manual SIPLACE CA 6 Component and Die Handling
Edition 08/2011 EN 6.4 Used Tape Cannel - CO Trolley Docking Unit, SIPLACE X-Series
413
6.4 Used Tape Cannel - CO Trolley Docking Unit,
SIPLACE X-Series
6.4.1 Partition Plate for Tape Pocket Heights up to 12 mm
In the standard version, the used tape channel can guide component tapes with a maximum
pocket height of 12 mm to the pneumatic tape cutter.
6
Fig. 6.4 - 1 Used tape channel, SIPLACE X-series
(1) Inlet slot for used tape
(2) Outlet slot for the used tape above the pneumatic tape cutter
(3) Dividing plate for tapes < 12 mm (can be removed for tapes > 12 mm)
(4) DIN 93384 screw - M4x20, 2x
6 Component and Die Handling User Manual SIPLACE CA
6.4 Used Tape Cannel - CO Trolley Docking Unit, SIPLACE X-Series Edition 08/2011 EN
414
6.4.2 Dismantling the Partition Plate for Tape Pocket Heights > 12 mm
If you use X feeder modules which process tape with a pocket height of > 12 mm, you will need
to remove the partition plate (item 3 in fig. 6.4 - 1
).
WARNING 6
Switch the placement machine off at the main switch to remove the dividing plate.
Disconnect the machine from the power and compressed air supply.
Secure the machine to prevent unauthorized reactivation, as described in section 2.12, page
111
.
Wait until the operating pressure for the tape cutter has dropped to 0 MPa.
Do not reach inside the used tape channel.
Loosen the two hexagonal screws (item 4 in fig. 6.4 - 1)
Pull out the dividing plate.
NOTE
Do not position feeder modules with shallow pockets immediately beside feeder modules with
deep pockets. The used tapes could overlap and build up.
6
User Manual SIPLACE CA 6 Component and Die Handling
Edition 08/2011 EN 6.5 Docking Station for SIPLACE X Series Component Trolley
415
6.5 Docking Station for SIPLACE X Series Component
Trolley
[00116933-xx] Docking station for SIPLACE X component trolley
6.5.1 Overview
The docking station is an additional component the setup area. It forms the link between the setup
area and the component trolley for the SIPLACE X-series. The docking station allows the compo-
nent trolleys to be set up with feeder modules and function tests and setup checks to be carried
out externally.
6

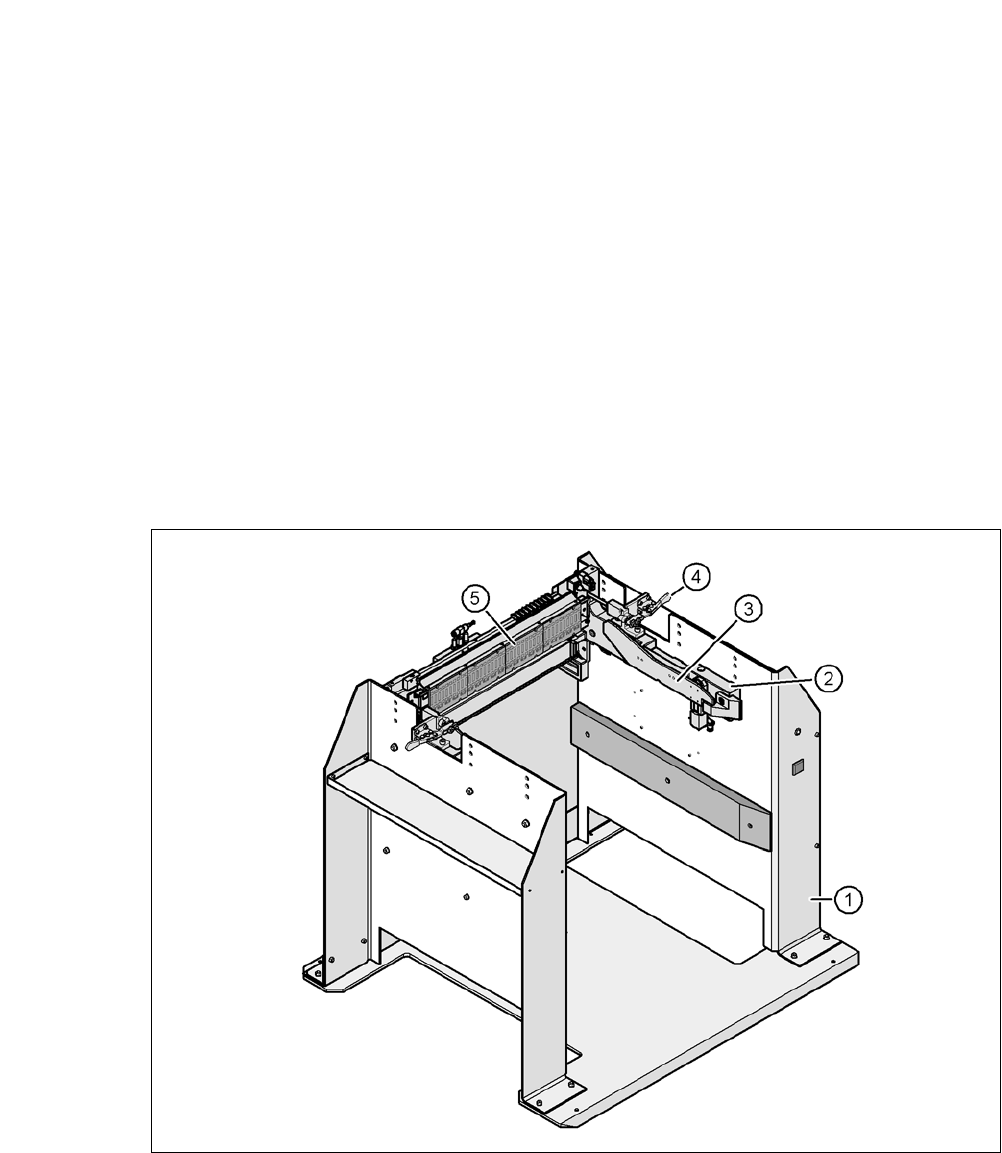

Fig. 6.5 - 1 Docking station, SIPLACE X-series
(1) Docking station
(2) X-series component trolley docking unit
(3) Rails for guiding and docking in the component table
(4) Horizontal tensioners for locking the component trolley
(5) EDIF (energy and data interface)
