User Manual SIPLACE CA 2 Operational Safety
Edition 08/2011 EN 2.2 Warning Labels on the Placement Machine
41
2.2 Warning Labels on the Placement Machine
2.2.1 Warning Labels W201, W203, W204 and W210 on the Placement Machine
The warning labels are made from soft PVC film, and are abrasion-proof, light-fast and resistant
to water and weathering. Their design meets the requirements of ISO 3864-2 and ANSI Z535.4.

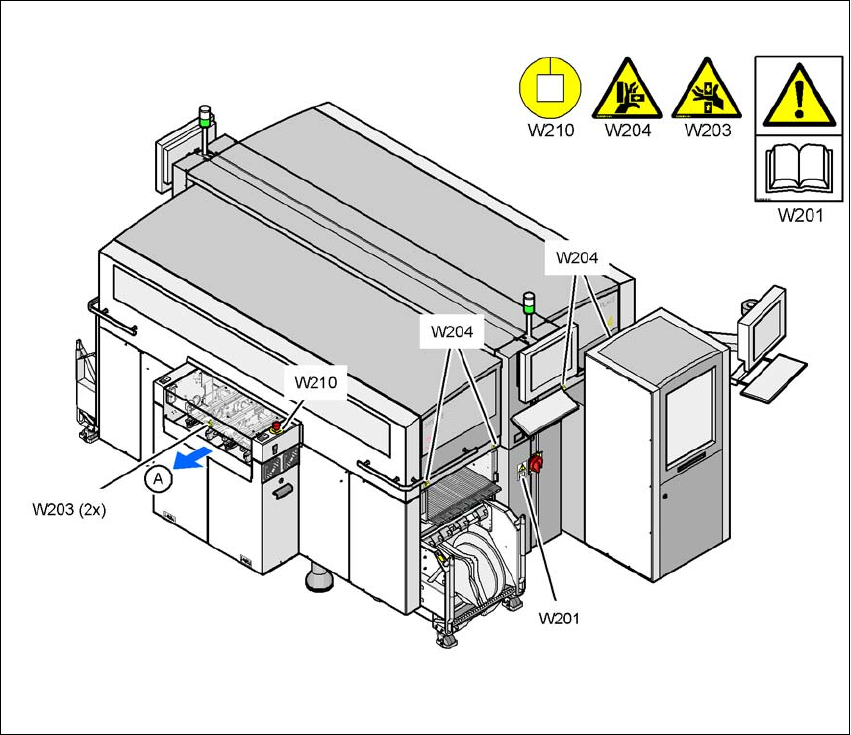

Fig. 2.2 - 1 Warning labels W201, W203, W204 and W210 on the placement system - part 1
Item W201 [03009338-01]
Item W203 [03009342-01]
Item W204 [03009343-01]
Item W210 [03009350-01]
(T) PCB direction of travel
2 Operational Safety User Manual SIPLACE CA
2.2 Warning Labels on the Placement Machine Edition 08/2011 EN
42

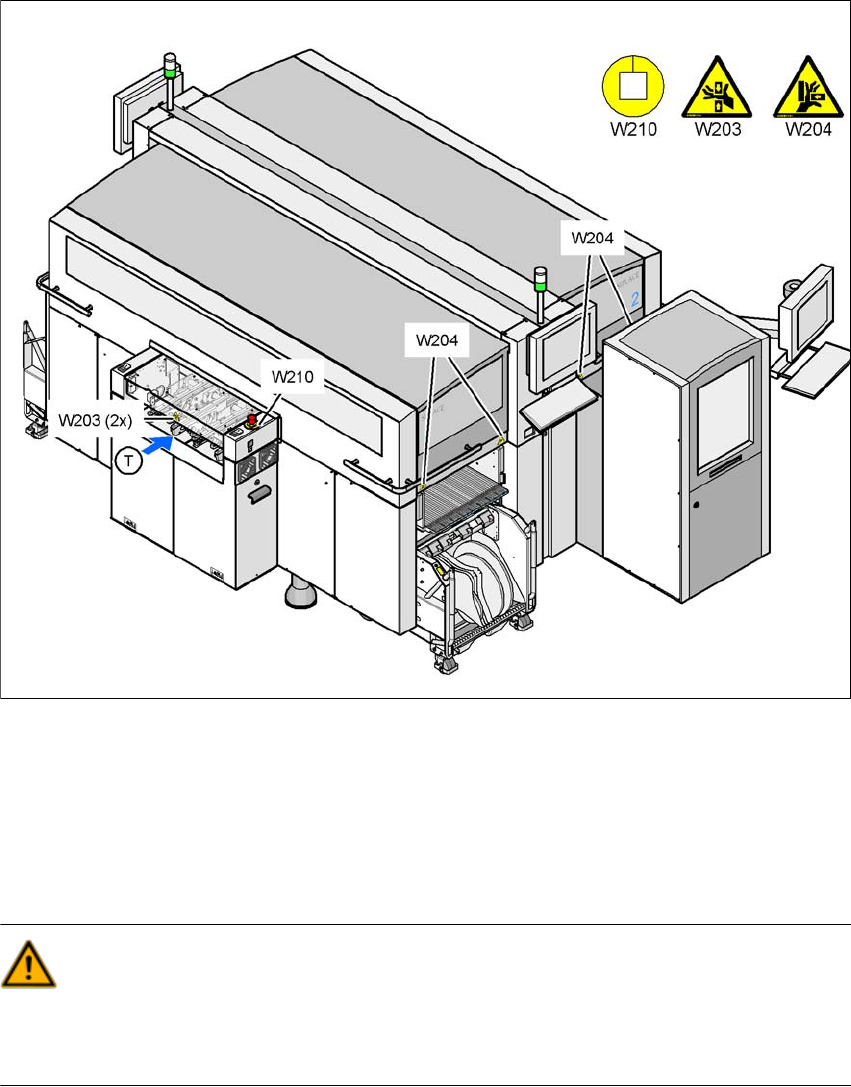

Fig. 2.2 - 2 Warning labels W203, W204 and W210 on the placement system - part 2
Item W203 [03009342-01]
Item W204 [03009343-01]
Item W210 [03009350-01]
(T) PCB direction of travel
WARNING 2
– Do not use abrasive cleaners or solvents for cleaning warning labels.
– Replace any damaged or illegible warning labels.
User Manual SIPLACE CA 2 Operational Safety
Edition 08/2011 EN 2.2 Warning Labels on the Placement Machine
43
2.2.1.1 Warning Label W201
2
Item W201 in fig. 2.2 - 1 [03009338-01] (number per machine: 1)
2.2.1.2 Warning Label W203
2
Item W203 in the fig. 2.2 - 1 and 2.2 - 2 [03009342-01] (number per machine: 4)
2.2.1.3 Warning Label W204
2
Item W204 in fig. 2.2 - 1 and 2.2 - 2 [03009343-01] (number per machine: 8)
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
SAFE OPERATION OF THE MACHINE
Safe operation of the machine depends absolutely on
the operator being familiar with the user manual and
safety instructions and putting them into effect.
2
2
2
DANGER OF CRUSHING!
Reaching in here can lead to injuries to the arms
and hands.
Do not reach into the running machine
2
2
2
DANGER OF CRUSHING!
Reaching in here can lead to injuries to the arms
and hands.
Do not reach into the running machine
