7.1.2 Nozzle Changer for the 20 Segment Collect&Place CA Head
7
Fig. 7.1 - 3 Nozzle changer for the 20 segment Collect&Place CA head
This nozzle changer can hold up to 6 magazines, each with 12 nozzle holders. The magazines
are seated on a common support. They are centered using two parallel pins and fixed in place with
4 snap fasteners.
Microswitches monitor whether the magazines are seated correctly on the body of the nozzle
changer in order to prevent the placement head colliding with a protruding magazine. All maga-
zine locations must be filled since the safety circuit stops the machine in response to missing mag-
azines or magazines that are not seated correctly.
7 Station Enlargements User Manual SIPLACE CA
7.1 Nozzle Changer Edition 08/2011 EN
428
7.1.2.1 Position of Nozzle Changer for C&P20 Head in CA4 Machines
Locations 1, 2, 3 and 4 can accommodate up to 2 nozzle changers for the 20 segment Collect&
Place head (item 1 and 2 in fig. 7.1 - 4
). This gives a total capacity of 8 nozzle changers with 48
magazines and a total of 576 nozzle holders.
7
Fig. 7.1 - 4 Position of nozzle changers for 20 seg. Collect&Place CA head in CA4 machines
7
NOTE 7
When an SWS with a C&P20 nozzle changer is used, one row is installed by default. A second
row is available on request.
(1) Nozzle changer, "row 1"
(2) Nozzle changer, "row 2"
(3) Reject bin for components
(4) Take-off device and reject bin for nozzles
(5) Nozzle magazine
User Manual SIPLACE CA 7 Station Enlargements
Edition 08/2011 EN 7.1 Nozzle Changer
429
7.1.2.2 Position of Nozzle Changer for C&P20 Head in CA3 Machines
Locations 1, 2, 3 and 4 can accommodate up to 2 nozzle changers for the 20 segment Collect&
Place head (item 1 and 2 in fig. 7.1 - 5
). At location 2 no nozzle changer can be installed. This
gives a total capacity of 7 nozzle changers with 42 magazines and a total of 504 nozzle holders.
7

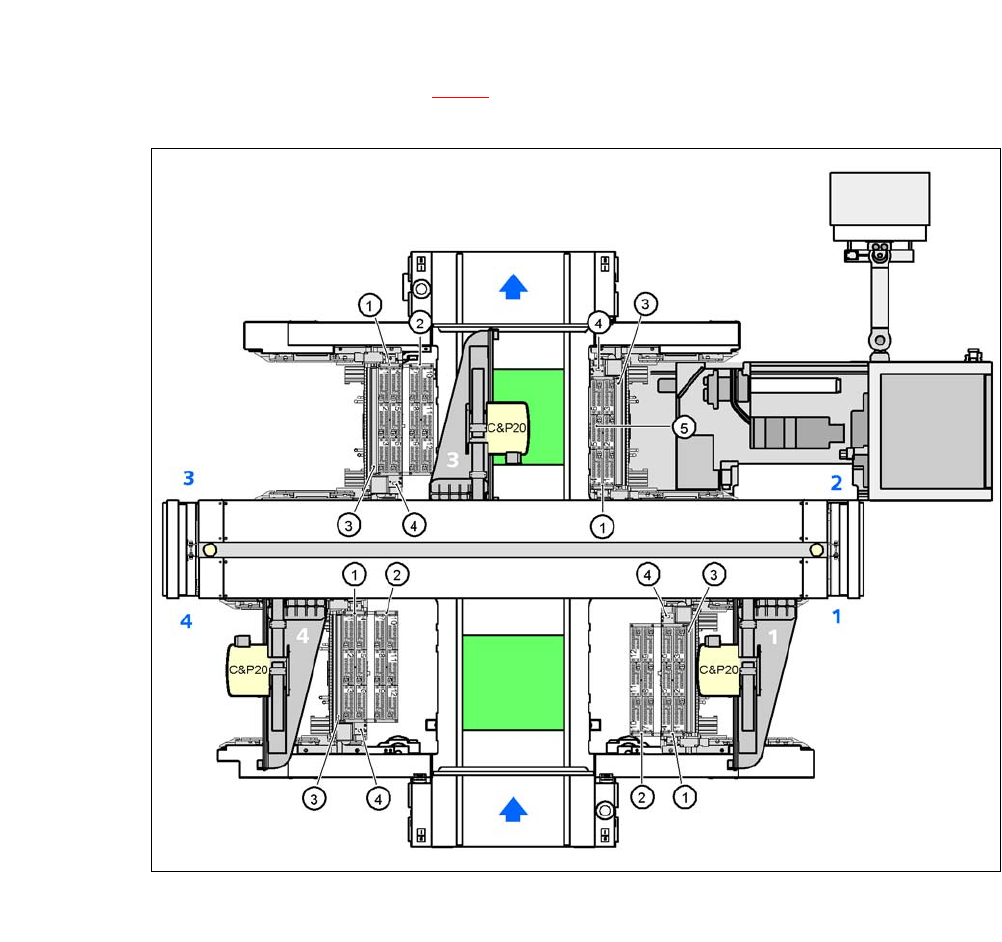

Fig. 7.1 - 5 Position of nozzle changers for 20 seg. Collect&Place CA head in CA3 machines
7
(1) Nozzle changer, "row 1"
(2) Nozzle changer, "row 2"
(3) Reject bin for components
(4) Take-off device and reject bin for nozzles
(5) Nozzle magazine
