User Manual SIPLACE CA 7 Station Enlargements
Edition 08/2011 EN 7.1 Nozzle Changer
437
7.1.2.9 Nozzle Changer "Row 2" for the 20 Segment Collect&Place CA Head
[00119716-xx] Nozzle changer 2, X-serie, C&P20
lThe nozzle changer "Row 2" can be installed at the following locations, if no SWS is installed:
CA4 machine: locations 1, 2, 3 and 4 (see fig. 7.1 - 4
, page 428)
CA3 machine: Locations 1, , 3 and 4 (see fig. 7.1 - 5
, page 429)
The retrofit package contains appart from the the nozzle changer an assembly kit.
7

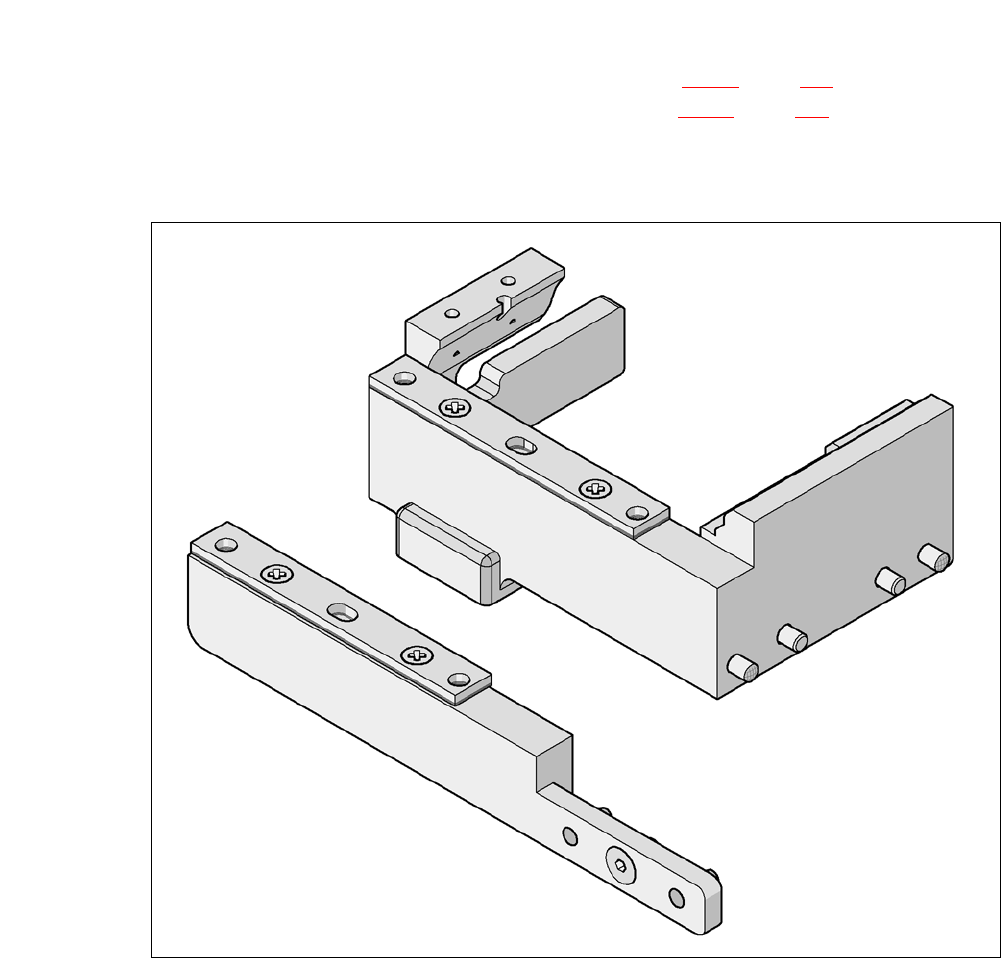

Fig. 7.1 - 10 Assembly kit for the nozzle changer "Row 2"
7
7
7 Station Enlargements User Manual SIPLACE CA
7.1 Nozzle Changer Edition 08/2011 EN
438
7.1.3 Nozzle Changer for the 12 Segment Collect&Place CA Head
[00119661-xx]Nozzle changer HF/X/CA/D3, 12 segment C&P head
This nozzle changer can hold up to 5 magazines, each with 12 nozzle holders. The magazines
are seated on a common support. They are centered using two parallel pins and fixed in place with
clips.
7

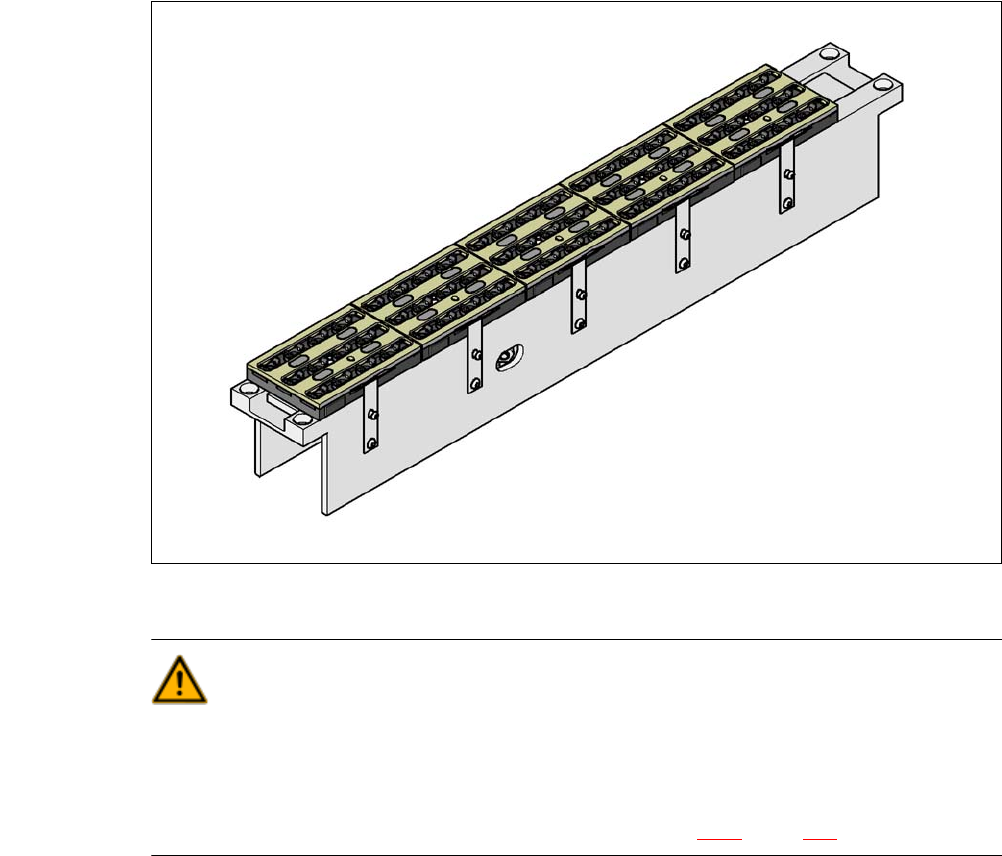

Fig. 7.1 - 11 Nozzle changer for the 12 segment Collect&Place CA head
WARNING 7
Only install the associated nozzle changer for each placement head. There is a risk of head
crashes with mixed configurations.
Only use reject bins marked [03003719-06]. Otherwise there is a risk of collision with the com-
ponent sensor of the C&P20 placement head (see section 2.6.9, page 76).
User Manual SIPLACE CA 7 Station Enlargements
Edition 08/2011 EN 7.1 Nozzle Changer
439
7.1.3.1 Position of Nozzle Changer for C&P12 CA Head in CA4 Machines
Locations 1, 2, 3 and 4 can accommodate up to 2 nozzle changers for the 12 segment Collect&
Place head (item 1 and 2 in fig. 7.1 - 12
). This gives a total capacity of 8 nozzle changers with 40
magazines and a total of 480 nozzle holders.
7
Fig. 7.1 - 12 Position of nozzle changers for 12 seg. Collect&Place CA head in CA4 machines
7
(1) Nozzle changer, "row 1"
(2) Nozzle changer, "row 2"
(3) Reject bin for components
(4) Take-off device and reject bin for nozzles
(5) Nozzle magazine
