7 Station Enlargements User Manual SIPLACE CA 7.1 Nozzle Changer Edition 08/2011 EN 440 7.1.3.2 Position of Nozzle Changer for C&P12 CA Head in CA3 Machines Locations 1, 2, 3 and 4 can accommodate up to 2 nozzle cha …
User Manual SIPLACE CA 7 Station Enlargements
Edition 08/2011 EN 7.1 Nozzle Changer
439
7.1.3.1 Position of Nozzle Changer for C&P12 CA Head in CA4 Machines
Locations 1, 2, 3 and 4 can accommodate up to 2 nozzle changers for the 12 segment Collect&
Place head (item 1 and 2 in fig. 7.1 - 12
). This gives a total capacity of 8 nozzle changers with 40
magazines and a total of 480 nozzle holders.
7

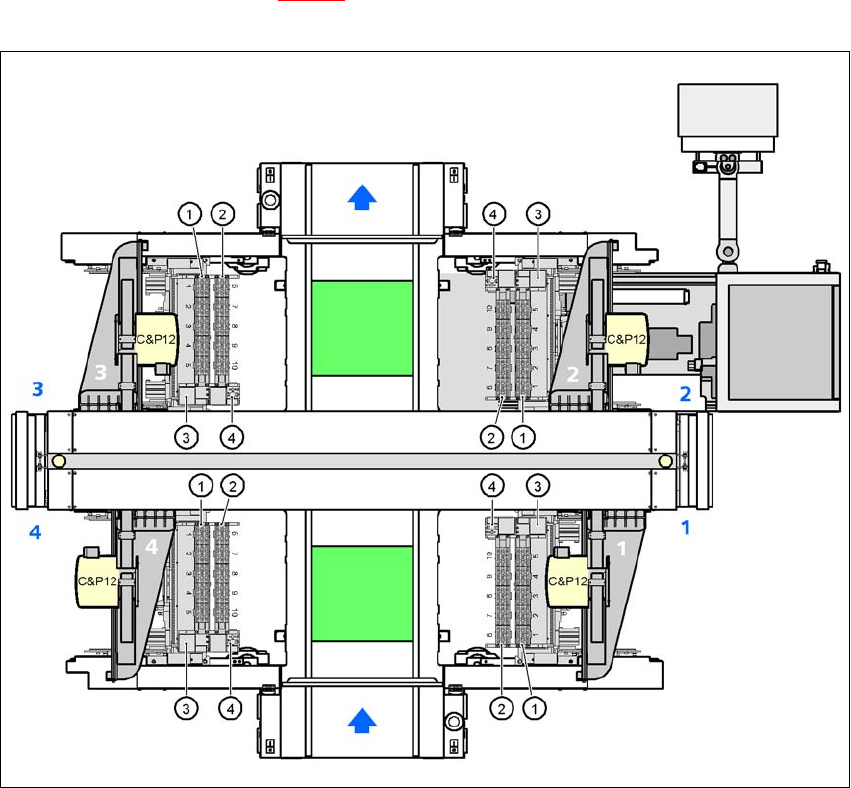

Fig. 7.1 - 12 Position of nozzle changers for 12 seg. Collect&Place CA head in CA4 machines
7
(1) Nozzle changer, "row 1"
(2) Nozzle changer, "row 2"
(3) Reject bin for components
(4) Take-off device and reject bin for nozzles
(5) Nozzle magazine
7 Station Enlargements User Manual SIPLACE CA
7.1 Nozzle Changer Edition 08/2011 EN
440
7.1.3.2 Position of Nozzle Changer for C&P12 CA Head in CA3 Machines
Locations 1, 2, 3 and 4 can accommodate up to 2 nozzle changers for the 12 segment Collect&
Place CA-head (item 1 and 2 in fig. 7.1 - 13
). At location 2 no nozzle changer can be installed.
This results in a total capacity of 7 nozzle changers with 35 magazines and a total of 420 nozzle
holders.
7

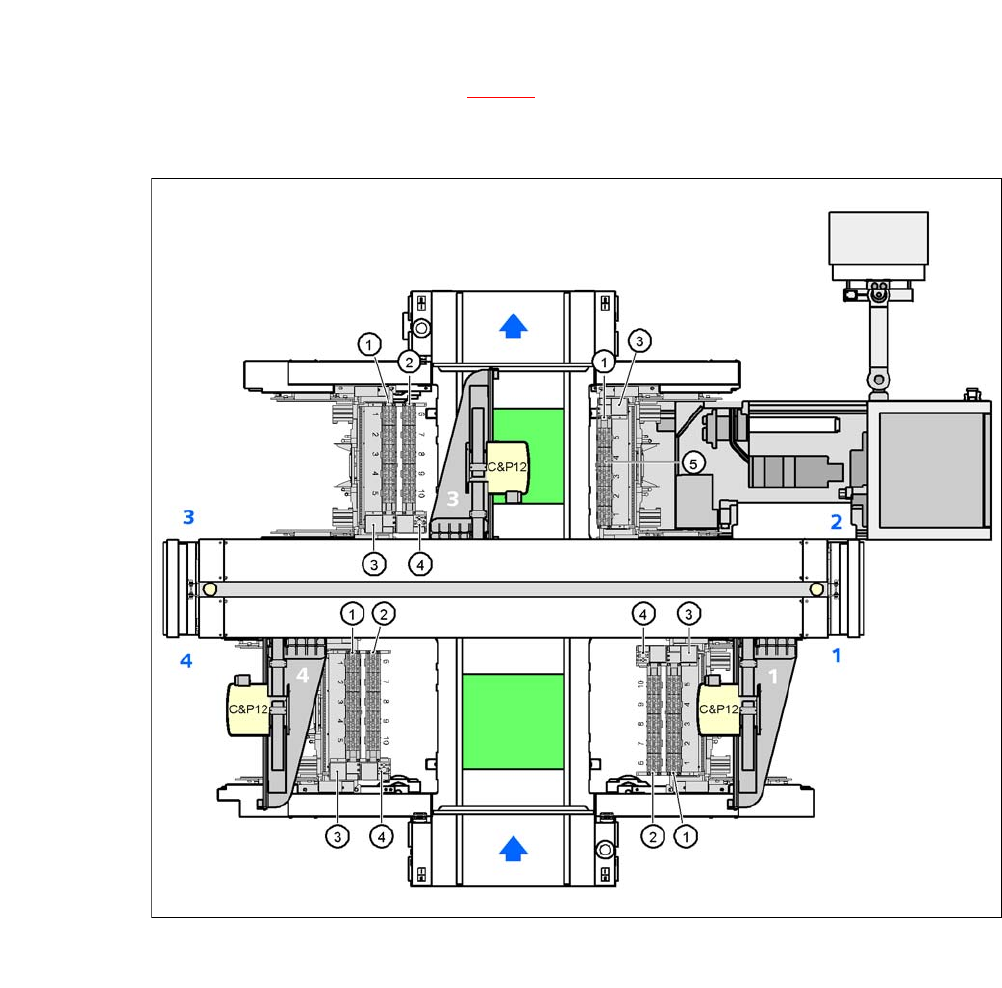

Fig. 7.1 - 13 Position of nozzle changers for 12 seg. Collect&Place CA head in CA3 machines
7
(1) Nozzle changer, "row 1"
(2) Nozzle changer, "row 2"
(3) Reject bin for components
(4) Take-off device and reject bin for nozzles
(5) Nozzle magazine
User Manual SIPLACE CA 7 Station Enlargements
Edition 08/2011 EN 7.1 Nozzle Changer
441
7.1.3.3 Technical Data
7.1.3.4 Assembly
The nozzle changers "row 1" (see fig. 7.1 - 12) are fixed to the component trolley docking units.
There is an additional assembly kit for the "row 2" nozzle changer. This consists of a take-off de-
vice and reject bin for nozzles (see section 7.1.3.9
).
7
Fig. 7.1 - 14 Assembly position
(1) Spring hook pointing toward the operator
(2) Retaining clamp pointing toward the PCB conveyor
Nozzle changer for the 12 segment Collect&Place CA head
Dimensions (length x width x height) 449 x 62.7 x 77.7 mm³
Number of magazines min. 1 / max. 5 with each 12 nozzle garages
Number of nozzle holders 60
Nozzle types 9 xx
Nozzle changeover time approx. 2 sec. per nozzle
Compressed air connection 0.48 MPa (4.8 bar)
