User Manual SIPLACE CA 7 Station Enlargements
Edition 08/2011 EN 7.1 Nozzle Changer
445
7.1.3.7 Changing a Magazine
To remove the magazine, simply push the spring hook (item 1 in fig. 7.1 - 16) away from the
magazine. Lift the magazine out of the carrier.
7

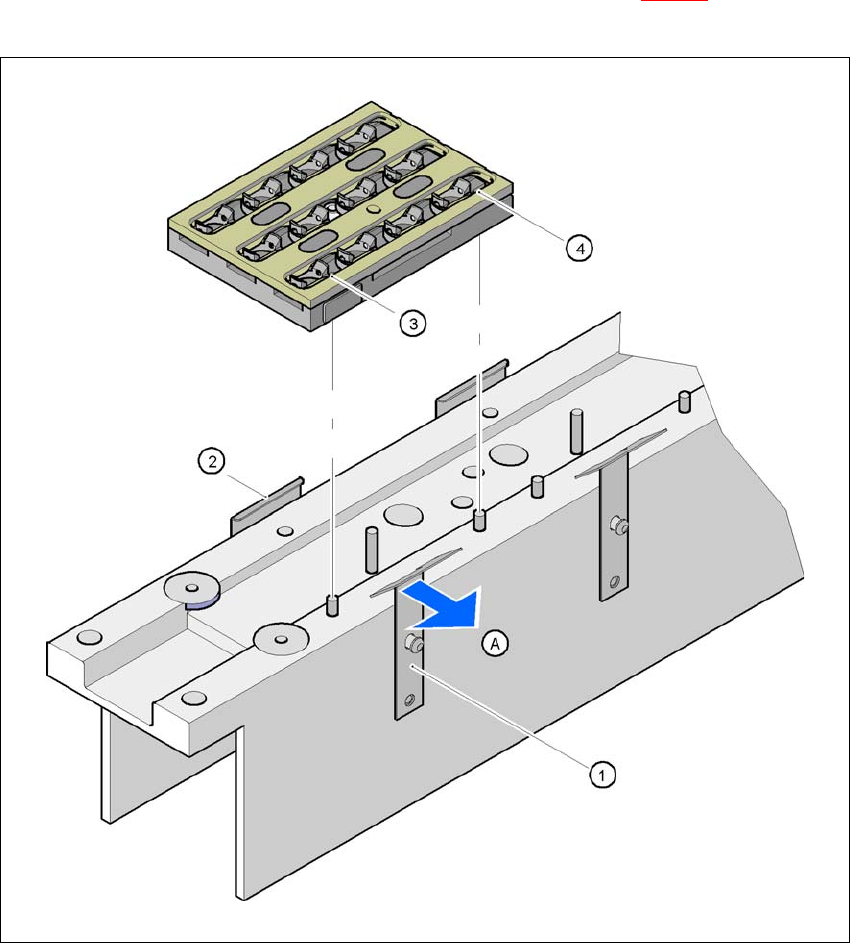

Fig. 7.1 - 16 Changing a magazine
(1) Spring hook
(2) Retaining clamp
(3) Centering hole
(4) Slot
(A) Push the spring hook away from the magazine
7 Station Enlargements User Manual SIPLACE CA
7.1 Nozzle Changer Edition 08/2011 EN
446
NOTE
The magazine must be inserted so that the centering pins can slide into the centering hole
(item 3 in fig. 7.1 - 16) and slot (item 4 in fig. 7.1 - 16). 7
First place the side of the magazine with the numbered nozzles 1, 2, 3 and 4 on the base.
The retaining clamp (item 2 in fig. 7.1 - 16
) must slide into the magazine slit.
Push the spring hook away from the magazine.
Press the magazine so that it lies flat on the base, then release the spring hook. The spring
hook must latch into place.
7.1.3.8 Position Detection
Every magazine of the nozzle changer has a positioning fiducial for position detection.
7

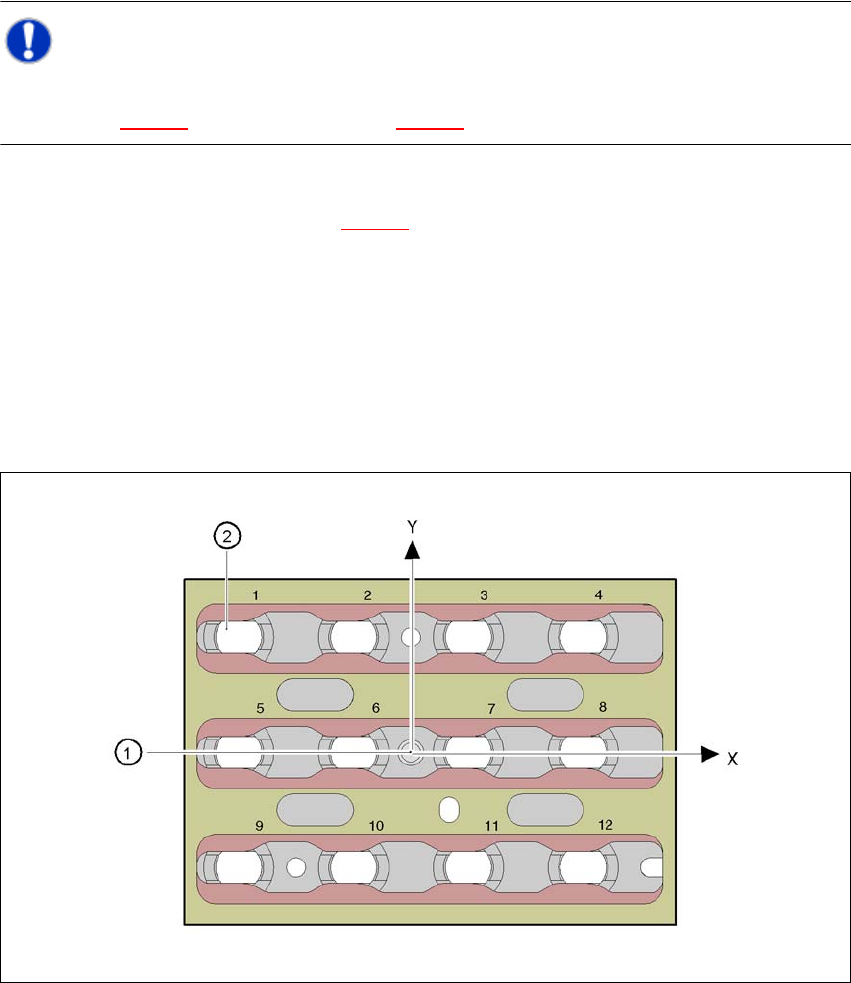

Fig. 7.1 - 17 Nozzle changer - Position detection
(1) Position fiducial
(2) Position of the nozzles in the magazine in relation to the position fiducial
User Manual SIPLACE CA 7 Station Enlargements
Edition 08/2011 EN 7.1 Nozzle Changer
447
7.1.3.9 Nozzle Changer "Row 2" for the 12 Segment Collect&Place CA Head
[00119663-xx] Nozzle changer 2 HF/X/CA/D3, 12 segment Collect&Place head
The "row 2" nozzle changer may be installed at the following locations:
CA4 machine: locations 1, 2, 3 and 4 (see fig. 7.1 - 12
, page 439)
CA3 machine: Locations 1, , 3 and 4 (see fig. 7.1 - 13
, page 440)
The retrofit package contains the nozzle changer and an assembly kit.
7

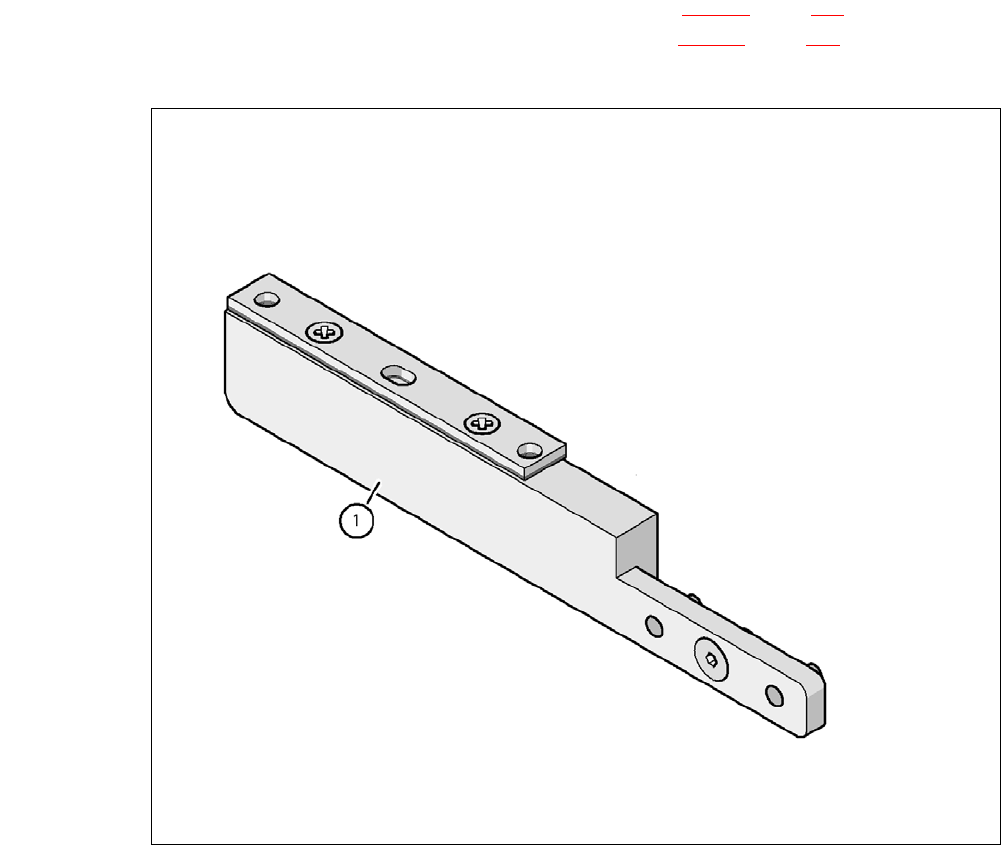

Fig. 7.1 - 18 Assembly kit for the nozzle changer "Row 2"
(1) Assembly kit for the nozzle changer "Row 2"
