User Manual SIPLACE CA 7 Station Enlargements Edition 08/2011 EN 7.1 Nozzle Changer 459 7.1.5.1 T echnical Dat a 7 7.1.5.2 Assembly The nozzle changer is fixed to the component tr olley docking unit. 7 Fig. 7.1 - 28 Asse…
7 Station Enlargements User Manual SIPLACE CA
7.1 Nozzle Changer Edition 08/2011 EN
458
7.1.5 Nozzle Changer for the SIPLACE TwinHead
[03005191-xx] Magazine for 2 nozzles
[03001807-xx] Magazine for 1 nozzle
This nozzle changer can hold up to 12 nozzle magazines. There are 2 magazines available: stan-
dard magazines for special nozzles or grippers. The magazines are seated on a common support.
They are centered with two parallel pins and fixed in place with two countersunk screws.
7

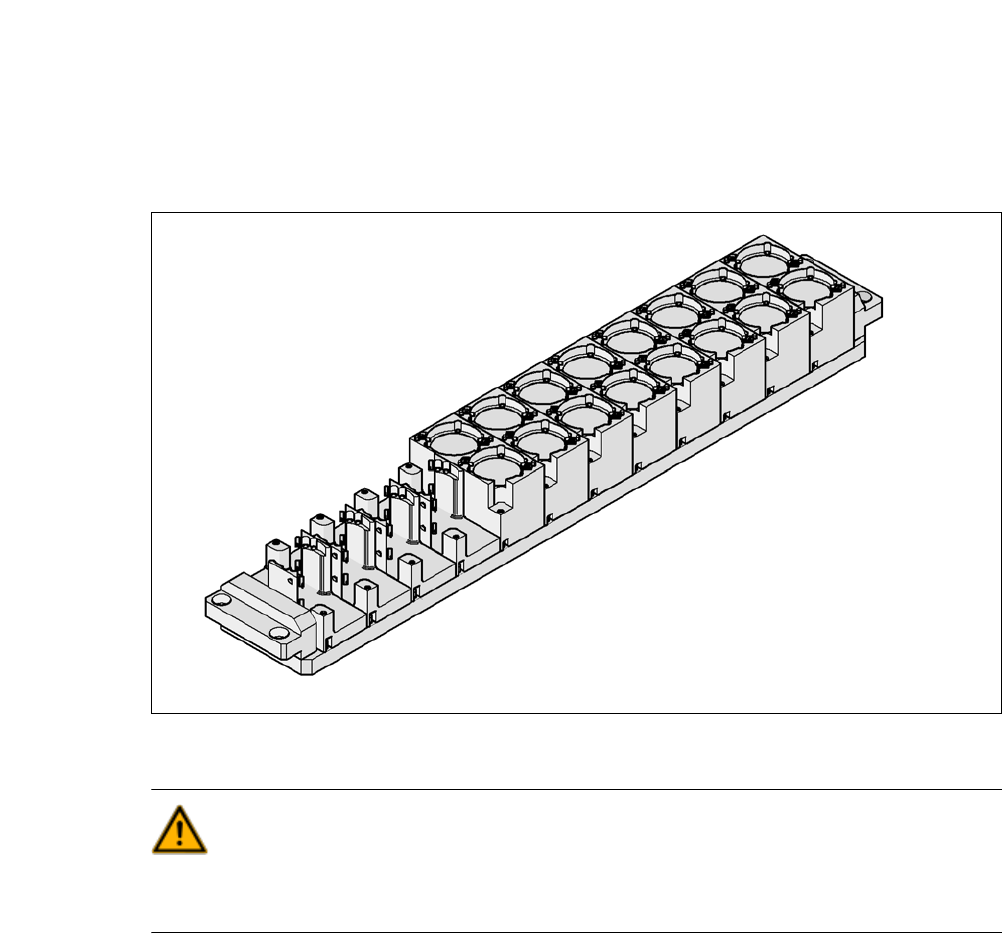

Fig. 7.1 - 27 Nozzle changer for the SIPLACE TwinHead
WARNING 7
Only install the associated nozzle changer for each placement head. There is a risk of head
crashes with mixed configurations.
User Manual SIPLACE CA 7 Station Enlargements
Edition 08/2011 EN 7.1 Nozzle Changer
459
7.1.5.1 Technical Data
7
7.1.5.2 Assembly
The nozzle changer is fixed to the component trolley docking unit.
7

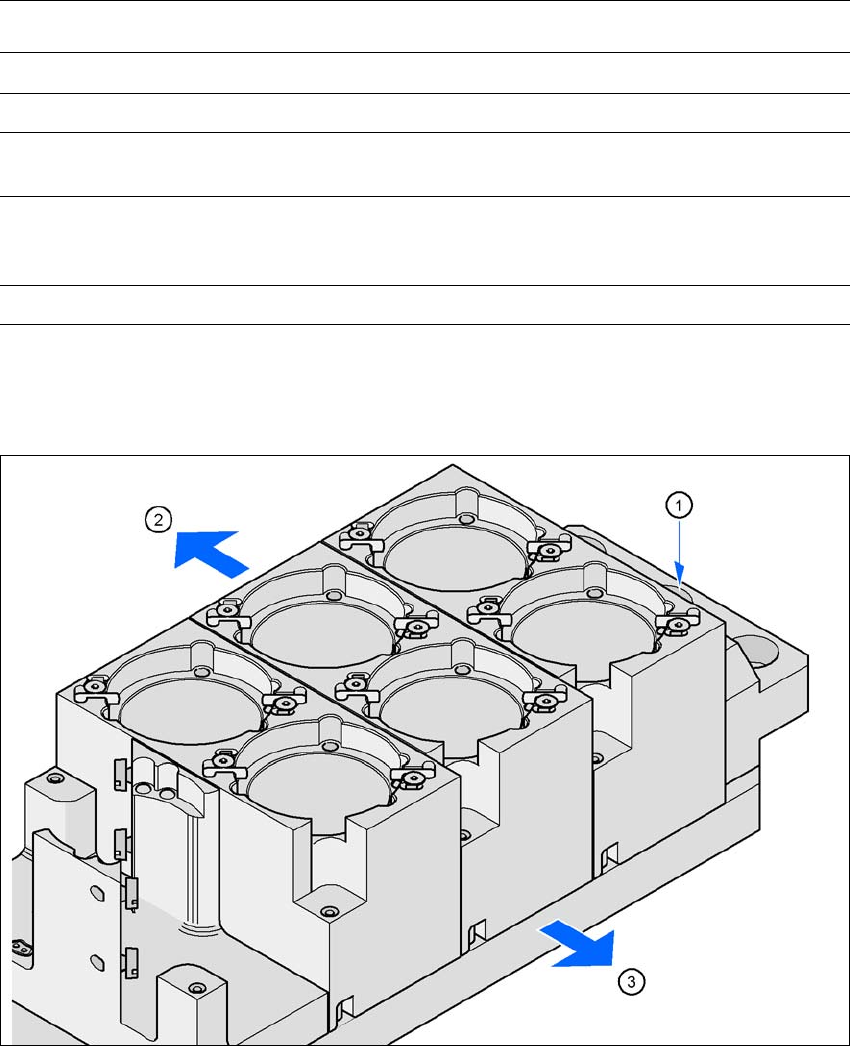

Fig. 7.1 - 28 Assembly position
(1) Marking hole
(2) Operator side
(3) Arrow pointing toward the PCB conveyor
Nozzle Changer for the SIPLACE TwinHead
Dimensions (length x width x height) 448 x 68 x 49 mm³
Number of magazines max. 12
Number of nozzle holders max. 24 standard nozzles
max. 12 special nozzles
Nozzle types 5xx, standard
4 xx with adapter
9 xx with adapter
Nozzle changeover time Approx. 2 s per nozzle
7 Station Enlargements User Manual SIPLACE CA
7.1 Nozzle Changer Edition 08/2011 EN
460
7
Align the nozzle changer so that the marking hole (item 1) is on the left, as viewed by the op-
erator.
7.1.5.3 Functional Description
The magazine for standard nozzles has 1 positioning fiducial for position detection, while the mag-
azine for special nozzles/grippers has two. The nozzles are fixed in the garage with balls. The noz-
zles are either clamped or released for removal, depending on the rotary position of the DP axis.
7
Fig. 7.1 - 29 Magazine for standard and special nozzles
(1) Standard magazine
(2) Position fiducial
(3) Nozzle garage
(4) Magazine for special nozzles and gripper
(5) Nozzle garage
(6) Nozzle fixing balls
