User Manual SIPLACE CA 2 Operational Safety Edition 08/2011 EN 2.2 Warning Labels on the Placement Machine 47 2.2.3 W arning Label W205 on the T ape Cutter 2 Pos. W205 in fig. 2.2 - 4 [03009344 -01] (number per machine: …
2 Operational Safety User Manual SIPLACE CA
2.2 Warning Labels on the Placement Machine Edition 08/2011 EN
46
2
Item W202 in fig. 2.2 - 3 [03009341-01] (number per CA4 machine: 4)
WARNING 2
Powerful permanent magnetic fields inside the machine
DANGER 2
Risk of death for persons with active implants (e.g. pacemakers, insulin pumps, defibrillators).
2
WARNING
Danger of crushing for persons with passive metal implants (e.g. plates, screws).
Do not reach into the machine or bend towards it when the protective covers are open.
Do not bring any metal objects into the area.
User Manual SIPLACE CA 2 Operational Safety
Edition 08/2011 EN 2.2 Warning Labels on the Placement Machine
47
2.2.3 Warning Label W205 on the Tape Cutter
2
Pos. W205 in fig. 2.2 - 4 [03009344-01] (number per machine: 8)
2.2.3.1 Warning Label W205 on the Topside
2

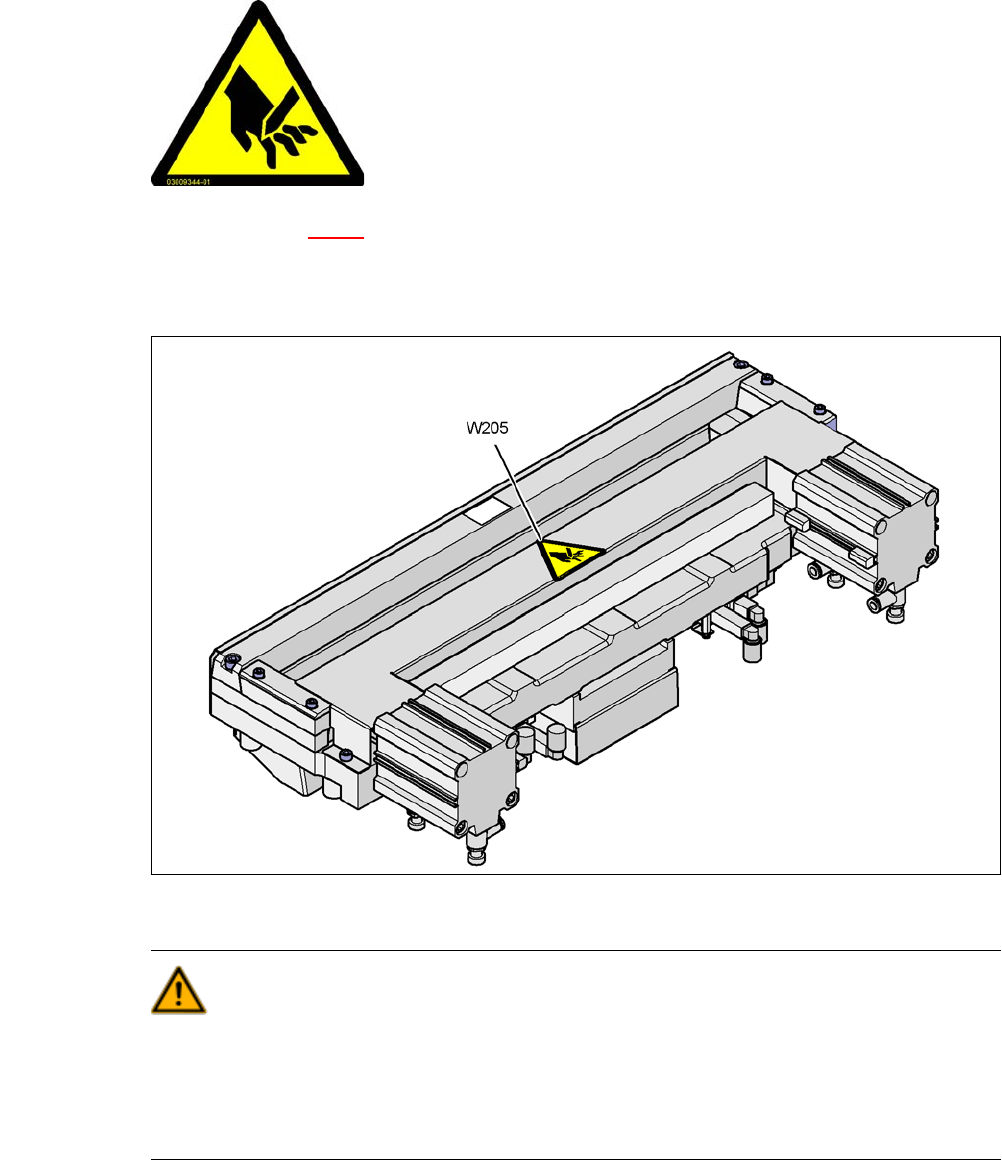

Fig. 2.2 - 4 Warning label W205 on the top of the tape cutter
WARNING 2
If you wish to do work on the tape cutter, you must disconnect the machine from the mains supply
and the compressed air supply.
Wait until the operating pressure has dropped to 0 MPa.
Wear robust protective gloves when working on the tape cutter. 2
2
2
2
2
2
2
2
2
RISK OF CUTTING!
Danger of cutting is present even when the machine is
switched off.
2 Operational Safety User Manual SIPLACE CA
2.2 Warning Labels on the Placement Machine Edition 08/2011 EN
48
2.2.3.2 Warning Label W205 on the Used Tape channel (X/CA Series)
2
Fig. 2.2 - 5 Warning label W205 on the used tape channel (component trolley docking unit X/CA series)
