7 Station Enlargements User Manual SIPLACE CA
7.13 Coplanarity Laser Module Edition 08/2011 EN
482
WARNING 7
Only authorized personnel may open the housing of the optical sensor.
For repair and service purposes the sensors must always be sent to ASM Assembly Systems
GmbH & Co.KG.
7.13.3.2 Identify Machine with Warning Label W216
7
Warning label W216 "Laser class 2" on the cover next to the main switch,
[03010316-01] (number per machine: 1)
NOTE 7
When the coplanarity laser module is fitted, the placement machine must be classified as laser
class 2. The laser module is not integrated into the EMERGENCY STOP circuit.
Mark the machine with the warning label W216 "Laser class 2" [03010316-xx].
Attach the warning label W216 to the cover, next to the main switch (see item W216 in fig.
7.13 - 3
.
7
7
7
7
7
7
LASER RADIATION!
Do not look into beam
Laser Class 2
User Manual SIPLACE CA 7 Station Enlargements
Edition 08/2011 EN 7.13 Coplanarity Laser Module
483
7

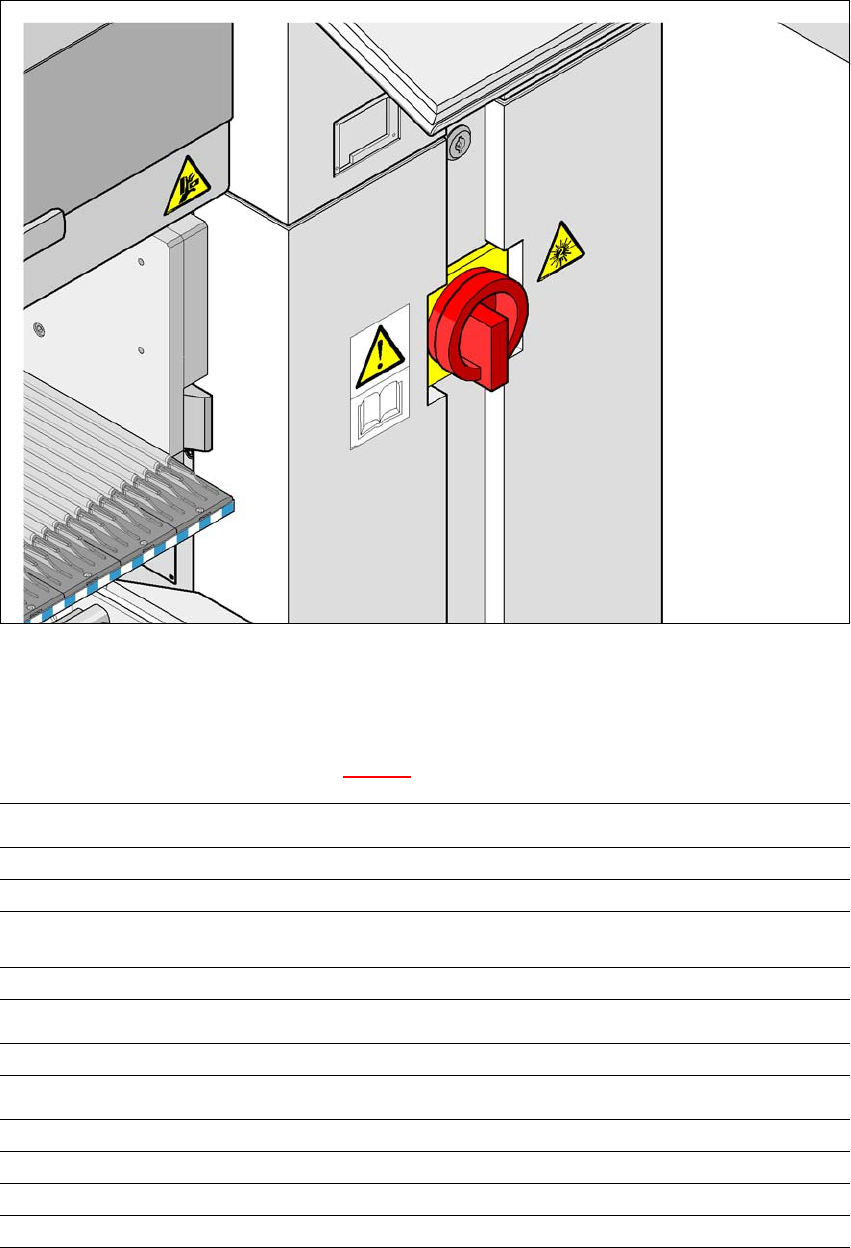

Fig. 7.13 - 3 Warning label W216 beside the main switch
7.13.4 LED Displays on the Controller
The statuses of the coplanarity module are indicated by LEDs. The LED is located on the under-
side of the controller (see item 6 in fig. 7.13 - 4
).
LED state Status display
Green Test object in measuring range
Yellow Measuring range center
Red
Outside the measuring range,
with low reflection
LED Off Laser switched off
LED Power Status display
LED lights up Supply voltage present
LED avg avg1 avg2
Off Off No averaging
Red Off Averaging 1
Off Red Averaging 2
Red Red Averaging 3
7 Station Enlargements User Manual SIPLACE CA
7.13 Coplanarity Laser Module Edition 08/2011 EN
484
7

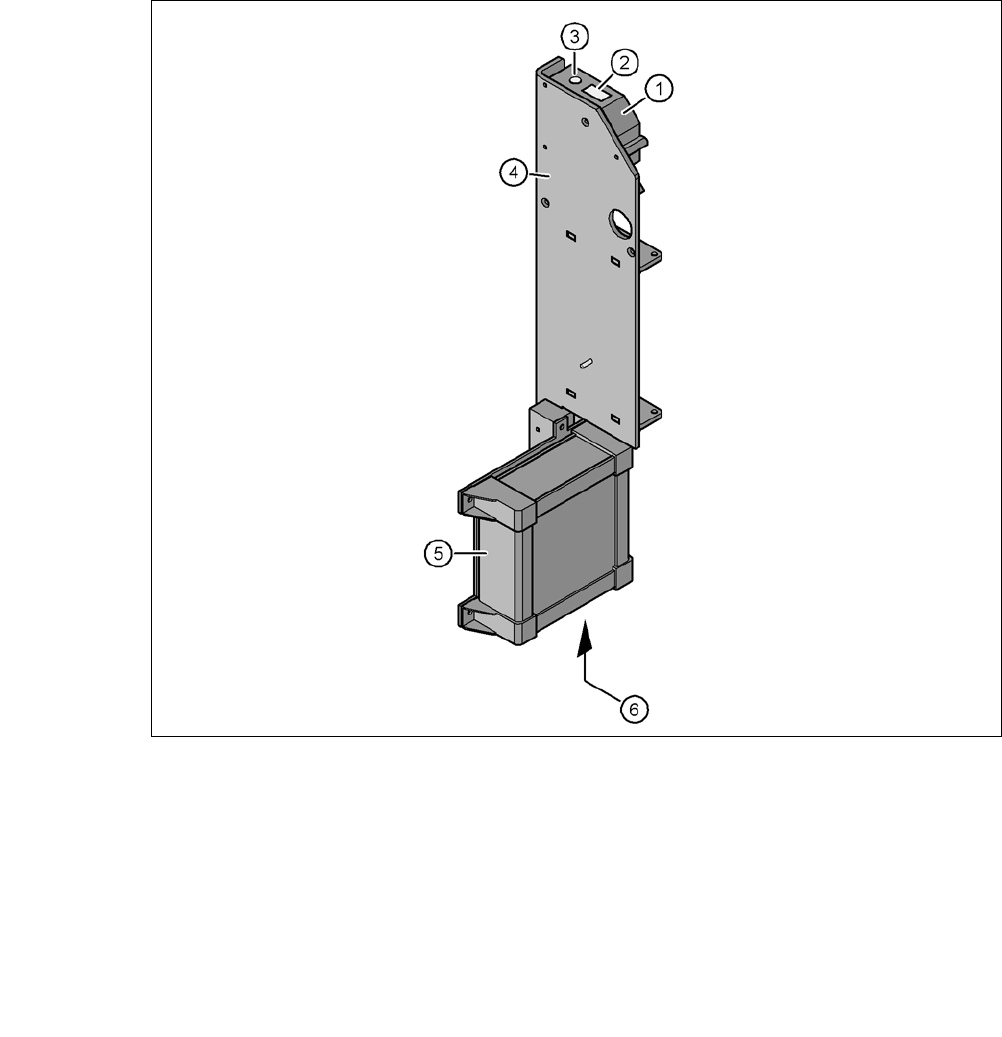

Fig. 7.13 - 4 Coplanarity laser module
(1) Laser sensor
(2) Detector
(3) Laser emitter
(4) Assembly bracket
(5) Controller
(6) LED displays, connections on the controller
