User Manual SIPLACE CA 2 Operational Safety
Edition 08/2011 EN 2.2 Warning Labels on the Placement Machine
51
Item H in fig. 2.2 - 7
(number per power supply unit: 2)
2.2.6 Warning Label W on the Cover above the Power Supply Unit for the Servo
Amplifier

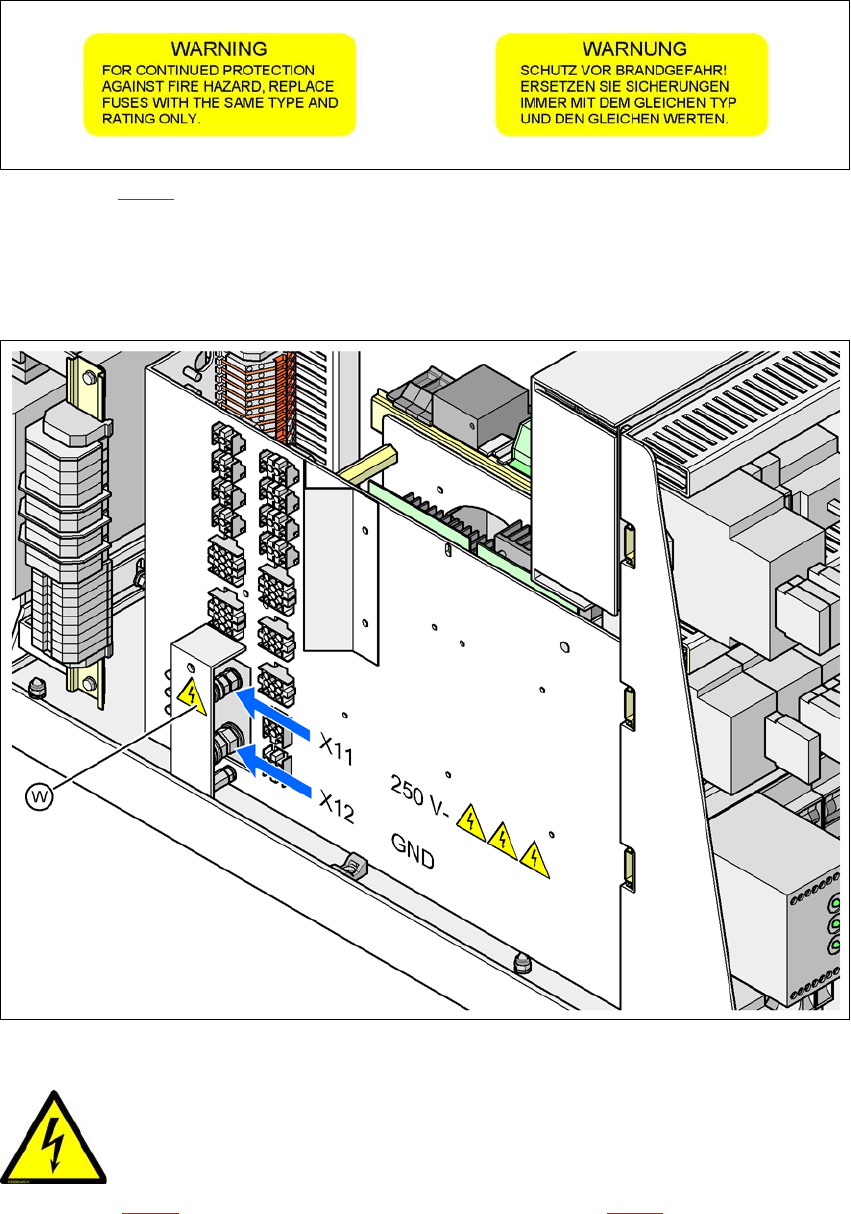

Fig. 2.2 - 8 Warning Label W on the Cover above the Power Supply Unit for the Servo Amplifier
2
Item W in fig. 2.2 - 8 (number per power supply unit: 8) see also fig.. 2.2 - 7
2 Operational Safety User Manual SIPLACE CA
2.2 Warning Labels on the Placement Machine Edition 08/2011 EN
52
2.2.7 Warning Label W207
2
Item W207 in the fig. 2.2 - 9 and 2.2 - 10 [03009346-01]
(number per machine: 3 for CA4)
2.2.7.1 Warning Label W207 on the Axis Unit
2
Fig. 2.2 - 9 Warning label W207 on the axis unit Macrolon panel
Item W207 [03009346-01]
2
2
MAIN POWER VOLTAGE!
Switch off the main power switch and wait 30 seconds until the
capacitors have discharged.
NAFTA region: RISK OF ELECTRIC SHOCK OR BURN!
User Manual SIPLACE CA 2 Operational Safety
Edition 08/2011 EN 2.2 Warning Labels on the Placement Machine
53
2.2.7.2 Danger Sign W207 on the Inrush Current Limitation for the Main Power Supply
2
Fig. 2.2 - 10 Danger sign W207 on the inrush current limitation for the main power supply
Item W207 [03009346-01]
PCB1 Board, inrush current limiter - transformer
PCB2 Board, inrush current limiter - servo unit
PCB2
PCB1
