Servo unit F4_20211119_072607
Servo unit F4 Page 1 / 3 19.11.2021
Servo unit F4
Page 1 / 3 19.11.2021
Servo unit F4
Page 2 / 3 19.11.2021
Servo unit F4
Page 3 / 3 19.11.2021

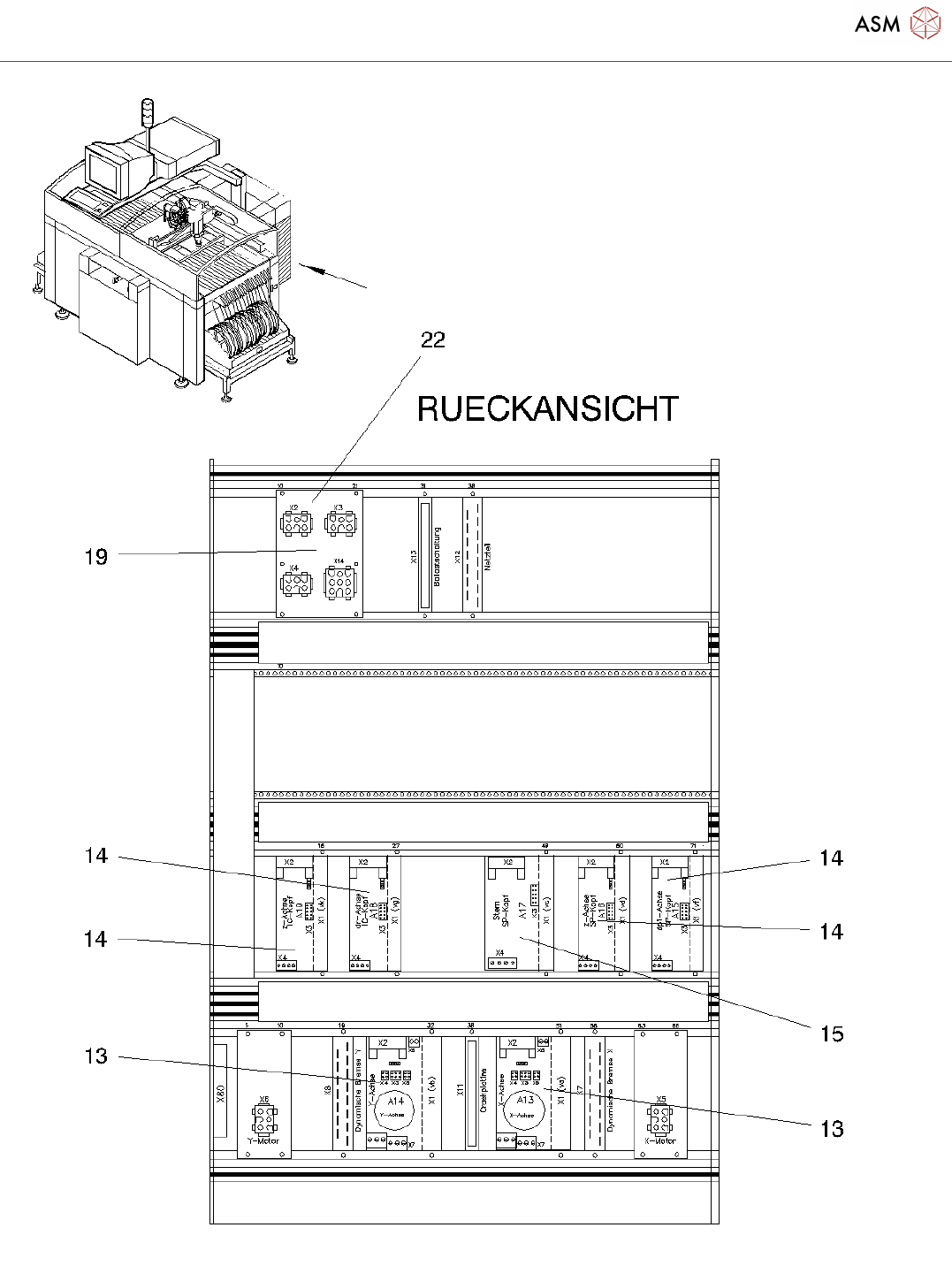

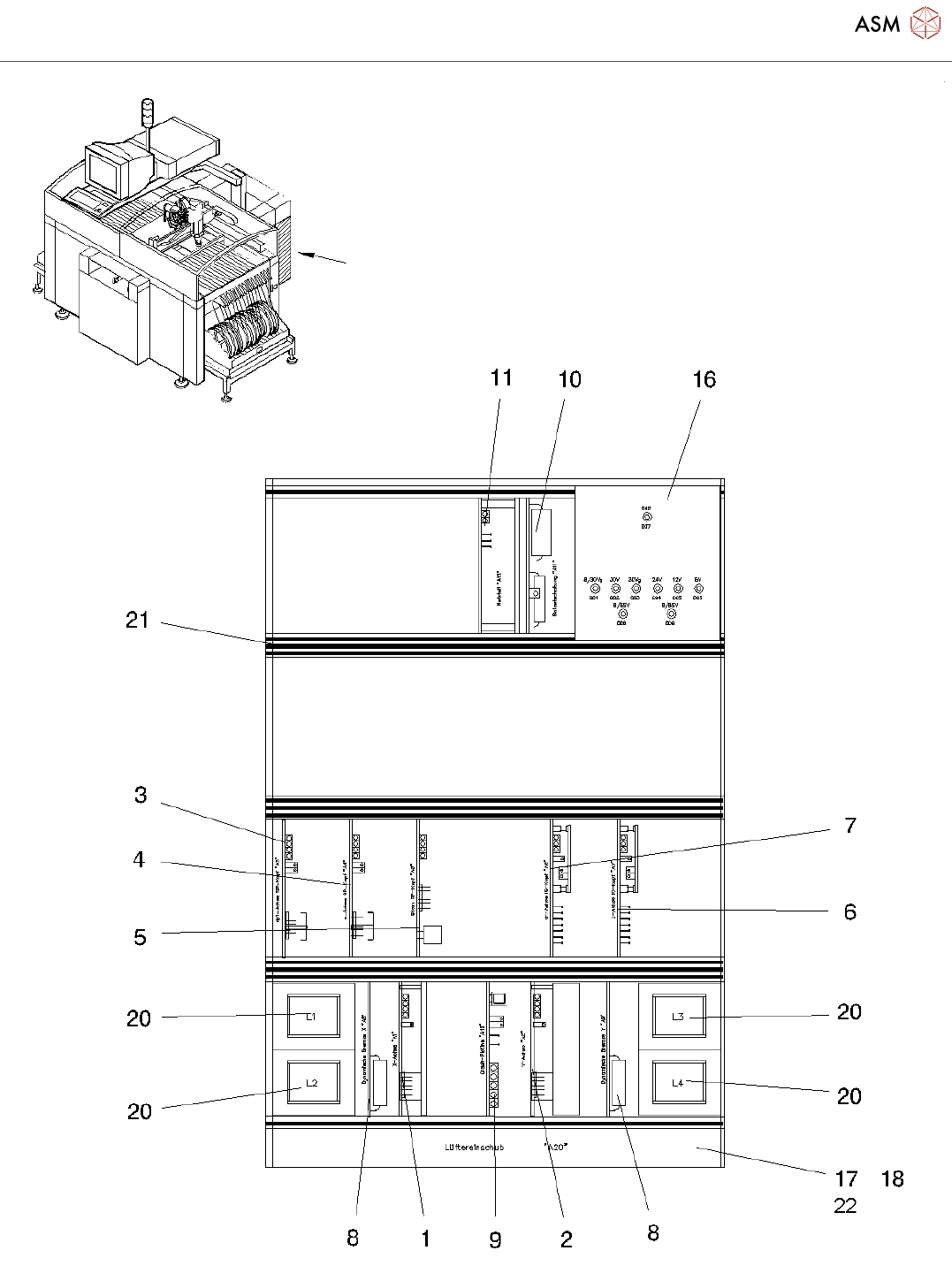

Pos. Item no. Description Part marking
00321481-02 SERVO UNIT SIPLACE 80F4
(COMPL.)
Spare Part
1 00321732S02 SERVO AMPLIFIER PC-BOARD
TDS120/12.5X
SPARE PART
2 00321733-04 SERVO AMPLIFIER BOARD SPARE PART
3 00321734-02 SERVO AMPLIFIER BOARD
TDS120/1D
SPARE PART
4 00334641-01 SERVO AMPLIFIER BOARD SPARE PART
5 00321736-05 SERVO AMPLIFIER BOARD
TBS120/2.5S
SPARE PART
6 00334646-02 SERVO AMPLIFIER TRS120/2Z SPARE PART
7 00314164-01 SERVO AMPLIFIER TRS120/2S SPARE PART
8 00302849-01 DYNAMIC BRAKE X-AXIS SPARE PART
9 00322100-03 CRASH-PC-BOARD SPARE PART
10 00302850-01 BALLAST CIRCUIT NR.BSO789/120
11 00302841S01 POWER SUPPLY (+-15V) SPARE PART
00321694-04 SERVO UNIT SIPLACE 80F4
13 00320855-01 BACKPLANE SERVO UNIT 2 Spare Part
14 00320854-02 BACKPLANE SERVO INSERT SPARE PART
15 00321470-03 BACKPLANE SERVO UNIT SPARE PART
16 00321786-02 VOLTAGE TESTER UNIT SERVO UNIT Tool
17 00321949-03 FAN UNIT SERVO UNIT
18 00310847-02 FAN 4414F / 24VDC / 240MA SPARE PART
00315209-01 FILTER MAT 230*360 WEAR PART
19 00321785-02 POTENTIAL DISTRIBUTOR SERVO
UNIT S4/F4
22 00300398-03 POTENTIAL DISTRIBUTION BOARD
SERVO-UNIT
Spare Part
20 00305308-01 THROTTLE 0,4 MH 20A Spare Part
21 00321697-02 PLUG-IN SERVO BASE FRAME
00321794-02 CABLE SET FOR SERVO UNIT 80F4
