ASM ProcessLens

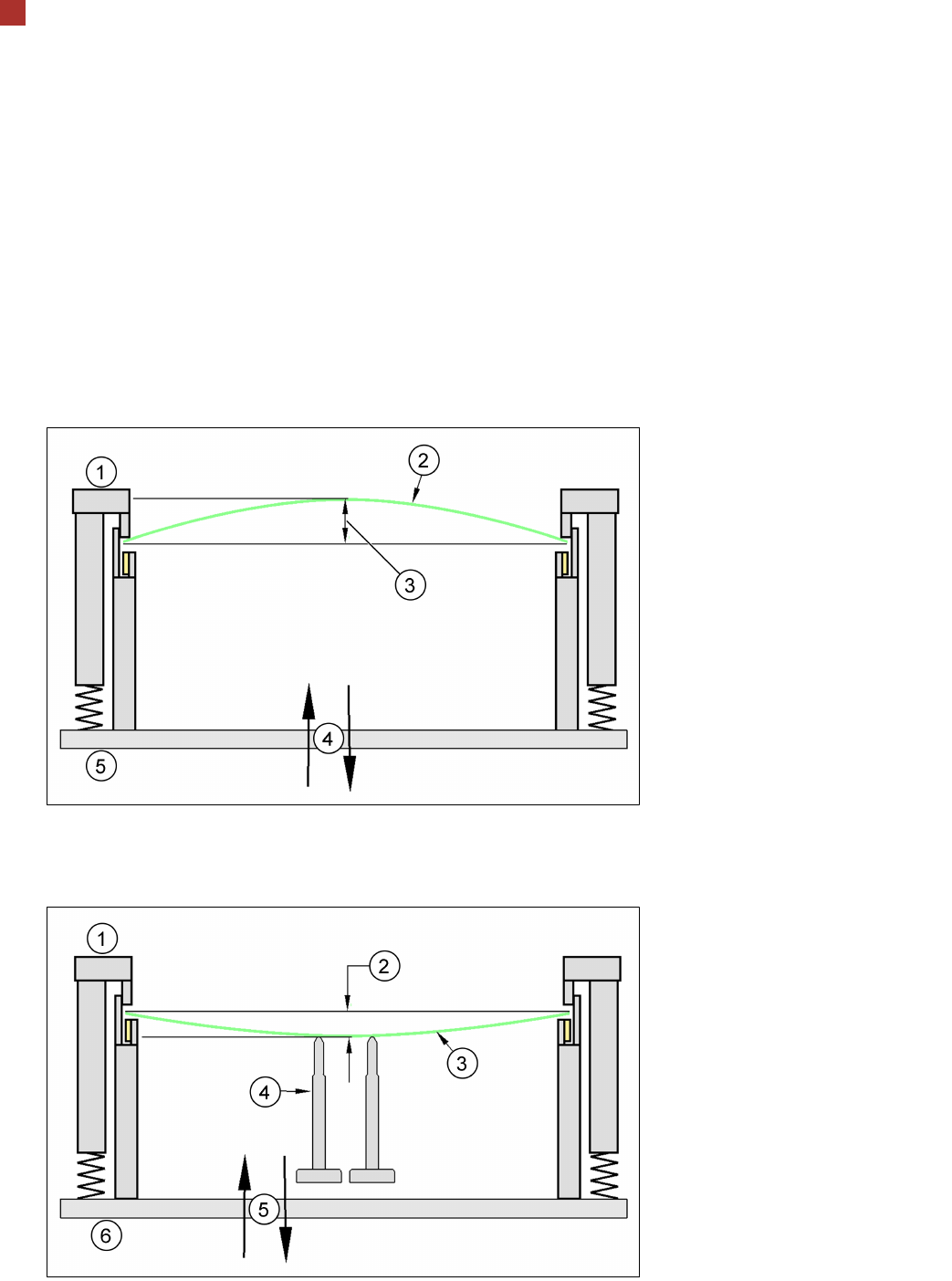

PCB warpage

Maximum PCB warpage allowed during processing of the board

There is active PCB warpage measurement and tracking during the inspection so that images remain in sharp

focus, ensuring best height measurement accuracy on the market.

1. Fixed clamped edge

2. Printed circuit board

3. ≤ 2 mm

4. Movable clamping device

5. Conveyor rail

PCB warpage down, max. 4.5 mm

1. Fixed clamped edge

2. 0.5 mm

3. Printed circuit board

4. Magnetic pin support

5. Movable clamping device

6. Conveyor rail

► Use magnetic pin supports to achieve this value.

ASM ProcessLens

Overview of languages

Documentation package Station software from 4.1.0.8 onwards

German X X

English X X

Italian X On request

Czech X X

Polish X On request

Chinese X X

Japanese X X

Other languages can be realized on request.

ASM ProcessLens

List of options

Available options Single

lane

Dual

lane

Notes

UPS 230V / UPS 110 V X X Uninterruptible power supply

External barcode scanner X X

Conveyor rail extension 150 mm x --

Conveyor rail extension 220 mm -- X

Offline programming software X X

Barcode mount type:

●

Magnetic

●

Box cover

-- X Magnetic mount or Box cover

RSF box X X

Connection to ASYS buffer X X

Foot spacers X X For increasing the height of the machine to

meet 950mm standard

Pin support X X
