ASM ProcessLens
Technical data
7
Technical data
Transportation and delivery configuration

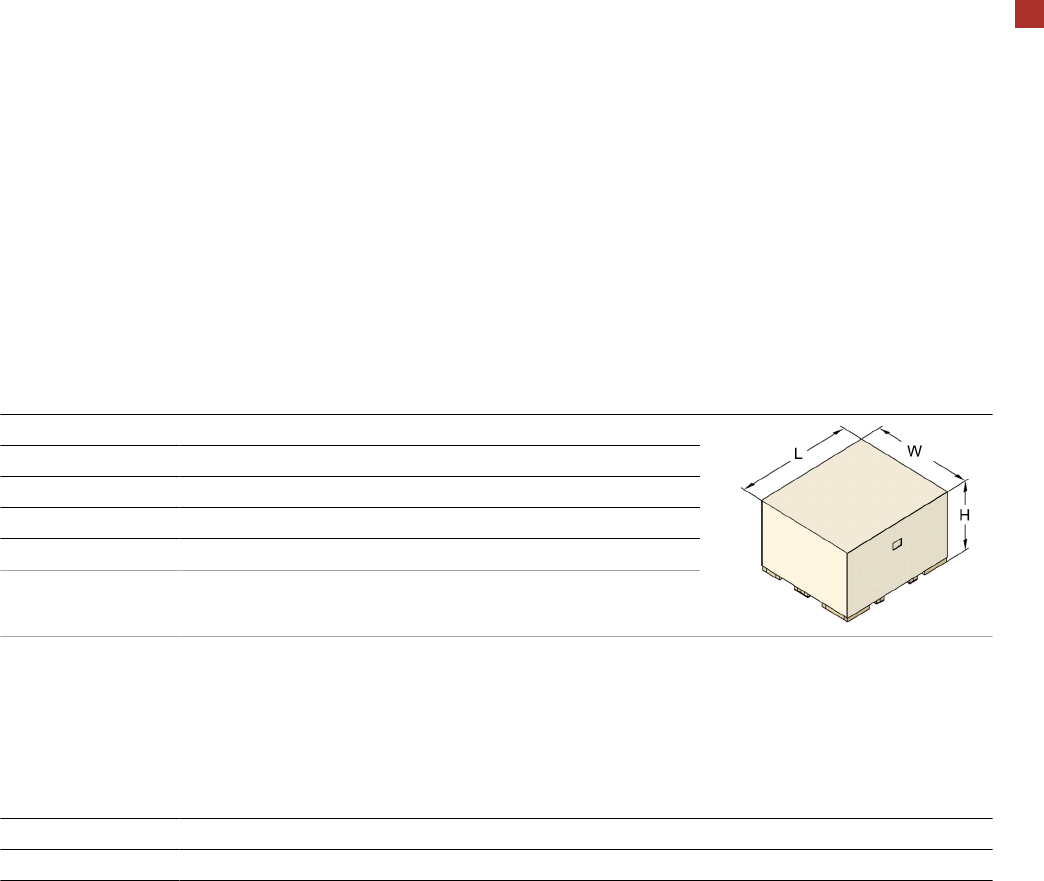

Transport dimensions and weight
Length 2340 mm
Width 1560 mm
Height 1820 mm
Weight 1074 kg
+/- 20 kg base on the spare order accessories
Within Europe, the machine is delivered on a robust wooden pallet. If sent overseas, the machine is packaged
in a wooden crate.
Means of transport
A fork-lift with the following specification will be needed to carry the machine in its crate:
Fork length Min. 1800 mm
Lifting power Min. 3000 kg
Configuration when delivered
●
The lanes of the dual conveyor are set to a width of 210 mm.
●
Both monitors are dismantled.
●
Both indicator lamps are dismantled.
ASM ProcessLens
Technical data
8
Technical data
Center of Gravity

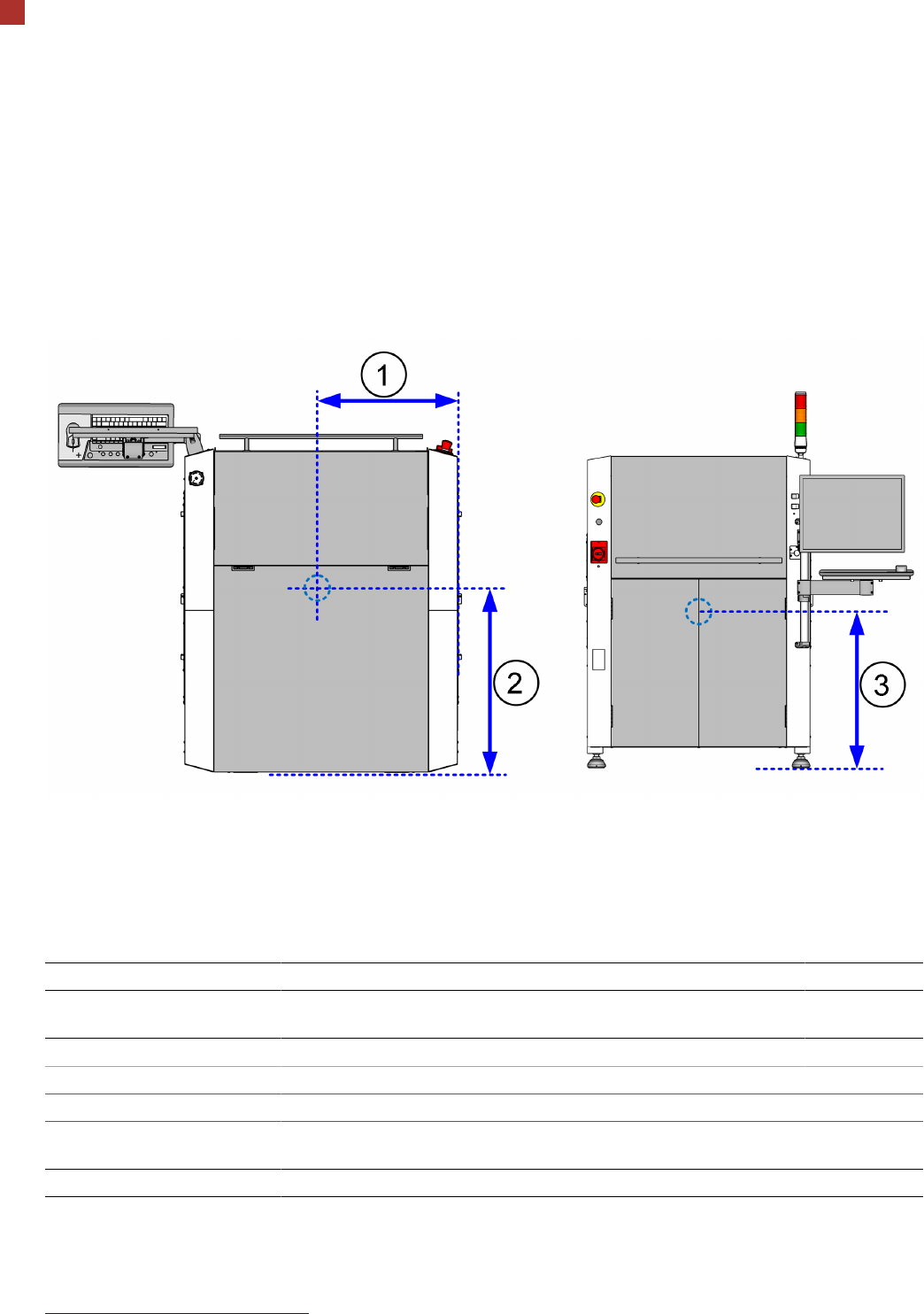

Fig.1: Center of gravity of the ASM ProcessLens solder paste inspection machine
1 550 mm 2 610 mm
3 730 mm
Electrical Ratings
Supply voltage Fuses
Main power supply 1/N/PE
Current rating: 110 V
1)
- 9.1 A, 240 V - 4.2 A, 50/60Hz
2 x 15 A
Power consumption 1 kW
Power supply 100 ~ 240 VAC, Single Phase 50/60 Hz
Short circuit rating of
machine (SCCR)
2)
10 kA
Power connector MENNEKES: 32 A 230 V 2 P+E STRAIGHT
Technical data
1)
110 V~ as an option
2)
With the original mains connection cable. The marked short circuit rating (SCCR) relates to the beginning of
the original mains cable. In the case of customer modifications, the factory-set length of the mains cable to
the machine may not be shortened nor the factory-set conductor cross-section increased, as this would
have a negative impact on the short circuit rating (SCCR).
ASM ProcessLens
Technical data
9
Conveyor specifications
Single conveyor Flexible dual conveyor Dual conveyor in "single
conveyor" mode
Minimum PCB size L x W 50 mm x 50 mm 50 mm x 45 mm 50 mm x 45 mm
Maximum PCB size L x W 610 mm x 560 mm 375 mm x 260 mm 375 mm x 460 mm
PCB thickness range 0.5 mm to 4.5 mm
PCB warpage
See "PCB warpage" [}12]
Maximum PCB weight Max. 3.0 kg Max. 3.0 kg
Underside PCB clearance:
Along the stopper bar
Outside the stopper bar
25 mm
25 mm
PCB conveyor height:
Option
Standard
Option SMEMA
900 mm
930 mm
950 mm
Type of interface SMEMA or IPC-HERMES-9852
Conveyor communication inter-
face
Left to right
Right to left
Outer / outer
Right / right
Left / left
Inspection capabilities
Pixel size (camera resolution) 15 μm x 15 μm
PCB Warpage compensation range ±6.5 mm (incl. Z-axis travel range)
FoV size 30 mm x 30 mm
Inspection speed Up to 30 cm
2
/s
Height resolution 0.37 μm
Height accuracy on calibration target ≤ 1 μm
X/Y gantry accuracy ±12.5 µm at 3 σ
