10 STENCIL ALIGNMENT MODULE 10.5 REPLACEMENTS TECHNICAL REFERENCE MANUAL DEK TQ 04/2021 191 16. Slide the pneumatic stencil clamp (2) into the slot in the bottom of the adaptor (1), with the pneumatic fitting to the rear…
10 STENCIL ALIGNMENT MODULE
10.5 REPLACEMENTS
190 TECHNICAL REFERENCE MANUAL DEK TQ 04/2021
12. Remove the pneumatic stencil clamp (1) from the extrusion by sliding it, towards the front of
the machine, out of the retaining slot, and flexing it downwards.
1
13. Ensure the chase inner extrusion is clean, and free from debris.
14. Slide the adaptor (1) into the slot in the bottom of the chase inner extrusion.
NOTE
Ensure that the adaptor is not pinched or folded as it is fitted into the chase inner extrusion.
A
A
1
2
15. Once the adaptor is fully inserted, re-tighten the securing screw (2) on the side of the chase.
10 STENCIL ALIGNMENT MODULE
10.5 REPLACEMENTS
TECHNICAL REFERENCE MANUAL DEK TQ 04/2021 191

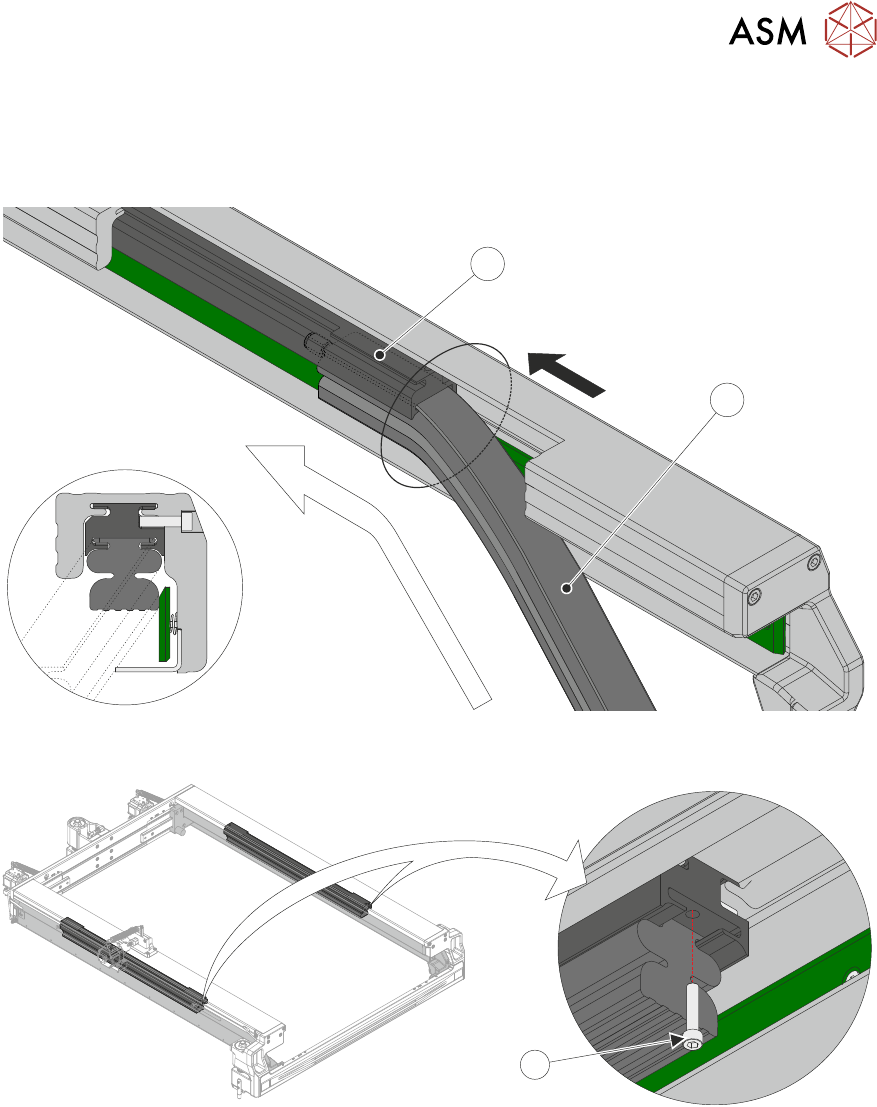

16. Slide the pneumatic stencil clamp (2) into the slot in the bottom of the adaptor (1), with the
pneumatic fitting to the rear.
NOTE
Ensure that the stencil clamp is not pinched or folded as it is fitted into the adaptor.
A
A
2
1
17. Once the clamp is fully inserted, insert and tighten the securing retaining screw (1) into the
front underside of the adaptor.
1
18. Connect the pneumatic tube to the quick release fitting at the rear of the stencil clamp.
19. Repeat the above procedure for the remaining stencil clamp.
20. Switch the Pneumatic Isolator to SUP.
21. Replace the front panel.
22. Replace the left-hand side panel.
23. Replace the right-hand side panel.
24. Replace rear upper cover.
25. Close front cover.
26. Switch the mains isolator to ON.
10 STENCIL ALIGNMENT MODULE
10.5 REPLACEMENTS
192 TECHNICAL REFERENCE MANUAL DEK TQ 04/2021
