6 MACHINE CONTROL 6.5 ENCODER SERIAL INPUT OR OUTPUT (ESIO) MODULES 104 TECHNICAL REFERENCE MANUAL DEK TQ 04/2021 6.5.4.4 ESIO-4 (ESIO 12) IO 1 IO 2 IO 3 IO 4 IO 5 IO 6 IO 7 IO 8 IO 9 IO 10 IO 1 1 IO 12 IO 13 IO 14 IO 15…
6 MACHINE CONTROL
6.5 ENCODER SERIAL INPUT OR OUTPUT (ESIO) MODULES
TECHNICAL REFERENCE MANUAL DEK TQ 04/2021 103
Connector Description I/O
IO1 ESIO-3: Breakout A I/O A Input/Output
IO2 ESIO-3: Breakout A I/O B Input/Output
IO3 ESIO-3: Breakout A I/O C Input/Output
IO4 ESIO-3: Breakout A I/O D Input/Output
IO5 ESIO-3: Breakout A I/O E Input/Output
IO6 ESIO-3: Breakout A I/O F Input/Output
IO7 ESIO-3: Breakout A I/O G Input/Output
IO8 ESIO-3: Breakout A I/O H Input/Output
IO9 ESIO-3: Breakout B I/O A Input/Output
IO10 ESIO-3: Breakout B I/O B Input/Output
IO11 ESIO-3: Breakout B I/O C Input/Output
IO12 ESIO-3: Breakout B I/O D Input/Output
IO13 ESIO-3: Breakout B I/O E Input/Output
IO14 ESIO-3: Breakout B I/O F Input/Output
IO15 ESIO-3: Breakout B I/O G Input/Output
IO16 ESIO-3: Breakout B I/O H Input/Output
IO17 Spare
IO18 Spare
IO19 Spare
IO20 Spare
IO21 Spare
IO22 Spare
IO23 Spare
IO24 Spare
ENC1 Cleaner Carriage Encoder
ENC2 Spare
ENC3 Spare
ENC4 Spare
6 MACHINE CONTROL
6.5 ENCODER SERIAL INPUT OR OUTPUT (ESIO) MODULES
104 TECHNICAL REFERENCE MANUAL DEK TQ 04/2021

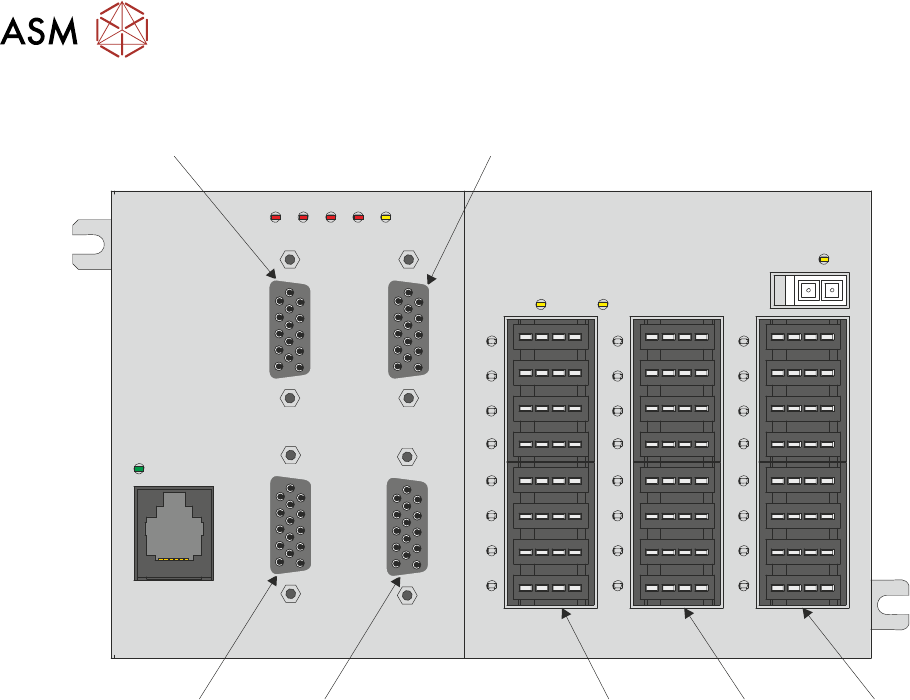

6.5.4.4 ESIO-4 (ESIO 12)
IO1
IO2
IO3
IO4
IO5
IO6
IO7
IO8
IO9
IO10
IO11
IO12
IO13
IO14
IO15
IO16
IO17
IO18
IO19
IO20
IO21
IO22
IO23
IO24
ENC4 ENC2
ENC3 ENC1
+24V3 +24V2
+24V1
ENCFAULT
4 3 2 1 +5V
IO1 - IO8IO9 - IO16IO17 - IO24ENC2ENC4
ENC3 ENC1
6 MACHINE CONTROL
6.5 ENCODER SERIAL INPUT OR OUTPUT (ESIO) MODULES
TECHNICAL REFERENCE MANUAL DEK TQ 04/2021 105
Connector Description I/O
IO1 Front Squeegee Home Input
IO2 Rear Squeegee Home Input
IO3 Drip Tray Cylinder In Input
IO4 Drip Tray Cylinder Out Input
IO5 Stencil Load Cylinder Up Input
IO6 Paste Pot Low Input
IO7 Spare Input
IO8 Spare Input
IO9 Plenum Actuation Down (Under Stencil Cleaner) Input
IO10 Fabric Advance Input
IO11 Solvent Dispense Home Input
IO12 Spare Input
IO13 Fabric Driven (Under Stencil Cleaner) Input
IO14 Print Carriage Home Input
IO15 Paste Dispenser Home (Horizontal) Input
IO16 Spare Input
IO17 Spare Input
IO18 Spare Input
IO19 Spare Input
IO20 Paste Cartridge Low Input
IO21 Paste Dispenser Home (Vertical) Input
IO22 Spare
IO23 Camera Y Home
IO24 Spare
ENC1 Spare
ENC2 Spare
ENC3 Print Carriage Encoder
ENC4 Spare
