6 MACHINE CONTROL 6.5 ENCODER SERIAL INPUT OR OUTPUT (ESIO) MODULES 106 TECHNICAL REFERENCE MANUAL DEK TQ 04/2021 6.5.4.5 ESIO-5 (ESIO 15) IO 1 IO 2 IO 3 IO 4 IO 5 IO 6 IO 7 IO 8 EN C2 EN C1 24V IO EN CFAU L T 2 1 GL ink…
6 MACHINE CONTROL
6.5 ENCODER SERIAL INPUT OR OUTPUT (ESIO) MODULES
TECHNICAL REFERENCE MANUAL DEK TQ 04/2021 105
Connector Description I/O
IO1 Front Squeegee Home Input
IO2 Rear Squeegee Home Input
IO3 Drip Tray Cylinder In Input
IO4 Drip Tray Cylinder Out Input
IO5 Stencil Load Cylinder Up Input
IO6 Paste Pot Low Input
IO7 Spare Input
IO8 Spare Input
IO9 Plenum Actuation Down (Under Stencil Cleaner) Input
IO10 Fabric Advance Input
IO11 Solvent Dispense Home Input
IO12 Spare Input
IO13 Fabric Driven (Under Stencil Cleaner) Input
IO14 Print Carriage Home Input
IO15 Paste Dispenser Home (Horizontal) Input
IO16 Spare Input
IO17 Spare Input
IO18 Spare Input
IO19 Spare Input
IO20 Paste Cartridge Low Input
IO21 Paste Dispenser Home (Vertical) Input
IO22 Spare
IO23 Camera Y Home
IO24 Spare
ENC1 Spare
ENC2 Spare
ENC3 Print Carriage Encoder
ENC4 Spare
6 MACHINE CONTROL
6.5 ENCODER SERIAL INPUT OR OUTPUT (ESIO) MODULES
106 TECHNICAL REFERENCE MANUAL DEK TQ 04/2021

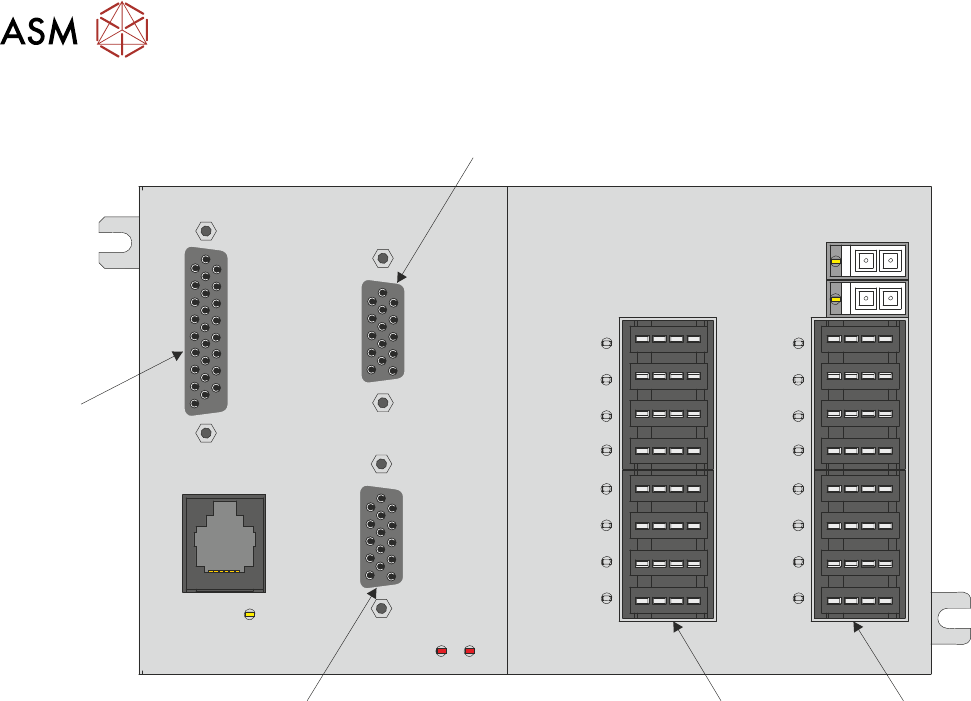

6.5.4.5 ESIO-5 (ESIO 15)
IO1
IO2
IO3
IO4
IO5
IO6
IO7
IO8
ENC2
ENC1
24VIO
ENCFAULT
21
GLink
24VL
IO9
IO10
IO11
IO12
IO13
IO14
IO15
IO16
IO1 - IO8IO9 - IO16
ENC2
ENC1
ADC/DAC
6 MACHINE CONTROL
6.5 ENCODER SERIAL INPUT OR OUTPUT (ESIO) MODULES
TECHNICAL REFERENCE MANUAL DEK TQ 04/2021 107
Connector Description I/O
IO1 Stencil Load Cylinder Output
IO2 Drip Tray Cylinder In Output
IO3 Spare
IO4 Paste Roll Height Monitor Enable Output
IO5 Board Stop Up Input
IO5 Board Stop Output
IO6 Front Cover Lock Output
IO7 Solvent Dispense Pump Output
IO8 Board At Stop Input
IO9 Spare
IO10 Fabric Tension (Under Stencil Cleaner) Output
IO11 Paste Dispenser Down (Vertical) Output
IO12 Paste Cartridge Dispense Pressure Output
IO13 Paste Jar Plunger Retract Output
IO14 Spare
IO15 Solvent Presence Detection Input
IO15 Reset Control Output
IO16 Camera X Home Output
ENC1 Camera X Encoder
ENC2 Camera Y Encoder
ADC0 Cleaner Vacuum Pressure Monitor Analogue Input
ADC1 Paste Roll Height Monitor Analogue Input
ADC2 Squeegee Force Analogue Input
ADC3 Temperature/Humidity Analogue Input
DAC0 Cleaner Solvent Dispense Control Analogue Output
DAC1 Cleaner Vacuum Pump Analogue Output
