6 MACHINE CONTROL
6.5 ENCODER SERIAL INPUT OR OUTPUT (ESIO) MODULES
108 TECHNICAL REFERENCE MANUAL DEK TQ 04/2021
6.5.4.6 ESIO-6 (ESIO 15)
IO1
IO2
IO3
IO4
IO5
IO6
IO7
IO8
ENC2
ENC1
24VIO
ENCFAULT
21
GLink
24VL
IO9
IO10
IO11
IO12
IO13
IO14
IO15
IO16
IO1 - IO8IO9 - IO16
ENC2
ENC1
ADC/DAC
NOTE
ESIO-6 is only fitted if auto coplanarity or TCM options is fitted.
6 MACHINE CONTROL
6.5 ENCODER SERIAL INPUT OR OUTPUT (ESIO) MODULES
TECHNICAL REFERENCE MANUAL DEK TQ 04/2021 109
Connector Description I/O
IO1 Coplanarity 1 (Left) Input
IO2 Coplanarity 2 (Right) Input
IO3 Spare
IO4 Spare
IO5 Spare
IO6 Spare
IO7 Spare
IO8 Spare
IO9 Spare
IO10 Spare
IO11 Spare
IO12 Spare
IO13 Spare
IO14 Spare
IO15 Spare
IO16 Coplanarity Enable Output
ENC1 Spare
ENC2 Spare
ADC0 Spare Analogue Input
ADC1 Spare Analogue Input
ADC2 Coplanarity (Left) Analogue Input
ADC3 Coplanarity (Right) Analogue Input
DAC0 Spare Analogue Output
DAC1 Reserved for TCM External Control Analogue Output
6 MACHINE CONTROL
6.5 ENCODER SERIAL INPUT OR OUTPUT (ESIO) MODULES
110 TECHNICAL REFERENCE MANUAL DEK TQ 04/2021

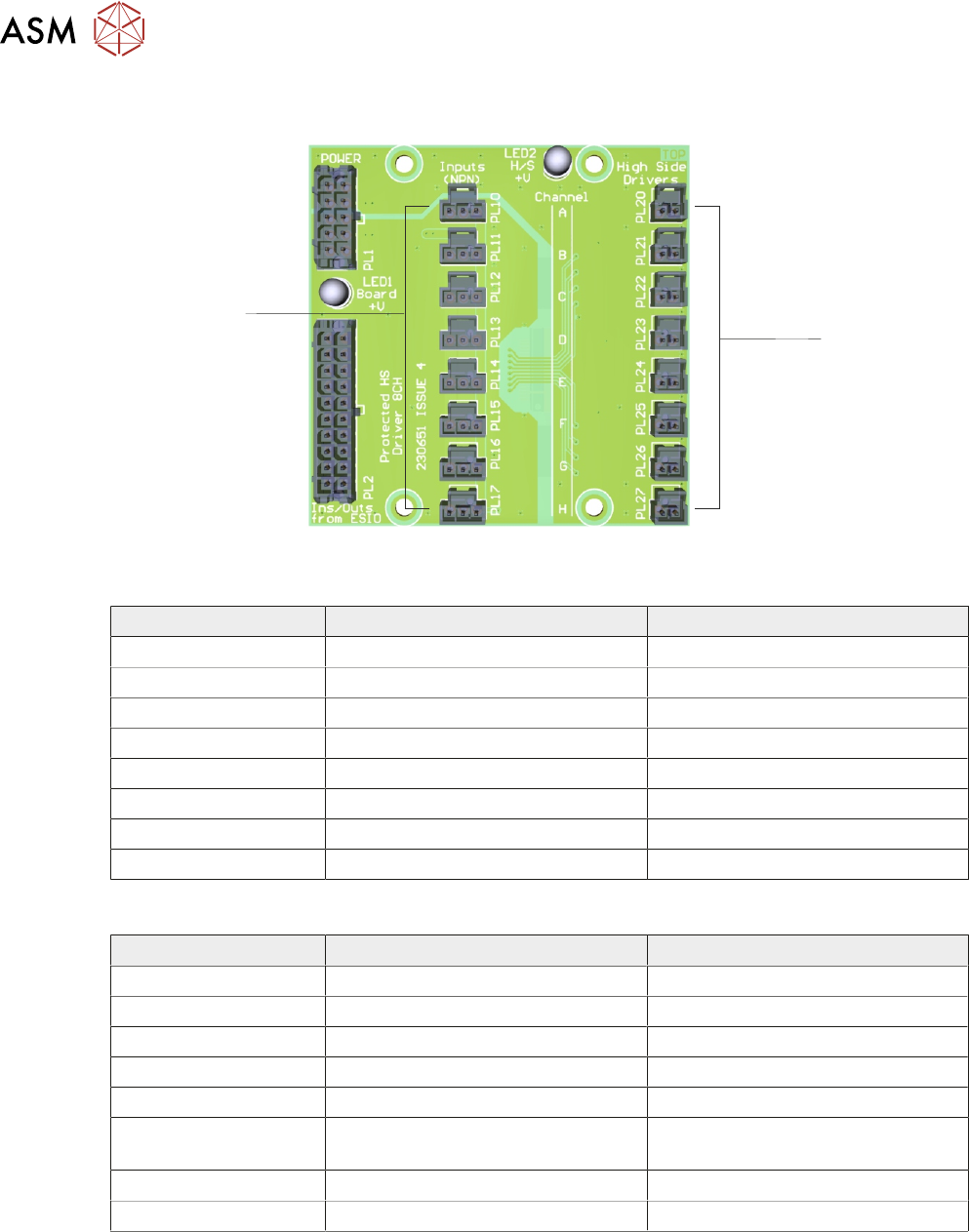

6.5.5 ESIO Breakout Board Connection Details
Channel A
Channel B
Channel C
Channel D
Channel E
Channel F
Channel G
Channel H
O/P
I/P
6.5.5.1 ESIO-1: Breakout A
Connector I/P (Input) O/P (Output)
Channel A System Power Spare
Channel B Front Cover Closed Spare
Channel C Jog Left Tooling Table Lift Brake
Channel D Spare Conveyor Lift Brake
Channel E LH Conveyor LH Board Sensor Spare
Channel F Conveyor Length Indication 1 Spare
Channel G Conveyor Length Indication 2 Spare
Channel H Conveyor Lift Safety Front Spare
6.5.5.2 ESIO-1: Breakout B
Connector I/P (Input) O/P (Output)
Channel A Tooling Table Lift Home Grid-Lok pin lock
Channel B Conveyor Lift Home Software E Stop
Channel C Foil In Front (APC Conveyors) Spare
Channel D Spare Board Lift Plate Actuation
Channel E Spare Spare
Channel F LH Conveyor RH Board Sensor Grid-Lok pin lift/High Flow Vac Di-
verter Valve
Channel G Spare Foil Actuator Extend
Channel H Spare Spare
