2 SAFETY FEATURES 2.2 SAFETY NOTICES TECHNICAL REFERENCE MANUAL DEK TQ 04/2021 15 2.2.5 Warning Labels Warning labels are placed on the machine covers and components to alert personnel to possible hazards which may cause…
2 SAFETY FEATURES
2.2 SAFETY NOTICES
14 TECHNICAL REFERENCE MANUAL DEK TQ 04/2021

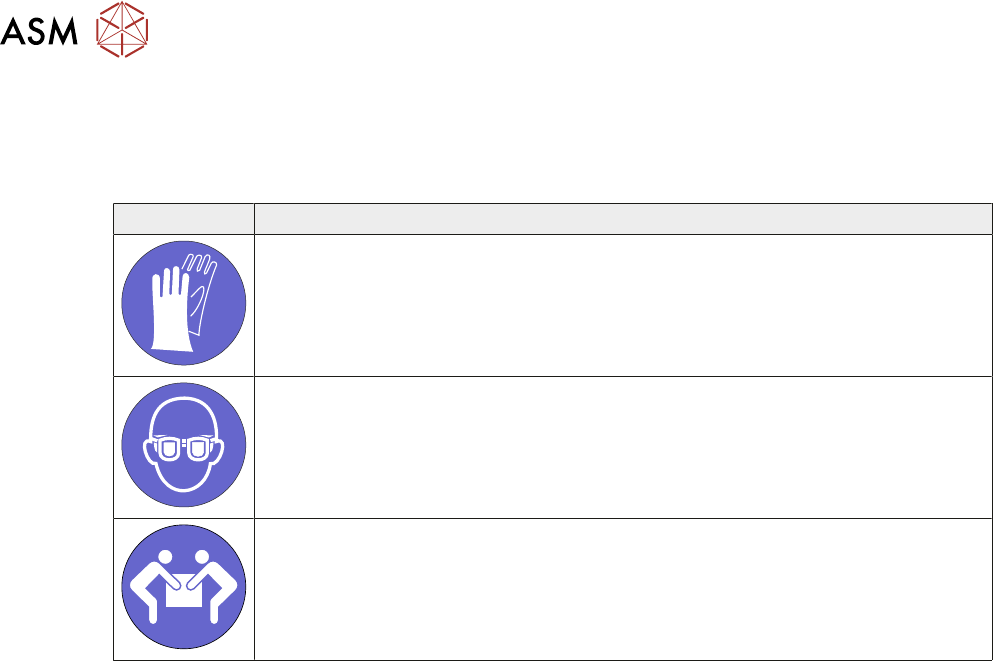

2.2.4 Mandatory Notices
Mandatory notices draw the attention of operators/maintainers to the prescribed behaviour to be
adhered whilst engaged in this activity. The following table displays the mandatory labels affixed to
the printer and displayed in the machine documentation:
Symbol Definition
MANDATORY
TOXIC CHEMICALS MAY BE PRESENT. SAFETY GLOVES MUST BE WORN.
MANDATORY
TOXIC CHEMICALS MAY BE PRESENT. EYE PROTECTION MUST BE
WORN.
MANDATORY
HEAVY OBJECT. LIFTING OR RESITING MUST BE UNDERTAKEN BY TWO
PEOPLE.
2 SAFETY FEATURES
2.2 SAFETY NOTICES
TECHNICAL REFERENCE MANUAL DEK TQ 04/2021 15

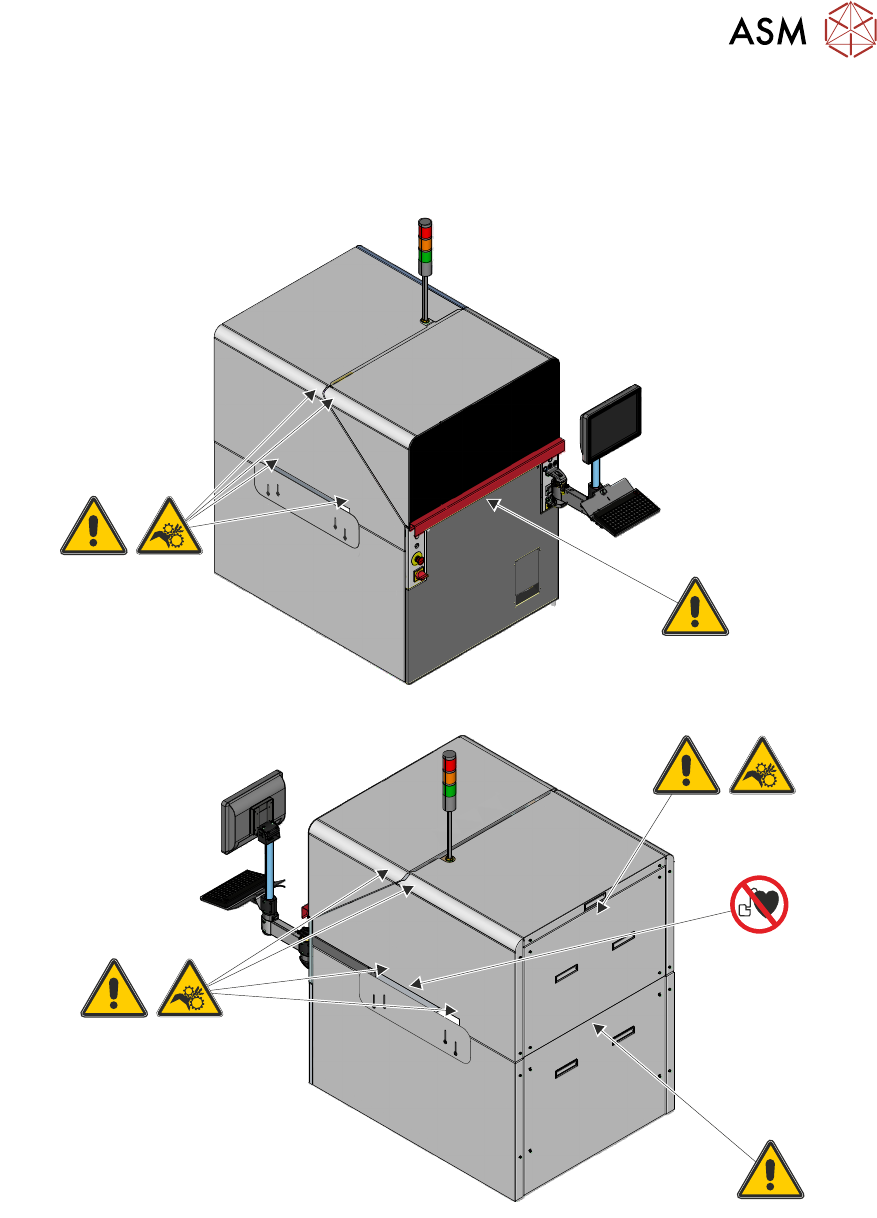

2.2.5 Warning Labels
Warning labels are placed on the machine covers and components to alert personnel to possible
hazards which may cause physical injury or machine damage. The following graphics depict the
location of warning labels fitted to the machine covers:
2 SAFETY FEATURES
2.3 SAFETY CIRCUIT
16 TECHNICAL REFERENCE MANUAL DEK TQ 04/2021

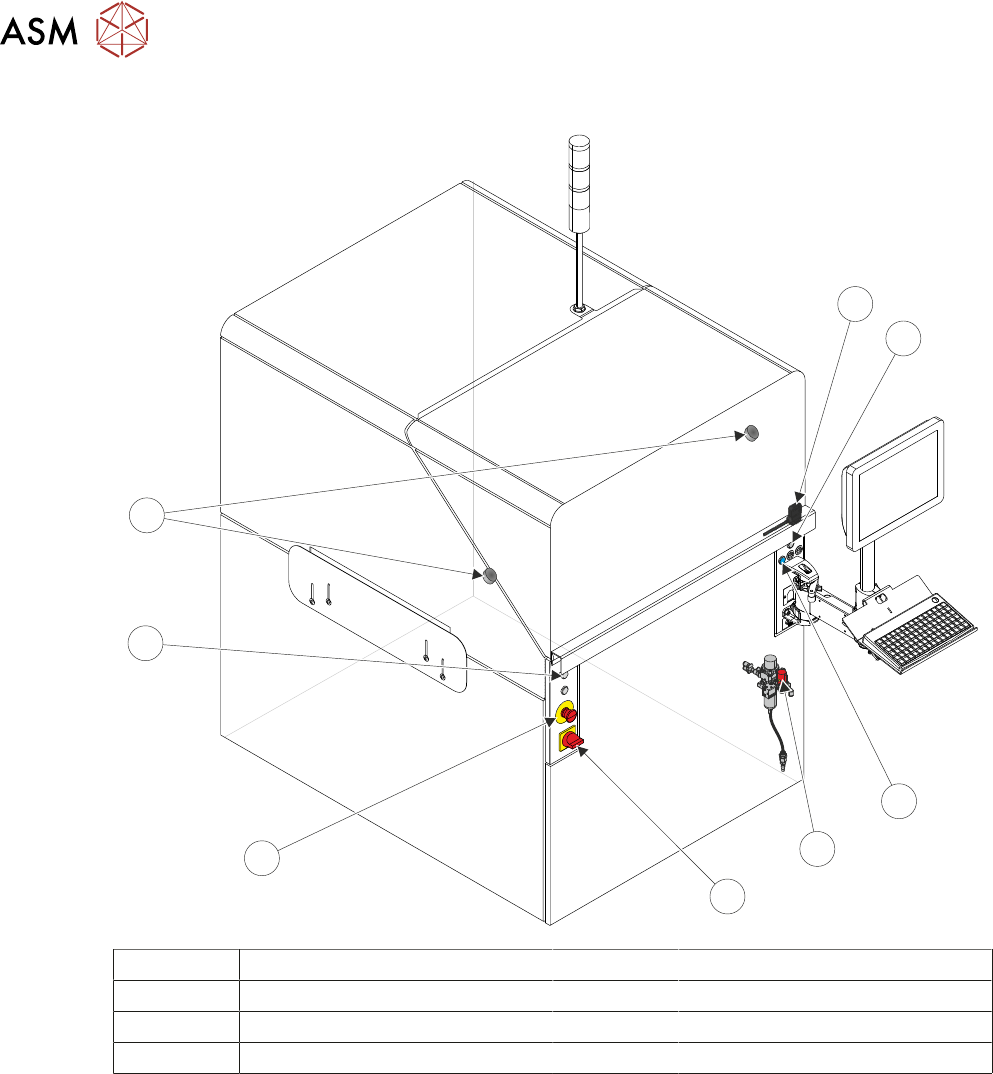

2.3 SAFETY CIRCUIT
1
2
3
4
5
6
8
7
1 Front Cover Safety Switch 5 Mains Isolator Switch
2 Right Jog Button 6 Emergency Stop (E Stop) Button
3 System Button 7 Left Jog Button
4 Pneumatic Lockout 8 Electromagnetic Cover Locks
