9 PASTE DISPENSER SYSTEM 9.4 REPLACEMENT PROCEDURES 156 TECHNICAL REFERENCE MANUAL DEK TQ 04/2021 35. Place clean paste drip tray (1) in position beneath paste dispenser home position. 1 36. Fit paste jar and plunger int…
9 PASTE DISPENSER SYSTEM
9.4 REPLACEMENT PROCEDURES
TECHNICAL REFERENCE MANUAL DEK TQ 04/2021 155

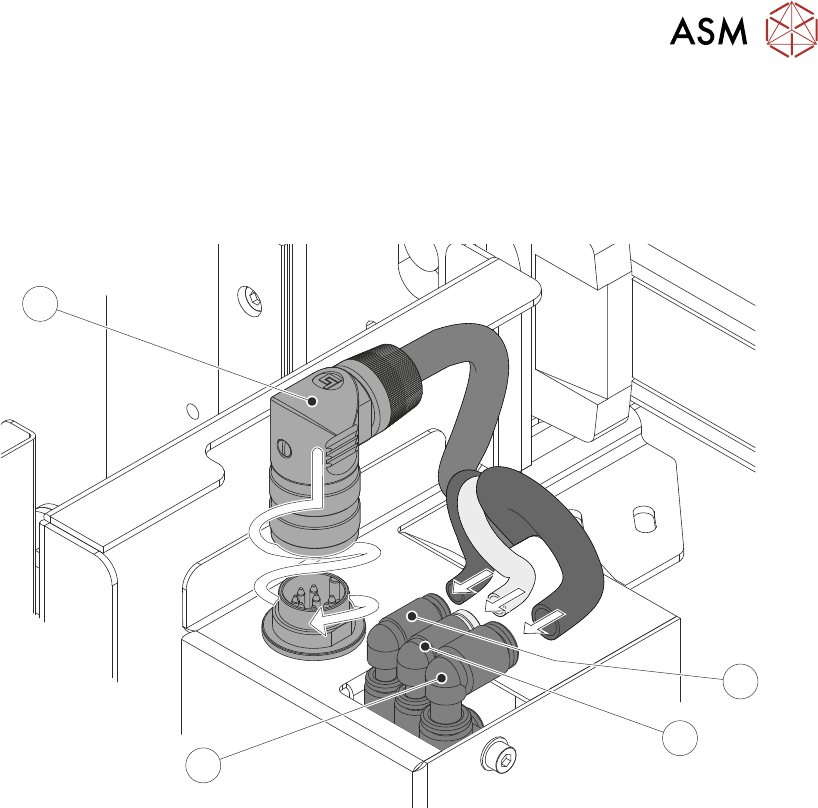

30. Push the electrical connector (4) onto its location and tighten in position, connect the three
pneumatic connectors (1-3).
– Reconnect the down feed pneumatic tube (1) - 4mm tube labelled 1.
– Reconnect the up feed pneumatic tube (2) - 4mm tube labelled 2.
– Reconnect the paste pressure feed pneumatic tube (3) - 6mm tube.
4
3
2
1
31. Switch the pneumatic isolator to SUP.
32. Refit the front panel.
33. Refit upper left hand side panel.
34. Switch the mains isolator to ON.
NOTE
During initialization, the paste dispenser will return to its home position automatically.
9 PASTE DISPENSER SYSTEM
9.4 REPLACEMENT PROCEDURES
156 TECHNICAL REFERENCE MANUAL DEK TQ 04/2021

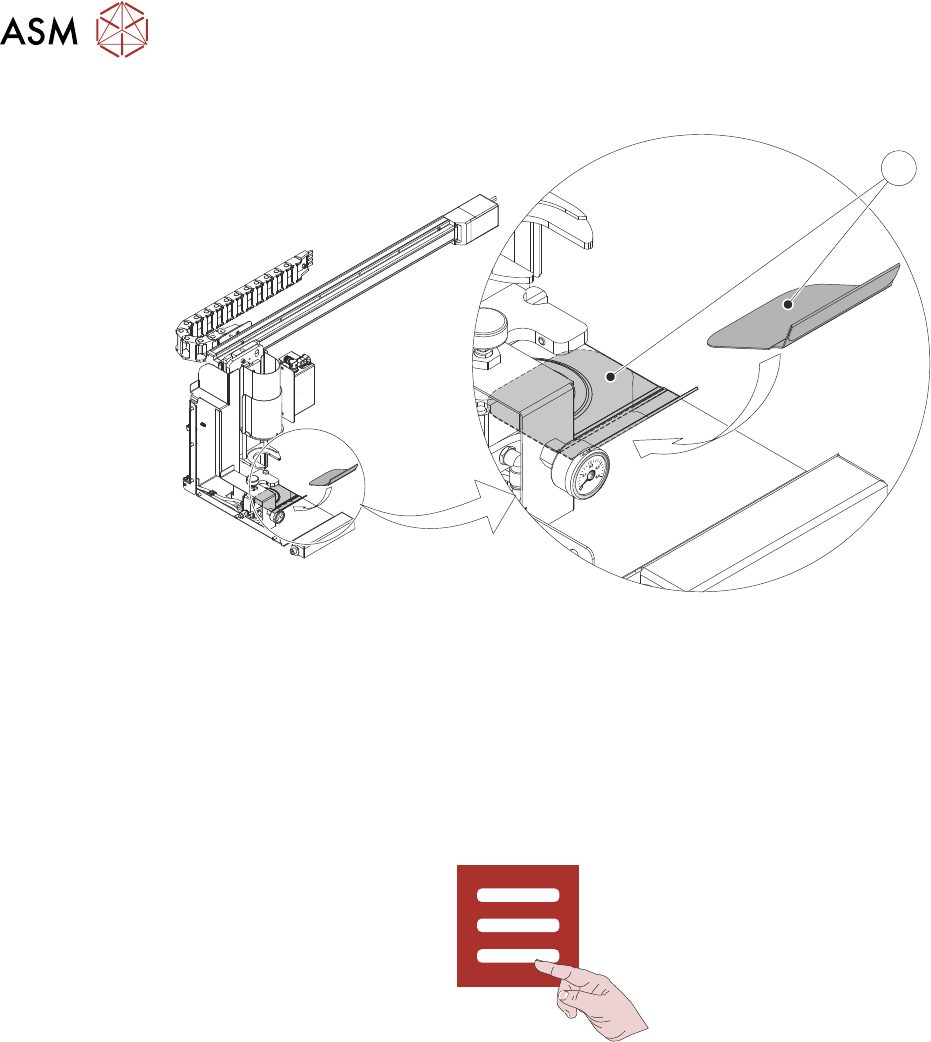

35. Place clean paste drip tray (1) in position beneath paste dispenser home position.
1
36. Fit paste jar and plunger into paste dispenser.
9.4.1.2 Jar to Cartridge
1. Select the Changeover tab.
2. Select Start Changeover.
3. Select Continue.
4. Select Carriage To Rear.
5. Select Menu.
6. Select Shut Down.
7. Open the front cover.
8. Ensure that the stencil has been removed.
9. Switch the mains isolator to OFF.
10. Remove the front panel.
11. Turn the pneumatic isolator to EXH.
12. Remove the upper left hand side panel.
13. Remove the paste jar from the paste dispenser.
9 PASTE DISPENSER SYSTEM
9.4 REPLACEMENT PROCEDURES
TECHNICAL REFERENCE MANUAL DEK TQ 04/2021 157
14. Remove and clean the paste drip tray (1).
1
15. Ensure that any spilled paste is removed from the surfaces on and around the paste dis-
penser.
16. Disconnect the three pneumatic connectors and unscrew and pull-up the electrical connector
plug.
