9 PASTE DISPENSER SYSTEM
9.4 REPLACEMENT PROCEDURES
TECHNICAL REFERENCE MANUAL DEK TQ 04/2021 157

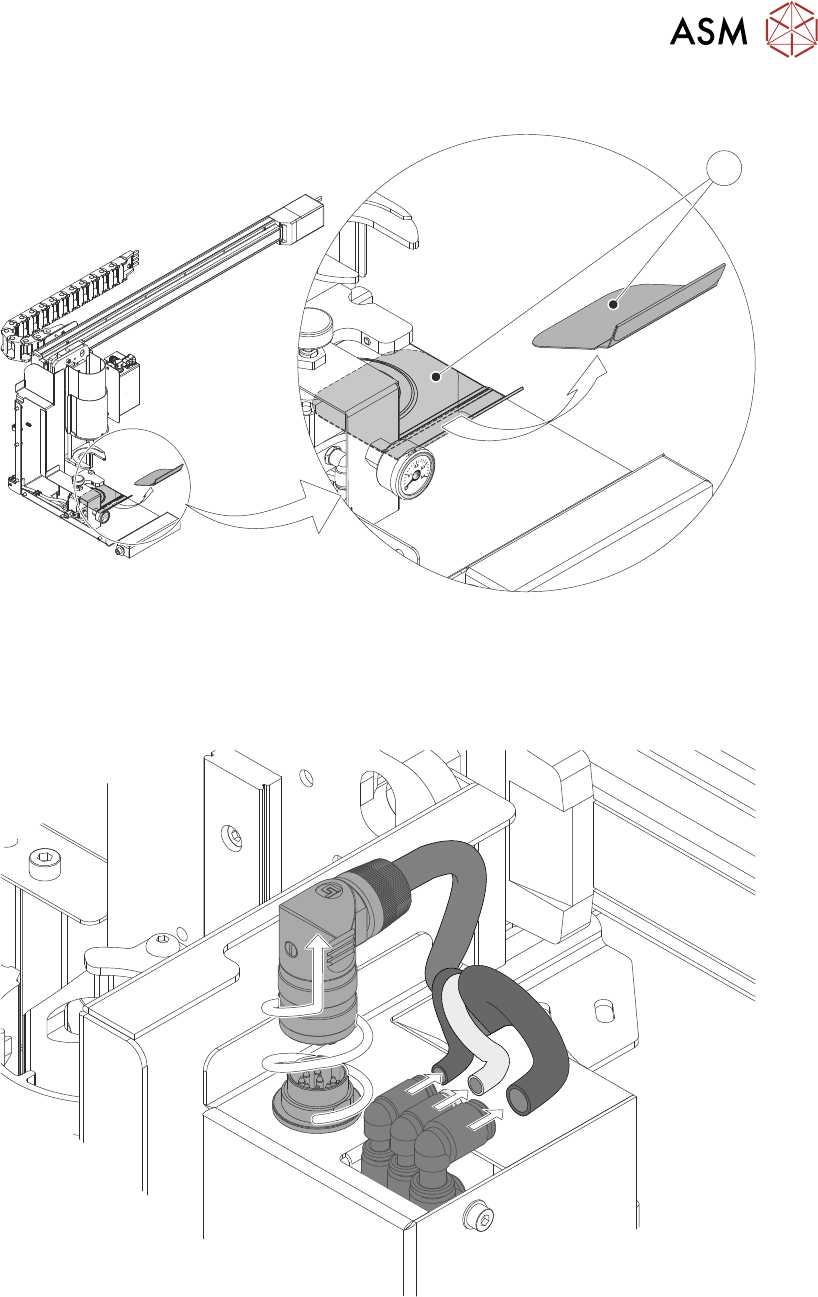

14. Remove and clean the paste drip tray (1).
1
15. Ensure that any spilled paste is removed from the surfaces on and around the paste dis-
penser.
16. Disconnect the three pneumatic connectors and unscrew and pull-up the electrical connector
plug.
9 PASTE DISPENSER SYSTEM
9.4 REPLACEMENT PROCEDURES
158 TECHNICAL REFERENCE MANUAL DEK TQ 04/2021

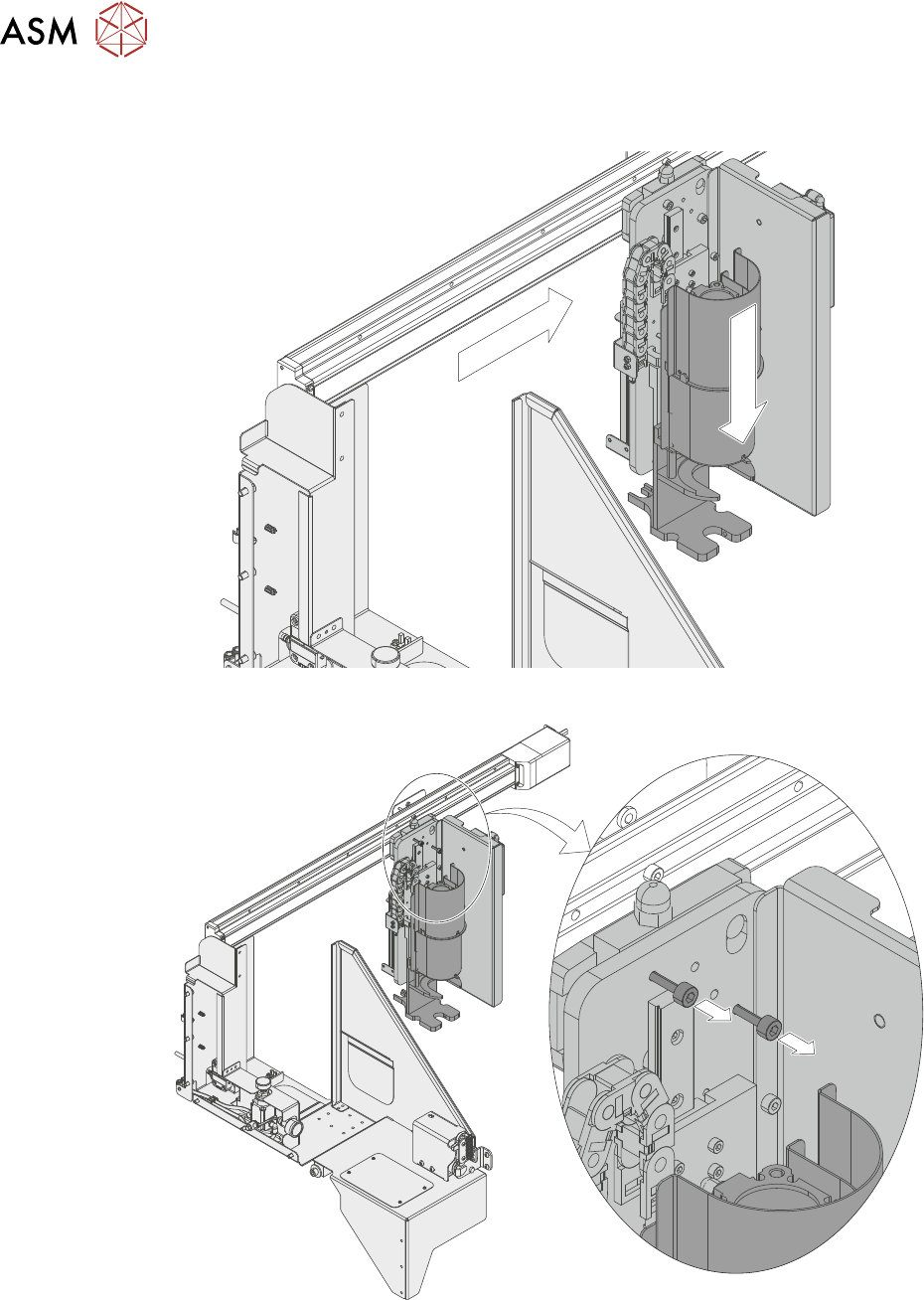

17. Manually move the jar dispenser into the centre of the printer, and lower the paste dispenser
to expose two M5 socket cap-head retaining screws.
18. Using a 4mm Allen key loosen the two M5 captive retaining screws.
9 PASTE DISPENSER SYSTEM
9.4 REPLACEMENT PROCEDURES
TECHNICAL REFERENCE MANUAL DEK TQ 04/2021 159

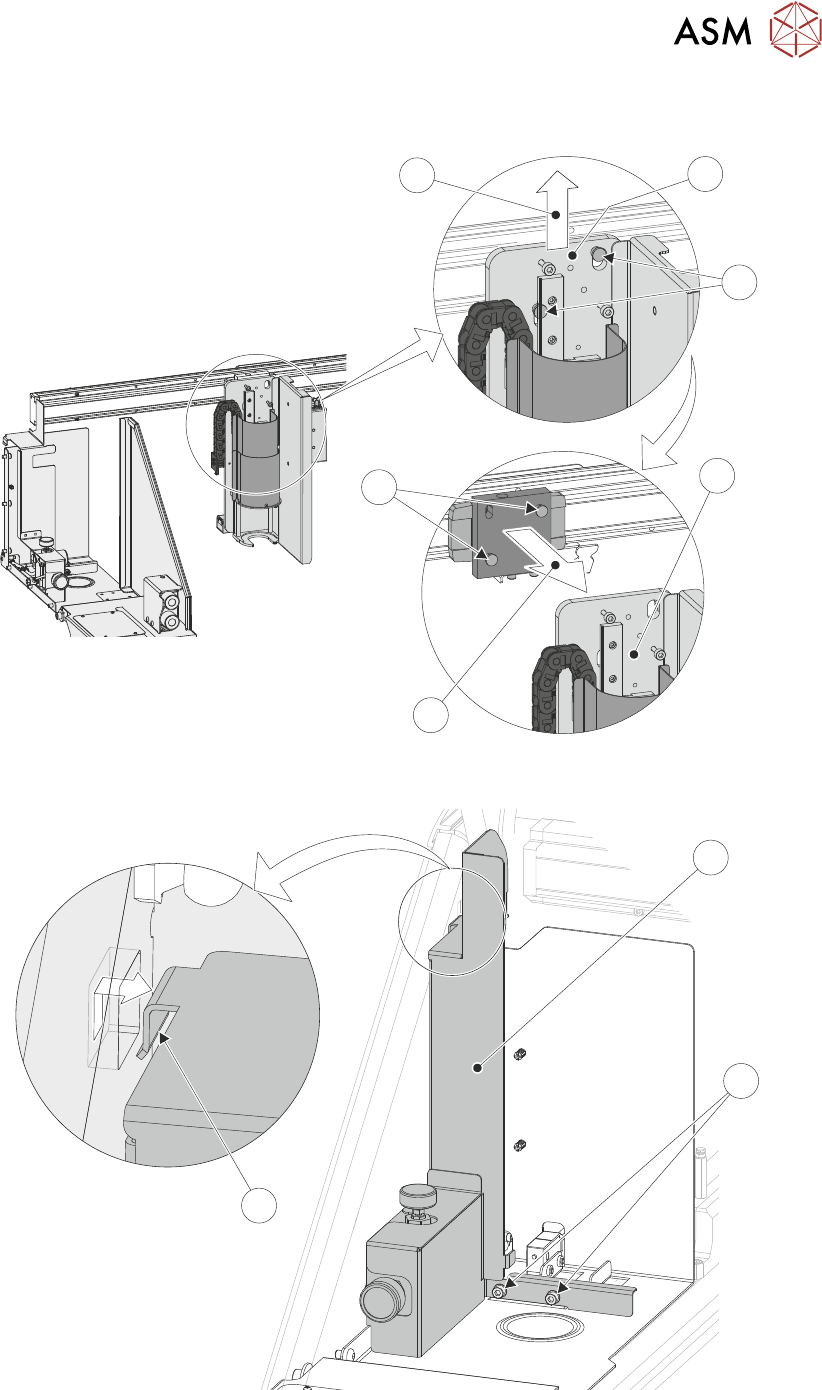

19. Lift (3) the jar dispenser assembly (1) off of the retaining dowels (2) on the mounting then
remove (4) the assembly from the machine.
4
2
1
3
2
1
20. Using a 4mm Allen key remove the two M5 securing screws (2) to release the jar paste regu-
lator assembly (1).
3
2
1
21. Lift the jar paste regulator assembly (1) up and remove the retaining clip (3) from the aperture
in the machine side plate.
22. Carefully store the jar dispenser and jar paste regulator assembly (1) to prevent damage.
