10 STENCIL ALIGNMENT MODULE
10.1 OVERVIEW
174 TECHNICAL REFERENCE MANUAL DEK TQ 04/2021
10.1.6.2 Auto Coplanarity Laser Safety Labels
AVOID EXPOSURE
LASER RADIATION IS EMITTED
FROM THIS APERTURE
CLASS 2 LASER PRODUCT
IEC/EN 60825-1:2014
LASER RADIATION
DO NOT STARE INTO BEAM
Output
Pulse duration
Wavelength
655nm
560μW
10.5-2190μs
10 STENCIL ALIGNMENT MODULE
10.2 ELECTRICAL SCHEMATIC
TECHNICAL REFERENCE MANUAL DEK TQ 04/2021 175

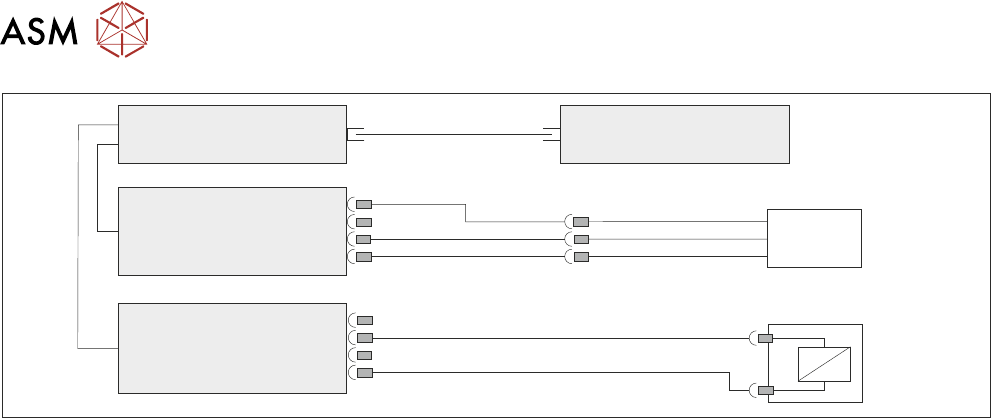

10.2 ELECTRICAL SCHEMATIC
M
M
M
X Actuator
MTR8
X Actuator
3SE2
Home
Sensor
Sensor
Home
Sensor
Home
Sensor
Stencil Clamp
Solenoid
3SOL2
Stencil Clamp
Vacuum Retract
Solenoid
3SOL3
Extended Power Module
EPM2-1
Extended Power Module
EPM2-2
Machine Controller
Controller Power Module
(CPM)
ESIO-3: Breakout B
ESIO-3: Breakout A
ESIO
Upper Frame 1
J6 MTR8
Fibre
Optic
Links
Ribbon Cables
3ASK2
3BSK2
SIO Link Cable
MTR9
MTR10
3PL4
J7
J7
3BSK10
3ASK21
IO9
IO2
3BSK20
3ASK25
3BSK11
3ASK10
IO10
IO1
3BSK12
3BSK21
IO11
Chase Clamp
Solenoid
3SOL3
Stencil
Detection
3SE1
YL Actuator
3SE3
YR Actuator
3SE4
YL Actuator
MTR9
YR Actuator
MTR10
10 STENCIL ALIGNMENT MODULE
10.2 ELECTRICAL SCHEMATIC
176 TECHNICAL REFERENCE MANUAL DEK TQ 04/2021
Machine Controller
Controller Power Module
(CPM)
Fibre Optic Links
SIO
Link
Cables
ESIO-4
ESIO-5
IO5
4PL13
Stencil Load
Paddle Up
4SE12
Sensor
5SOL4
Stencil Load
Cylinder
5SOL4
IO1
Stencil Load
