10 STENCIL ALIGNMENT MODULE
10.4 CALIBRATIONS
TECHNICAL REFERENCE MANUAL DEK TQ 04/2021 183
10.4.2 Coplanarity
Coplanarity is achieved using calibrated tools, contact your local CSG office for more information.
10 STENCIL ALIGNMENT MODULE
10.5 REPLACEMENTS
184 TECHNICAL REFERENCE MANUAL DEK TQ 04/2021
10.5 REPLACEMENTS
10.5.1 Removal of Adaptor from Pneumatic Stencil Clamp
Adaptors are used to allow for thinner stencil frames to be fitted to the machine. To remove an ad-
aptor, carry out the following prcedure.
NOTE
The pneumatic stencil clamps are inflatable bladders and may become damaged due to age or
over pressure. As the cause would affect both clamps, the pneumatic stencil clamps must be
changed as a pair.
1. Select Shut Down.
2. Switch the mains isolator to OFF.
3. Remove the front panel.
4. Switch the Pneumatic Isolator to EXH.
5. Remove upper rear panel.
6. Remove right hand upper side panel.
7. Remove left hand upper side panel.
8. Open the front cover.

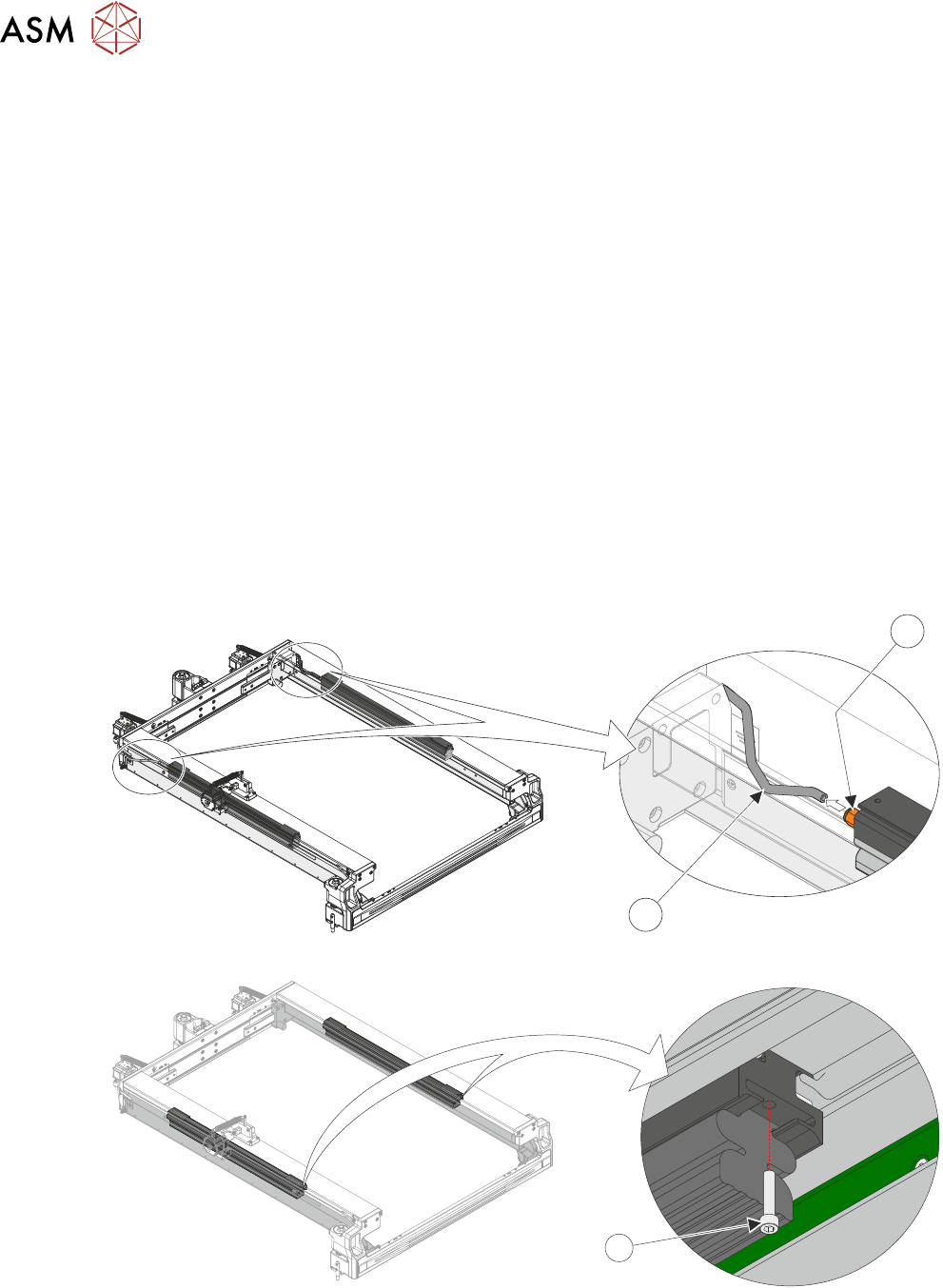

9. Disconnect the pneumatic tube (2) from the quick release fitting (1) located at the rear of the
pneumatic stencil clamp.
2
1
10. Using a 3mm Allen key, remove the securing screw (1) from the front of the adapter.
1
10 STENCIL ALIGNMENT MODULE
10.5 REPLACEMENTS
TECHNICAL REFERENCE MANUAL DEK TQ 04/2021 185
11. Slide the pneumatic stencil clamp (1) out of the front of the adapter.
1
12. To locate the left-hand stencil clamp securing screw (1), look through a cut-out in the left hand
side of the machine frame.
1
