5 POWER SUPPLY
5.1 OVERVIEW
50 TECHNICAL REFERENCE MANUAL DEK TQ 04/2021
M71SK35
M71SK34
M71SK40
M71SK31
M71SK33
M71SK32
M71SK43
M71SK36
M71SK21
M71SK03
M71SK27
M71SK26
M71SK20
M71SK19
M71SK18
M71SK17
M71SK16
M71SK02
M71SK04
CB1
CB31
M71SK07
M71SK12
M71SK22
M71SK24
M71SK10
M71SK05
M71SK08
M71SK13
M71SK23
M71SK25
M71SK11
M71SK06
M71SK09
M71SK14
M71SK01
M71SK30
M71SK15
1
2
3

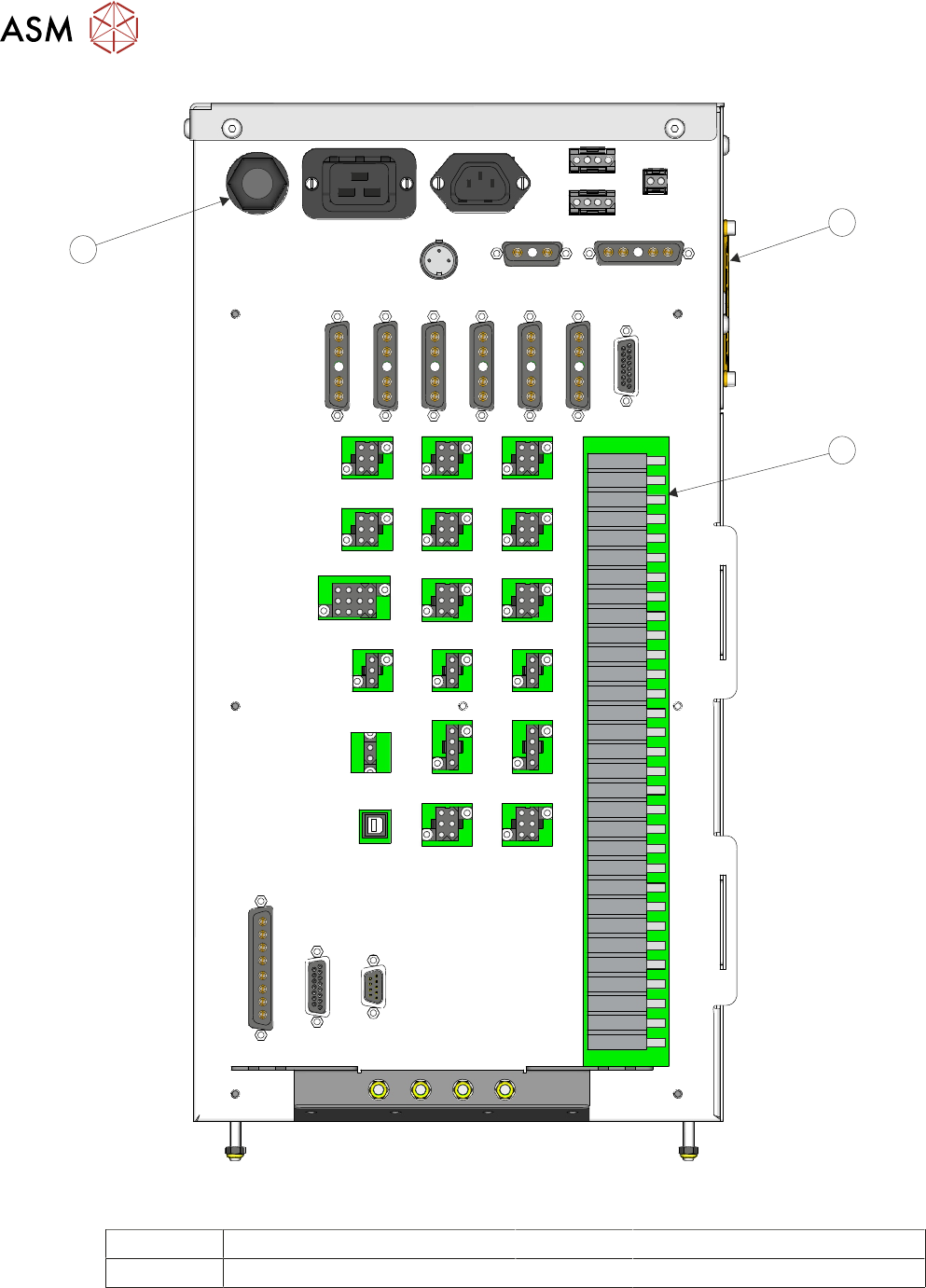

View on Rear of Power Supply
1 Cooling Fans (in 2 positions) 3 Mains Cable Input
2 Rear Circuit Breakers
5 POWER SUPPLY
5.1 OVERVIEW
TECHNICAL REFERENCE MANUAL DEK TQ 04/2021 51
5.1.1 Circuit Breakers

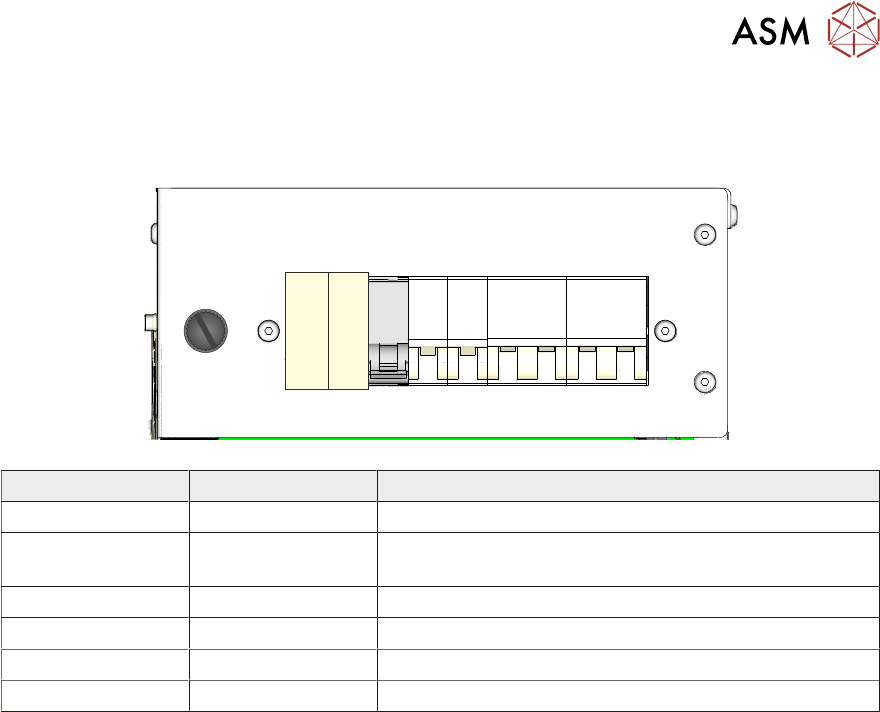

5.1.1.1 Front
CB
5
CB
4
CB
3
CB
2
CB
1
M71
F1
Circuit Breaker Current Rating Circuit Breaker Function
CB1 6A C Mains Supply to the 24V and 48V Power Supply Units
CB2 10A C Mains Supply to M71SK34 (TCM) and
M71SK35 (Internal Vacuum Pump)
CB3 6A B 24V US Supply to M71SK43 (Machine Controller)
CB4 10A B 24V US Supply to Rear Circuit Breakers
CB5 4A C 48V SW Supply to M71SK16 to 21
M71 F1 2A Mains supply to the monitor
5 POWER SUPPLY
5.1 OVERVIEW
52 TECHNICAL REFERENCE MANUAL DEK TQ 04/2021

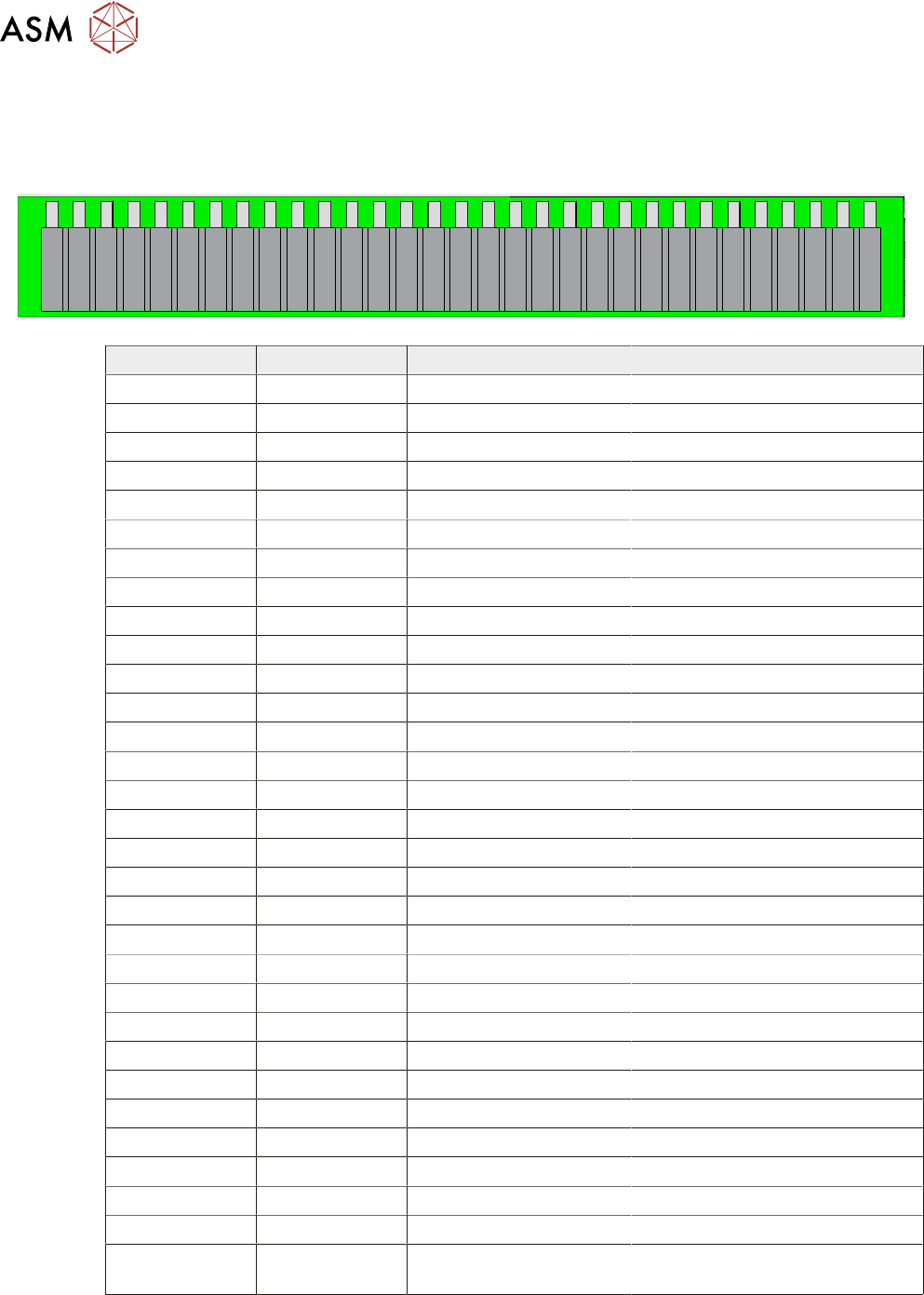

5.1.1.2 Rear
CB1
CB2
CB3
CB4
CB5
CB6
CB7
CB8
CB9
CB10
CB11
CB12
CB13
CB14
CB15
CB16
CB17
CB18
CB19
CB20
CB21
CB22
CB23
CB24
CB25
CB26
CB27
CB28
CB29
CB30
CB31
Circuit Breaker Current Rating Supply To Connector Circuit Breaker Function
CB1 3.15A M71SK15 Fans
CB2 3.15A M71SK01 Not Used
CB3 1.5A M71SK02 Not Used
CB4 3.15A M71SK02 Not Used
CB5 1.5A M71SK02 +24V US NuMotion Logic Supply
CB6 1.5A M71SK02 Not Used
CB7 1.5A M71SK03 Not Used
CB8 3.15A M71SK03 Not Used
CB9 3.15A M71SK03 Not Used
CB10 6.3A M71SK03 Not Used
CB11 3.15A M71SK04 +24V US ESIO-1
CB12 3.15A M71SK04 +24V SW ESIO-1
CB13 1.5A M71SK04 Not Used
CB14 3.15A M71SK05 +24V US ESIO-2
CB15 3.15A M71SK05 +24V SW ESIO-2
CB16 3.15A M71SK06 +24V US ESIO-3
CB17 3.15A M71SK06 +24V SW ESIO-3
CB18 3.15A M71SK07 +24V US ESIO-4
CB19 3.15A M71SK07 +24V SW ESIO-4
CB20 3.15A M71SK08 +24V US ESIO-5
CB21 3.15A M71SK08 +24V SW ESIO-5
CB22 1.5A M71SK08 Not Used
CB23 3.15A M71SK09 +24V US ESIO-6
CB24 3.15A M71SK09 +24V SW ESIO-6
CB25 3.15A M71SK10 Not Used
CB26 3.15A M71SK10 Not Used
CB27 3.15A M71SK11 Machine Lighting
CB28 3.15A M71SK11 Not Used
CB29 3.15A M71SK12 Not Used
CB30 1.5A M71SK13 Not Used
CB31 3.15A M71SK16 to M71SK 21 +24V US Drive Logic Power To
EPM’s
