P-0118-001 - 第215页
MODEL TCM-3100J 981 1-001 1 1-10 Key No. PART No. PART NAME Q'ty REMA RK S 1 630 074 9014 PANEL 1 659DC-03V-001 11 630 033 4609 SW ITCH,BUTT ON 1 659D C-03D-001 12 630 033 4586 DISPLAY ELEM ENT 1 659DC-03D-002 13 63…
MODEL TCM-3100J
9811-001
電気制御部 ELECTRICAL SECTION

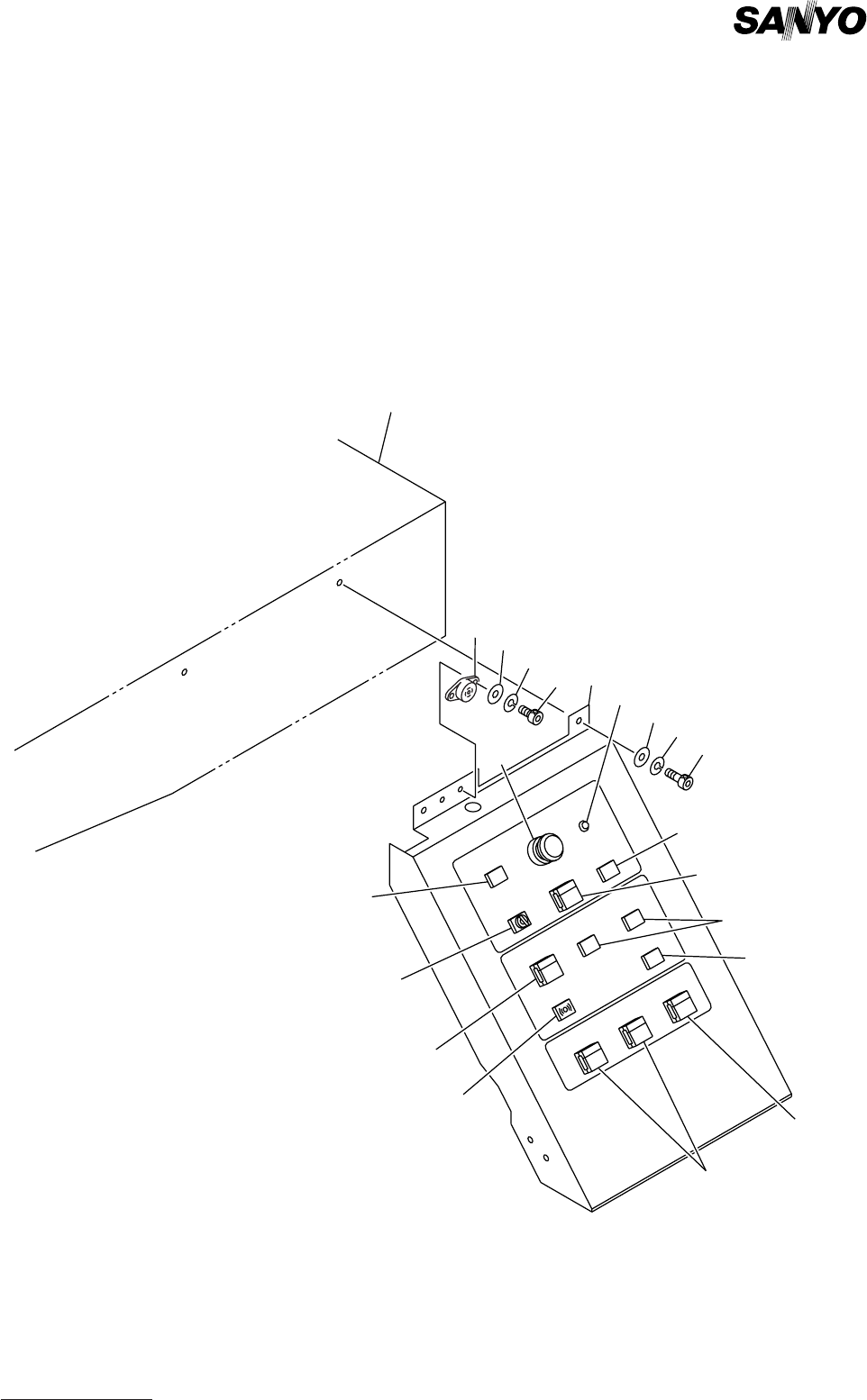

Fig.11-10前面操作パネル Front Operation Panel
1
41
42
43
31
32
33
34
111213
14
28
15
27
26
18
4796
See Fig.1-1
Key No.13
. .
2425
.
16 17
.
19 20
.
21 22
.
23
MODEL TCM-3100J
9811-001
11-10
Key No. PART No. PART NAME Q'ty REMARKS
1 630 074 9014 PANEL 1 659DC-03V-001
11 630 033 4609 SWITCH,BUTTON 1 659DC-03D-001
12 630 033 4586 DISPLAY ELEMENT 1 659DC-03D-002
13 630 033 4593 ACCESSORY,SW 1 659DC-03D-003
14 630 066 7042 SWITCH,BUTTON 1 659DC-03D-004
15 630 000 3130 SWITCH,SELECTOR 1 659DC-03D-012
16 630 000 2713 SWITCH,BUTTON 1 659DC-03D-006
17 630 000 0382 ACCESSORY,SW 1 659DC-03D-009
18 630 000 2515 SWITCH,BUTTON 2 659DC-03D-005
19 630 000 2713 SWITCH,BUTTON 2 659DC-03D-006
20 630 000 0382 ACCESSORY,SW 2 659DC-03D-009
21 630 000 2713 SWITCH,BUTTON 1 659DC-03D-006
22 630 000 0382 ACCESSORY,SW 1 659DC-03D-009
23 630 007 6066 SWITCH,BUTTON 1 659DC-03D-007
24 630 007 6066 SWITCH,BUTTON 1 659DC-03D-007
25 630 000 0382 ACCESSORY,SW 1 659DC-03D-009
26 630 035 0074 BUZZER 1 659DC-03D-011
27 630 000 2744 SWITCH,BUTTON 1 659DC-03D-008
28 407 035 4704 LED SLP-721F 1 659DC-03D-010
31 630 033 4685 BUZZER 1 659DB-03D-003
32 411 141 3605 WASHER V 2X5X0.3 2 FW2 F
33 411 141 2509 WASHER SPR 2 2 SW2 F
34 411 039 2604 SCR PAN 2X6 2 M2X6 PAN
41 411 141 4107 WASHER V 5X10X1 2 FW5
42 411 141 6705 WASHER SPR 5 2 SW5
43 630 000 7749 BOLT,HEX-SCT 2 M5X10
NOTE
MODEL TCM-3100J
9811-001
電気制御部 ELECTRICAL SECTION

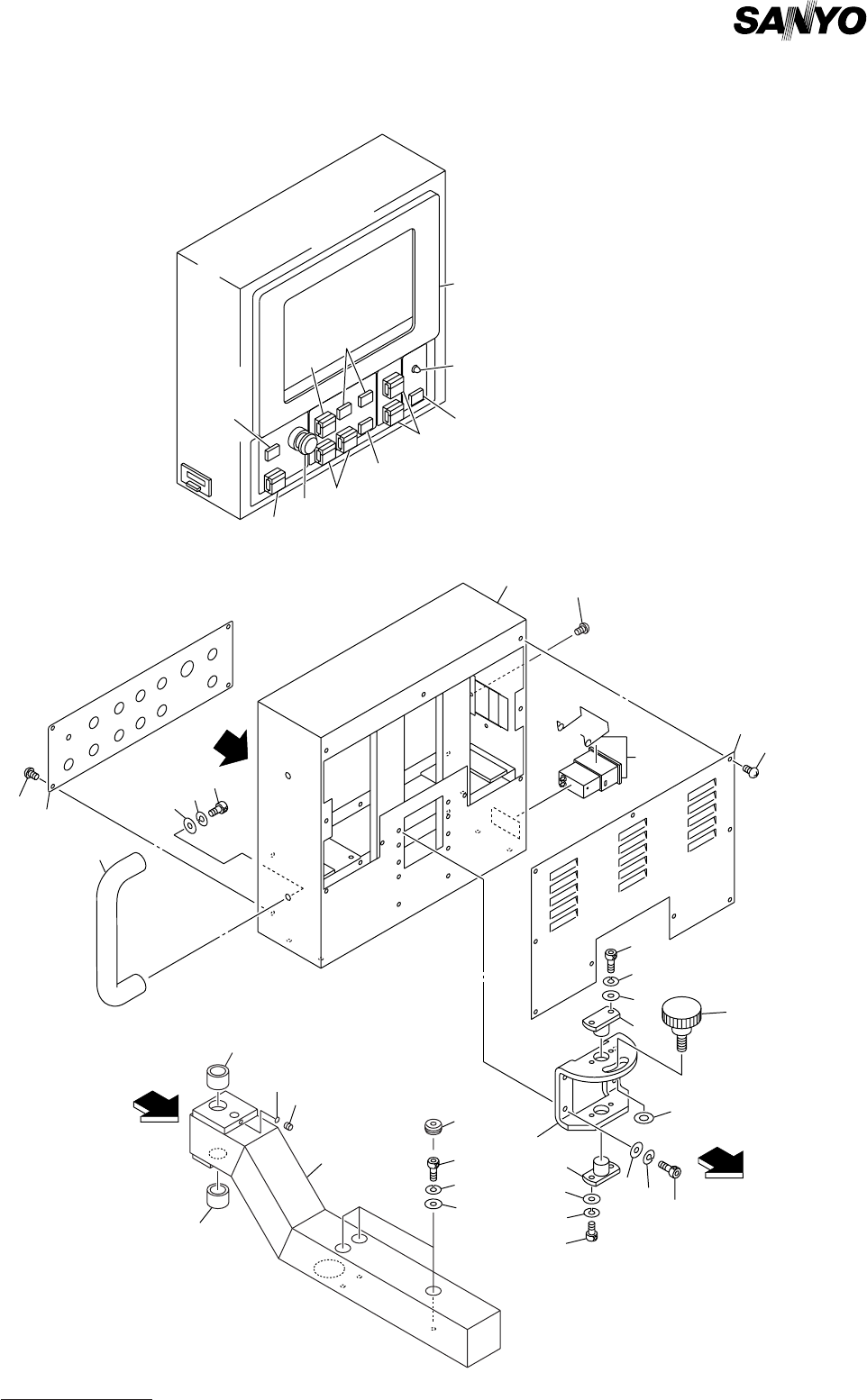

Fig.11-11後面操作パネル Rear Operation Panel
1
31
32
10
29
2
3
4
5
30
43
44
45
46
47
49
48
52
53
54
11
A
B
DETAIL"A"
47
46
45
44
12
13
.
.
24
25
.
21
22
.
16
17
. 18
23
19
20
.
27
28
6
14
42
41
50
51
55
56
57
58
42
B
62
4796R
