P-0118-001 - 第63页
MODEL TCM-3100J 981 1-001 3-15 Key No. PART No. PART NAME Q'ty REMA RK S 1 630 048 9736 SUPPORT 2 659K--03B-062 2 411 141 4305 W ASHER V 6X12.5X1.6 4 FW 6 3 411 141 3001 W ASHER SPR 6 4 SW 6 4 630 000 7923 BOLT,HEX-…
MODEL TCM-3100J
9811-001
ヘッド駆動部HEAD DRIVING SECTION

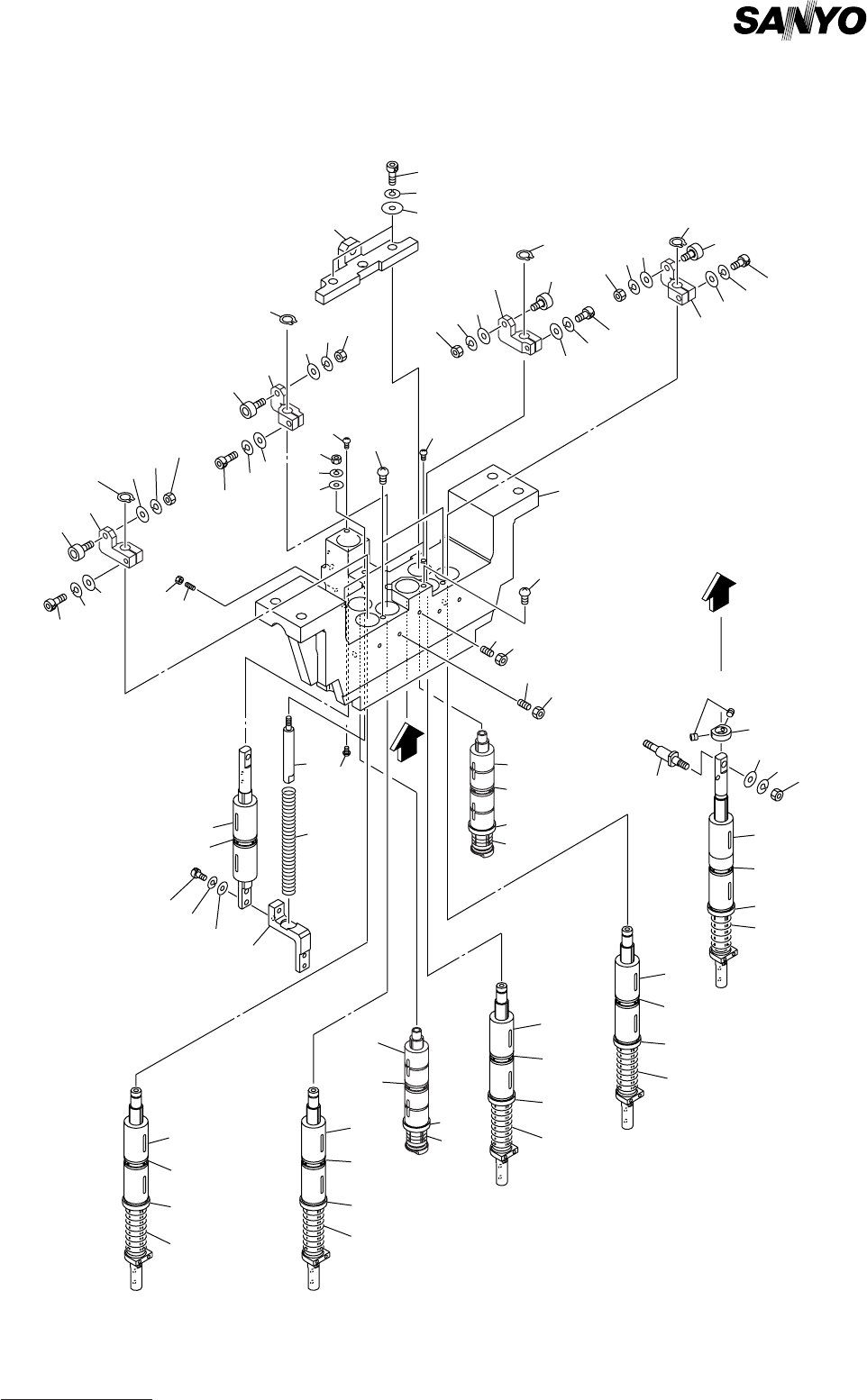

Fig. 3-15カム軸−3 ストッパCam Shaft-3 Stopper
11
12
15
16
13
14
17
21
20
22
19
18
5
6
7
8
See Fig.1-1
Key No.13
15
16
11
12
15
15
16
16
13
14
17
20
21
22
19
18
1
1
2
3
4
54
55
56
57
58
53
52
51
10
10
4796
-002
MODEL TCM-3100J
9811-001
3-15
Key No. PART No. PART NAME Q'ty REMARKS
1 630 048 9736 SUPPORT 2 659K--03B-062
2 411 141 4305 WASHER V 6X12.5X1.6 4 FW6
3 411 141 3001 WASHER SPR 6 4 SW6
4 630 000 7923 BOLT,HEX-SCT 4 M6X35
5 630 052 1559 PLATE 1 659K--03B-063
6 411 141 4305 WASHER V 6X12.5X1.6 4 FW6
7 411 141 3001 WASHER SPR 6 4 SW6
8 630 000 7909 BOLT,HEX-SCT 4 M6X25
10 630 060 4856 ASSY,LEVER(STOPPER TYPE3) 4
11 630 051 6494 BASE 1 659K--03B-093
12 630 055 2881 SHAFT 1 659K--03B-030
13 630 048 7251 LEVER 1 659K--03B-032
14 630 000 8944 SET SCREW 1 M5X6 SET
15 630 001 1272 BEARING,RADIAL 2 659K--03H-012
16 411 051 1708 SCR TRS 4X6 4 M4X6 TRS
17 630 060 4931 ASSY,CYLINDER(STOPPER R) 4
17 -1 630 055 2874 CYLINDER 1 659K--03H-053
17 -2 630 000 0436 CASE,CONN 1
17 -3 630 000 4281 CABLE JOINT,TERMINAL 2
18 411 118 8503 NUT HEX 5 4 M5 F
19 630 000 8630 BOLT,HEX 4 M5X20 HEX
20 630 029 1391 WASHER 16 659K--03H-048
21 411 141 6705 WASHER SPR 5 16 SW5
22 630 000 7770 BOLT,HEX-SCT 16 M5X20
51 630 051 3813 PIPE FITTINGS 1 659K--03H-054
52 630 003 7814 PIPE FITTINGS 1
53 630 003 7791 PIPE FITTINGS 2
54 411 141 3902 WASHER V 3X7X0.5 2 FW3
55 411 141 2806 WASHER SPR 3 2 SW3
56 630 000 7572 BOLT,HEX-SCT 2 M3X25
NOTE
MODEL TCM-3100J
9811-001
ヘッド駆動部 HEAD DRIVING SECTION
