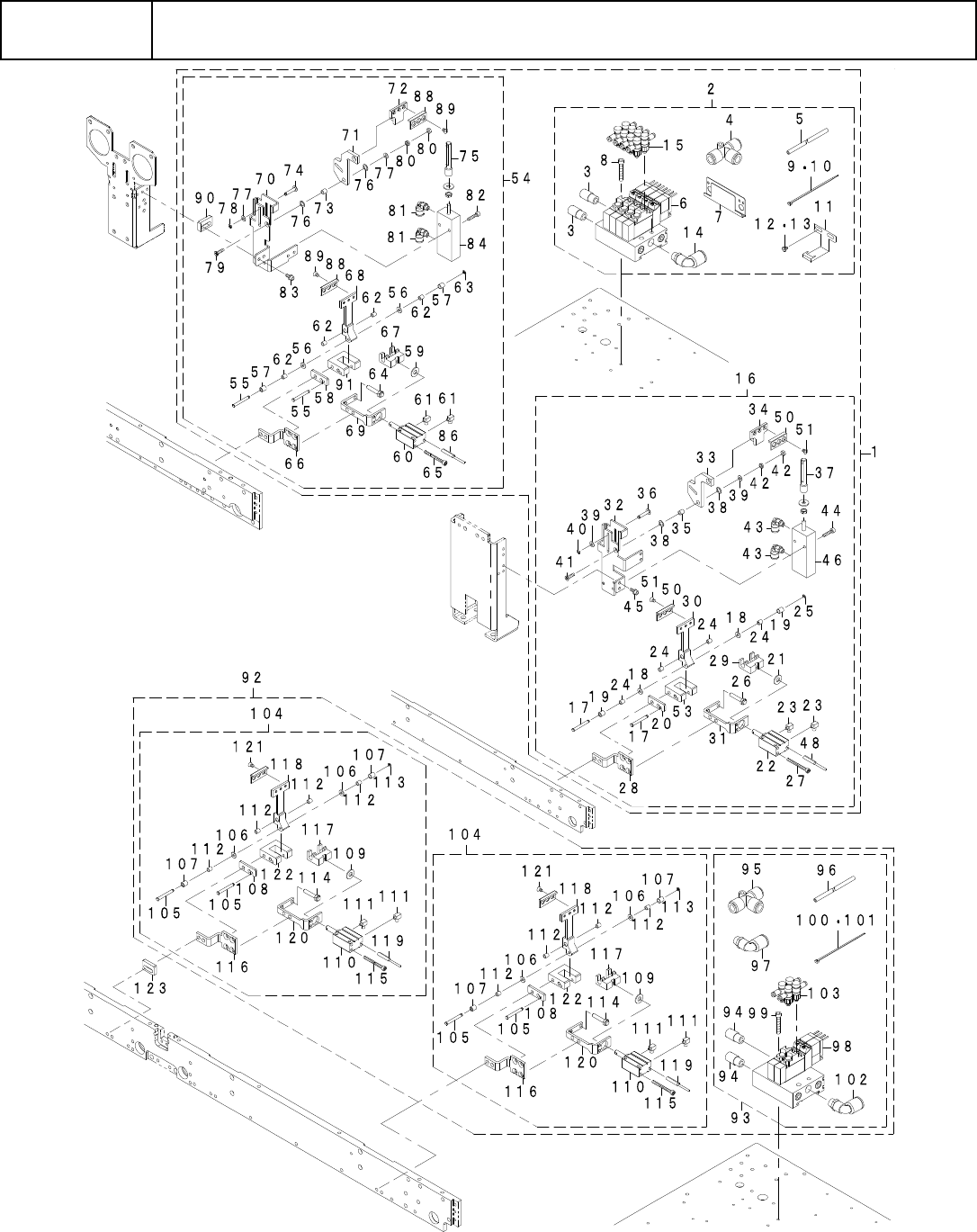

A-109
A28-2
【RX-7R】基板ストッパー ＡＳＳＹ
【RX-7R】PWBstopperassy
A-110
A28-2
【RX-7R】基板ストッパー ASSY
【RX-7R】PWBstopperassy
ｲﾗｽﾄ番号
Ref.No.
品番
PartNumber
Description
品名
個数
Q'ty
備考
Remarks
1 402-07071 STOPPER_ASSEMBLY(DUAL) ｽﾄｯﾊﾟ ASSEMBLY(ﾃﾞｭｱﾙ) 1
2 401-61171 ST_KIT ｽﾄｯﾊﾟｰ KIT (1)
3 EZ4-426-151-01 SILENCER(AN10-01) ｻｲﾚﾝｻ(AN10-01) (2)
4 PJ-3050800-03 T8 ﾁｰｽﾞ8 (1)
5 EZ7-632-378-00 TUBEPOLYURETHAN(TU0805B) ﾎﾟﾘｳﾚﾀﾝﾁﾕ-ﾌﾞ(TU0805B)5X8X20M (1)
6 401-61456 SOLENOIDVALVEASSY(ST) ｿﾚﾉｲﾄﾞﾊﾞﾙﾌﾞASSY(ST) (1)
7 401-61126 BLACET_ST_HARNESS_B(RLC) ｽﾄﾂﾊﾟ-ﾌﾞﾗｹﾂﾄ B(RLC) (2)
8 EZ7-683-427-04 BOLTHEXAGONSOCKET4X25 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ4X25 (2)
9 EZ4-716-434-31 TIEINSULOCK(AB200BLACK) ｲﾝｼﾕﾛﾂｸﾀｲ(AB200ｸﾛ) (9)
10 EZ4-716-434-11 TIEINSULOCK(AB100BLACK) ｲﾝｼﾕﾛﾂｸﾀｲ(AB100ｸﾛ) (8)
11 401-66476 HARNESSHOLDER ﾊｰﾈｽﾎﾙﾀﾞｰ (4)
12 EZ4-453-818-01 BOLT(CBSTSR3-5) ﾁﾖｳｺﾞｸﾃｲﾄｳﾎﾞﾙﾄ(CBSTSR3-5) (8)
13 EZ7-682-247-09 SCREW+K3X6 SCREW+K3X6 (2)
14 PJ-3040851-01 ELBOWUNION8XPT1/8 ｴﾙﾎﾞﾕﾆｵﾝ8XPT1/8 (1)
15 EZ4-457-146-31 CONTROLLER(AS1211F-M5-02A) ｽﾋﾟ-ﾄﾞｺﾝﾄﾛ-ﾗ-(AS1211F-M5-02A) (8)
16 402-07072 STOPPERASSY_DUAL ｽﾄｯﾊﾟ ASSY(ﾃﾞｭｱﾙ) (1)
17 401-61120 PIN_STOPPERHINGE ｽﾄﾂﾊﾟ-ﾋﾝｼﾞﾋﾟﾝ (2)
18 401-61122 LINK_SPACER ﾘﾝｸｽﾍﾟｰｻｰ (2)
19 401-61123 LINK_COLLAR ﾘﾝｸｶﾗｰ (2)
20 401-61124 STTOPER_BLOCK_SPACER ｽﾄｯﾊﾟｰﾌﾞﾛｯｸｽﾍﾟｰｻｰ (1)
21 EZ4-454-328-01 STOPPERCLAMP ｸﾗﾝﾌﾟｽﾄﾂﾊﾟ (1)
22 401-61132 CYLINDER(CDUJB8-15D) ｼﾘﾝﾀﾞ(CDUJB8-15D) (1)
23 401-61133 ELBOW_UNION(M-3ALU-2) ｴﾙﾎﾞﾕﾆｵﾝ(M-3ALU-2) (2)
24 401-61134 DRY_BEARING(GSM-0304-05) ﾄﾞﾗｲﾍﾞｱﾘﾝｸﾞ(GSM-0304-05) (4)
25 RE-0200000-K0 E-RING2 E 形止め輪2 (1)
26 401-61135 STOPPER_BOLT(SUB-M4-20) ｳﾚﾀﾝﾂｷｽﾄｯﾊﾟﾎﾞﾙﾄ(SUB-M4-20) (1)
27 SM-6033502-TN SCREWM3L=35 ﾛｯｶｸｱﾅﾎﾞﾙﾄM3L=35 (2)
28 402-00994 HOLDER_STUNIT ｽﾄｯﾊﾟｰﾕﾆｯﾄﾎﾙﾀﾞｰ (1)
29 401-91356 STOPPER_JOINT ｼﾞｮｲﾝﾄｽﾄｯﾊﾟｰ (1)
30 401-95902 STOPPERLEVER(A) ｽﾄｯﾊﾟｰﾚﾊﾞｰ(A) (1)
31 401-91357 PLATE_STOPPER ｽﾄｯﾊﾟｰﾌﾟﾚｰﾄ (1)
32 402-09859 STOPPERFRAM(1)_DUAL ｽﾄｯﾊﾟｰﾌﾚｰﾑ(1)_ﾃﾞｭｱﾙﾖｳ (1)
33 402-01279 LEVER(2)STOPPER ｽﾄｯﾊﾟｰﾚﾊﾞｰ(2) (2)
34 402-01325 LEVER_STOPPER(3) ｽﾄｯﾊﾟｰﾚﾊﾞｰ(3) (1)
35 E2038-721-000 STOPPERCOLLAR ｽﾄｯﾊﾟｶﾗｰ (1)
36 400-00910 STOPER_PIN ｽﾄｯﾊﾟﾋﾟﾝ (1)
37 401-98649 STOPPER_CONNECT(2) ｽﾄｯﾊﾟｰｺﾈｸﾄ(2) (1)
38 E2039-721-000 WASHERA ｽﾗｽﾄﾜｯｼｬ A (2)
39 WP-0320501-SC WASHERM3 ﾋﾗｻﾞｶﾞﾈM3 (2)
40 RE-0200000-K0 E-RING2 E 形止め輪2 (1)
41 SM-1031201-SC SCREWM3X0.5L=12 ｻﾗｺﾈｼﾞM3X0.5L=12 (1)
42 NM-6030003-SC NUTM3X0.5TYPE3 六角ﾅｯﾄM3X0.53 種 (2)
43 EZ4-455-734-01 UNION(KJL02-M5)ELBOW ｴﾙﾎﾞﾕﾆｵﾝ(KJL02-M5) (2)
44 SM-6031402-TN SCREWM3X0.5L=14 ﾛｯｶｸｱﾅﾎﾞﾙﾄM3X0.5L=14 (2)
45 SL-6030892-TN SCREWM3L=8 座金付き六角穴ﾎﾞﾙﾄM3L=8 (2)
46 402-02234 CYLINDER(BDAS10X25) ｼﾘﾝﾀﾞ(BDAS10X25) (1)
47 402-04781 SENSORHOLDER(C1-BDAS10) ｾﾝｻｰﾎﾙﾀﾞｰ(C1-BDAS10) (1)
48 401-61482 SENSORASSY(ST) ｾﾝｻｰASSY(ST) (1)
49 402-07070 SENSORASSY(ST_2) ｾﾝｻｰ ASSY(ST_2) (1)
50 401-66475 STOPPERTOP ｽﾄｯﾊﾟｰﾄｯﾌﾟ (2)
51 SM-1030501-SC SCREWM3L=5 ｻﾗｺﾈｼﾞM3L=5 (6)
52 402-09256 STOPPRTSPACER ｽﾄｯﾊﾟｰｽﾍﾟｰｻｰ (1)
53 401-61112 STTOPER_BLOCK ｽﾄﾂﾊﾟ-ﾌﾞﾛﾂｸ (1)
54 402-11965 STOPPERASSY_DUAL2 ｽﾄｯﾊﾟｰ ASSY_ﾃﾞｭｱﾙ 2 (1)
A-111
A28-2
【RX-7R】基板ストッパー ASSY
【RX-7R】PWBstopperassy
55 401-61120 PIN_STOPPERHINGE ｽﾄﾂﾊﾟ-ﾋﾝｼﾞﾋﾟﾝ (2)
56 401-61122 LINK_SPACER ﾘﾝｸｽﾍﾟｰｻｰ (2)
57 401-61123 LINK_COLLAR ﾘﾝｸｶﾗｰ (2)
58 401-61124 STTOPER_BLOCK_SPACER ｽﾄｯﾊﾟｰﾌﾞﾛｯｸｽﾍﾟｰｻｰ (1)
59 EZ4-454-328-01 STOPPERCLAMP ｸﾗﾝﾌﾟｽﾄﾂﾊﾟ (1)
60 401-61132 CYLINDER(CDUJB8-15D) ｼﾘﾝﾀﾞ(CDUJB8-15D) (1)
61 401-61133 ELBOW_UNION(M-3ALU-2) ｴﾙﾎﾞﾕﾆｵﾝ(M-3ALU-2) (2)
62 401-61134 DRY_BEARING(GSM-0304-05) ﾄﾞﾗｲﾍﾞｱﾘﾝｸﾞ(GSM-0304-05) (4)
63 RE-0200000-K0 E-RING2 E 形止め輪2 (1)
64 401-61135 STOPPER_BOLT(SUB-M4-20) ｳﾚﾀﾝﾂｷｽﾄｯﾊﾟﾎﾞﾙﾄ(SUB-M4-20) (1)
65 SM-6033502-TN SCREWM3L=35 ﾛｯｶｸｱﾅﾎﾞﾙﾄM3L=35 (2)
66 402-00994 HOLDER_STUNIT ｽﾄｯﾊﾟｰﾕﾆｯﾄﾎﾙﾀﾞｰ (1)
67 401-91356 STOPPER_JOINT ｼﾞｮｲﾝﾄｽﾄｯﾊﾟｰ (1)
68 401-95902 STOPPERLEVER(A) ｽﾄｯﾊﾟｰﾚﾊﾞｰ(A) (1)
69 401-91357 PLATE_STOPPER ｽﾄｯﾊﾟｰﾌﾟﾚｰﾄ (1)
70 402-09860 STOPPERFRAME(2)_DUAL ｽﾄｯﾊﾟｰﾌﾚｰﾑ(2)_ﾃﾞｭｱﾙ (1)
71 402-01279 LEVER(2)STOPPER ｽﾄｯﾊﾟｰﾚﾊﾞｰ(2) (2)
72 402-01325 LEVER_STOPPER(3) ｽﾄｯﾊﾟｰﾚﾊﾞｰ(3) (1)
73 E2038-721-000 STOPPERCOLLAR ｽﾄｯﾊﾟｶﾗｰ (1)
74 400-00910 STOPER_PIN ｽﾄｯﾊﾟﾋﾟﾝ (1)
75 401-98649 STOPPER_CONNECT(2) ｽﾄｯﾊﾟｰｺﾈｸﾄ(2) (1)
76 E2039-721-000 WASHERA ｽﾗｽﾄﾜｯｼｬ A (2)
77 WP-0320501-SC WASHERM3 ﾋﾗｻﾞｶﾞﾈM3 (2)
78 RE-0200000-K0 E-RING2 E 形止め輪2 (1)
79 SM-1031201-SC SCREWM3X0.5L=12 ｻﾗｺﾈｼﾞM3X0.5L=12 (1)
80 NM-6030003-SC NUTM3X0.5TYPE3 六角ﾅｯﾄM3X0.53 種 (2)
81 EZ4-455-734-01 UNION(KJL02-M5)ELBOW ｴﾙﾎﾞﾕﾆｵﾝ(KJL02-M5) (2)
82 SM-6031402-TN SCREWM3X0.5L=14 ﾛｯｶｸｱﾅﾎﾞﾙﾄM3X0.5L=14 (2)
83 SL-6030892-TN SCREWM3L=8 座金付き六角穴ﾎﾞﾙﾄM3L=8 (2)
84 402-02234 CYLINDER(BDAS10X25) ｼﾘﾝﾀﾞ(BDAS10X25) (1)
85 402-04781 SENSORHOLDER(C1-BDAS10) ｾﾝｻｰﾎﾙﾀﾞｰ(C1-BDAS10) (1)
86 402-12266 SENSORASSY(ST) ｾﾝｻｰ ASSY(ST) (1)
87 402-07070 SENSORASSY(ST_2) ｾﾝｻｰ ASSY(ST_2) (1)
88 401-66475 STOPPERTOP ｽﾄｯﾊﾟｰﾄｯﾌﾟ (2)
89 SM-1030501-SC SCREWM3L=5 ｻﾗｺﾈｼﾞM3L=5 (6)
90 402-09256 STOPPRTSPACER ｽﾄｯﾊﾟｰｽﾍﾟｰｻｰ (1)
91 401-61112 STTOPER_BLOCK ｽﾄﾂﾊﾟ-ﾌﾞﾛﾂｸ (1)
92 402-07026 STOPPERASSEMBLY_SINGLE ｽﾄｯﾊﾟ ASSEMBLY(ｼﾝｸﾞﾙ) 1
93 402-07027 STOPPERKIT_SINGLE ｽﾄｯﾊﾟｷｯﾄ(ｼﾝｸﾞﾙ) (1)
94 EZ4-426-151-01 SILENCER(AN10-01) ｻｲﾚﾝｻ(AN10-01) (2)
95 PJ-3050800-03 T8 ﾁｰｽﾞ8 (1)
96 EZ7-632-378-00 TUBEPOLYURETHAN(TU0805B) ﾎﾟﾘｳﾚﾀﾝﾁﾕ-ﾌﾞ(TU0805B)5X8X20M (1)
97 EZ4-447-063-41 UNION(KQ2L08-01AS)ELBOW ｴﾙﾎﾞﾕﾆｵﾝ(KQ2L08-01AS) (1)
98 402-07028 SOLENOIDVALVE(ST)ASSY_SINGLE ｿﾚﾉｲﾄﾞﾊﾞﾂﾌﾞ(ST)ASSY(ｼﾝｸﾞﾙ) (1)
99 EZ7-683-427-04 BOLTHEXAGONSOCKET4X25 6 ｶｸｱﾅﾂｷﾎﾞﾙﾄ4X25 (4)
100 EZ4-716-434-31 TIEINSULOCK(AB200BLACK) ｲﾝｼﾕﾛﾂｸﾀｲ(AB200ｸﾛ) (9)
101 EZ4-716-434-11 TIEINSULOCK(AB100BLACK) ｲﾝｼﾕﾛﾂｸﾀｲ(AB100ｸﾛ) (8)
102 PJ-3040851-01 ELBOWUNION8XPT1/8 ｴﾙﾎﾞﾕﾆｵﾝ8XPT1/8 (1)
103 EZ4-457-146-31 CONTROLLER(AS1211F-M5-02A) ｽﾋﾟ-ﾄﾞｺﾝﾄﾛ-ﾗ-(AS1211F-M5-02A) (4)
104 402-07029 STOPPERASSY_SINGLE ｽﾄｯﾊﾟ ASSY(ｼﾝｸﾞﾙ) 2
105 401-61120 PIN_STOPPERHINGE ｽﾄﾂﾊﾟ-ﾋﾝｼﾞﾋﾟﾝ (2)
106 401-61122 LINK_SPACER ﾘﾝｸｽﾍﾟｰｻｰ (2)
107 401-61123 LINK_COLLAR ﾘﾝｸｶﾗｰ (2)
108 401-61124 STTOPER_BLOCK_SPACER ｽﾄｯﾊﾟｰﾌﾞﾛｯｸｽﾍﾟｰｻｰ (1)
109 EZ4-454-328-01 STOPPERCLAMP ｸﾗﾝﾌﾟｽﾄﾂﾊﾟ (1)
110 401-61132 CYLINDER(CDUJB8-15D) ｼﾘﾝﾀﾞ(CDUJB8-15D) (1)
