A-159 A39-2 【共通】 EF フィーダ用台車本体 -2 【 COMMON 】 Trolley unit EF Feed er - 2 ｲﾗｽﾄ番号 Ref.No. 品番 Part Number Description 品名 個数 Q'ty 備考 Remarks 109 401-58881 SHOOT_NI ｼｭｰﾄ_Ni (1) 1 10 401-51345 SHOOT_SUPPORT ｼｭｰﾄｻﾎﾟｰﾄ (1)…

100%1 / 296
A-158
A39-2

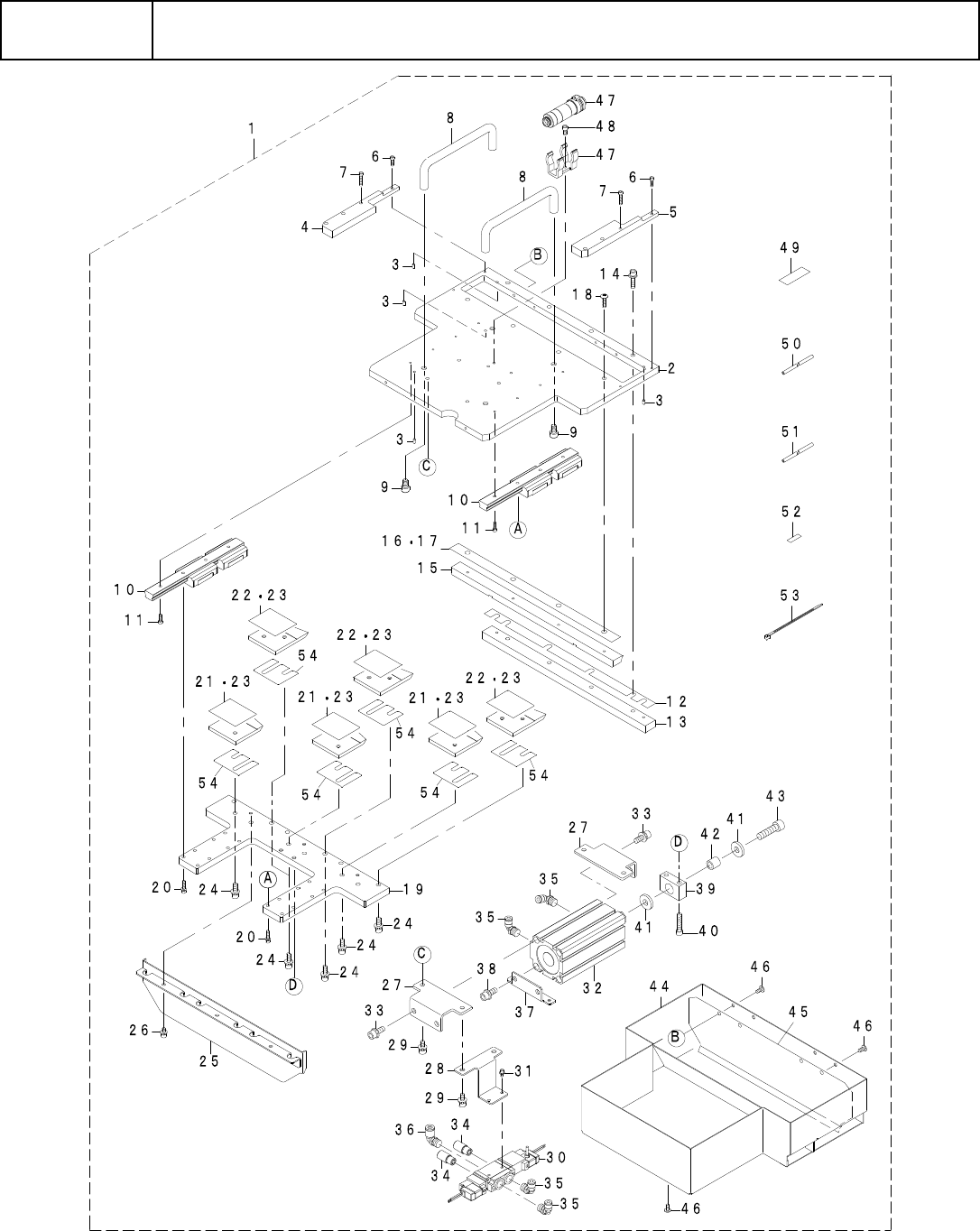

【共通】EF フィーダ用台車本体-2
【COMMON】Trolley unit EF Feeder - 2
ｲﾗｽﾄ番号
Ref.No.
品番
Part Number
Description
品名
個数
Q'ty
備考
Remarks
55 401-43523 DUMMY_ANTENNA ﾀﾞﾐｰｱﾝﾃﾅ (1)
56 SM-6030602-TN SCREW M3X6
ﾛｯｶｸｱﾅﾎﾞﾙﾄM3X6
(3)
57 HX-0029400-00 FIXED BASE ｺﾃｲﾍﾞｰｽ (2)
58 HX-0034400-00 FIXED BASE ｿｸｾﾝﾊﾟｰﾂ (2)
59 SM-4040601-SC SCREW M4X0.7 L=6
ﾅﾍﾞｺﾈｼﾞM4X0.7L=6
(4)
60 PJ-3010605-03 HALF UNION ﾊｰﾌﾕﾆｵﾝ (1)
61 PH-0300062-C0 PARALLEL PIN TYPE B 3X6 平行ﾋﾟﾝB 種3X6 (4)
62 SM-6041402-TN SCREW M4X0.7 L=14 ﾛｯｶｸｱﾅﾎﾞﾙﾄM4X0.7L=14 (2)
63 SM-6030502-TN SCREW M3 L=5 ﾛｯｶｸｱﾅﾎﾞﾙﾄM3L=5 (4)
64 ST-4020521-SN TAPPING SCREW D=2 L=5
ﾀｯﾋﾟﾝねじD=2L=5
(8)
65 SL-4030881-SC SCREW M3 L=8 座金付きなべ小ねじM3L=8 (12)
66 401-43365 ETF_POSITION_LABEL ETF_ﾎﾟｼﾞｼｮﾝ_ﾗﾍﾞﾙ (2)
67 BT-0600401-EB URETHANE TUBE BLACK 6X4
ﾎﾟﾘｳﾚﾀﾝﾁｭｰﾌﾞ黒6X4
(0.4)
68 SL-4040891-SC SCREW M4X8 ｻﾞｶﾞﾈﾂｷﾅﾍﾞｺﾈｼﾞM4L=8 (4)
69 401-46480 TROLLEY CONTACT(T)B PCB ASM ﾄﾛﾘｰ CONTACT(T)B 基板組 (1)
70 EZ4-000-207-02 PIN (2) LOCATE
ﾛｹ-ﾄﾋﾟﾝ(2)
(2)
71 EZ4-453-564-01 PLUG TAPER SCREW ﾃ-ﾊﾟｽｸﾘﾕ-ﾌﾟﾗｸﾞ (1)
72 EZ4-455-727-01 TABLE PLUG ﾃ-ﾌﾞﾙﾌﾟﾗｸﾞ (1)
73 EZ4-463-630-01 TABLE SPACER (R B)
ﾃ-ﾌﾞﾙｽﾍﾟ-ｻ-RB
(1)
74 EZ4-705-470-11 RING O (CO 0006A P9) Oﾘﾝｸﾞ(CO0006AP9) (2)
75 EZ4-477-023-01 CONNECTOR BRACKET L ｺﾈｸﾀ-ﾌﾞﾗｹﾂﾄL(MOLD) (1)
76 EZ4-478-177-01 CLAMP CONNECTOR HARNESS
ｺﾈｸﾀ-ﾊ-ﾈｽｸﾗﾝﾊﾟ-(MOLD)
(2)
77 EZ4-477-022-01 CONNECTOR BRACKET R ｺﾈｸﾀｰﾌﾞﾗｹｯﾄ R(MOLD) (1)
78 401-43635 TABLE_BASE_L_ASSY ﾃｰﾌﾞﾙﾍﾞｰｽ L ｱｯｼｰ 1
79 SM-6040802-TN SCREW M4X0.7 L=8
ﾛｯｶｸｱﾅﾎﾞﾙﾄM4X0.7L=8
(2)
80 401-43525 SLIDE_BLOCK_L ｽﾗｲﾄﾞﾌﾞﾛｯｸ L (1)
81 SM-6051602-TN SCREW ﾛｯｶｸｱﾅﾎﾞﾙﾄ (4)
82 SM-6051002-TN SCREW
ﾛｯｶｸｱﾅﾎﾞﾙﾄ
(2)
83 401-43527 SP_SHAFT ｽﾌﾟﾘﾝｸﾞｼｬﾌﾄ (1)
84 SL-6041292-TN SCREW M4 L=12 座金付き六角穴ﾎﾞﾙﾄM4L=12 (1)
85 401-43524 TABLE_BASE_L
ﾃｰﾌﾞﾙﾍﾞｰｽ L
(1)
86 401-43529 CUTTER_RAIL ｶｯﾀｰﾚｰﾙ (1)
87 EZ4-113-107-01 FOLLOWER (CF8VB) CAM ｶﾑﾌｵﾛｱ(CF8VB) (2)
88 EZ4-453-803-01 CUSHION CUTTER UNIT
ｶﾂﾀ-ﾕﾆﾂﾄｸﾂｼﾖﾝ
(1)
89 401-43636 TABLE_BASE_R_ASSY ﾃｰﾌﾞﾙﾍﾞｰｽ R ｱｯｼｰ 1
90 401-43529 CUTTER_RAIL ｶｯﾀｰﾚｰﾙ (1)
91 SM-6040802-TN SCREW M4X0.7 L=8
ﾛｯｶｸｱﾅﾎﾞﾙﾄM4X0.7L=8
(2)
92 401-43530 SLIDE_BLOCK_R_ ｽﾗｲﾄﾞﾌﾞﾛｯｸ R (1)
93 SM-6051602-TN SCREW ﾛｯｶｸｱﾅﾎﾞﾙﾄ (4)
94 SM-6051002-TN SCREW
ﾛｯｶｸｱﾅﾎﾞﾙﾄ
(2)
95 401-43532 ACT_BRACKET ACT ﾌﾞﾗｹｯﾄ (1)
96 SM-6040802-TN SCREW M4X0.7 L=8 ﾛｯｶｸｱﾅﾎﾞﾙﾄM4X0.7L=8 (5)
97 401-43527 SP_SHAFT ｽﾌﾟﾘﾝｸﾞｼｬﾌﾄ (1)
98 SL-6041292-TN SCREW M4 L=12
座金付き六角穴ﾎﾞﾙﾄM4L=12
(1)
99 HX-0015000-00 CABLE CLAMP ｹｰﾌﾞﾙｸﾘｯﾌﾟ (1)
100 WT-0430002-KN WASHER M4 ﾊﾂｷｻﾞｶﾞﾈM4 (1)
101 SM-6040802-TN SCREW M4X0.7 L=8
ﾛｯｶｸｱﾅﾎﾞﾙﾄM4X0.7L=8
(2)
102 401-43528 TABLE_BASE_R ﾃｰﾌﾞﾙﾍﾞｰｽ R (1)
103 EZ4-149-845-01 ACTUATOR (D40A-A1) SWITCH ﾄﾞｱｽｲﾂﾁｱｸﾁﾕｴ-ﾀ(D40A-A1) (1)
104 EZ4-113-107-01 FOLLOWER (CF8VB) CAM
ｶﾑﾌｵﾛｱ(CF8VB)
(2)
105 EZ4-453-803-01 CUSHION CUTTER UNIT ｶﾂﾀ-ﾕﾆﾂﾄｸﾂｼﾖﾝ (1)
106 SM-6051602-TN SCREW ﾛｯｶｸｱﾅﾎﾞﾙﾄ 3
107 SM-6051602-TN SCREW
ﾛｯｶｸｱﾅﾎﾞﾙﾄ
3
108 401-43638 SHOOT_ASSY ｼｭｰﾄｱｯｼｰ 1
A-159
A39-2
【共通】EF フィーダ用台車本体-2
【COMMON】Trolley unit EF Feeder - 2
ｲﾗｽﾄ番号
Ref.No.
品番
Part Number
Description
品名
個数
Q'ty
備考
Remarks
109 401-58881 SHOOT_NI ｼｭｰﾄ_Ni (1)
110 401-51345 SHOOT_SUPPORT
ｼｭｰﾄｻﾎﾟｰﾄ
(1)
111 SM-3030552-TN SCREW M3 L=5 ﾏﾙﾈｼﾞM3L=5 (2)
112 401-58883 TAPE_GUIDE_PLATE ﾃｰﾌﾟｶﾞｲﾄﾞﾌﾟﾚｰﾄ (1)
113 401-58885 TAPE_GUIDE_CHAIN
ﾃｰﾌﾟｶﾞｲﾄﾞﾁｪｰﾝ
(2)
114 SM-6020602-TN SCREW M2 L=6 ﾛｯｶｸｱﾅﾎﾞﾙﾄM2L=6 (4)
115 NM-6020001-SC NUT M2 ﾛﾂｶｸﾅﾂﾄM21 ｼﾕ (6)
116 401-58882 TAPE_GUIDE_CHAIN_BR ﾃｰﾌﾟｶﾞｲﾄﾞﾁｪｰﾝﾌﾞﾗｹｯﾄ (1)
117 401-58884 TAPE_GUDE_FIX_PLATE ﾃｰﾌﾟｶﾞｲﾄﾞﾌｨｸｽﾌﾟﾚｰﾄ (1)
118 SL-6030692-TN SCREW M3 L=6
座金付き六角穴ボルトM3L=6
(2)
119 NM-6030003-SC NUT M3 ﾛﾂｶｸﾅﾂﾄM3 (4)
120 WP-0320501-SC WASHER M3 ﾋﾗｻﾞｶﾞﾈM3 (4)
121 WS-0310002-KN SPRING WASHER M3
ﾊﾞﾈｻﾞｶﾞﾈ3.1X5.9X0.7
(4)
122 SM-3040652-TN SCREW M4 L=6 ﾏﾙﾈｼﾞM4L=6 2
123 SM-3030552-TN SCREW M3 L=5 ﾏﾙﾈｼﾞM3L=5 2
124 401-43537 SUPPORT_BAR
ｻﾎﾟｰﾄﾊﾞｰ
1
125 SM-3040552-TN SCREW M4 L=5 ﾏﾙﾈｼﾞM4L=5 2
126 401-43538 DISPOSAL_DUCT_BRACKET ﾃﾞｨｽﾎﾟｰｻﾞﾙﾀﾞｸﾄﾌﾞﾗｹｯﾄ 2
127 SM-6040802-TN SCREW M4X0.7 L=8
ﾛｯｶｸｱﾅﾎﾞﾙﾄM4X0.7L=8
8
128 401-43539 STAND_COVER_TOP ｽﾀﾝﾄﾞｶﾊﾞｰﾄｯﾌﾟ 1
129 SM-1040801-SC SCREW M4X0.7 L=8 ｻﾗｺﾈｼﾞM4X0.7L=8 4
130 EZ4-453-863-01 DISPOSAL DUCT
ﾊｲｷﾀﾞｸﾄ
1
131 401-54185 CUTTER_UNIT ｶｯﾀｰﾕﾆｯﾄ 1
132 401-69472 IFS-NX CAN CART ASM (RX-7) IFS-NXCAN台車組(RX-7)  1 OPTION
133 401-69045 BANK ID PCB ASM
ﾊﾞﾝｸ ID 基板組
(1)
134 SL-4030691-SC SCREW M3 L=6 座金付きなべ小ねじM3L=6 (1)
135 HX-0029400-00 FIXED BASE ｺﾃｲﾍﾞｰｽ (1)
136 HX-0023300-00 CABLE BAND
ｿｸｾﾝﾊﾞﾝﾄﾞ
(3)
137 401-69297 IFS PCB BOX IFSｷﾊﾞﾝﾎﾞｯｸｽ (1)
138 401-69298 IFS PCB COVER IFSｷﾊﾞﾝｶﾊﾞｰ (1)
139 SL-4030691-SC SCREW M3 L=6
座金付きなべ小ねじM3L=6
(3)
140 SL-4040891-SC SCREW M4 L=8 ｻﾞｶﾞﾈﾂｷﾅﾍﾞｺﾈｼﾞM4L=8 (4)
A-160
A40
【共通】EF フィーダ用カッターユニット
【COMMON】Cutter unit EF Feeder
