A-189 A49 【共通】 RF フィーダ用一括交換台 車 -1 【 COMMON 】 Replacingoverallchangert ruckforRFfeeder-1 ｲﾗｽﾄ番号  Ref.No. 品番  PartNumber Description  品名  個数  Q'ty 備考  Remarks  1 401-69727 TROLEY_ST A ND_UNIT…

100%1 / 296
A-188
A49

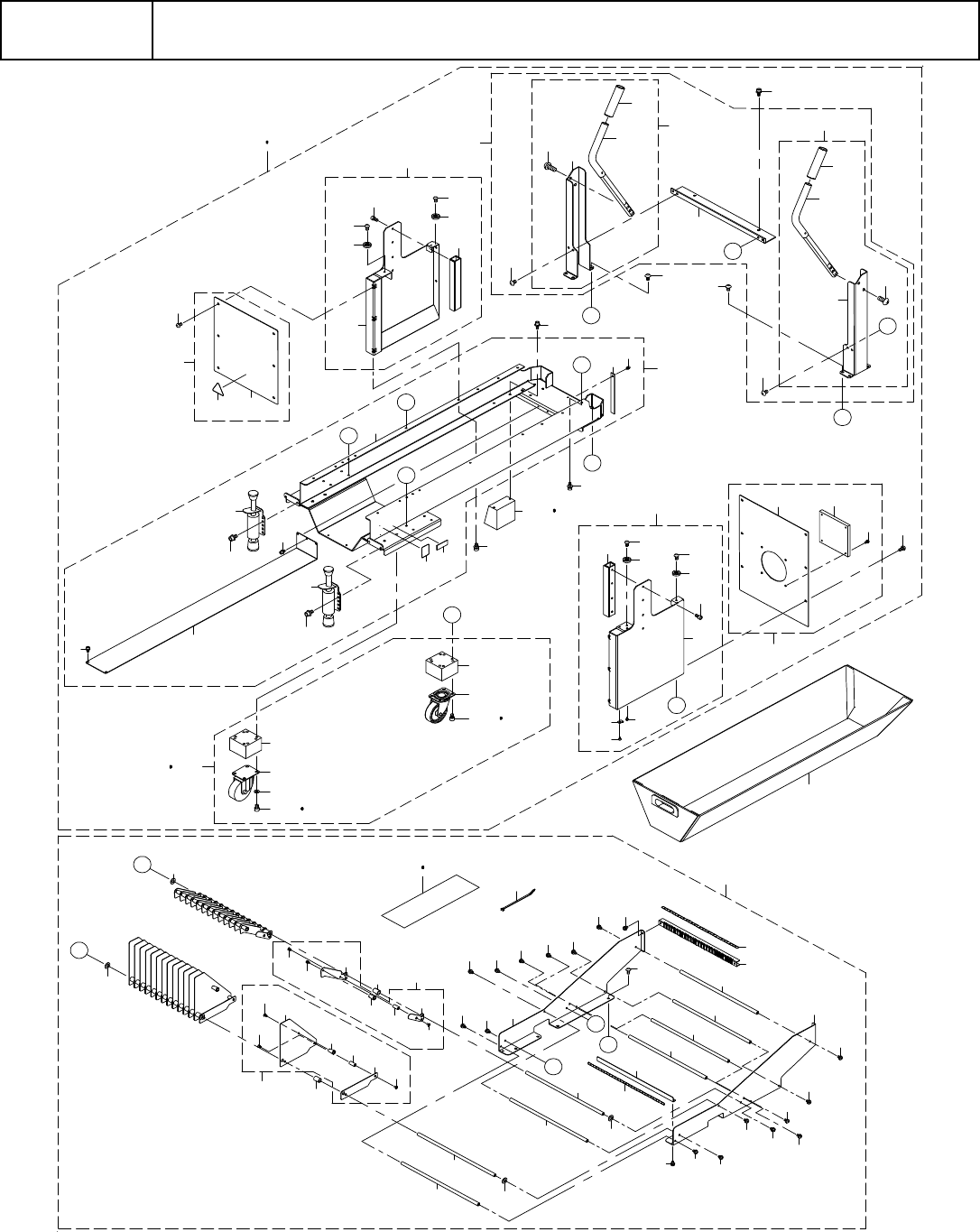

【共通】RF フィーダ用一括交換台車-1
【COMMON】ReplacingoverallchangertruckforRFfeeder-1
3 2
3 3
3 7
3 8
2 3
2 3
1 4
3 1
1 0
1 1
3 6
1 2
4
5
8
9
1 0
1 1
3
1 8
1 5
1 6
1 7
1 7
1 6
1 3
6 6
2 4
2 4
2 1
2 0
2 2
2 5
2 6
2 6
2 7
1 9
3 4
3 0
4 0
3 5
4 1
B
B
4 2
3 9
4 2
2 9
4 5
4 6
4 4
4 3
2 8
4 7
4 9
5 0
5 1
4 8
6 0
5 5
5 6 5 7
6 1
5 8 5 9
6 2
6 2
5 3 5 4
6 3 6 4
6 5
1 2
9 2
6 8
7 2
7 3
7 4
7 4
6 9
7 4
7 6
7 7
7 8
8 0
7 9
8 0
7 5
8 0
8 1
8 1
8 2
7 0
7 1
8 2
8 2
8 2
8 3
8 3
8 3
8 3
8 3
8 3
8 3
8 3
8 4
8 7
8 5
8 7
8 6
8 6
8 6
8 6
8 6
8 6
8 6
8 6
8 6
8 6
8 6
8 6
8 6
8 6
8 6
8 6
8 6
8 6
8 8
8 9 9 0
9 1
5 2
6 7
A
A
C
C
D
D
F
F
G
H
G
H
7
7
6
E
E
9 3
A-189
A49
【共通】RF フィーダ用一括交換台車-1
【COMMON】ReplacingoverallchangertruckforRFfeeder-1
ｲﾗｽﾄ番号
Ref.No.
品番
PartNumber
Description
品名
個数
Q'ty
備考
Remarks
1 401-69727 TROLEY_STAND_UNIT_K ﾄﾛﾘｰｽﾀﾝﾄﾞﾕﾆｯﾄ_K 1
2 401-69740 TROLEY_STAND_UNIT_K_950 ﾄﾛﾘｰｽﾀﾝﾄﾞﾕﾆｯﾄ_K_950 1 950MM 仕様
3 401-69728 STAND_BASE_ASSY_K ｽﾀﾝﾄﾞﾍﾞｰｽｱｯｼｰ_K (1)
4 CM-6005001-03 CHINAROHSLABEL10L 中国 RoHS ﾗﾍﾞﾙ10大 (1)
5 E9635-455-000 REVISIONSEAL REVﾒｲﾊﾝ (1)
6 401-67603 TRASH_BOX_SUPPORT ﾄﾗｯｼｭﾎﾞｯｸｽｻﾎﾟｰﾄ (1)
7 SL-6040892-TN SCREWM4L=8 座金付き六角穴ﾎﾞﾙﾄM4L=8 (4)
8 400-23476 FGGUMSHEET FG ｺﾞﾑｼｰﾄ (1)
9 SL-6040892-TN SCREWM4L=8 座金付き六角穴ﾎﾞﾙﾄM4L=8 (1)
10 E2711-721-000 TROLLEYSTOPPER ﾄﾛﾘｰｽﾄｯﾊﾟｰ (2)
11 SL-6061292-TN SCREWM6L=12 座金付き六角穴ﾎﾞﾙﾄM6L=12 (4)
12 401-67595 STAND_BASE_K ｽﾀﾝﾄﾞﾍﾞｰｽ K (1)
13 401-69729 TROLLEY_STAND_L_ASSY ﾄﾛﾘｰｽﾀﾝﾄﾞ L ｱｯｼｰ (1)
14 401-43497 SLIDE_RAIL ｽﾗｲﾄﾞﾚｰﾙ (1)
15 SM-6051002-TN SCREW ﾛｯｶｸｱﾅﾎﾞﾙﾄ (4)
16 400-89239 E_TROLLEY_PLATE E ﾄﾛﾘｰﾌﾟﾚｰﾄ (2)
17 SM-3051052-TN SCREWM5L=10 ﾏﾙﾈｼﾞM5L=10 (2)
18 401-67596 TROLLEY_STAND_L ﾄﾛﾘｰｽﾀﾝﾄﾞ L (1)
19 401-69730 TROLLEY_STAND_R_ASSY ﾄﾛﾘｰｽﾀﾝﾄﾞ R ｱｯｼｰ (1)
20 401-67597 TROLLEY_STAND_R ﾄﾛﾘｰｽﾀﾝﾄﾞ R (1)
21 401-43497 SLIDE_RAIL ｽﾗｲﾄﾞﾚｰﾙ (1)
22 SM-6051002-TN SCREW ﾛｯｶｸｱﾅﾎﾞﾙﾄ (4)
23 400-89239 E_TROLLEY_PLATE E ﾄﾛﾘｰﾌﾟﾚｰﾄ (2)
24 SM-3051052-TN SCREWM5L=10 ﾏﾙﾈｼﾞM5L=10 (2)
25 HX-0015000-00 CABLECLAMP ｹｰﾌﾞﾙｸﾘｯﾌﾟ (1)
26 SM-6040602-TN SCREW ﾛｯｶｸｱﾅﾎﾞﾙﾄ (2)
27 SL-6051292-TN SCREWM5L=12 座金付き六角穴ﾎﾞﾙﾄM5L=12 (4)
28 401-69731 HANDLE_ASSY ﾊﾝﾄﾞﾙｱｯｼｰ (1)
29 401-67600 HANDLE_BOTTOM ﾊﾝﾄﾞﾙﾎﾞﾄﾑ (1)
30 401-69732 HANDLE_L_ASSY ﾊﾝﾄﾞﾙ_L_ｱｯｼｰ (1)
31 401-67598 HANDLE_BASE_L ﾊﾝﾄﾞﾙﾍﾞｰｽ L (1)
32 401-27991 TROLLEY_HANDLE ﾄﾛﾘﾊﾝﾄﾞﾙ (1)
33 E2641-729-000 HANDLECLIP ﾊﾝﾄﾞﾙｸﾞﾘｯﾌﾟ (1)
34 SM-3082052-TN SCREWM8L=20 ﾏﾙﾈｼﾞM8L=20 (2)
35 SM-3061052-TN SCREWM6L=10 ﾏﾙﾈｼﾞM6L=10 (2)
36 401-69733 HANDLE_R_ASSY ﾊﾝﾄﾞﾙ_R_ｱｯｼｰ (1)
37 401-67599 HANDLE_BASE_R ﾊﾝﾄﾞﾙﾍﾞｰｽ R (1)
38 401-27991 TROLLEY_HANDLE ﾄﾛﾘﾊﾝﾄﾞﾙ (1)
39 E2641-729-000 HANDLECLIP ﾊﾝﾄﾞﾙｸﾞﾘｯﾌﾟ (1)
40 SM-3082052-TN SCREWM8L=20 ﾏﾙﾈｼﾞM8L=20 (2)
41 SM-3061052-TN SCREWM6L=10 ﾏﾙﾈｼﾞM6L=10 (2)
42 SM-3061052-TN SCREWM6L=10 ﾏﾙﾈｼﾞM6L=10 (8)
43 SL-6051292-TN SCREWM5L=12 座金付き六角穴ﾎﾞﾙﾄM5L=12 (4)
44 401-69734 BACK_PLATE_ASSY ﾊﾞｯｸﾌﾟﾚｰﾄｱｯｼｰ (1)
45 401-67602 BACK_PLATE ﾊﾞｯｸﾌﾟﾚｰﾄ (1)
46 CM-3002000-04 FINGERINJURYCAUTIONLABEL(50) 指怪我注意ｼｰﾙ(50) (1)
47 SM-3051052-TN SCREWM5L=10 ﾏﾙﾈｼﾞM5L=10 (6)
48 401-69735 FRONT_COVER_ASSY ﾌﾛﾝﾄｶﾊﾞｰｱｯｼｰ (1)
49 401-67601 FRONT_COVER ﾌﾛﾝﾄｶﾊﾞｰ (1)
50 HM-0010100-1B FANMOTOR ﾌｨﾙﾀｰ (1)
51 SL-4030891-SC SCREWM3L=8 座金付きなべ小ねじM3L=8 (4)
52 SM-3051052-TN SCREWM5L=10 ﾏﾙﾈｼﾞM5L=10 (6)
53 401-69736 CASTER_ASSY_ST ｷｬｽﾀｱｯｼｰ ST (1)
A-190
A49
【共通】RF フィーダ用一括交換台車-1
【COMMON】ReplacingoverallchangertruckforRFfeeder-1
ｲﾗｽﾄ番号
Ref.No.
品番
PartNumber
Description
品名
個数
Q'ty
備考
Remarks
54 401-69741 CASTER_ASSY_950 ｷｬｽﾀｱｯｼｰ 950 (1) 950MM 仕様
55 WP-0612516-SD WASHER6.1X15.2X2.5 ﾋﾗｻﾞｶﾞﾈ6.1X15.2X2.5 (8)
56 SM-6060802-TN SCREW ﾛｯｶｸｱﾅﾎﾞﾙﾄ (8)
57 SM-6066002-TN SCREWM6L=60 ﾛｯｶｸｱﾅﾎﾞﾙﾄM6L=60 (8) 950MM 仕様
58 SM-6060802-TN SCREW ﾛｯｶｸｱﾅﾎﾞﾙﾄ (8)
59 SM-6066002-TN SCREWM6L=60 ﾛｯｶｸｱﾅﾎﾞﾙﾄM6L=60 (8) 950MM 仕様
60 401-67604 CASTER_STC_75_NM ｷｬｽﾀｰ STC75NM (2)
61 401-28100 CASTER_R 車輪 R (2)
62 401-67605 SPACER_950 ｽﾍﾟｰｻ 950 (4) 950MM 仕様
63 401-69383 TROLLEY_FOOT ﾄﾛﾘﾌｯﾄ (2)
64 401-67583 TROLLEY_FOOT_950 ﾄﾛﾘﾌｯﾄ 950 (2) 950MM 仕様
65 SL-6051292-TN SCREWM5L=12 座金付き六角穴ﾎﾞﾙﾄM5L=12 (4)
66 SL-6051292-TN SCREWM5L=12 座金付き六角穴ﾎﾞﾙﾄM5L=12 (4)
67 401-69737 REEL_HOLDER_UNIT_K ﾘｰﾙﾎﾙﾀﾞﾕﾆｯﾄ_K 1
68 401-69378 REEL_HOLDER_SIDE_PLATE_R ﾘｰﾙﾎﾙﾀﾞｻｲﾄﾞﾌﾟﾚｰﾄ R (1)
69 401-69738 REEL_HOLDER_A_ASSY ﾘｰﾙﾎﾙﾀﾞ A ｱｯｼｰ (14)
70 401-67542 REEL_HOLDER_A ﾘｰﾙﾎﾙﾀﾞ A (1)
71 401-67536 REEL_HOLDER_SUPPORT_A ﾘｰﾙﾎﾙﾀﾞｻﾎﾟｰﾄ A (1)
72 401-67553 REEL_HOLDER_SPACER ﾘｰﾙﾎﾙﾀﾞｽﾍﾟｰｻ (2)
73 401-67539 REEL_SH ﾘｰﾙ SH (1)
74 400-52050 SCREWM3X6MEC ﾒｯｸﾈｼﾞM3X6 (5)
75 401-69739 REEL_HOLDER_B_ASSY ﾘｰﾙﾎﾙﾀﾞ B ｱｯｼｰ (14)
76 401-67537 REEL_HOLDER_B ﾘｰﾙﾎﾙﾀﾞ B (1)
77 401-67538 REEL_HOLDER_SUPPORT_B ﾘｰﾙﾎﾙﾀﾞｻﾎﾟｰﾄ B (1)
78 401-67553 REEL_HOLDER_SPACER ﾘｰﾙﾎﾙﾀﾞｽﾍﾟｰｻ (2)
79 401-67539 REEL_SH ﾘｰﾙ SH (1)
80 400-52050 SCREWM3X6MEC ﾒｯｸﾈｼﾞM3X6 (5)
81 401-67540 SPACER ｽﾍﾟｰｻ (28)
82 401-67541 WASHER ﾜｯｼｬ (30)
83 401-67552 REEL_HOLDER_SH ﾘｰﾙﾎﾙﾀﾞ SH (8)
84 401-69379 PLATE_FIXING_BAR ﾌﾟﾚｰﾄﾌｨｷｼﾝｸﾞﾊﾞｰ (1)
85 401-69380 LABEL_PLATE ﾗﾍﾞﾙﾌﾟﾚｰﾄ (1)
86 SL-4040891-SC SCREWM4X8 ｻﾞｶﾞﾈﾂｷﾅﾍﾞｺﾈｼﾞM4L=8 (20)
87 401-67564 POSITION_LABEL_K ﾎﾟｼﾞｼｮﾝﾗﾍﾞﾙ_K (2)
88 SM-3051052-TN SCREWM5L=10 ﾏﾙﾈｼﾞM5L=10 (8)
89 401-69381 CUSHIONING ｸｯｼｮﾆﾝｸﾞ (1)
90 401-69382 BRACING ﾌﾞﾚｰｼﾝｸﾞ (1)
91 HX-0067400-00 CABLEBAND ｹｰﾌﾞﾙﾊﾞﾝﾄﾞ (2)
92 401-69377 REEL_HOLDER_SIDE_PLATE_L ﾘｰﾙﾎﾙﾀﾞｻｲﾄﾞﾌﾟﾚｰﾄ L (1)
93 401-67543 TRASH_BOX_K ﾄﾗｯｼｭﾎﾞｯｸｽ_K 1
