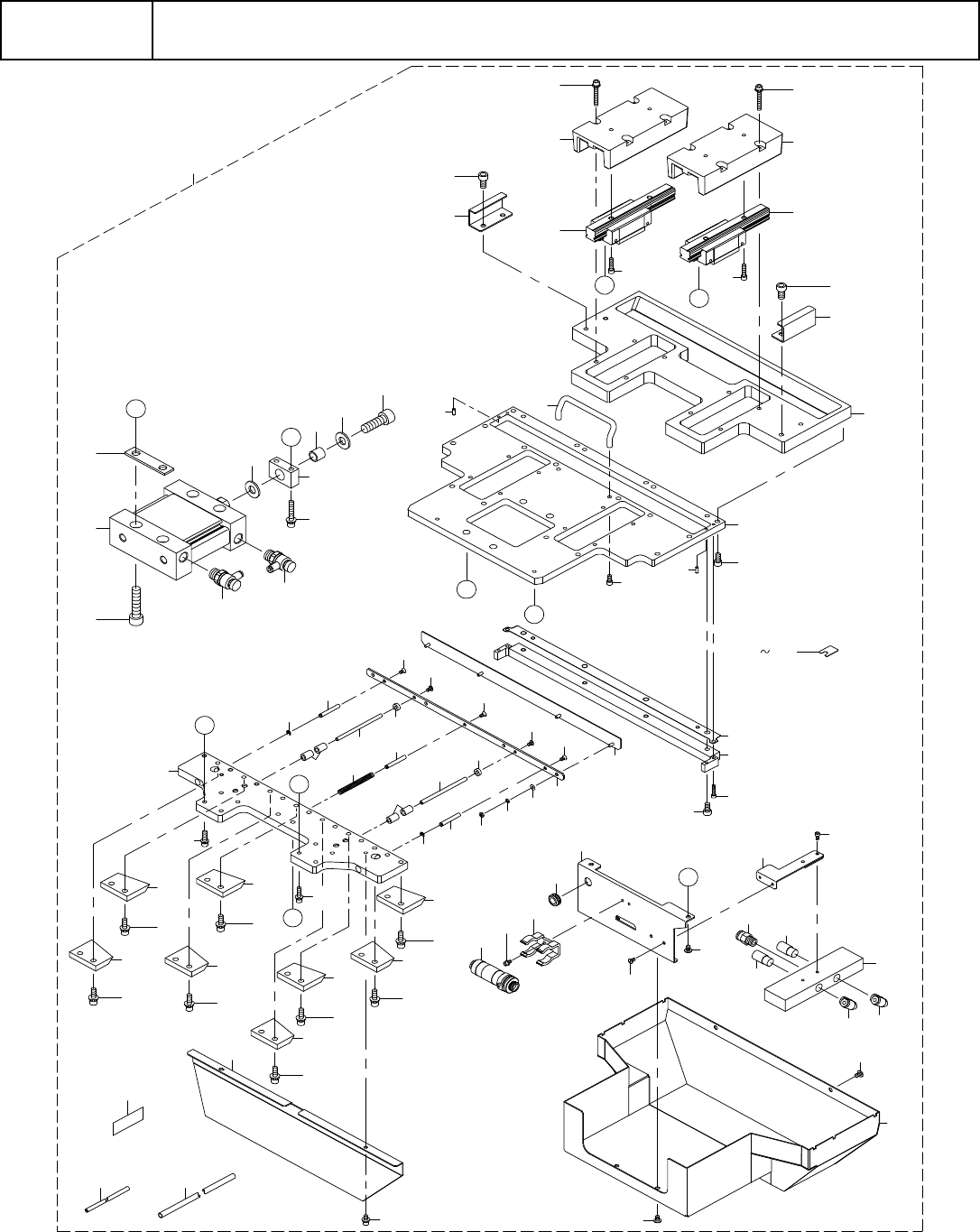

A-197
A51
【共通】RF フィーダ用一括交換台車-3
【COMMON】ReplacingoverallchangertruckforRFfeeder-3
ｲﾗｽﾄ番号
Ref.No.
品番
PartNumber
Description
品名
個数
Q'ty
備考
Remarks
1 401-69726 CUTTER_UNIT_K ｶｯﾀｰﾕﾆｯﾄ K 1
2 401-69744 BASE_CUTTER_A ﾍﾞｰｽｶｯﾀｰ A (1)
3 401-69745 BASE_CUTTER_B ﾍﾞｰｽｶｯﾀｰ B (1)
4 SM-6051002-TN SCREW ﾛｯｶｸｱﾅﾎﾞﾙﾄ (16)
5 PH-0300080-U0 PARALLELPINTYPEB3X8 平行ﾋﾟﾝB 種3×8 (2)
6 401-69747 GUIDE_ANGLE ｶﾞｲﾄﾞｱﾝｸﾞﾙ (2)
7 SM-6051002-TN SCREW ﾛｯｶｸｱﾅﾎﾞﾙﾄ (4)
8 E1046-717-000 XCOVERHANDLE X ｶﾊﾞｰﾊﾝﾄﾞﾙ (1)
9 SM-6040802-TN SCREWM4X0.7L=8 ﾛｯｶｸｱﾅﾎﾞﾙﾄM4X0.7L=8 (2)
10 401-67529 SUB_BASE_CUTTER ｻﾌﾞﾍﾞｰｽｶｯﾀｰ (2)
11 401-67577 LINEARGUIDE ﾘﾆｱｶﾞｲﾄﾞ (2)
12 SM-6041602-TN SCREWM4X16 ﾛｯｶｸｱﾅﾎﾞﾙﾄM4X16 (4)
13 SL-6043092-TN SCREWM4L=30 座金付き六角穴ﾎﾞﾙﾄM4L=30 (8)
14 401-67548 SLIDE_BASE_LOWER_EDGE ｽﾗｲﾄﾞﾍﾞｰｽﾛﾜｰｴｯｼﾞ (1)
15 SB-7040001-00 BEARING ころがり軸受 (4)
16 401-67578 HOLD_PLATE ﾎｰﾙﾄﾞﾌﾟﾚｰﾄ (1)
17 401-67549 HOLD_COLLAR ﾎｰﾙﾄﾞｶﾗｰ (2)
18 401-67550 HOLDER_GUIDE_SHAFT ﾎﾙﾀﾞｶﾞｲﾄﾞｼｬﾌﾄ (2)
19 EZ4-453-818-01 BOLT(CBSTSR3-5) ﾁﾖｳｺﾞｸﾃｲﾄｳﾎﾞﾙﾄ(CBSTSR3-5) (2)
20 401-67579 SPRING_GUIDE_SHAFT ｽﾌﾟﾘﾝｸﾞｶﾞｲﾄﾞｼｬﾌﾄ (3)
21 SM-1030601-SC SCREWM3X6 ｻﾗﾈｼﾞM3X6 (3)
22 401-67580 HOLD_SPRING ﾎｰﾙﾄﾞｽﾌﾟﾘﾝｸﾞ (1)
23 RE-0250000-K0 E-RING2.5 E 形止め輪2.5 (2)
24 401-67581 FACE_PLATE ﾌｪｲｽﾌﾟﾚｰﾄ (1)
25 WP-0320501-SC WASHERM3 ﾋﾗｻﾞｶﾞﾈM3 (4)
26 WS-0310002-KN SPRINGWASHERM3 ﾊﾞﾈｻﾞｶﾞﾈM3 (4)
27 NM-6030003-SC NUTM3X0.5TYPE3 六角ﾅｯﾄM3X0.53 種 (4)
28 401-67551 CONNECTION_BLOCK ｺﾈｸｼｮﾝﾌﾞﾛｯｸ (1)
29 SL-6053092-TN SCREWM5L=30 座金付き六角穴ﾎﾞﾙﾄM5L=30 (2)
30 SL-6041692-TN SCREWM4L=16 座金付き六角穴ﾎﾞﾙﾄM4L=16 (8)
31 401-67582 SPACER ｽﾍﾟｰｻ (2)
32 PA-5003501-00 AIRCYLINDER ｴｱｼﾘﾝﾀﾞ (1)
33 PC-0152040-00 SPEEDCONTROLLER ｽﾋﾟｰﾄﾞｺﾝﾄﾛｰﾗ (2)
34 SM-6084002-TN SCREWM8L=40 ﾛｯｶｸｱﾅﾎﾞﾙﾄM8L=40 (4)
35 401-67585 WASHER_10_21 ﾜｯｼｬ 10_21 (2)
36 401-67586 COLLAR ｶﾗｰ (1)
37 SM-6103002-TN SCREWM10L=30 ﾛｯｶｸｱﾅﾎﾞﾙﾄM10L=30 (1)
38 401-69746 UPPER_EDGE ｱｯﾊﾟｰｴｯｼﾞ (1)
39 401-67587 SHIM_UPPER_EDGE ｼﾑｱｯﾊﾟｰｴｯｼﾞ (2)
40 400-84713 E_BANK_SHIM_0.02 E ﾊﾞﾝｸｼﾑ 0.02 (2)
41 400-84714 E_BANK_SHIM_0.03 E ﾊﾞﾝｸｼﾑ 0.03 (2)
42 400-84715 E_BANK_SHIM_0.05 E ﾊﾞﾝｸｼﾑ 0.05 (2)
43 400-84699 E_BANK_SHIM_0.10 E ﾊﾞﾝｸｼﾑ 0.10 (2)
44 SM-6051002-TN SCREW ﾛｯｶｸｱﾅﾎﾞﾙﾄ (4)
45 SM-6031402-TP SCREW ﾛｯｶｸｱﾅﾎﾞﾙﾄ (2)
46 401-69742 LOWER_EDGE_A ﾛﾜｰｴｯｼﾞ A (4)
47 401-69743 LOWER_EDGE_B ﾛﾜｰｴｯｼﾞ B (4)
48 SL-6051692-TN SCREWM5L=16 座金付き六角穴ﾎﾞﾙﾄM5L=16 (16)
49 401-67588 COVER_LOWER_EDGE ｶﾊﾞｰﾛﾜｰｴｯｼﾞ (1)
50 SL-6040892-TN SCREWM4L=8 座金付き六角穴ﾎﾞﾙﾄM4L=8 (2)
51 401-67535 FILTER_BR ﾌｨﾙﾀﾌﾞﾗｹｯﾄ (1)
52 HX-0025300-00 GROMMET ﾌﾞｯｼｭ (1)
53 SM-0040601-SC SCREWM4X0.7L=6 ﾄﾗｽｺﾈｼﾞM4X0.7L=6 (2)
A-198
A51
【共通】RF フィーダ用一括交換台車-3
【COMMON】ReplacingoverallchangertruckforRFfeeder-3
ｲﾗｽﾄ番号
Ref.No.
品番
PartNumber
Description
品名
個数
Q'ty
備考
Remarks
54 EZ4-453-560-01 FILTER(FSL200-66-B)INLINE ｲﾝﾗｲﾝﾌｲﾙﾀ(FSL200-66-B) (1)
55 SL-6030692-TN SCREWM3L=6 座金付き六角穴ﾎﾞﾙﾄM3L=6 (2)
56 401-67589 SOLENOID_BR ｿﾚﾉｲﾄﾞ BR (1)
57 SM-0030601-SC SCREWM3X6 ﾄﾗｽﾈｼﾞM3X6 (2)
58 401-68969 CUTTERSOLENOIDVALVEASM ｶｯﾀｰｿﾚﾉｲﾄﾞﾊﾞﾙﾌﾞｸﾐ (1)
59 EZ4-426-151-01 SILENCER(AN10-01) ｻｲﾚﾝｻ(AN10-01) (2)
60 EZ4-447-092-01 UNION(KQ2L04-01NS)ELBOW ｴﾙﾎﾞﾕﾆｵﾝ(KQ2L04-01NS) (2)
61 PJ-3010651-03 HALFUNION6XPT1/8 ﾊｰﾌﾕﾆｵﾝ6XPT1/8 (1)
62 SM-6030602-TN SCREWM3X6 ﾛｯｶｸｱﾅﾎﾞﾙﾄM3X6 (2)
63 BT-0400251-EA URETHANETUBEBLUE4X2.5 ﾎﾟﾘｳﾚﾀﾝﾁｭｰﾌﾞ青4X2.5 (0.2)
64 BT-0600400-EC URETHANETUBEBLUE6X4 ﾎﾟﾘｳﾚﾀﾝﾁｭｰﾌﾞ青6X4 (0.3)
65 401-67590 COVER_CUTTER ｶﾊﾞｰｶｯﾀｰ (1)
66 SM-0040601-SC SCREWM4X0.7L=6 ﾄﾗｽｺﾈｼﾞM4X0.7L=6 (4)
67 E9635-455-000 REVISIONSEAL REVﾒｲﾊﾝ (1)
