PART NAME REMARKS Q'TY 8 移載ﾁｬｯｸ部(1) TRANSFER CH UCK SECT.(1) ｲﾗｽﾄ No. REF No. PART No. 部 品 品 番 個数 備 考 R 1 R 2 1 1087111000 TRANSFER CHU CK UNIT ｲｻｲﾁｬｯｸﾌﾞ 1 002 108711100201 PIN ﾋﾟﾝ 1 005 108711100502 BLOCK(SLIDE) ﾌﾞ…

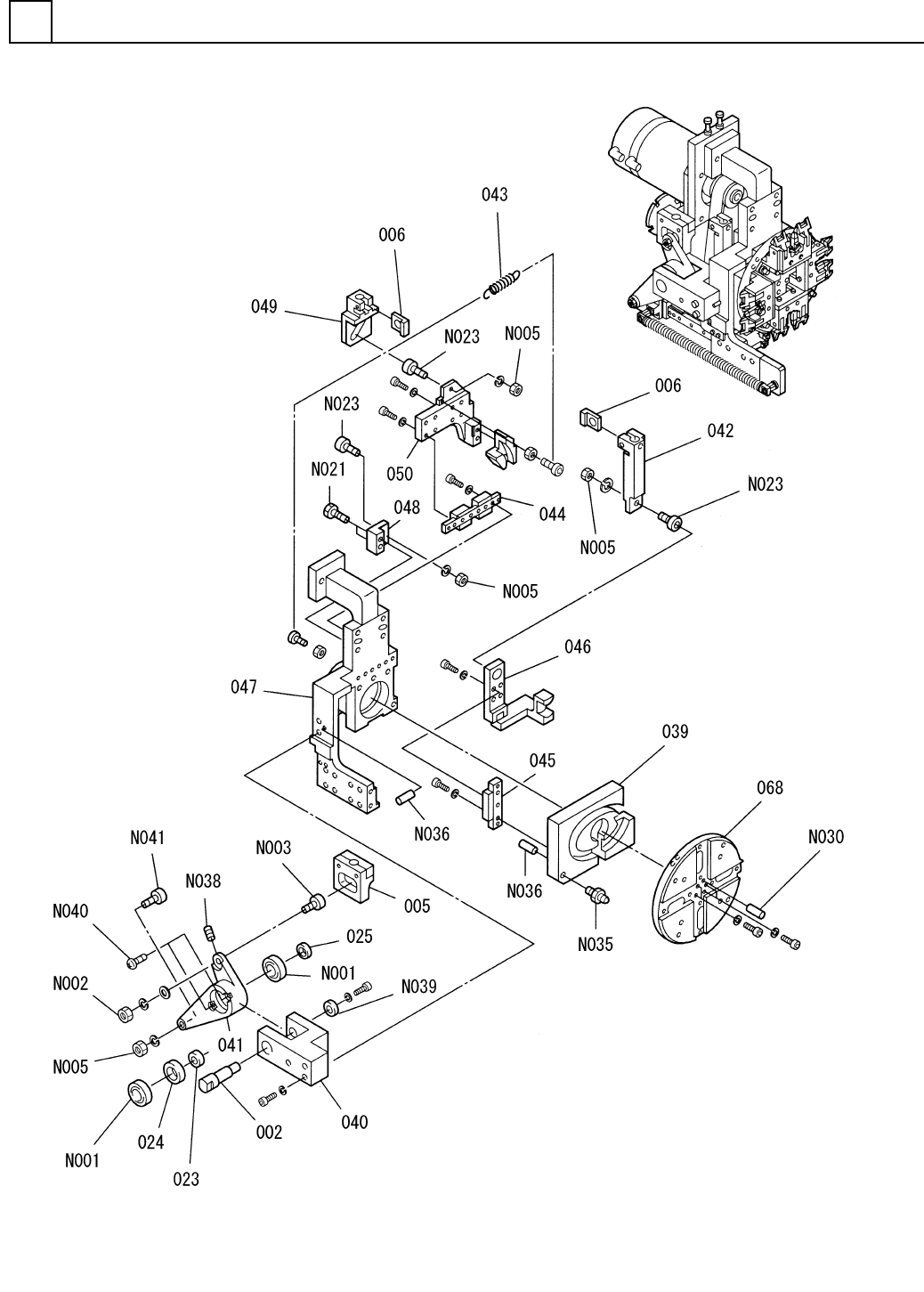

移載ﾁｬｯｸ部(1)
TRANSFER CHUCK SECT.(1)
8
F10871-11-000-AE_01-1
M93
PART NAME
REMARKS
Q'TY
8
移載ﾁｬｯｸ部(1)
TRANSFER CHUCK SECT.(1)
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 品 番 個数 備 考
R
1
R
2
1 1087111000
TRANSFER CHUCK UNIT ｲｻｲﾁｬｯｸﾌﾞ
1
002 108711100201
PIN ﾋﾟﾝ
1
005 108711100502
BLOCK(SLIDE) ﾌﾞﾛｯｸ(ｽﾗｲﾄﾞ)
2006 104131110801
SPACER ｽﾍﾟｰｻ
1023 1087111023
COLLAR ｶﾗｰ
1
024 1087111024
COLLAR ｶﾗｰ
1
025 1087111025
COLLAR ｶﾗｰ
1039 N210044600AA
CAM ｶﾑ
1040 108711104003
BRACKET ﾌﾞﾗｹｯﾄ
1
041 108711104102
LEVER ﾚﾊﾞｰ
1042 108711104201
SLIDER ｽﾗｲﾀﾞ
1043 104131106301
SPRING ﾊﾞﾈ
1
044 1087111044
LINEAR MOTION UNIT ﾘﾆｱﾓｰｼｮﾝﾕﾆｯﾄ
1
045 1087111045
LINEAR MOTION UNIT ﾘﾆｱﾓｰｼｮﾝﾕﾆｯﾄ
1046 N210044602AA
CAM ｶﾑ
1047 108711104704
FRAME ﾌﾚｰﾑ
1
048 104131109001
BLOCK ﾌﾞﾛｯｸ
1
049 104131102906
SLIDER ｽﾗｲﾀﾞ
1050 N210044280AA
CAM ｶﾑ
1068 104691107801
PLATE ﾌﾟﾚｰﾄ
7902A5TYSULP4
2
N001
XLLN7902-134
BEARING ﾍﾞｱﾘﾝｸﾞ
M6,2-TYPE,STEEL,Z.C.T
1
N002
XNG6BFY
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
CFN6RA-0251202
1
N003
N531CFN6-057
CAM FOLLOWER ｶﾑﾌｫﾛｱ
M5,2-TYPE,STEEL,Z.C.T
4
N005
XNG5BFY
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
M4X25,STEEL,P.C,4T
2
N021
XVG4B25FP4
HEXAGON HEAD BOLT ﾛｯｶｸﾎﾞﾙﾄ
CF5RA
3
N023
N531CF5RA
CAM FOLLOWER ｶﾑﾌｫﾛｱ
2X6,h8B,STEEL
1
N030
XPJ2E6FW
PARALLEL PIN ﾍｲｺｳﾋﾟﾝ
NO.112M6X1.0SS400
1
N035
N560N011-015
GREASE NIPPLE ｸﾞﾘｰｽﾆｯﾌﾟﾙ
3X10,h8B,STEEL
2
N036
XPJ3E10FW
PARALLEL PIN ﾍｲｺｳﾋﾟﾝ
M3X8,STEEL,P.C
1
N038
XXE3C8FP
HEX. SOCKET SET SCREW ﾛｯｶｸｱﾅﾂｷﾄﾒﾈｼﾞ
WSSB20-5-3
1
N039
N560WSSB2053
WASHER ｻﾞｶﾞﾈ
M3X6,+,STEEL,Z.C.T
2
N040
XST3+6FY
TRUSS HEAD SCREW ﾄﾗｽｺﾈｼﾞ
CFN5R-A-1508794
1
N041
N531CFN5-071
CAM FOLLOWER ｶﾑﾌｫﾛｱ
M94
F10871-11-000-AE_01-1

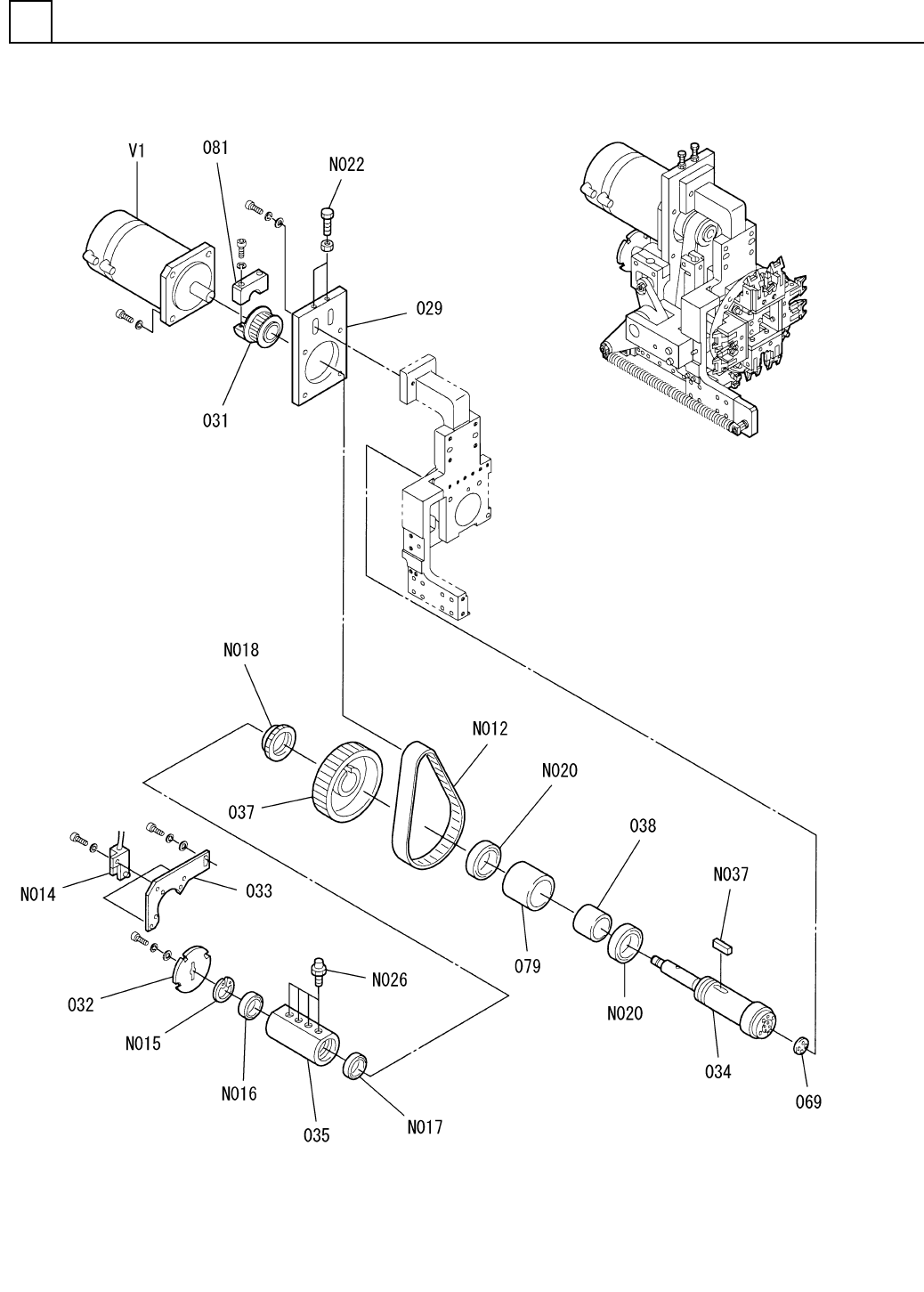

移載ﾁｬｯｸ部(2)
TRANSFER CHUCK SECT.(2)
8
F10871-11-000-AE_01-2
