上部ｱﾝﾋﾞﾙ部(1) UPPER ANVIL SECT.(1) 9 F10871-21-000-AF_0 1-1 M101

100%1 / 296
　　　
　　　　　　　　　 PART NAME
　　　　 REMARKS　
Q'TY
8
移載ﾁｬｯｸ部(4)
TRANSFER CHUCK SECT.(4)
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 品　 番 個数 備 考
R
1
R
2
4052 1087111052
CYLINDER BLOCK ｼﾘﾝﾀﾞﾌﾞﾛｯｸ
16
053 104131103501
ROLLER ﾛｰﾗ
16
054 1017951050
PIN ﾋﾟﾝ
8055 101795101502
SPRING ﾊﾞﾈ
4056 108711105601
PACKING ﾊﾟｯｷﾝ
8
057 104691106702
PISTON ﾋﾟｽﾄﾝ
8
058 104691106802
SPRING ﾊﾞﾈ
4059 1087111059
COLLAR ｶﾗｰ
8060 104691107001
PIN ﾋﾟﾝ
4
061 104691107103
LINK ﾘﾝｸ
4062 104691107205
CHUCK ﾁｬｯｸ
8063 104691107303
CHUCK ﾁｬｯｸ
8
064 104691107404
LEVER ﾚﾊﾞｰ
4
065 104691107505
CHUCK ﾁｬｯｸ
4066 104691107604
CHUCK ﾁｬｯｸ
4067 104691107704
CHUCK ﾁｬｯｸ
4
070 104691108004
PISTON ﾋﾟｽﾄﾝ
4
071 104691108102
TUBE ﾁｭｰﾌﾞ
4072 104691108202
TUBE ﾁｭｰﾌﾞ
4073 104691108306
LINK ﾘﾝｸ
4
074 104691108401
PIN ﾋﾟﾝ
4
076 1083811076
SPRING ﾊﾞﾈ
4077 1087111077
CAP ｷｬｯﾌﾟ
2,2-TYPE,STEEL,P.C
8
N007
XWA2BFP
SPRING WASHER ﾊﾞﾈｻﾞｶﾞﾈ
M3X8
8
N025
N986YYYY-969
SCREW ﾈｼﾞ(ﾃｲﾄｳﾛｯｶｸｱﾅﾂｷ)
M-5H-4
4
N026
N431M5H4
FITTING ﾎｰｽﾆｯﾌﾟﾙ
FECAP-2X8-3CR-202
8
N028
N510015920AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
RSR7WMUUC1S+56.5LMS
4
N029
N510004606AA
LINEAR MOTION UNIT ﾘﾆｱﾓｰｼｮﾝﾕﾆｯﾄ
2X6,h8B,STEEL
12
N030
XPJ2E6FW
PARALLEL PIN ﾍｲｺｳﾋﾟﾝ
3,STEEL,P.C
8
N032
XUC3FP
RETAINING RING E-TYPE E ｶﾞﾀﾄﾒﾜ
2,STEEL,P.C
20
N033
XUC2FP
RETAINING RING E-TYPE E ｶﾞﾀﾄﾒﾜ
KJH04-M5
4
N034
N431KJH04M5
FITTING ﾊｰﾌﾕﾆｵﾝ
M100
F10871-11-000-AE_01-4
上部ｱﾝﾋﾞﾙ部(1)
UPPER ANVIL SECT.(1)
9
F10871-21-000-AF_01-1
M101
　　　
　　　　　　　　　 PART NAME
　　　　 REMARKS　
Q'TY
9

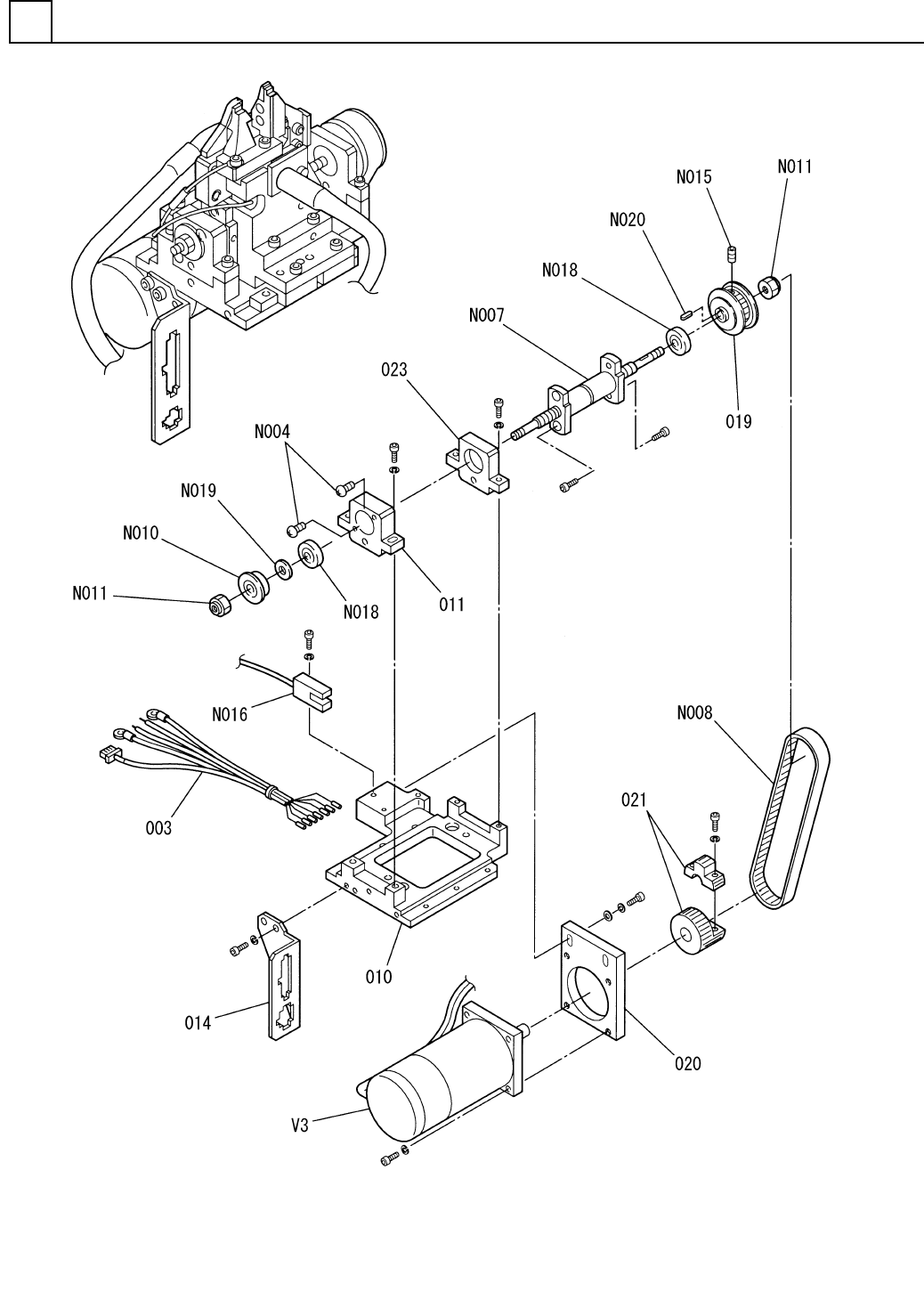

上部ｱﾝﾋﾞﾙ部(1)
UPPER ANVIL SECT.(1)
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 品　 番 個数 備 考
R
1
R
2
1 1087121000
UPPER ANVIL UNIT ｼﾞｮｳﾌﾞｱﾝﾋﾞﾙﾕﾆｯﾄ
-XWALM2
1
003 3087121003
CABLE ｹｰﾌﾞﾙ
1
010 108712101001
MAIN BODY ﾒｲﾝﾎﾞﾃﾞｨ
1011 108712101101
BLOCK ﾌﾞﾛｯｸ
1014 108712101403
CONNECTOR BRACKET ｺﾈｸﾀ ﾌﾞﾗｹｯﾄ
1
019 108712300602
PULLEY ﾌﾟｰﾘｰ
1
020 108712102002
BRACKET ﾌﾞﾗｹｯﾄ
1021 108712300302
PULLEY ﾌﾟｰﾘｰ
1023 108712102301
BLOCK ﾌﾞﾛｯｸ
M3X6,+,STEEL,Z.C.T
2
N004
XST3+6FY
TRUSS HEAD SCREW ﾄﾗｽｺﾈｼﾞ
MBF0602RL-2.7RRGT+107L
1
N007
N510009595AA
BALL SCREW ﾎﾞｰﾙﾈｼﾞ
195-3GT-6
1
N008
N6411953GT6
BELT(TIMING) ﾍﾞﾙﾄ(ﾀｲﾐﾝｸﾞ)
F605ZZ
1
N010
XLCNF605ZZ
BALL BEARING ﾎﾞｰﾙﾍﾞｱﾘﾝｸﾞ
M5,2-TYPE,STAINLESS,ST
2
N011
XNGNU5YFZ
LOCK-NUT ﾛｯｸﾅｯﾄ
M3X6,STEEL,P.C
1
N015
XXE366FP
HEX. SOCKET SET SCREW ﾛｯｶｸｱﾅﾝﾂｷﾄﾒﾈｼﾞ
P914SA1
1
N016
N310P914SA1
SENSOR ｾﾝｻ
605ZZ
2
N018
XLCN605ZZ
BALL BEARING ﾎﾞｰﾙﾍﾞｱﾘﾝｸﾞ
CIMRB10-14-0.05
1
N019
N986C1MR-T56
RING ﾘﾝｸﾞ
2X2X6,PARALLEL,B.S.R
1
N020
XPA2L2F6
SUNK KEY ｼｽﾞﾐｷｰ
MSM5AZAJA S
1V 3 308712100201
MOTOR ﾓｰﾀ
M102
