PART NAME REMARKS Q'TY 9 上部ｱﾝﾋﾞﾙ部(2) UPPER ANVIL SECT.(2) ｲﾗｽﾄ No. REF No. PART No. 部 品 品 番 個数 備 考 R 1 R 2 1 001 1087121001 PIPE ﾊﾟｲﾌﾟ 1 002 108712100201 PIPE ﾊﾟｲﾌﾟ 2 004 1016323037 PIN ﾋﾟﾝ 2 005 N210034873AA BLOCK …

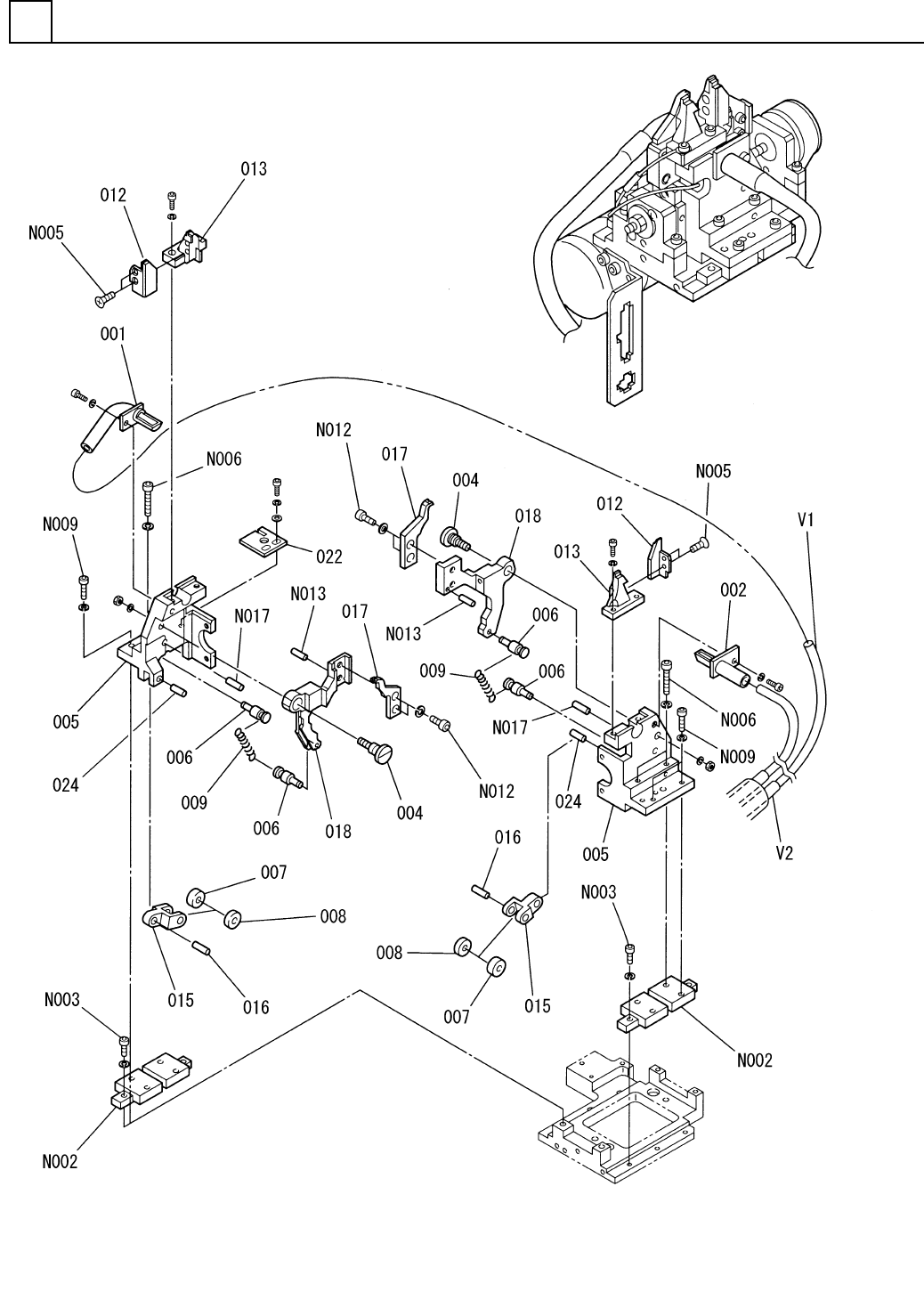

上部ｱﾝﾋﾞﾙ部(2)
UPPER ANVIL SECT.(2)
9
F10871-21-000-AF_01-2
M103
PART NAME
REMARKS
Q'TY
9
上部ｱﾝﾋﾞﾙ部(2)
UPPER ANVIL SECT.(2)
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 品 番 個数 備 考
R
1
R
2
1001 1087121001
PIPE ﾊﾟｲﾌﾟ
1
002 108712100201
PIPE ﾊﾟｲﾌﾟ
2
004 1016323037
PIN ﾋﾟﾝ
2005 N210034873AA
BLOCK ﾌﾞﾛｯｸ
4006 108712100601
PIN ﾋﾟﾝ
2
007 1010461017
ROLLER ﾛｰﾗ
2
008 1010461016
ROLLER ﾛｰﾗ
2009 1087121009
SPRING ﾊﾞﾈ
2012 101632300409
COVER ｶﾊﾞｰ
2
013 104132101501
BASE(CLINCH) ﾍﾞｰｽ(ｸﾘﾝﾁ)
2015 108712101501
LEVER ﾚﾊﾞｰ
2016 1011368033
PIN ﾋﾟﾝ
2
017 1041321020
CUTTER & CLINCHER ｶｯﾀｰ & ｸﾘﾝﾁｬ
2
018 108712101801
LEVER ﾚﾊﾞｰ
1022 108712102202
DOG FOR SENSOR ﾄﾞｸﾞ
2024 1087121024
PIN ﾋﾟﾝ
2RSR7MUUC1S+65LPMS
2
N002
N5132RSR-A63
LINEAR MOTION UNIT ﾘﾆｱﾓｰｼｮﾝﾕﾆｯﾄ
M2X6,STEEL,P.C
6
N003
XVE2B6FP
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M2.5X5,+,STEEL,Z.C.T
4
N005
XSS25+5FY
FLUSH HEAD SCREW ｻﾗｺﾈｼﾞ
M2X14,STEEL,P.C
4
N006
XVE2B14FP
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M2X8,STEEL,P.C
4
N009
XVE2B8FP
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M4X7,STEEL,P.C
4
N012
XVE4B7FP
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
1.6X8,STEEL
2
N013
XPL16A8WFW
SPRING PIN ｽﾌﾟﾘﾝｸﾞﾋﾟﾝ
MS D3X6L
2
N017
N986MS36
DOWEL PIN ﾀﾞｳｴﾙﾋﾟﾝ
D6.0XD10.0
1
V 1 N434YYYY-003
TUBE ﾁｭｰﾌﾞ
TF225
1V 2 N434TF225
TUBE ﾁｭｰﾌﾞ
M104
F10871-21-000-AF_01-2

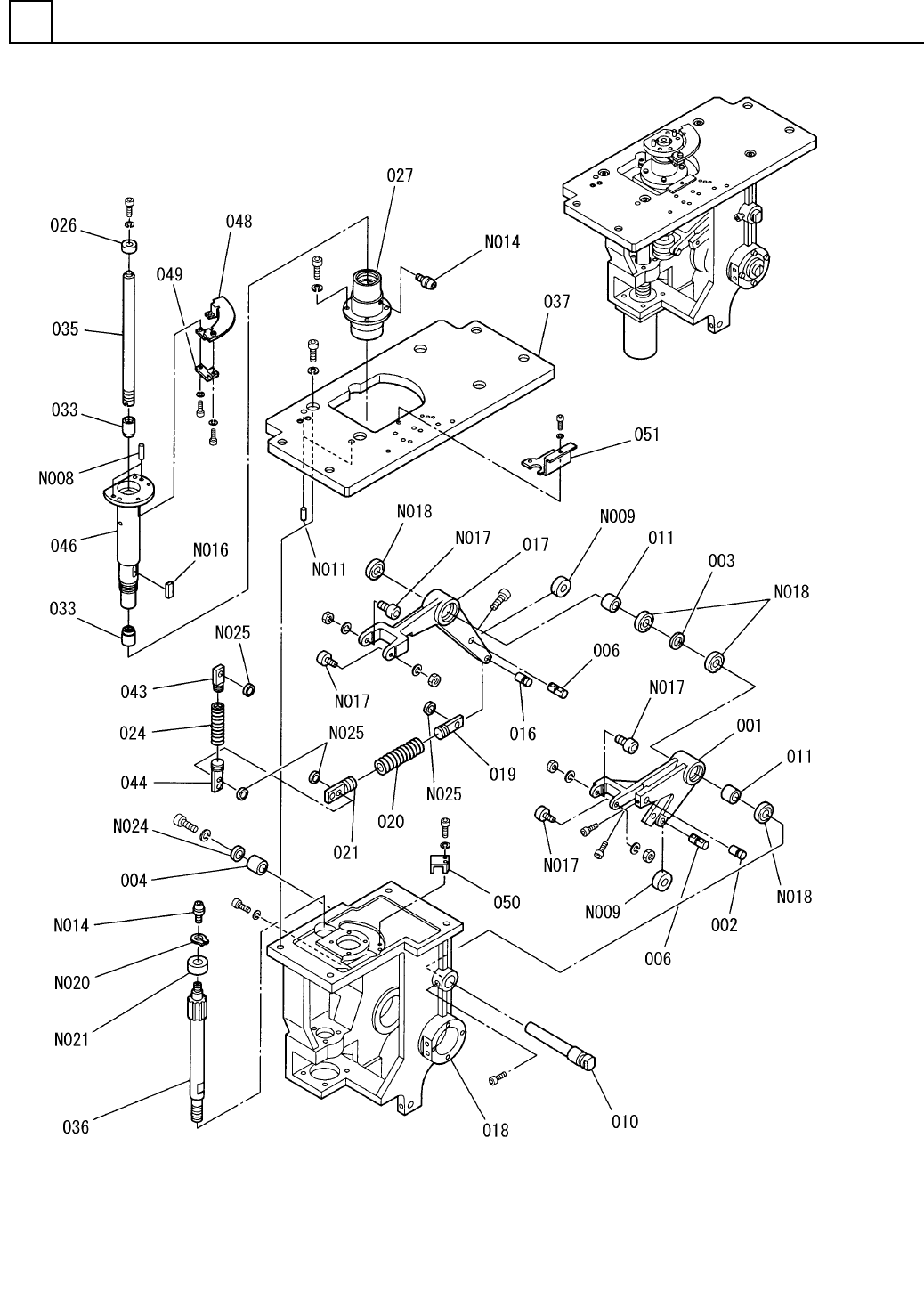

下部ｱﾝﾋﾞﾙ部(1)
UNDER ANVIL SECT.(1)
10
F10871-12-000-AF_02-1
M105
