PART NAME REMARKS Q'TY 18 部品供給部 (1) FEEDER CARR IAGE SECT.(1) ｲﾗｽﾄ No. REF No. PART No. 部 品 品 番 個数 備 考 R 1 R 2 1 1087107100 SUPPLY UNIT ｷｮｳｷｭｳﾕﾆｯﾄ 1 103 1087107103 CROSS BEAM ｸﾛｽﾋﾞｰﾑ 2 104 1087107104 LINEAR MOTIO N …

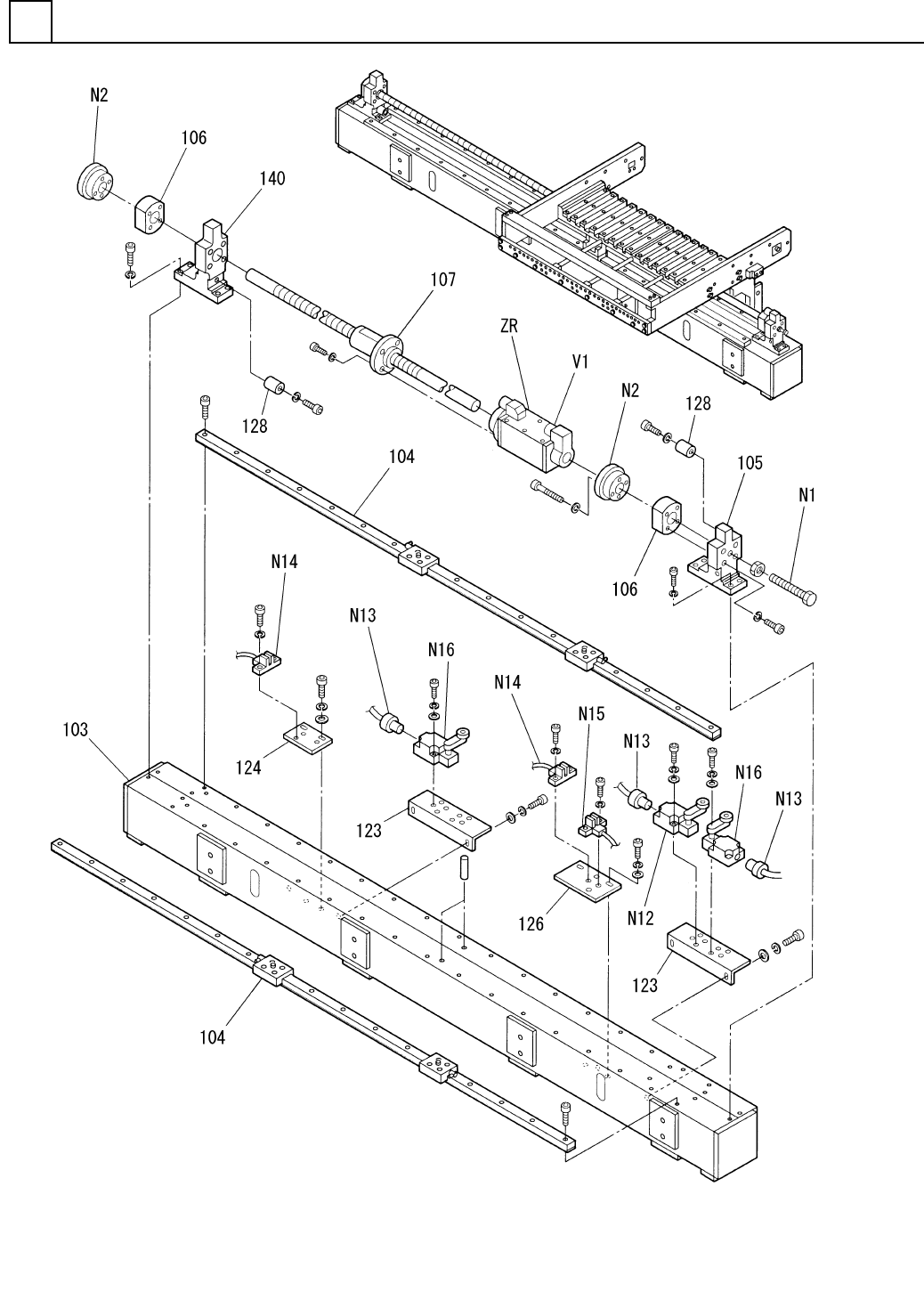

部品供給部(1)
FEEDER CARRIAGE SECT.(1)
18
F10871-07-100-1
M137
PART NAME
REMARKS
Q'TY
18
部品供給部(1)
FEEDER CARRIAGE SECT.(1)
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 品 番 個数 備 考
R
1
R
2
1 1087107100
SUPPLY UNIT ｷｮｳｷｭｳﾕﾆｯﾄ
1
103 1087107103
CROSS BEAM ｸﾛｽﾋﾞｰﾑ
2
104 1087107104
LINEAR MOTION UNIT ﾘﾆｱﾓｰｼｮﾝﾕﾆｯﾄ
1105 104690700501
BRACKET ﾌﾞﾗｹｯﾄ
2106 1046907006
HOLDER ﾎﾙﾀﾞ
1
107 1087107107
BALL SCREW ﾎﾞｰﾙﾈｼﾞ
2
123 108710702901
PLATE ﾌﾟﾚｰﾄ
1124 108710703001
PLATE ﾌﾟﾚｰﾄ
1126 108710703503
PLATE ﾌﾟﾚｰﾄ
2
128 1046907046
STOPPER ｽﾄｯﾊﾟｰ
1140 1087107140
BRACKET ﾌﾞﾗｹｯﾄ
M10X90,STEEL,P.C
1
N 1
XVEN10890FPZ
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
MA-40
2
N 2
N645MA40
COUPLING ｶｯﾌﾟﾘﾝｸﾞ
AT0-20-1-I/R S
1
N 12
N300AT02011R
SWITCH ｽｲｯﾁ
V-M20
3
N 13
N348VM20
CONNECTOR ｺﾈｸﾀ
P921SA1
2
N 14
N310P921SA1
SENSOR ｾﾝｻ
P921S1
1
N 15
N310P921S1
SENSOR ｾﾝｻ
AT0-11-S-I/R S
2
N 16
N300AT011S1R
SWITCH ｽｲｯﾁ
MFA250LE4NSJ S
1V 1 308380701202
MOTOR ﾓｰﾀ
M138
F10871-07-100-1

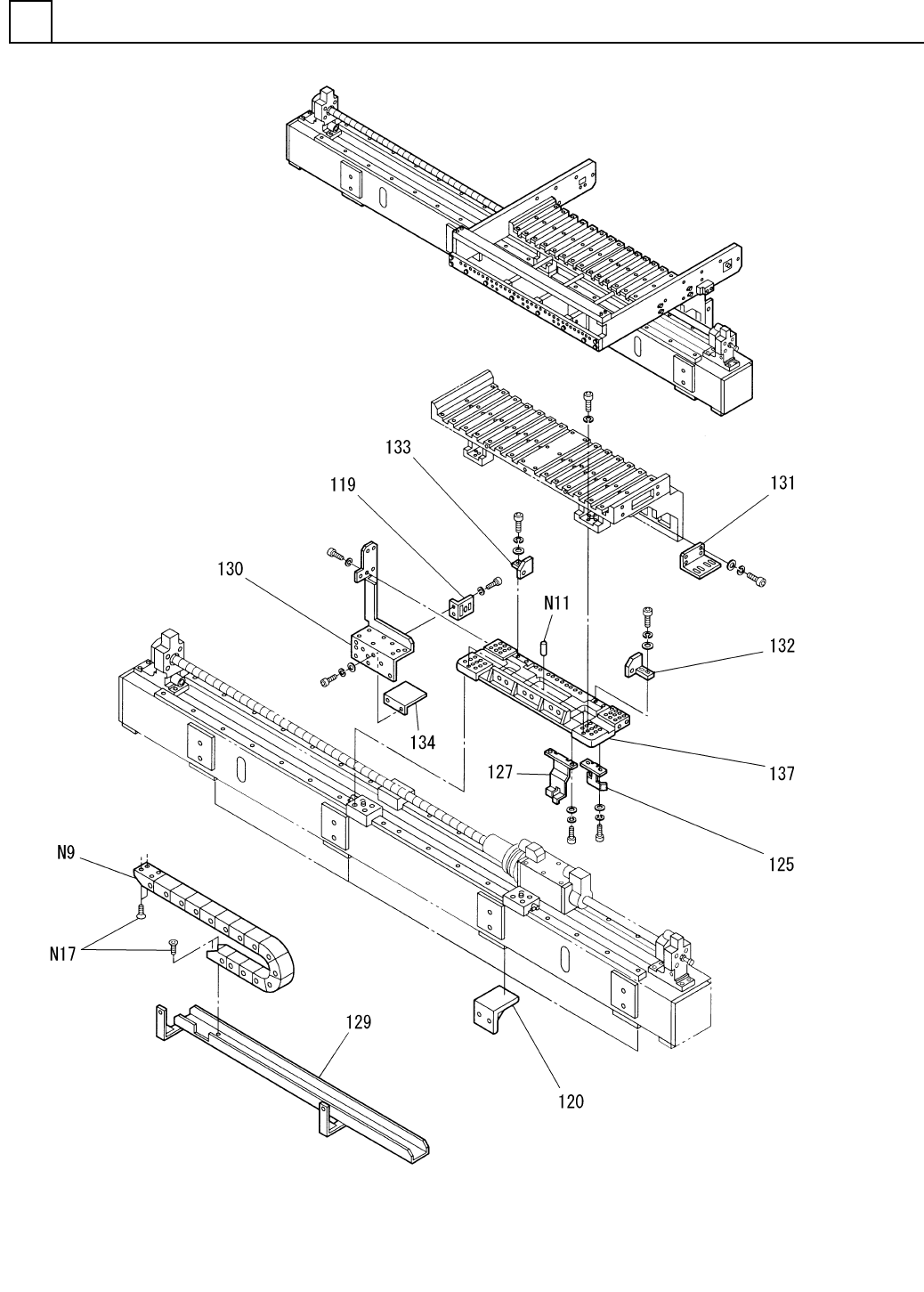

部品供給部(2)
FEEDER CARRIAGE SECT.(2)
18
F10871-07-100-2
M139
