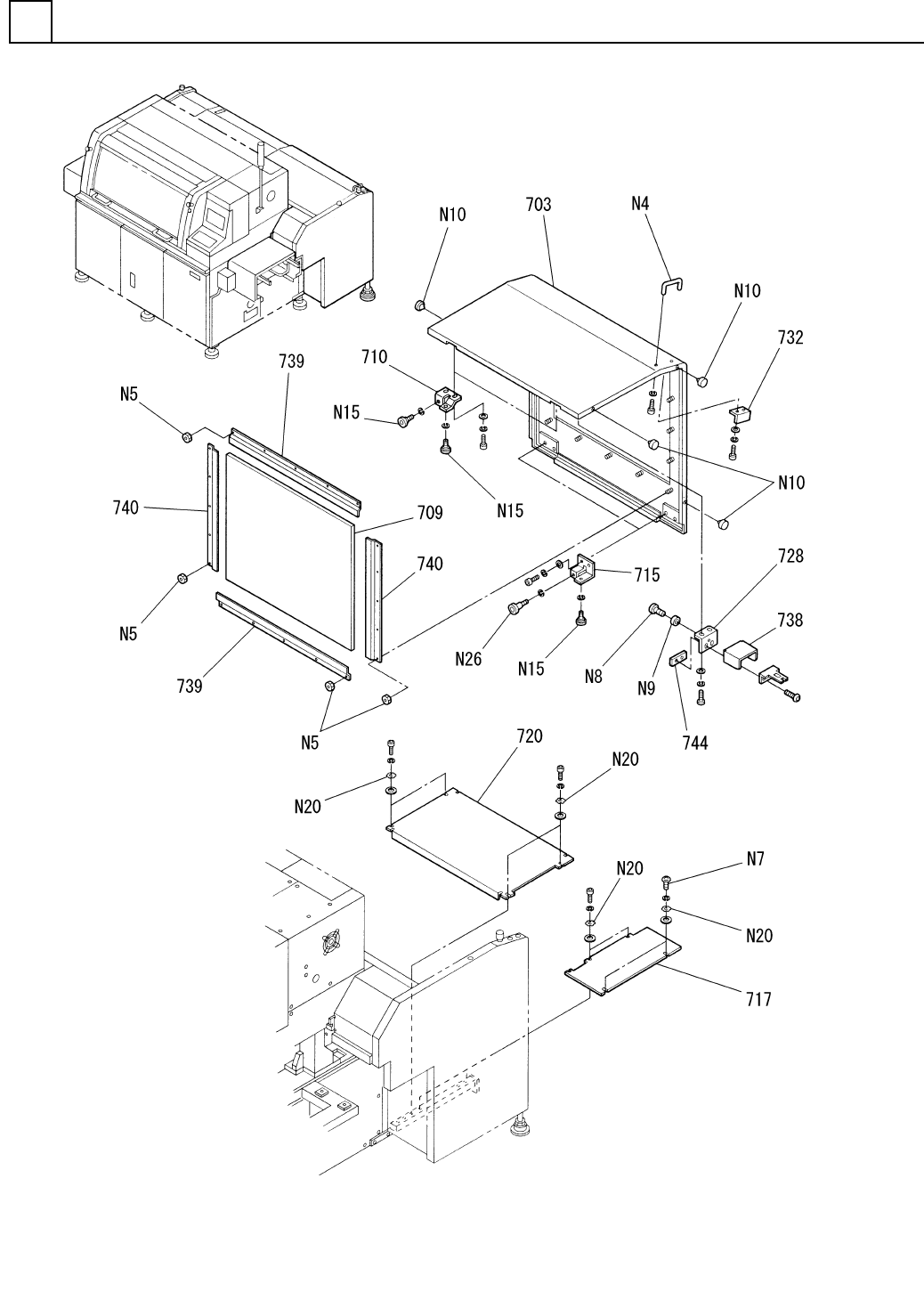

ｶﾊﾞｰ部(Z軸ｶﾊﾞｰ部5)
COVER SECT.(Z-AXIS COVER SECT.-5)
2
F10871-02-700-5
M47
　　　
　　　　　　　　　 PART NAME
　　　　 REMARKS　
Q'TY
2
ｶﾊﾞｰ部(Z軸ｶﾊﾞｰ部5)
COVER SECT.(Z-AXIS COVER SECT.-5)
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 品　 番 個数 備 考
R
1
R
2
1703 108710230403
DOOR(R) ﾄﾞｱ(R)
1
709 1087102312
COVER(DOOR) ｶﾊﾞｰ(ﾄﾞｱ)
2
710 108710231303
BRACKET ﾌﾞﾗｹｯﾄ
2715 108710231802
BRACKET ﾌﾞﾗｹｯﾄ
1717 1087102717
COVER(RIGHT) ｶﾊﾞｰ(RIGHT)
1
720 1087102720
COVER(RIGHT) ｶﾊﾞｰ(RIGHT)
1
728 108710233301
BRACKET ﾌﾞﾗｹｯﾄ
1732 104693134601
BRACKET ﾌﾞﾗｹｯﾄ
1738 1087102064
BRACKET ﾌﾞﾗｹｯﾄ
2
739 1087102349
BRACKET ﾌﾞﾗｹｯﾄ
2740 1087102350
BRACKET ﾌﾞﾗｹｯﾄ
1744 1081102241
NUT PLATE ﾅｯﾄﾌﾟﾚｰﾄ
A-1042-C-15
1
N 4
N980A1042C15
DRAWER PULL ﾄｯﾃ
M5,1-TYPE,STEEL,Z.C.T
20
N 5
XNG5AFY
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
M5X12,+,STEEL,Z.C.T
2
N 7
XST5+12FY
TRUSS HEAD SCREW ﾄﾗｽｺﾈｼﾞ
M2X6,STEEL,Z.C.T
1
N 8
XVE2B6FY
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
C-30-RK-15-UL
1
N 9
N510010453AA
RUBBER LEG ｺﾞﾑｱｼ
TM-96-2(7222)
4
N 10
N982TM7222
RUBBER CUSHION ｺﾞﾑｸｯｼｮﾝ
22RF602C-1
6
N 15
N50022RF-016
BEARING ﾍﾞｱﾘﾝｸﾞ
5,B-TYPE,STEEL,Z.C.T
9
N 20
XWC5BFY
TOOTHED LOCK WASHER ﾊﾂｷｻﾞｶﾞﾈ
22RF603C-1
2
N 26
N50022RF-017
BEARING ﾍﾞｱﾘﾝｸﾞ
M48
F10871-02-700-5

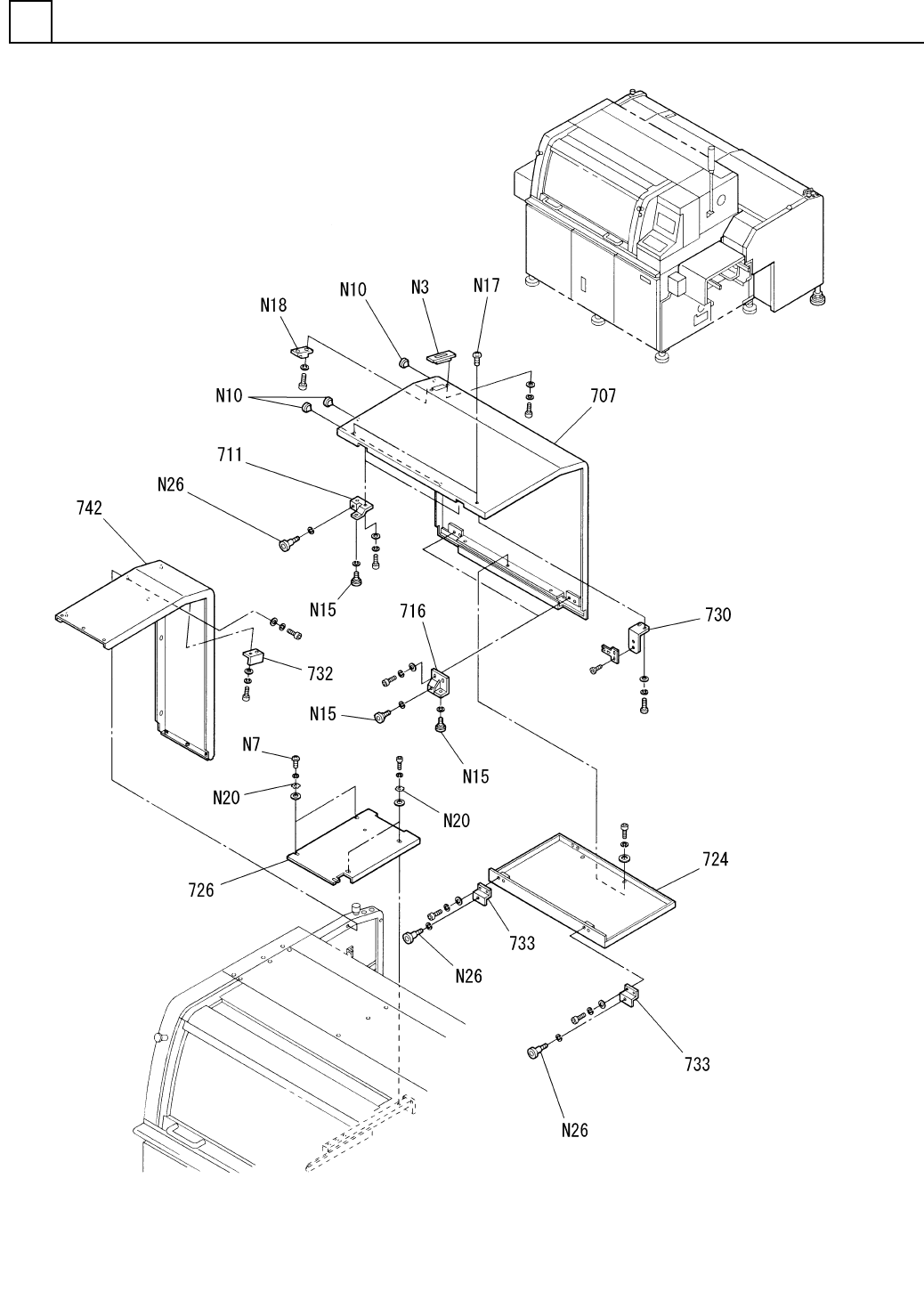

ｶﾊﾞｰ部(Z軸ｶﾊﾞｰ部6)
COVER SECT.(Z-AXIS COVER SECT.-6)
2
F10871-02-700-6
M49
