Q124783B09 - 第96页

挿入ﾍｯﾄﾞ部(2) INSERTION H EAD SECT.(2) 5 F10871-09-000-AF_0 1-2 M79

100%1 / 296
　　　
　　　　　　　　　 PART NAME
　　　　 REMARKS　
Q'TY
5
挿入ﾍｯﾄﾞ部(1)
INSERTION HEAD SECT.(1)
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 品　 番 個数 備 考
R
1
R
2
1 1087109000
INSERTION HEAD UNIT ｿｳﾆｭｳﾍｯﾄﾞﾕﾆｯﾄ
3
002 104130900201
BLOCK(SLIDE) ﾌﾞﾛｯｸ(ｽﾗｲﾄﾞ)
2
003 108710900303
GUIDE ｶﾞｲﾄﾞ
1011 108710901101
BUSHING ﾌﾞｯｼｭ
1016 108710901603
PLATE(SENSOR) ﾌﾟﾚｰﾄ(ｾﾝｻ)
1
020 108710902004
BRACKET(SENSOR) ﾌﾞﾗｹｯﾄ(ｾﾝｻ)
1
021 108710902104
BRACKET(SENSOR) ﾌﾞﾗｹｯﾄ(ｾﾝｻ)
1053 108710905301
PLATE ﾌﾟﾚｰﾄ
1054 1087109054
SPRING ﾊﾞﾈ
1
055 108710905501
SPRING ﾊﾞﾈ
1058 108710905803
SHAFT ｼｬﾌﾄ
1059 108710905903
SHAFT ｼｬﾌﾄ
1
060 108710906002
SHAFT ｼｬﾌﾄ
4
061 1041309076
COLLAR ｶﾗｰ
1063 108710906305
FRAME ﾌﾚｰﾑ
2065 1041309082
COLLAR ｶﾗｰ
3
066 1041309083
NUT ﾅｯﾄ
1
068 1087109068
FLANGE ﾌﾗﾝｼﾞ
1070 1087109070
SPRING ﾊﾞﾈ
1071 1087109071
BRACKET ﾌﾞﾗｹｯﾄ
MB1012DU
2
N011
N520MB1012DU
BUSHING ﾌﾞｯｼﾝｸﾞ
LMF10UU
1
N018
N513LMF10UU
BUSHING ﾌﾞｯｼﾝｸﾞ
6X12,h8B,STEEL
11
N019
XPJ6E12FW
PARALLEL PIN ﾍｲｺｳﾋﾟﾝ
LMK16UU
1
N020
N513LMK16UU
BUSHING ﾌﾞｯｼﾝｸﾞ
LMK13UU
1
N023
N513LMK13UU
BUSHING ﾌﾞｯｼﾝｸﾞ
LMF13UU
1
N024
N513LMF13UU
BUSHING ﾌﾞｯｼﾝｸﾞ
10,STEEL,P.C
3
N025
XWF10FP
ROUND PLAIN WASHER ｺｶﾞｶﾏﾙﾋﾗｻﾞｶﾞﾈ
EE-SX870A
3
N032
N310EESX870A
SENSOR ｾﾝｻ
LMF10LUU
2
N035
N513LMF10LUU
BUSHING ﾌﾞｯｼﾝｸﾞ
MGM202K3S S
1V 1 3087123004
MOTOR ﾓｰﾀ
M78
F10871-09-000-AF_01-1

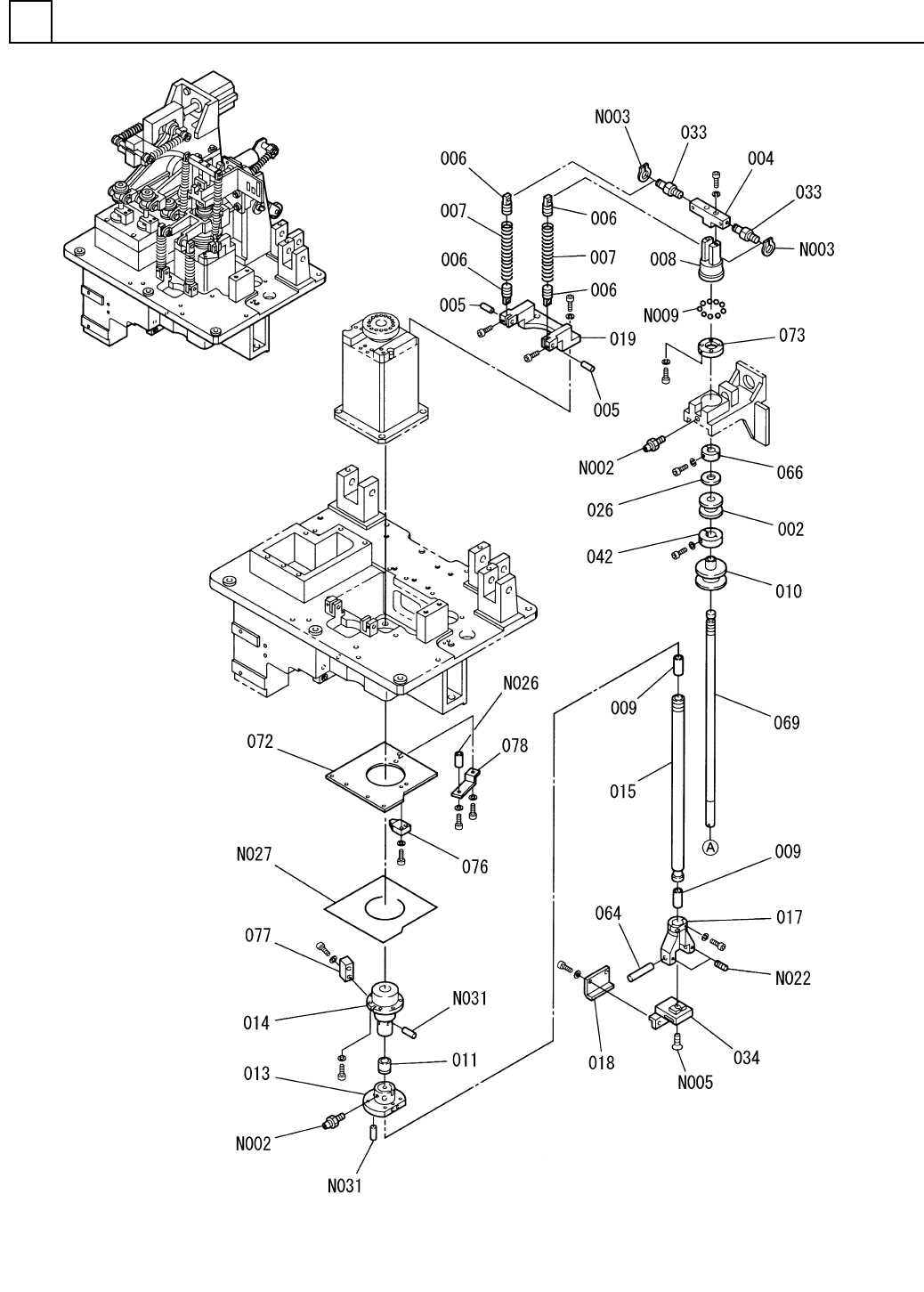

挿入ﾍｯﾄﾞ部(2)
INSERTION HEAD SECT.(2)
5
F10871-09-000-AF_01-2
M79
　　　
　　　　　　　　　 PART NAME
　　　　 REMARKS　
Q'TY
5
挿入ﾍｯﾄﾞ部(2)
INSERTION HEAD SECT.(2)
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 品　 番 個数 備 考
R
1
R
2
1002 104130900201
BLOCK(SLIDE) ﾌﾞﾛｯｸ(ｽﾗｲﾄﾞ)
1
004 108710900403
STOPPER ｽﾄｯﾊﾟ
2
005 104130900501
PIN ﾋﾟﾝ
4006 104130900602
HOOK ﾌｯｸ
2007 104130900701
SPRING ﾊﾞﾈ
1
008 108710900801
SLIDER ｽﾗｲﾀﾞ
2
009 102031502101
BUSHING ﾌﾞｯｼｭ
1010 104130901102
NUT ﾅｯﾄ
1011 108710901101
BUSHING ﾌﾞｯｼｭ
1
013 108710901302
SHAFT ｼｬﾌﾄ
1014 108710901404
SHAFT ｼｬﾌﾄ
1015 1087109015
SHAFT ｼｬﾌﾄ
1
017 108710901703
BRACKET ﾌﾞﾗｹｯﾄ
1
018 104130902201
BRACKET ﾌﾞﾗｹｯﾄ
1019 108710901902
BRACKET ﾌﾞﾗｹｯﾄ
1026 1017709066
COLLAR ｶﾗｰ
2
033 108710903301
PIN ﾋﾟﾝ
1
034 1087109034
BLOCK ﾌﾞﾛｯｸ
1042 N210027745AA
RING ﾘﾝｸﾞ
1064 104130907902
SHAFT(SLIDE) ｼｬﾌﾄ(ｽﾗｲﾄﾞ)
1
066 1041309083
NUT ﾅｯﾄ
1
069 108710906903
SHAFT ｼｬﾌﾄ
1072 108710907203
PLATE ﾌﾟﾚｰﾄ
1073 108710907303
JOINT ｼﾞｮｲﾝﾄ
1
076 108710907605
STOPPER ｽﾄｯﾊﾟ
1077 108710907701
BLOCK ﾌﾞﾛｯｸ
1078 108710907801
BRACKET ﾌﾞﾗｹｯﾄ
NO.112M6X1.0SS400
2
N002
N560N011-015
GREASE NIPPLE ｸﾞﾘｰｽﾆｯﾌﾟﾙ
5,STEEL,P.C
2
N003
XUB5FP
RETAINING RING C-TYPE, SHAF C ｶﾞﾀｼﾞｸﾖｳﾄﾒﾜ
M5X15
1
N005
N986YYYY-430
BOLT ﾛｯｶｸｱﾅﾂｷｻﾗﾎﾞﾙﾄ
Sph4mm
9
N009
N506D4K
STEEL BALL ｺｳｷｭｳ
M3X5,STEEL,P.C
2
N022
XXE3D5FP
HEX. SOCKET SET SCREW ﾛｯｶｸｱﾅﾂｷﾄﾒﾈｼﾞ
NCLM5-8-10
1
N026
N560NCLM-259
COLLAR ｶﾗｰ
HMW-TAP-WER NO4
1
N027
N986HMWT-179
ADHESIVE TAPE ﾈﾝﾁｬｸﾃｰﾌﾟ
4X10,h8B,STEEL
2
N031
XPJ4E10FW
PARALLEL PIN ﾍｲｺｳﾋﾟﾝ
M80
F10871-09-000-AF_01-2
