CP-65 PARTS LIST ver09

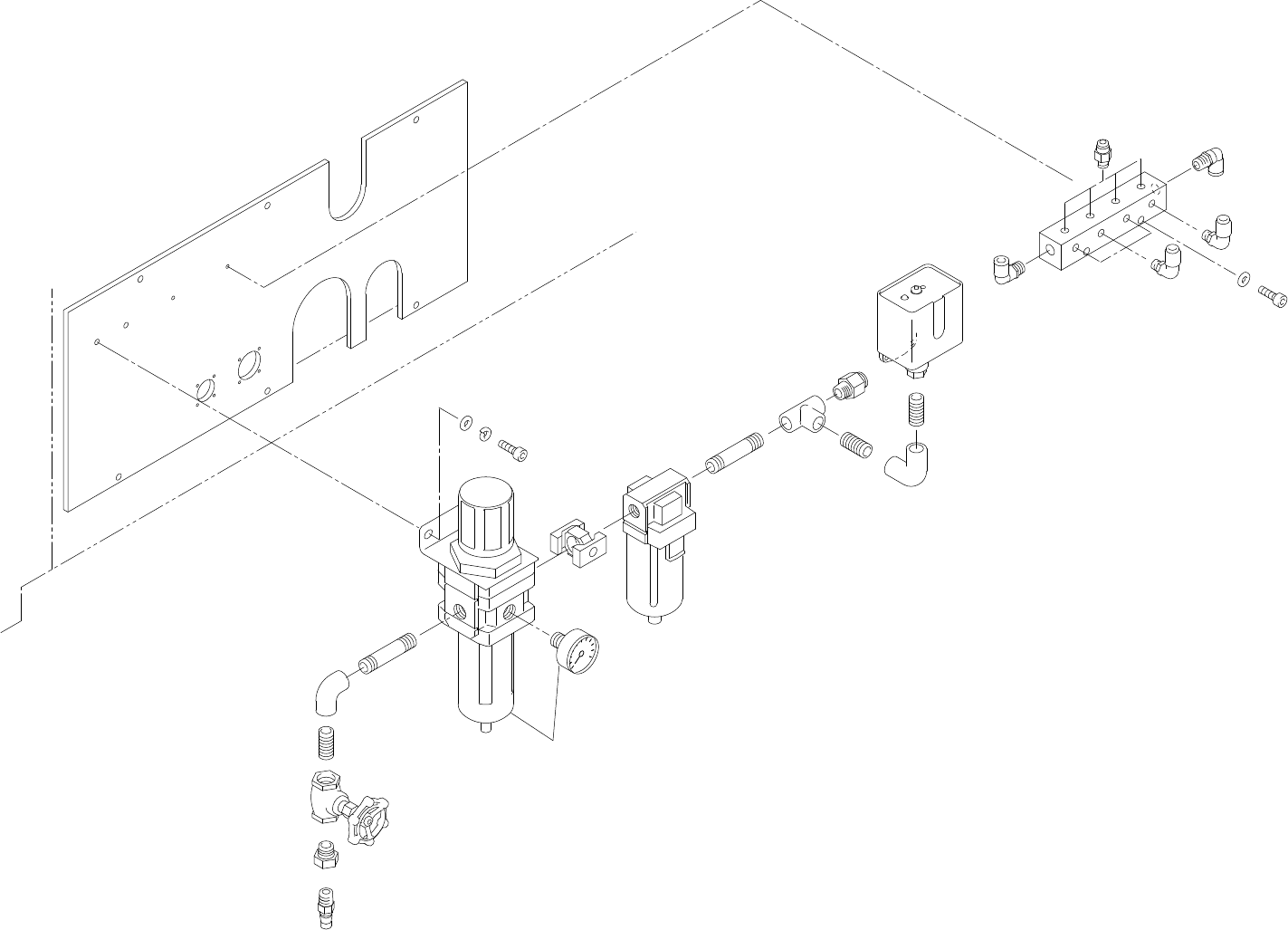

31.エアー機器(YAB)
31.Air device(YAB)
31 - 1
31.エアー機器(YAB)
31.Air device(YAB)
2
17
3
16
6
15
7
21
22
19
15
4
24
14
14
5
8
1
12
20
18
11
13
9
23
10
25
26
x5
208
176
165
175
161
175
161
175
161
183
162
176
167
175
161
13
13
B
A
139
26
31.エアー機器(YAB)
31.Air device(YAB)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
1 YAB0020 1 COVER ｶﾊﾞｰ
2 H3149A 1 PLUG, COUPLER ﾌﾟﾗｸﾞ ｶﾌﾟﾗ 20PM
3 H1046A 1 VALVE, STOP ﾊﾞﾙﾌﾞ ｽﾄｯﾌﾟ A3/8X100
4 T4038A 1 TEE ﾃｨｰ 1/4.
5 A4053A 1 ELBOW ｴﾙﾎﾞ 1/4.
6 A4081A 1 ELBOW, DIFFERENT DIAMETERS ｴﾙﾎﾞ異径 3/8X1/4
7 H3030A 1 FILTER REGULATOR ﾌｨﾙﾀﾚｷﾞｭﾚｰﾀ AW3000-02-BDG
8 S3157H 1 SW, PRESSURE SW ﾌﾟﾚｯｼｬ IS3000-02
9 S2176B 4 JOINT, ONE-TOUCH ｼﾞｮｲﾝﾄ ﾜﾝﾀｯﾁ TS6-01(NYﾒｯｷ)
10 S2172B 1 JOINT, ONE-TOUCH ｼﾞｮｲﾝﾄ ﾜﾝﾀｯﾁ TL6-02(NYﾒｯｷ)
11 S2171B 1 JOINT, ONE-TOUCH ｼﾞｮｲﾝﾄ ﾜﾝﾀｯﾁ TL6-01(NYﾒｯｷ)
12 S2173B 3 JOINT, ONE-TOUCH ｼﾞｮｲﾝﾄ ﾜﾝﾀｯﾁ TL8-01(NYﾒｯｷ)
13 S2174B 1 JOINT, ONE-TOUCH ｼﾞｮｲﾝﾄ ﾜﾝﾀｯﾁ TL8-02(NYﾒｯｷ)
14 H1215A 2 PIPE, DOUBLE ENDED ﾊﾟｲﾌﾟ 両口 1/4X30
15 H1220A 2 PIPE, DOUBLE ENDED ﾊﾟｲﾌﾟ 両口 1/4X65
16 H1282A 1 PIPE, DOUBLE ENDED ﾊﾟｲﾌﾟ 両口 3/8X25
17 H3075A 1 BUSHING ﾌﾞｯｼｭ 3/8X1/4
18 H5295A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X35L
19 H5322A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X15L
20 W1011A WASHER, CONICAL ﾜｯｼｬ 皿 M-4-L
21 W1045A WASHER, FLAT ﾜｯｼｬ 平 4W-6
22 W1024A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M
23 GXA0110 1 TERMINAL, PIPING ﾀｰﾐﾅﾙ 配管
24 S2153A 1 JOINT ｼﾞｮｲﾝﾄ TS8-02
25 S4016R 1 SEPARATOR, MIST ｾﾊﾟﾚｰﾀ ﾐｽﾄ AFM3000-02-D
26 S3059Y 1 SPACER ｽﾍﾟｰｻ Y30(29.5) ･
CP-65 PARTS LIST ver09
31 - 2
31.エアー機器(YAB)
31.Air device(YAB)
CP-65 PARTS LIST ver09

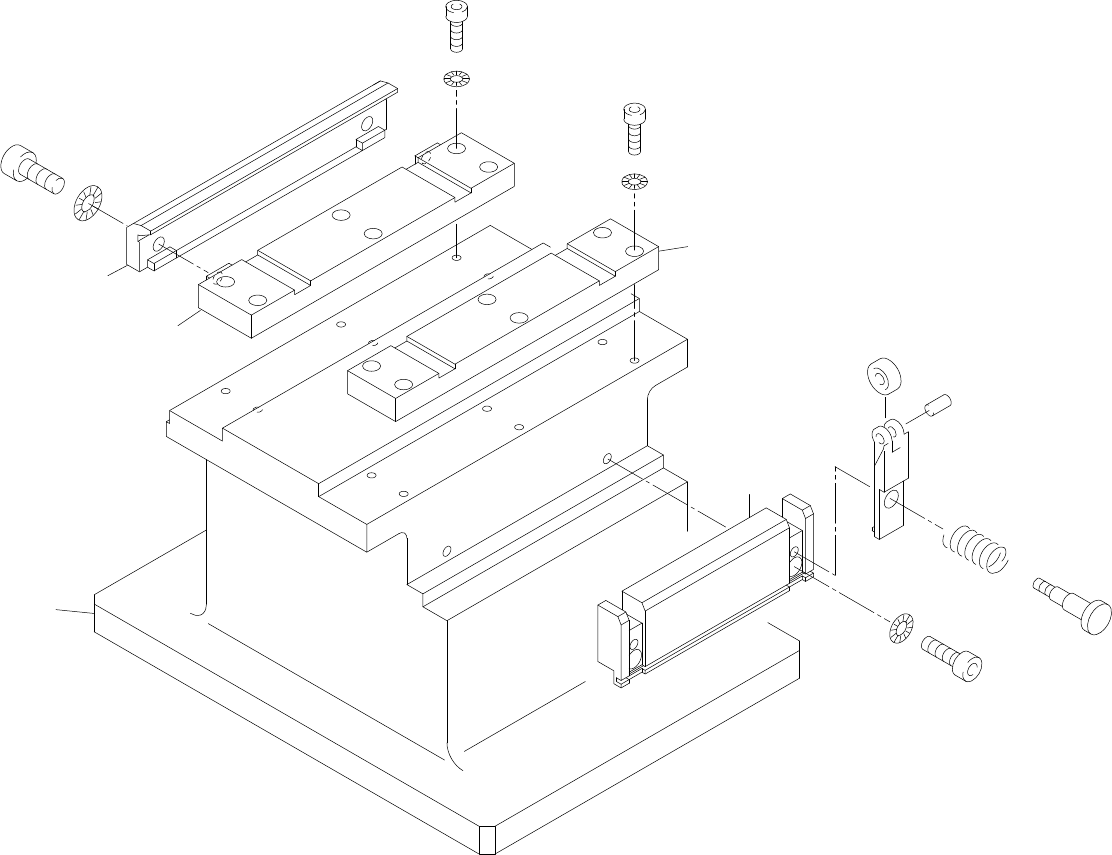

32.リールセット台(WPJ)
32.Feeder setting jig(WPJ)
32 - 1
32.リールセット台(WPJ)
32.Feeder setting jig(WPJ)
1
4
3
14
11
16
13
16
13
2
5
9
10
6
8
7
12
15
x2.5
208
176
165
175
161
175
161
175
161
183
162
176
167
175
161
13
13
B
A
139
26
