ReConfig Kit TH SX1/2 Page 6 / 11 24.11.2021
ReConfig Kit TH SX1/2
Page 5 / 11 24.11.2021
ReConfig Kit TH SX1/2
Page 6 / 11 24.11.2021
ReConfig Kit TH SX1/2
Page 7 / 11 24.11.2021
Pos. Item no. Description Part marking
00519984-01 RECONFIG KIT TH SX1/2 Retrofit Kit
2 03033629-03 TWIN-PICK+PLACE-HEAD/THK
03097485S01 PICK+PLACE MODULE THK R2 Spare Part
03091697-01 READ HEAD MOUNT MS40 TWIN
HEAD

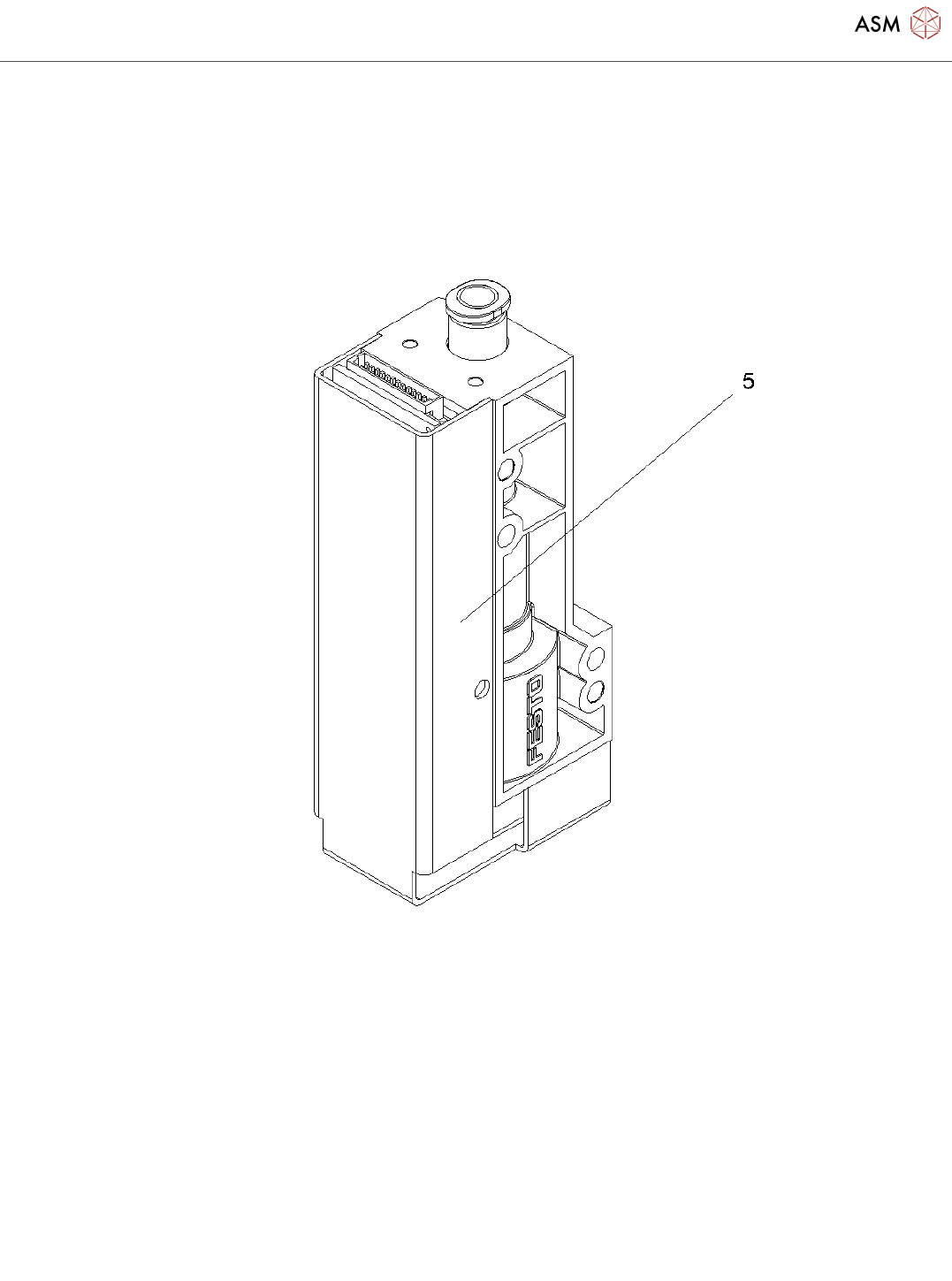

5 03058802S02 DIGITAL-VALVE /TWIN-HEAD SPARE PART
03090205-01 READ HEAD MS45 TWIN Z-AXIS *
00352833S10 HEAD-MAINBOARD P+P-HEAD SPARE PART
03001361S01 RETRACTION UNIT Z-AXIS SPARE PART
03068841-01 HOSE FOR TO FETCH BACK UNIT Z-
AXIS
SPARE PART
00334552S01 HOSE 4*2,5 PUR TU 0425 BU-20 CONSUMABLE
03002232S02 1201CAMERA VISUAL SHIELD P&P-
MODUL
SPARE PART
03081342-01 O-RING 6.7X0.8 NBR 70 BLACK WEAR PART
03080767-01 SCREW LOCKING
03004626-01 SPACER BOLT, TYPE B I/A-M3X50-AL-
F28
STANDARD PARTS
03004759S02 BUFFER RETURN UNIT CPL. SPARE PART
00317988-01 DIN 916 - M 3 X 4-A2-70
03005289S01 CONTROL CABLE FORDP-UNIT,
POWERSENSOR
SPARE PART
03042507-01 ISO 4762 - M 4 X 16-A2-70 STANDARD PARTS
03013039-01 DIN EN ISO 7380-M2,5 X
5-10.9,SCHW.VERZ.
03051420S01 AIR FILTER COMPLETE SPARE PART
03047489S01 CHANGE FILTER FE 50 WEAR PART
03088677-01 SEALING RING 11,11X1,78 NBR 70
SHORE
WEAR PART
00348664-01 DIN 7991-M2,5 X 10-A2
03042542-01 ISO 4762 - M 3 X 8-A2-70 STANDARD PARTS
03022652-01 DIN 6912-M4 X 14-A2-50
03022651-01 DIN 6912-M4 X 8-A2-50
03042523-01 ISO 4762 - M 2 X 4-A2-70
00317988-01 DIN 916 - M 3 X 4-A2-70
00300078-01 DIN 6325 - 2M5 X 5-ST
00300011-01 DIN 963 MASTERPART
