Feeder module 24_32mm S_20211119_075448 - 第5页
Feeder module 24/32mm S Page 5 / 8 19.11.2021
Feeder module 24/32mm S
Page 4 / 8 19.11.2021
Feeder module 24/32mm S
Page 5 / 8 19.11.2021
Feeder module 24/32mm S
Page 6 / 8 19.11.2021

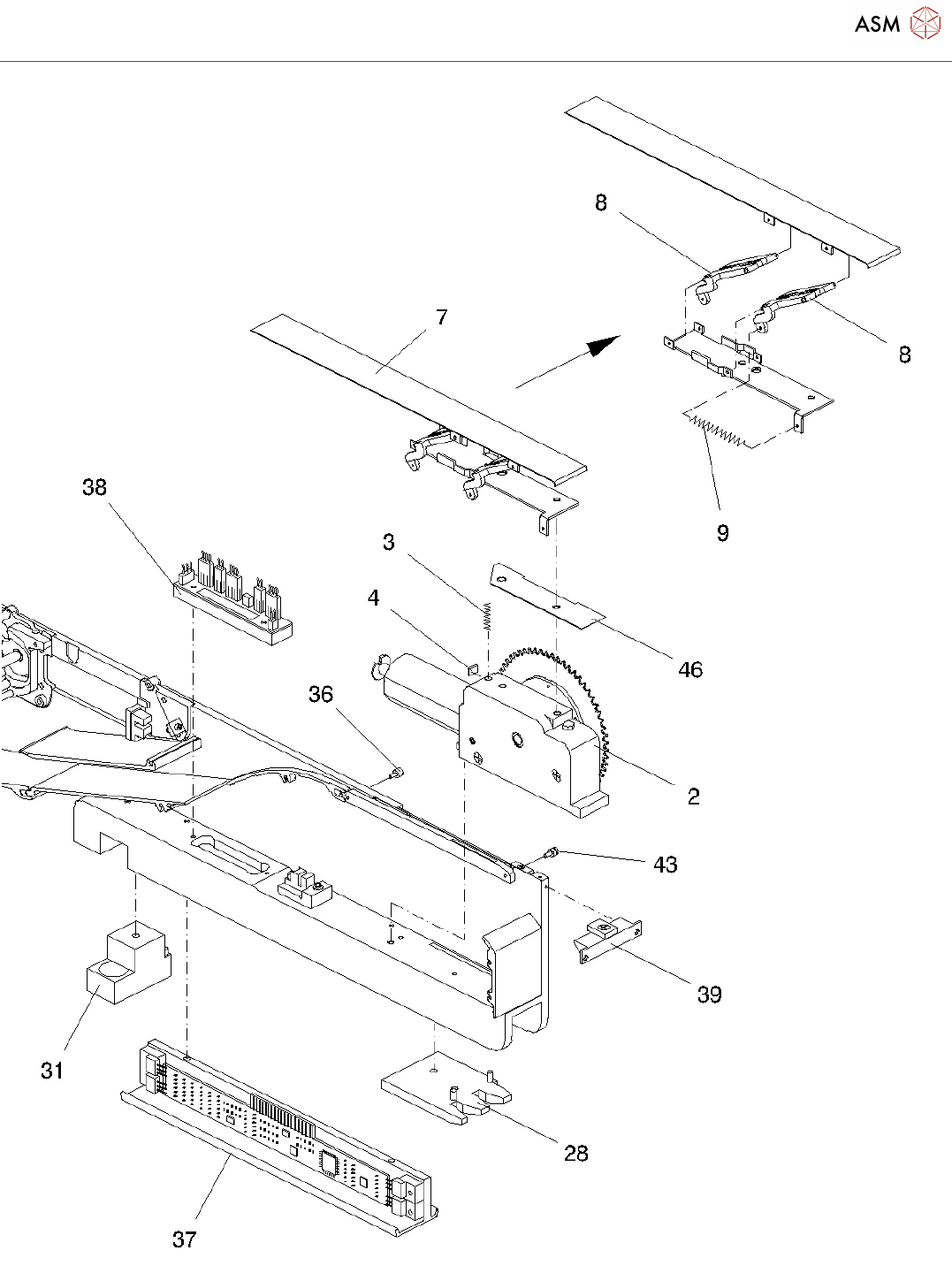

Pos. Item no. Description Part marking
1 00141093S05 TAPE FEEDER MODULE 24/32MM S
SIPLACE
Spare Part
2 00322513S03 DRIVE-UNIT SPARE PART
00324509-01 ADJUSTING WASHER
00322515-01 ADJUSTING SCREW
00325384-01 COMPRESSION SPRING 1.0*6.3*18
3 00325382S01 PRESSURE SPRING 0.5X3.5X20.7 SPARE PART
00322517-01 WORM WHEEL
4 00328214-02 RUBBER BUFFER WEAR PART
00322518-01 ADHESIVE TAPE, LARGE
00322519-01 TRANSPORT WHEEL
00322514-01 CASTING BASE UNIT, COMPLETE
00322526-01 PEDESTAL, COMPLETE
00322533-01 MOTOR UNIT
00322536-01 ADJUSTING SCREW
5 00324931S01 TRANSMITTER UNIT SPARE PART
00324932-01 TRANSMITTER BLOCK
00327134-01 STOP UNIT
00327135-01 GUIDE
00310857-01 STOP PIN
6 00308948S01 PRESSURE SPRING 0.16X1.36X6.7 SPARE PART
00309127-01 SLOT-TYPE LIGHT BARRIER
7 00322181S03 SPRING BASE 24/32MM FEEDER SPARE PART
00322173-02 SPRING PLATE BEARING PLATE
00331750S02 SUPPORT PIECE ASSY SPARE PART
8 00322175S01 JOINT BEAM SPARE PART
9 00325671S01 TENSION SPRING 4.34X23.3X0.63 SPARE PART
00322432-01 TAPE DISPOSAL, COMPLETE
00322251-02 STRIPPING DEVICE 1, COMPLETE
10 00322436S01 SUPPORT F. ROCKER1, CPL
24/32MM FEEDER
SPARE PART
11 00322355S02 SUPPORT PLATE FOR ROCKER 1 SPARE PART
12 00309104S01 PRESSURE SPRING 0.6X5.6X18 V2A SPARE PART
13 00322245S01 ADJUSTING SCREW SPARE PART
14 00325455S01 LIGHT BARRIER STRIP DISPOSAL SPARE PART
