28.ｱｳﾄｺﾝﾍﾞｱ(自動幅替え)(ｵﾌﾟｼｮﾝ)(QQC)
28.Out conveyor (Auto width change)(Option)(QQC)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
40 . 小ﾈｼﾞ 十穴鍋 SCREW, C/R PAN M3X15L
41 N4029A ﾈｼﾞ 六角穴止め SCREW, HEX SOCKET SET M4X8L
42 N1082A ﾅｯﾄ 六角 NUT, HEX M5 P=0.8
43 QQC0850 1 BKT BKT
44 H5181A ﾎﾞﾙﾄ 六角 BOLT, HEX M6X12L
45 QQC0910 1 BKT BKT
46 QQC0920 1 BKT BKT
47 H5275A ﾎﾞﾙﾄ 六角穴 BOLT, HEX SOCKET M3X8L
48 S3122S 1 SW 光電 SW, PHOTOELECTRIC 逆流れ用(Reverse panel flow)
注1.逆流れの場合は(IQC8170)です。
Note.1 : Use part IQC8170 for a right-to-left conveyor. ･
IP-ⅢE PARTS LIST ver11 28 - 3
28.ｱｳﾄｺﾝﾍﾞｱ(自動幅替え)(ｵﾌﾟｼｮﾝ)(QQC)
28.Out conveyor (Auto width change)(Option)(QQC)
IP-
III
E PARTS LIST ver11

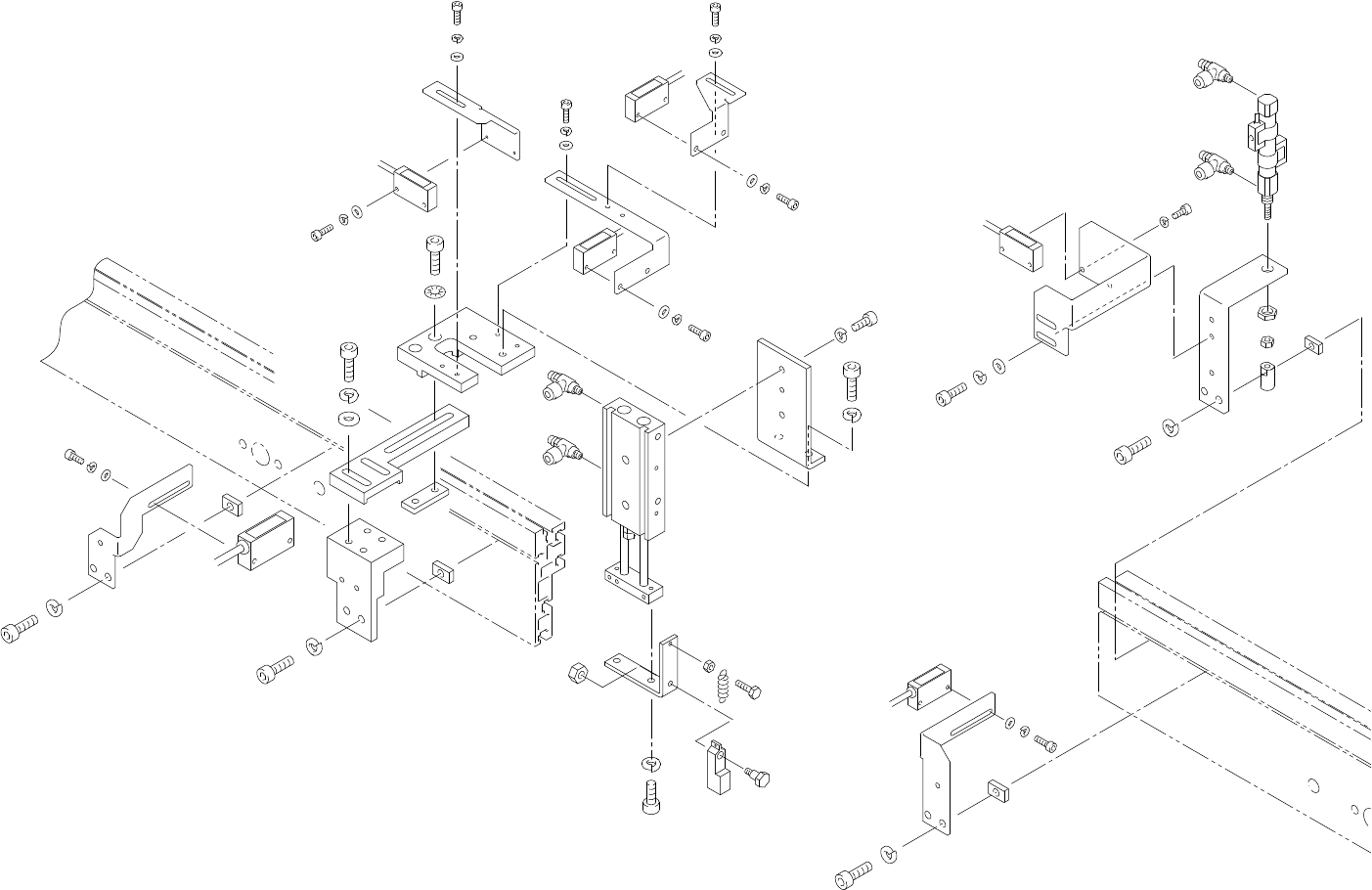

29.コンベア(逆流れ)(オプション)(QQC)
29.Conveyor(Reverse panel flow)(Option)(QQC)
29 - 1
29.コンベア(逆流れ)(オプション)(QQC)
29.Conveyor(Reverse panel flow)(Option)(QQC)
Ref.31-1
Ref.31-1
Ref.31-1
Ref.33-7
x4
24
24
19
23
27
36
16
29
26
35
25
33
7
9
4
4
13
25
33
21
30
27
36
39
8
40
1
38
10
11
26
34
24
24
20
33
25
26
34
12
21
17
30
27
36
30
27
37
21
6
30
27
36
30
27
37
15
30
27
37
22
30
27
36
33
31
14
32
25
28
3
2
4
5
25
32
4
21
30
27
36
18
25
33
208
176
165
175
161
175
161
175
161
183
162
176
167
175
161
13
13
B
A
139
26
29.ｺﾝﾍﾞｱ(逆流れ)(ｵﾌﾟｼｮﾝ)(QQC)
29. Conveyor(Right-to-left board flow)(Option)(QQC)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
1 IQC0950 1 SPRING ｽﾌﾟﾘﾝｸﾞ
2 IQC0960 1 NUT ﾅｯﾄ
3 IQC8520 1 PLATE ﾌﾟﾚｰﾄ
4 IQC6071 8 NUT ﾅｯﾄ
5 IQC8540 1 BKT BKT
6 IQC8580 1 BKT, SENSOR BKT ｾﾝｻ
7 PQC0251 1 BKT BKT
8 PQC0270 1 BKT BKT
9 PQC0350 1 PIN ﾋﾟﾝ
10 PQC0370 1 PIN ﾋﾟﾝ
11 PQC0380 1 STOPPER ｽﾄｯﾊﾟ
12 PQC0581 1 BKT BKT
13 PQC0610 1 BKT BKT
14 PQC2010 1 PLATE, BASE ﾌﾟﾚｰﾄ ﾍﾞｰｽ
15 PQC2020 1 BKT BKT
16 PQC2030 1 BKT BKT
17 PQC2040 1 BKT BKT
18 PQC2050 1 BKT BKT
19 S2097A 1 CYLINDER, AIR ｼﾘﾝﾀﾞ ｴｱｰ CDJ2B10-35-C73
20 S2126H 1 CYLINDER, AIR ｼﾘﾝﾀﾞ ｴｱｰ CXSM-10-40-X73
21 S3122A 4 SW, PHOTOELECTRIC SW 光電 E3S-LS3C1D
22 S3122Z 1 SW, PHOTOELECTRIC SW 光電 E3S-LS3RC4
23 S3123A 1 SW, PHOTOELECTRIC SW 光電 E3S-LS3RC4-1
24 K5325A 4 CONTROLLER, SPEED ｺﾝﾄﾛｰﾗ ｽﾋﾟｰﾄﾞ M4R-M5-O
25 W1023A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M
26 W1022A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M
27 W1021A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M
28 W1044A WASHER, FLAT ﾜｯｼｬ 平 4W-5
29 W1043A WASHER, FLAT ﾜｯｼｬ 平 4W-4
30 W1042A WASHER, FLAT ﾜｯｼｬ 平 4W-3
31 W1012A WASHER, CONICAL ﾜｯｼｬ 皿 M-5-L
32 H5300A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X15L
33 H5299A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X12L
34 H5289A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X12L
35 H5287A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X8L
36 H5277A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M3X12L
37 H5276A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M3X10L
38 H5165A BOLT, HEX ﾎﾞﾙﾄ 六角 M3X10L
39 N1080A NUT, HEX ﾅｯﾄ 六角 M4 P=0.7
IP-Ⅲ PARTS LIST ver11 29 - 2
29.ｺﾝﾍﾞｱ(逆流れ)(ｵﾌﾟｼｮﾝ)(QQC)
29. Conveyor(Right-to-left board flow)(Option)(QQC)
