IP-IIIE-11 - 第133页
IP- III E P ARTS LIST ver1 1 4 0 . エアー機器 2 ( Q P Z ) 4 0 . A i r d e v i c e 2 ( Q P Z ) 4 0 - 1 4 0 . エアー機器 2 ( Q P Z ) 4 0 . A i r d e v i c e 2 ( Q P Z ) R e f . 3 1 - 1 R e f . 3 1 - 1 R e f . 3 1 - 1 R e f . 3 3 - 7…
39.ｴｱｰ機器 1(QPZ)
39.Air device 1(QPZ)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
1 PPZ0290 1 TERMINAL ﾀｰﾐﾅﾙ
2 A4053A 1 ELBOW ｴﾙﾎﾞ 1/4.
3 H1214A 1 PIPE, DOUBLE ENDED ﾊﾟｲﾌﾟ 両口 1/4X25L
4 A4060A 1 ELBOW ｴﾙﾎﾞ 3/8.
5 H3075Z 1 BUSHING ﾌﾞｯｼｭ 3/8X1/4
6 H1282A 2 PIPE, DOUBLE ENDED ﾊﾟｲﾌﾟ 両口 3/8X25L
7 S4016T 1 SEPARATOR, MIST ｾﾊﾟﾚｰﾀ ﾐｽﾄ AFM4000-03R
8 H30302 1 FILTER REGULATOR ﾌｨﾙﾀﾚｷﾞｭﾚｰﾀ AW4000-C3CGR
9 K2027R 1 KEY ｷｰ C1000-50
10 S3157Z 1 SW, PRESSURE SW ﾌﾟﾚｯｼｬ IS3010-02L5
11 Y3085A 1 UNION, ELBOW ﾕﾆｵﾝ ｴﾙﾎﾞ KQ2H10-02S
12 Y3086A 1 UNION, HALF ﾕﾆｵﾝ ﾊｰﾌ KQ2H10-03S
13 Y3021E 1 UNION ﾕﾆｵﾝ PA10-03
14 Y3021Z 1 UNION ﾕﾆｵﾝ PAX12-03
15 A3036A 1 PLUG 埋栓 3/8.
16 H1059T 1 VALVE, STOP ﾊﾞﾙﾌﾞ ｽﾄｯﾌﾟ RP-LL-3/8
17 H3201A 2 BKT BKT Y40L
18 S3060H 1 SPACER ｽﾍﾟｰｻ Y44-03
19 A10303 1 PRESSURE GAUGE 圧力計 G46-7-02
20 H1222A 1 PIPE, DOUBLE ENDED ﾊﾟｲﾌﾟ両口 1/4X80
21 HP43251 1 NIPPLE ﾆｯﾌﾟﾙ ･
IP-ⅢE PARTS LIST ver11 39 - 2
39.ｴｱｰ機器 1(QPZ)
39.Air device 1(QPZ)
IP-
III
E PARTS LIST ver11

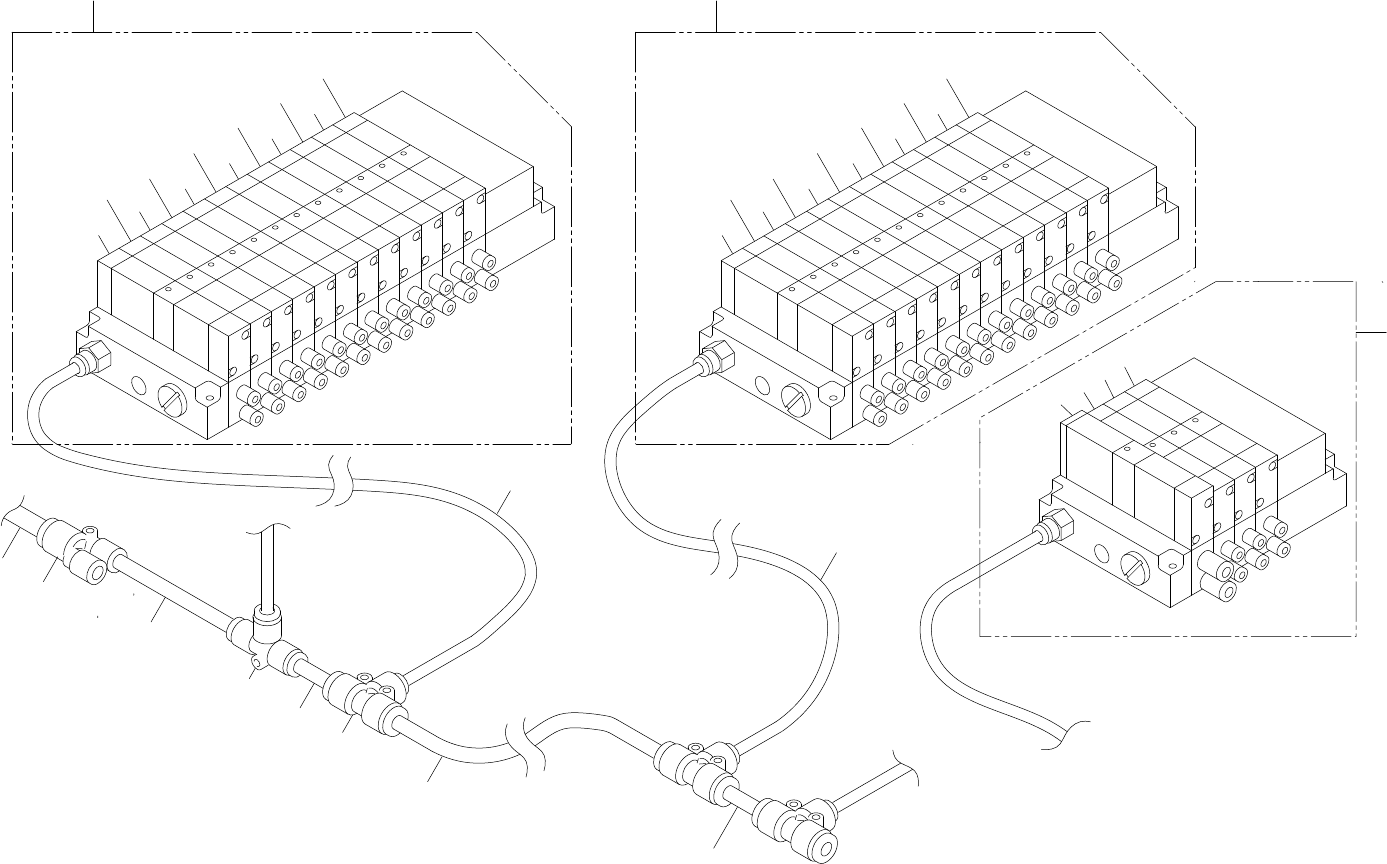

40.エアー機器 2(QPZ)
40.Air device 2(QPZ)
40 - 1
40.エアー機器 2(QPZ)
40.Air device 2(QPZ)
Ref.31-1
Ref.31-1
Ref.31-1
Ref.33-7
x3
1
6
5
4
3
2
17
18
7
8
9
10
11
12
13
14
15
16
22
21
2123
24
23
21
23
25
23
20
22
17
18
7
8
9
10
11
12
13
14
15
16
2
208
176
165
175
161
175
161
175
161
183
162
176
167
175
161
13
13
B
A
139
26
40.ｴｱｰ機器 2(QPZ)
40.Air device 2(QPZ)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
1 PPZ0112 1 VALVE, SOL ﾊﾞﾙﾌﾞ SOL 注1. Note.1
2 PPZ0132 2 VALVE, SOL(Nozzle Change) ﾊﾞﾙﾌﾞ SOL 注2. Note.2
3 H1066M 1 VALVE ﾊﾞﾙﾌﾞ 2 F1W110-4E1.DC24V
4 H1066M 1 VALVE ﾊﾞﾙﾌﾞ 3 F1W110-4E1.DC24V
5 H1066M 1 VALVE ﾊﾞﾙﾌﾞ 4 F1W110-4E1.DC24V
6 H1066T 1 VALVE, SOL ﾊﾞﾙﾌﾞ SOL 1 F1Y110-4ME2-81-DC24V
7 H1066T 2 VALVE, SOL ﾊﾞﾙﾌﾞ SOL 1 F1Y110-4ME2-81-DC24V
8 H1066T 2 VALVE, SOL ﾊﾞﾙﾌﾞ SOL 2 F1Y110-4ME2-81-DC24V Option
9 H1066T 2 VALVE, SOL ﾊﾞﾙﾌﾞ SOL 3 F1Y110-4ME2-81-DC24V
10 H1066T 2 VALVE, SOL ﾊﾞﾙﾌﾞ SOL 4 F1Y110-4ME2-81-DC24V
11 H1066T 2 VALVE, SOL ﾊﾞﾙﾌﾞ SOL 5 F1Y110-4ME2-81-DC24V
12 H1066T 2 VALVE, SOL ﾊﾞﾙﾌﾞ SOL 6 F1Y110-4ME2-81-DC24V
13 H1066T 2 VALVE, SOL ﾊﾞﾙﾌﾞ SOL 7 F1Y110-4ME2-81-DC24V
14 H1066T 2 VALVE, SOL ﾊﾞﾙﾌﾞ SOL 8 F1Y110-4ME2-81-DC24V Option
15 H1066T 2 VALVE, SOL ﾊﾞﾙﾌﾞ SOL 9 F1Y110-4ME2-81-DC24V Option
16 H1066T 2 VALVE, SOL ﾊﾞﾙﾌﾞ SOL 10 F1Y110-4ME2-81-DC24V Option
17 H1066T 2 VALVE, SOL ﾊﾞﾙﾌﾞ SOL 11 F1Y110-4ME2-81-DC24V Option
18 H1066T 2 VALVE, SOL ﾊﾞﾙﾌﾞ SOL 12 F1Y110-4ME2-81-DC24V Option
20 K50767 1 UNION ｺﾈｸﾀ KQ2U08-10
21 Y3023M 3 UNION ﾕﾆｵﾝ PEG8-6
22 T2063A 1 TUBE ﾁｭｰﾌﾞ TU0604B-20 5m
23 T2064A 1 TUBE ﾁｭｰﾌﾞ TU0805B-20 5m
24 T2065A 1 TUBE ﾁｭｰﾌﾞ TU1065B-20 5m
25 Y3041Z 1 UNION ﾕﾆｵﾝ KQT08-00
注1.ｺﾝﾍﾞｱ基板ﾘﾌﾀｰ用です。
Note.1 : For Conveyor Board Lifter
注2.ﾉｽﾞﾙﾁｪﾝｼﾞｬｰ用です。
Note.2 : For Nozzle Change ･
IP-ⅢE PARTS LIST ver11 40 - 2
40.ｴｱｰ機器 2(QPZ)
40.Air device 2(QPZ)
