58.MTU-4RE ﾌｪﾝｽ(QMK) 58.MTU-4RE Fence(QMK) 番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考 No. Drg.No. & Code No. QTY Description Rating Remarks 56 H5299A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X12L 57 H5297A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X8L 58 …
58.MTU-4RE ﾌｪﾝｽ(QMK)
58.MTU-4RE Fence(QMK)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
1 KPK6110 1 BKT BKT
6 QMK1040 1 PLATE, SW ﾌﾟﾚｰﾄ SW
7 QMK1090 1 PLATE, CONNECTING ﾌﾟﾚｰﾄ ﾂﾅｷﾞ
9 QMK1150 2 RETAINER, ACRYLIC 押え ｱｸﾘﾙ
10 QMK1170 2 RETAINER, ACRYLIC 押え ｱｸﾘﾙ
11 QMK1210 1 PLATE, CONNECTING ﾌﾟﾚｰﾄ ﾂﾅｷﾞ
12 QMK1220 1 BKT, CONNECTING BKT ﾂﾅｷﾞ
13 QMK1230 1 BKT, SW BKT SW
15 QMK1270 2 RETAINER, ACRYLIC 押え ｱｸﾘﾙ
16 QMK1280 2 RETAINER, ACRYLIC 押え ｱｸﾘﾙ
17 QMK1291 1 BKT, RETAINER BKT 押え
18 QMK1301 1 FENCE, FRONT ﾌｪﾝｽ ﾌﾛﾝﾄ
19 QMK1310 1 COVER, PROTECTIVE ｶﾊﾞｰ 保護
20 QMK1320 1 COVER ｶﾊﾞｰ
22 QMK1350 1 BKT, FENCE BKT ﾌｪﾝｽ
23 QMK1370 1 PLATE ﾌﾟﾚｰﾄ
24 QMK1410 1 BKT, CONNECTING BKT ﾂﾅｷﾞ
25 QMK1420 1 BKT BKT
26 QMK1440 1 BKT, SW BKT SW
27 QMK3170 1 BKT, SW BKT SW
30 QMK3040 1 STAY ｽﾃｰ
31 QMK3050 1 PLATE ﾌﾟﾚｰﾄ
32 QMK3070 1 BKT, OPERATION BOX BKT 操作BOX
33 KPK3160 1 NUT, HEX ﾅｯﾄ 六角
39 S31970 2 SW, LIMIT SW ﾘﾐｯﾄ XCS-A501
40 S31973 2 SW, LIMIT SW ﾘﾐｯﾄ XCS-Z03
43 K5178L SCREW, C/R PAN 小ﾈｼﾞ 十穴鍋 M3X5L
44 K5214A SCREW, TRUSS 小ﾈｼﾞ ﾄﾗｽ M5X8L
45 W1024A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M
46 W1023A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M
47 W1022A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M
48 W1021A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 3M/M
49 W1045A WASHER, FLAT ﾜｯｼｬ 平 4W-6
50 W1044A WASHER, FLAT ﾜｯｼｬ 平 4W-5
51 W1042A WASHER, FLAT ﾜｯｼｬ 平 4W-3
52 H5322A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X15L
53 H5321A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X12L
54 H5319H BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X8L
55 H5300A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X15L
IP-ⅢE PARTS LIST ver11 58 - 2
58.MTU-4RE ﾌｪﾝｽ(QMK)
58.MTU-4RE Fence(QMK)
58.MTU-4RE ﾌｪﾝｽ(QMK)
58.MTU-4RE Fence(QMK)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
56 H5299A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X12L
57 H5297A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X8L
58 H5289A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M4X12L
59 K5049S 2 CONNECTOR ｺﾈｸﾀ STR13.5
61 T5003N 1 HANDLE 取手 THA-239No.7
62 N1004C 2 WASHER ﾜｯｼｬ THA-272No.3
63 T5016T 1 HANDLE, ROUND 取手 丸 THA-32No.3
64 M1012C 1
MAGNET CATCH
ﾏｸﾞﾈｯﾄｷｬｯﾁ TL-272No.1
65 M1013T 2
MAGNET CATCH
ﾏｸﾞﾈｯﾄｷｬｯﾁ TL-273No.2
66 H5145H 2
BOLT, LEVELING
ﾎﾞﾙﾄ ﾚﾍﾞﾘﾝｸﾞ TM-257No.3
67 QMK3131 1 DOOR 扉
68 QMK3100 1 FENCE ﾌｪﾝｽ Option
69 QMK3110 1 FENCE ﾌｪﾝｽ Standard
70 QMK3121 1 FENCE ﾌｪﾝｽ
71 QMK3140 1 BKT, CONNECTING BKT ﾂﾅｷﾞ
72 AQMK3150 1 COVER, ACRYLIC ｶﾊﾞｰ ｱｸﾘﾙ
73 AQMK3160 1 COVER, ACRYLIC ｶﾊﾞｰ ｱｸﾘﾙ ･
IP-ⅢE PARTS LIST ver11 58 - 3
58.MTU-4RE ﾌｪﾝｽ(QMK)
58.MTU-4RE Fence(QMK)
IP-
III
E PARTS LIST ver11

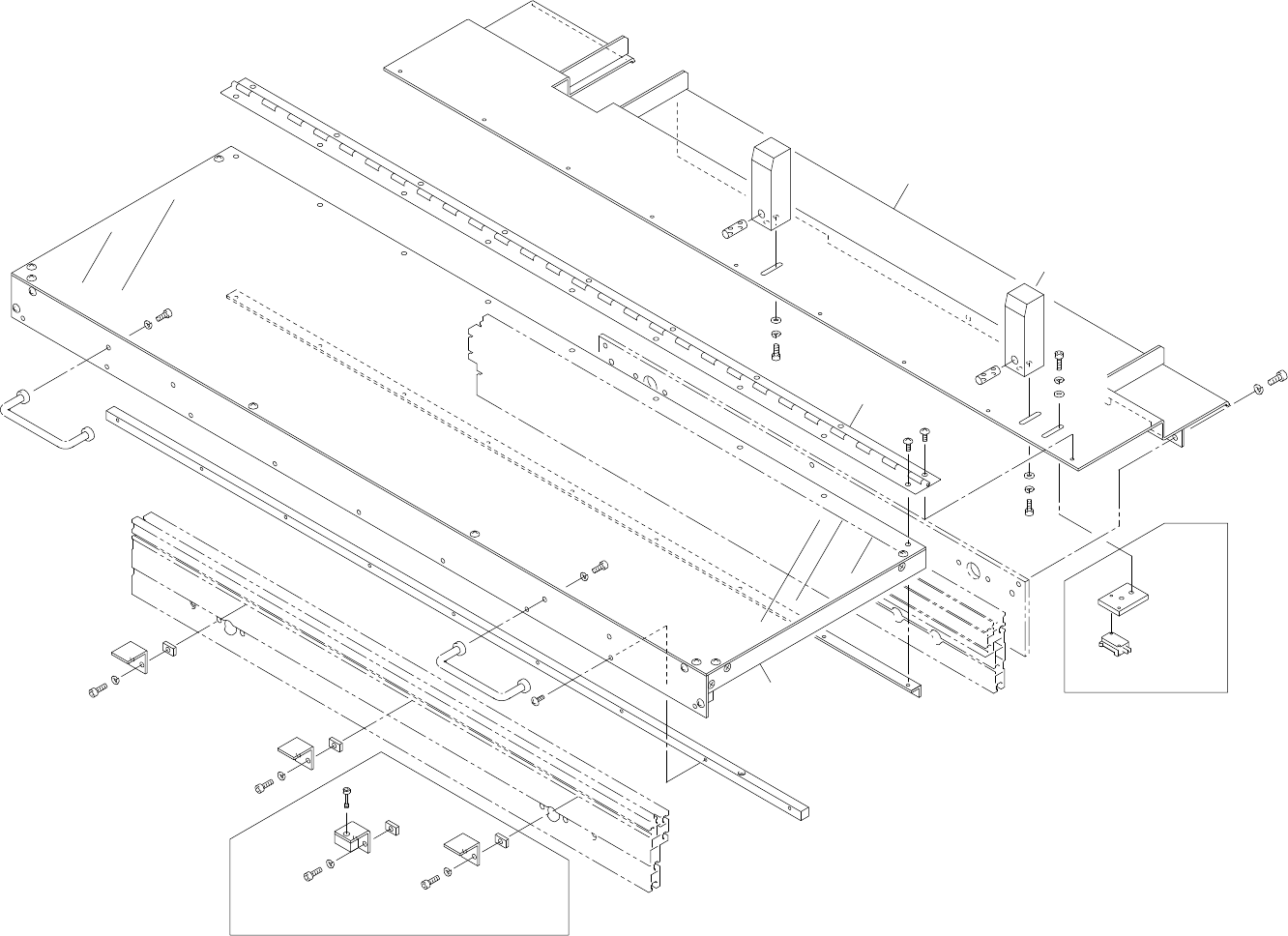

59.1.MTU-4RE コンベア(カバー)(QMK)
59.1.MTU-4RE Conveyor(Cover)(QMK)
59 - 1
59.1.MTU-4RE コンベア(カバー)(QMK)
59.1.MTU-4RE Conveyor(Cover)(QMK)
Ref.31-1
Ref.31-1
Ref.31-1
Ref.33-7
SW付き
ボルト締め
SW付きのみ
Bolt type latch Switch type latch
Only for switch type latch
10
6
16
20
10
9
16
20
8
10
6
16
20
22
23
16
20
24
3
23
16
20
17
16
19
11
5
22
22
1
21
16
17
11
17
16
19
15
18
7
13,14
2
x6
208
176
165
175
161
175
161
175
161
183
162
176
167
175
161
13
13
B
A
139
26
12
12
