IP- III E P ARTS LIST ver1 1 6 3 . M T U - 4 L E 本体、カバー( Q U A ) ( Q U K ) 6 3 . M T U - 4 L E B o d y , C o v e r ( Q U A ) ( Q U K ) 6 3 - 1 6 3 . M T U - 4 L E 本体、カバー( Q U A ) ( Q U K ) 6 3 . M T U - 4 L E B o d y , C…

100%1 / 295
62.空ﾄﾚｲ収納装置(QMB)
62.Empty tray discharge unit(QMB)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
40 W1024A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M
41 W1025A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 8M/M
42 W1026A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 10M/M
43 W1042A WASHER, FLAT ﾜｯｼｬ 平 4W-3
44 W1044A WASHER, FLAT ﾜｯｼｬ 平 4W-5
45 W1046A WASHER, FLAT ﾜｯｼｬ 平 4W-8
46 W1047A WASHER, FLAT ﾜｯｼｬ 平 4W-10
47 W1013A WASHER, CONICAL ﾜｯｼｬ 皿 M-6-H
48 H5275A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M3X8L
49 H5278A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M3X15L
50 H5298A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X10L
51 H5299A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X12L
52 H5300A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M5X15L
53 H5319H BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X8L
54 H5322A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X15L
55 H5327A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X30L
56 H5329A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X35L
57 H5330A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M6X40L
58 . BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M8X12L
59 H5341A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M8X20L
60 H5362A BOLT, HEX SOCKET ﾎﾞﾙﾄ 六角穴 M10X35L
61 K51711 SCREW, C/R TRUSS 小ﾈｼﾞ 十穴ﾄﾗｽ M5X6L ･
IP-ⅢE PARTS LIST ver11 62 - 3
62.空ﾄﾚｲ収納装置(QMB)
62.Empty tray discharge unit(QMB)
IP-
III
E PARTS LIST ver11

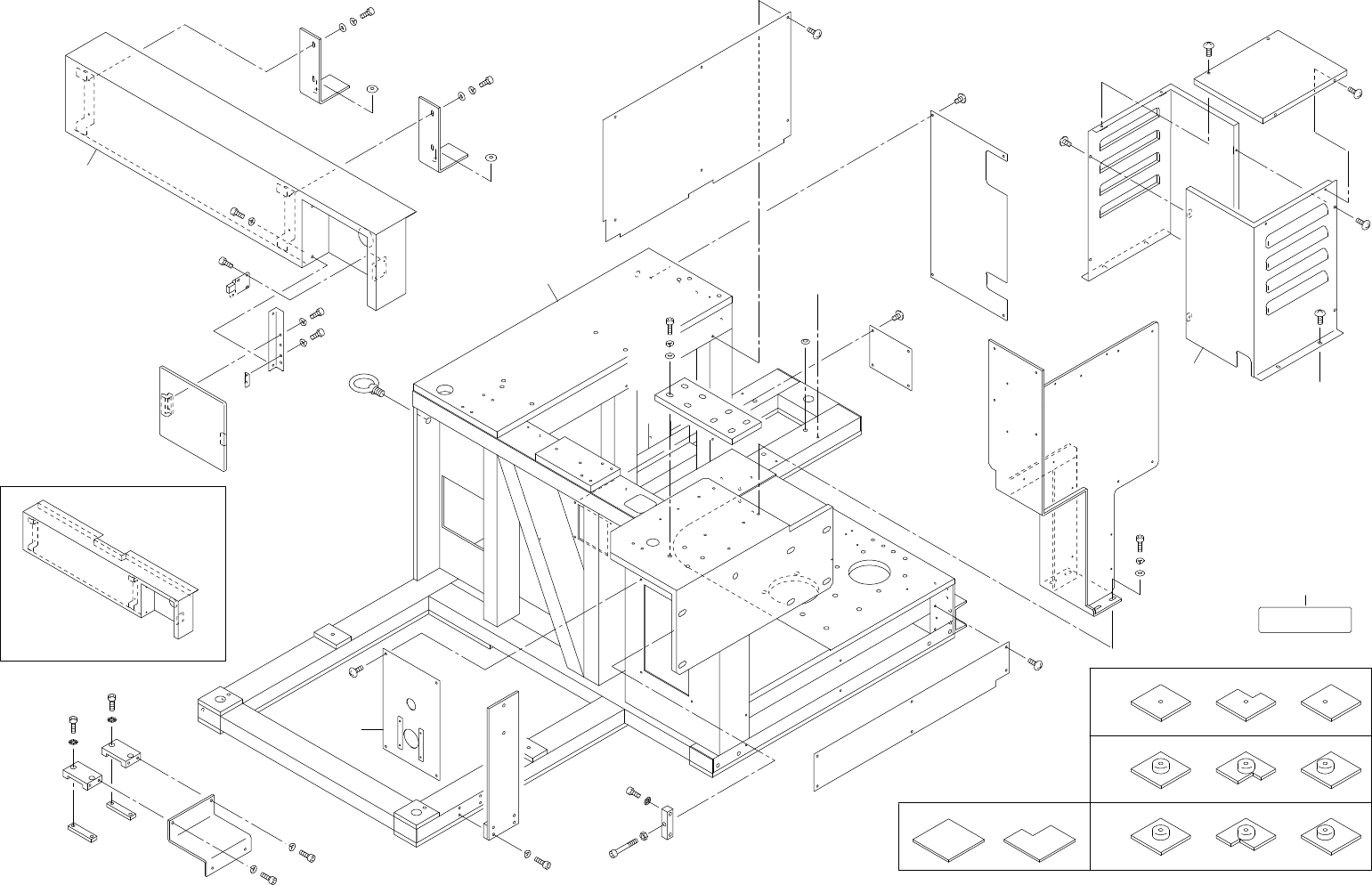

63.MTU-4LE 本体、カバー(QUA)(QUK)
63.MTU-4LE Body,Cover(QUA)(QUK)
63 - 1
63.MTU-4LE 本体、カバー(QUA)(QUK)
63.MTU-4LE Body,Cover(QUA)(QUK)
Ref.31-1
Ref.31-1
Ref.31-1
Ref.33-7
A
A
49
50
43
44
45
46
48
47
26
18
26
26
26
17
26
16
11
26
13
26
7
9
26
35
27
30
3
1
51
38
28
31
26
22
36
33
6
34
12
28
37
26
10
2
28
38
36
33
4
5
8
40
29
14
24
15
25
42
29
41
20
57
23
21
32
29
39
H=965
H=950
H=912
52 53
54
55
MTU-4LE
x12
208
176
165
175
161
175
161
175
161
183
162
176
167
175
161
13
13
B
A
139
26
テレメカSW用
HELPS
Switch type latch
63.MTU-4LE 本体,ｶﾊﾞｰ(QUA)(QUK)
63.MTU-4LE Body,Cover(QUA)(QUK)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
1 QUA0015 1 BED ﾍﾞｯﾄﾞ
2 QUA0020 1 BKT, CONNECTING BKT ﾂﾅｷﾞ
3 QMA1770 1 PLATE, JOINT ﾌﾟﾚｰﾄ ｼﾞｮｲﾝﾄ
4 KPT0130 2 BLOCK ﾌﾞﾛｯｸ
5 KPT0140 2 PLATE ﾌﾟﾚ-ﾄ
6 KPT0210 1 BKT, ADJUSTING BKT 調製
7 W1037A 4 WASHER, BEVELED ﾜｯｼｬ ﾃｰﾊﾟ 10mm
8 H5122A 2
BOLT, EYE
ﾎﾞﾙﾄ ｱｲ M16
9 QUK0020 1 COVER ｶﾊﾞｰ
10 QUK0030 1 COVER ｶﾊﾞｰ
11 QUK0040 1 COVER ｶﾊﾞｰ
12 QUK0100 1 VALVE, STAND ﾊﾞﾙﾌﾞｽﾀﾝﾄﾞ
13 QUK0110 1 COVER ｶﾊﾞｰ
14 QUK0330 1 BKT BKT
15 QUK0340 1 DOOR 扉
16 QUK0380 1 COVER ｶﾊﾞｰ
17 QUK0390 1 COVER ｶﾊﾞｰ
18 QUK0400 1 COVER ｶﾊﾞｰ
20 QUK0471 1 COVER, ACCENT ｶﾊﾞｰ ｱｸｾﾝﾄ
21 QUK0480 2 BKT, COVER BKT ｶﾊﾞｰ
22 QMK0042 1 COVER ｶﾊﾞｰ
23 KPA0690 2 WASHER ﾜｯｼｬ
24 IPK5390 1 STOPPER ｽﾄｯﾊﾟ
25 M1009A 1 MAGNET CATCH ﾏｸﾞﾈｯﾄｷｬｯﾁ C-954-2
26 K5214A
SCREW, TRUSS
小ﾈｼﾞ ﾄﾗｽ       
M5X8L
27 W1026A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ     
10M/M
28 W1024A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ     
6M/M
29 W1023A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ     
5M/M
30 W1047A
WASHER, FLAT
ﾜｯｼｬ 平         
4W-10
31 W1045A
WASHER, FLAT
ﾜｯｼｬ 平         
4W-6
32 W1044A
WASHER, FLAT
ﾜｯｼｬ 平         
4W-5
33 W1014A
WASHER, CONICAL
ﾜｯｼｬ 皿         
M-8-H
34 N4075A SCREW, HEX SOCKET SET ﾈｼﾞ六角穴止め M10X40L
35 H5361A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M10X30L
36 H5341A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M8X20L
37 H5326A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M6X25L
38 H5322A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M6X15L
39 .
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M5X15L
40 H5298A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴        
M5X10L
IP-ⅢE PARTS LIST ver11 63 - 2
63.MTU-4LE 本体,ｶﾊﾞｰ(QUA)(QUK)
63.MTU-4LE Body,Cover(QUA)(QUK)
