IP- III E P ARTS LIST ver1 1 7 1 . 1 . M T U - 4 L E コンベアカバー( Q U K ) 7 1 . 1 . M T U - 4 L E C o n v e y o r c o v e r ( Q U K ) 7 1 - 1 7 1 . 1 . M T U - 4 L E コンベアカバー( Q U K ) 7 1 . 1 . M T U - 4 L E C o n v e y o r c…
70.MTU-4LE ﾌｪﾝｽ(QUK)
70.MTU-4LE Fence(QUK)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
42 H5145H 2
BOLT, LEVELING
ﾎﾞﾙﾄ ﾚﾍﾞﾘﾝｸﾞ TM-257No.3
43 K5214A
SCREW, TRUSS
小ﾈｼﾞ ﾄﾗｽ
M5X8L
44 W1024A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ
6M/M
45 W1023A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ
5M/M
46 W1022A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ
4M/M
47 W1021A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ
3M/M
48 W1045A
WASHER, FLAT
ﾜｯｼｬ 平
4W-6
49 W1044A
WASHER, FLAT
ﾜｯｼｬ 平
4W-5
50 W1042A
WASHER, FLAT
ﾜｯｼｬ 平
4W-3
51 H5322A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M6X15L
52 H5320A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M6X10L
53 H5300A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M5X15L
54 H5299A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M5X12L
55 H5297A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M5X8L
56 H5294A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M4X30L
57 H5289A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M4X12L
58 H5275A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M3X8L
59 H5274A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M3X6L
60 QUK3010 1 FENCE ﾌｪﾝｽ For MTU-L
61 QUK3020 1 FENCE ﾌｪﾝｽ For MTU-L
62 QUK3030 1 BKT, CONNECTING BKT つなぎ For MTU-L
63 PPK3080 2 STAND ｽﾀﾝﾄﾞ For MTU-L
64 QMK3020 1 PLATE, FIXED ﾌﾟﾚｰﾄ 固定 For MTU-L
65 PPK3120 1 PLATE, FIXED ﾌﾟﾚｰﾄ 固定 For MTU-L
66 AQUK3040 1 COVER, ACRYLIC ｶﾊﾞｰ ｱｸﾘﾙ ･
IP-ⅢE PARTS LIST ver11 70 - 3
70.MTU-4LE ﾌｪﾝｽ(QUK)
70.MTU-4LE Fence(QUK)
IP-
III
E PARTS LIST ver11

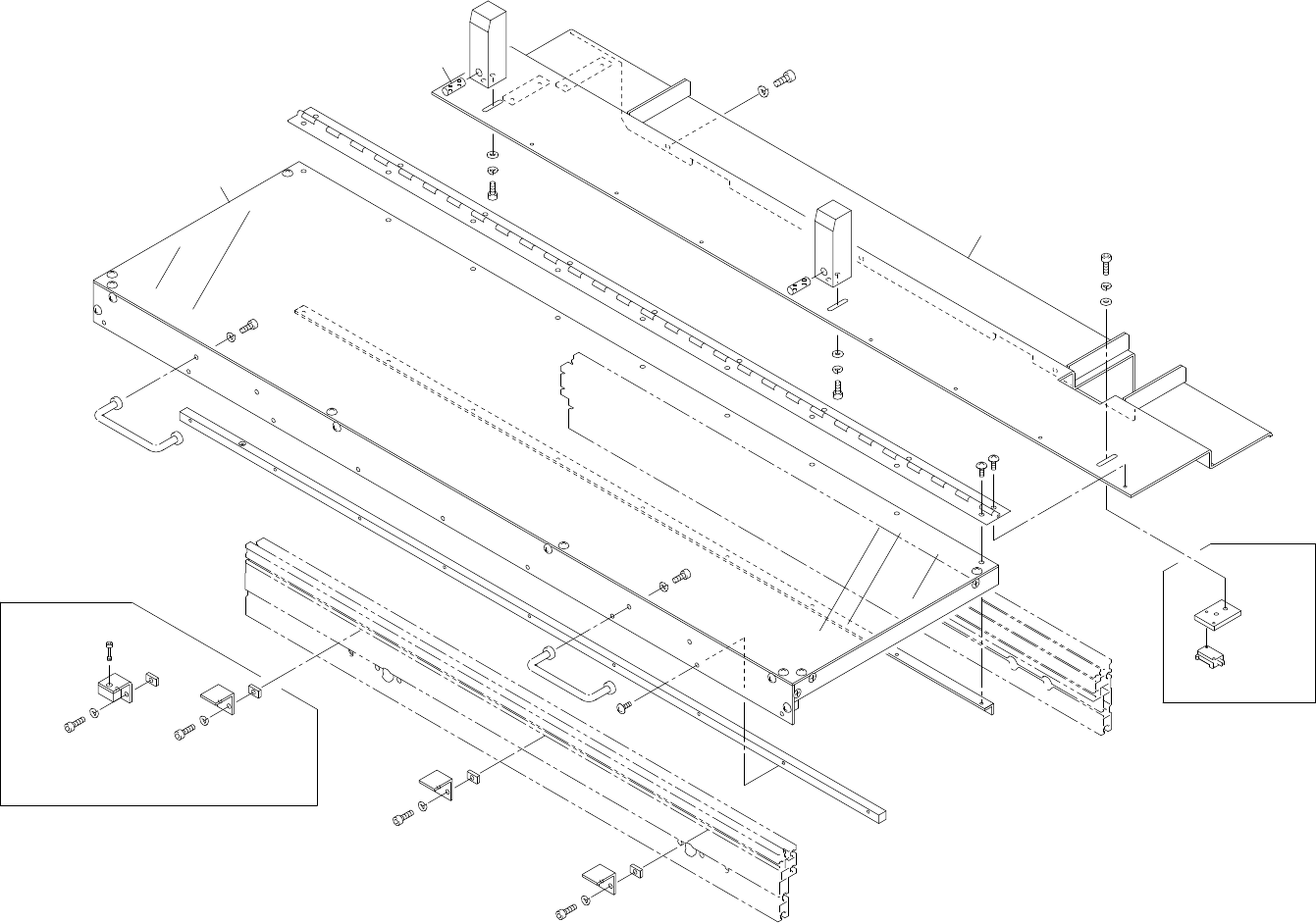

71.1.MTU-4LE コンベアカバー(QUK)
71.1.MTU-4LE Conveyor cover(QUK)
71 - 1
71.1.MTU-4LE コンベアカバー(QUK)
71.1.MTU-4LE Conveyor cover(QUK)
Ref.31-1
Ref.31-1
Ref.31-1
Ref.33-7
SW付きボルト締め
Bolt type latch Switch type latch
Only for switch type latch
SW付きのみ
7
12,13
3
2
8
6
17
21
8
6
17
21
8
11
17
21
10
14
15
17
21
14
17
21
23
4
18
17
20
9
16
19
9
18
17
20
5
15
15
18
17
22
x6.5
208
176
165
175
161
175
161
175
161
183
162
176
167
175
161
13
13
B
A
139
26
25
25
71.MTU-4LE ｺﾝﾍﾞｱ(ｶﾊﾞｰ)(QUK)
71.MTU-4LE Conveyor(Cover)(QUK)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
1 QUK2010 1 COVER, CONVEYOR ｶﾊﾞｰ ｺﾝﾍﾞｱ
2 QUK2090 1 BKT, COVER BKT ｶﾊﾞｰ
3 QUK2030 1 BAR ﾊﾞｰ
4 QUK2041 1 HINGE 蝶番
5 QUK2051 1 BKT, COVER BKT ｶﾊﾞｰ
6 QPK3150 2 HOLDER 受け
7 QPK3160 1 BKT, SW BKT, SW
8 IQC6072 6 NUT ﾅｯﾄ
9 CLC4251 2 STOPPER ｽﾄｯﾊﾟ
10 QUK2100 1 BKT BKT
11 QMK2110 1 COVER ｶﾊﾞｰ
12 CLC9600 1 NUT ﾅｯﾄ
13 N2029Z 1 NIPPLE ﾆｯﾌﾟﾙ STR13.5
14 T5011S 2
HANDLE
取手
TTHA-00425
15 K5208A
SCREW, TRUSS
小ﾈｼﾞ ﾄﾗｽ
M4X6L
16 W1024A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ
6M/M
17 W1023A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ
5M/M
18 W1044A
WASHER, FLAT
ﾜｯｼｬ 平
4W-5
19 H5320A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M6X10L
20 H5304A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M5X25L
21 H5299A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴
M5X12L
22 H5209A
SCREW, TRUSS
小ﾈｼﾞ ﾄﾗｽ
M4X8L
23 AQUK2070 1 COVER, CONVEYOR ｶﾊﾞｰ ｺﾝﾍﾞｱ ･
24 CLC4261 2 NUT, ROUND ﾅｯﾄ 丸
25 S31970 1 SW, LIMIT SW ﾘﾐｯﾄ XCS-A501
26 S31973 1 SW, LIMIT SW ﾘﾐｯﾄ XCS-Z03
27 W1022A
WASHER, LOCK
ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ
4M/M
28 W1043A
WASHER, FLAT
ﾜｯｼｬ 平
4W-4
29 H5288A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M4X10L
30 H5290A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M4X15L
31 H5294A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M4X30L
32 H5296A
BOLT, HEX SOCKET
ﾎﾞﾙﾄ 六角穴 M4X40L
33 H5210A
SCREW, TRUSS
小ﾈｼﾞ ﾄﾗｽ
M4X8L
34 IPK5580 1 SEAL ｼｰﾙ Jpanese
35 IPK5590 1 SEAL ｼｰﾙ English
36 IPK5600 1 SEAL ｼｰﾙ French
IP-ⅢE PARTS LIST ver11
71 - 2
71.MTU-4LE ｺﾝﾍﾞｱ(ｶﾊﾞｰ)(QUK)
71.MTU-4LE Conveyor(Cover)(QUK)
