IP- III E P ARTS LIST ver1 1 8 3 . イメージセンサカメラ( 小視野用) ( 4 4 0 0 1 0 M H z ) N o . 2 ( オプション) ( Q C A ) 8 3 . I m a g e s e n s o r c a m e r a ( F o r n a r r o w v i e w ) ( 4 4 0 0 1 0 M H z ) N o . 2 ( O p t i o n ) ( …
82.ｲﾒｰｼﾞｾﾝｻｶﾒﾗ(小視野用)(4400 10MHZ)No.1(ｵﾌﾟｼｮﾝ)(QCA)
82.Image sensor camera(For narrow view)(4400 10MHZ)No.1(option)(QCA)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
41 W1013A WASHER, CONICAL ﾜｯｼｬ 皿 M-6-H
42 H5327A BOLT, HEX SOCKET ﾎﾞﾙﾄ六角穴 M6X30L
43 H5326A BOLT, HEX SOCKET ﾎﾞﾙﾄ六角穴 M6X25L
44 H5321A BOLT, HEX SOCKET ﾎﾞﾙﾄ六角穴 M6X12L
45 H5322A BOLT, HEX ﾎﾞﾙﾄ六角 M6X15L
46 H5304A BOLT, HEX SOCKET ﾎﾞﾙﾄ六角穴 M5X25L
47 H5301A BOLT, HEX SOCKET ﾎﾞﾙﾄ六角穴 M5X18L
48 H5175A BOLT, HEX ﾎﾞﾙﾄ六角 M5X10L
49 H5293A BOLT, HEX SOCKET ﾎﾞﾙﾄ六角穴 M4X25L
50 H5291A BOLT, HEX SOCKET ﾎﾞﾙﾄ六角穴 M4X18L
51 H5289A BOLT, HEX SOCKET ﾎﾞﾙﾄ六角穴 M4X12L
52 H5287A BOLT, HEX SOCKET ﾎﾞﾙﾄ六角穴 M4X8L
53 H5279A BOLT, HEX SOCKET ﾎﾞﾙﾄ六角穴 M3X20L
54 H5294A BOLT, HEX SOCKET ﾎﾞﾙﾄ六角穴 M4X30L
55 H5275A BOLT, HEX SOCKET ﾎﾞﾙﾄ六角穴 M3X8L
56 H5274A BOLT, HEX SOCKET ﾎﾞﾙﾄ六角穴 M3X6L
57 N1080A NUT, HEX ﾅｯﾄ 六角 M4 P=0.7
58 N1076A NUT, HEX ﾅｯﾄ 六角 M3 P=0.5
59 W1010A WASHER, CONICAL ﾜｯｼｬ 皿 M-3-L
60 W1041A WASHER, FLAT ﾜｯｼｬ 平 1W-4
61 H5285A BOLT, HEX SOCKET ﾎﾞﾙﾄ六角穴 M4X5L
62 H5276A BOLT, HEX ﾎﾞﾙﾄ六角 M5X12L
63 K5204A SCREW, TRUSS 小ﾈｼﾞ ﾄﾗｽ M3X8L
IP-ⅢE PARTS LIST ver11 82 - 3
82.ｲﾒｰｼﾞｾﾝｻｶﾒﾗ(小視野用)(4400 10MHZ)No.1(ｵﾌﾟｼｮﾝ)(QCA)
82.Image sensor camera(For narrow view)(4400 10MHZ)No.1(option)(QCA)
IP-
III
E PARTS LIST ver11

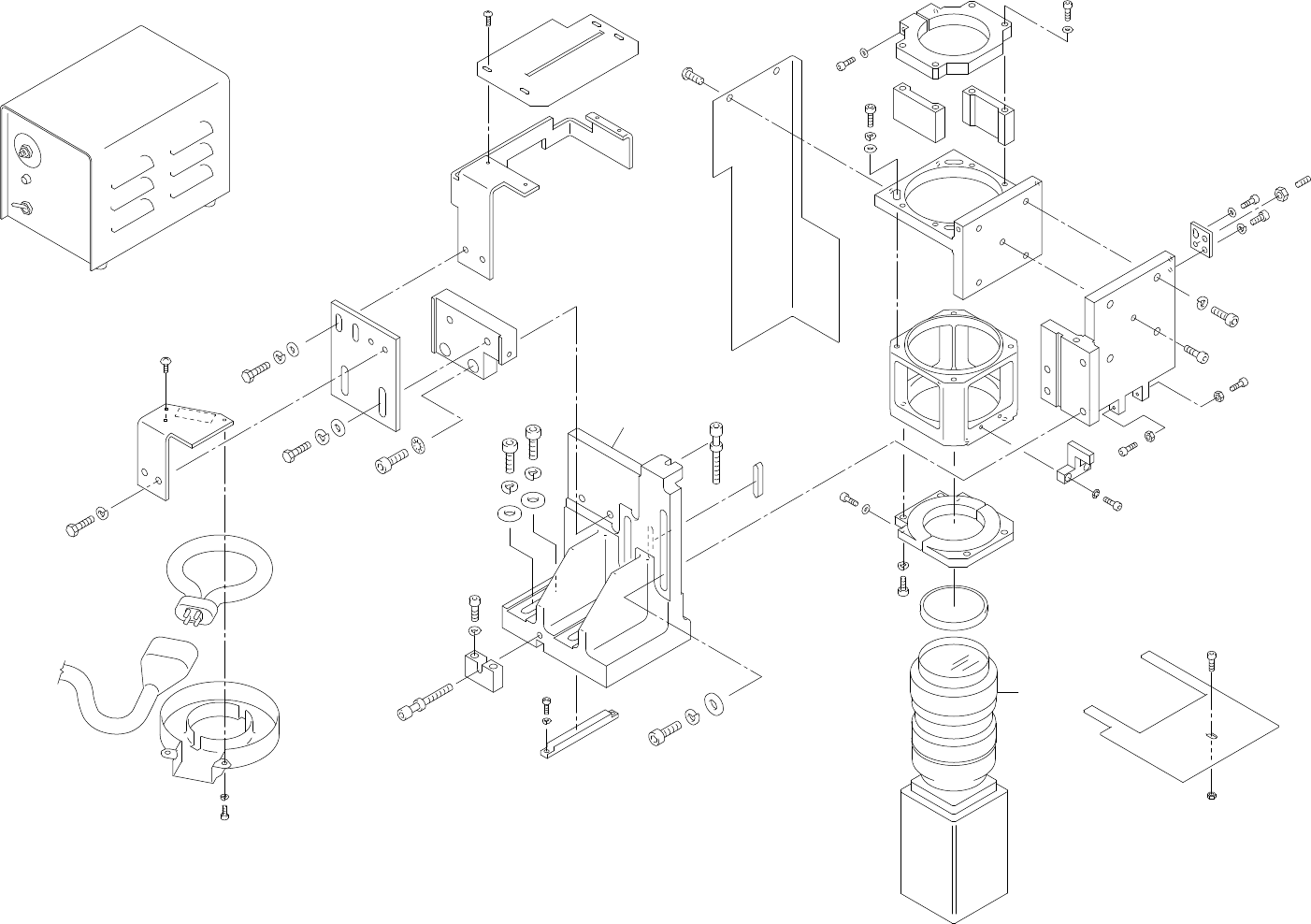

83.イメージセンサカメラ(小視野用)(4400 10MHz)No.2(オプション)(QCA)
83.Image sensor camera(For narrow view)(4400 10MHz)No.2(Option)(QCA)
83 - 1
83.イメージセンサカメラ(小視野用)(4400 10MHz)No.2(オプション)(QCA)
83.Image sensor camera(For narrow view)(4400 10MHz)No.2(Option)(QCA)
Ref.31-1
Ref.31-1
Ref.31-1
Ref.33-7
x4
22
24
23
208
176
165
175
161
175
161
175
161
183
162
176
167
175
161
13
13
B
A
139
26
62
60
60
49
8
50
39
36
2
4
57
33
36
51
38
47
7
58
53
58
53
9
59
55
3
12
39
51
60
54
11
19
13
8
6
30
37
43
1
19
55
40
21
15
30
37
42
10
18
35
38
48
34
37
45
41
44
38
63
25
27
5
26
40
56
31
17
16
28
32
14
20
38
46
61
57
39
52
64
83.ｲﾒｰｼﾞｾﾝｻｶﾒﾗ(小視野用)(4400 10MHZ)No.2(ｵﾌﾟｼｮﾝ)(QCA)
83.Image sensor camera(For narrow view)(4400 10MHZ)No.2(option)(QCA)
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 備考
No. Drg.No. & Code No. QTY Description Rating Remarks
1 QCA1051 1 BKT BKT
2 QCA1071 1 HOUSING ﾊｳｼﾞﾝｸﾞ
3 QCA1110 1 PLATE ﾌﾟﾚｰﾄ
4 QCA1190 1 RING, TIGHTENING ﾘﾝｸﾞ 締付け
5 QCA1131 1 COVER ｶﾊﾞｰ
6 QCA1211 1 BKT BKT
7 QCA1220 1 BKT BKT
8 QCA1230 2 PLATE ﾌﾟﾚｰﾄ
9 QCA1240 1 BLOCK, LOCATING ﾌﾞﾛｯｸ 位置決め
10 QCA1251 1 PLATE ﾌﾟﾚｰﾄ
11 QCA1322 1 COVER ｶﾊﾞｰ
12 QCA1550 1 RING, TIGHTENING ﾘﾝｸﾞ 締付け
13 JRG0391 1 KEY ｷｰ
14 PCA0301 1 COVER ｶﾊﾞｰ
15 PCA0480 1 BLOCK, LOCATING ﾌﾞﾛｯｸ 位置決め
16 PCA1151 1 BKT BKT
17 PCA1161 1 PLATE, DISPERSION ﾌﾟﾚｰﾄ 拡散
18 PCA1172 1 PLATE ﾌﾟﾚｰﾄ
19 ICA0082 2 BOLT ﾎﾞﾙﾄ
20 ICA0110 1 BOLT ﾎﾞﾙﾄ
21 KCA0110 1 KEY ｷｰ
22 H3018Z 1 FILTER ﾌｨﾙﾀ UVﾌｨﾙﾀ φ52
23 K1128N 1 CAMERA, IMAGE SENSOR ｶﾒﾗｲﾒｰｼﾞｾﾝｻ YD2048N
24 R4013H 1 LENS ﾚﾝｽﾞ 50mm ﾏｸﾛF2.8
25 APCA1243 1 BKT, SUPPORT BKT 支え
26 K40174 1 CABLE ｹｰﾌﾞﾙ HF8013MFU
27 R10203 1 LAMP ﾗﾝﾌﾟ 80-B(N-EX)
28 T4146H 1 POWER SUPPLY 電源 EF8024-NC
29
30 EM42301 WASHER, FLAT ﾜｯｼｬ 平
31 K5201E SCREW, TRUSS 小ﾈｼﾞ ﾄﾗｽ M2.6X6L
32 K5208A SCREW, TRUSS 小ﾈｼﾞ ﾄﾗｽ M4X6L
33 N4031A SCREW, HEX SOCKET SET ﾈｼﾞ六角止め M4X10L
34 W1045A WASHER, FLAT ﾜｯｼｬ 平 4W-6
35 W1044A WASHER, FLAT ﾜｯｼｬ 平 4W-5
36 W1043A WASHER, FLAT ﾜｯｼｬ 平 4W-4
37 W1024A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 6M/M
38 W1023A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 5M/M
39 W1022A WASHER, LOCK ﾜｯｼｬ ｽﾌﾟﾘﾝｸﾞ 4M/M
IP-ⅢE PARTS LIST ver11 83 - 2
83.ｲﾒｰｼﾞｾﾝｻｶﾒﾗ(小視野用)(4400 10MHZ)No.2(ｵﾌﾟｼｮﾝ)(QCA)
83.Image sensor camera(For narrow view)(4400 10MHZ)No.2(option)(QCA)
